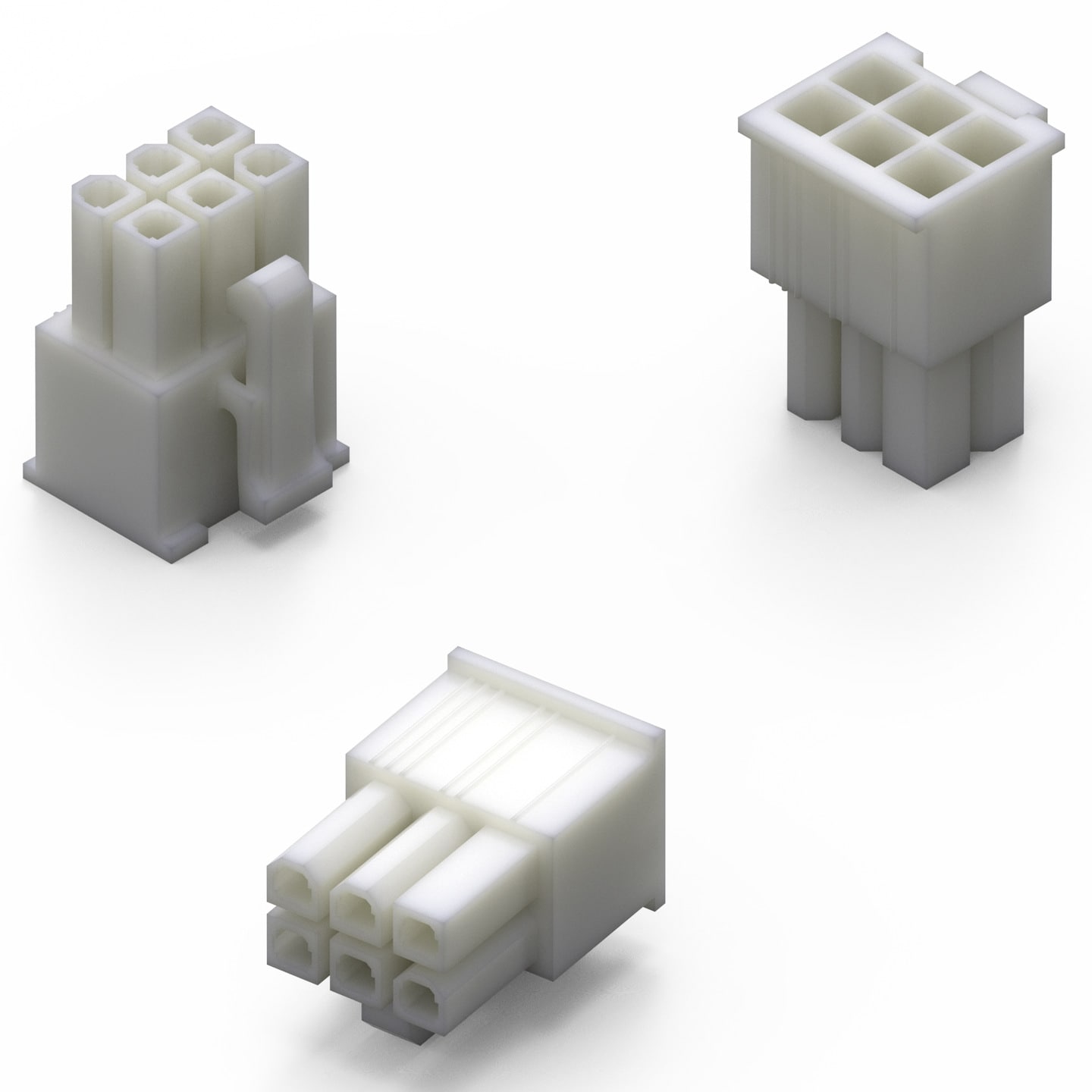

WR-MPC4 4.20 mm Female Dual Row Plug

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	White

General Information
Operating Temperature	-40 °C up to +105 °C
Withstanding Voltage	1500 V (AC)
R_ISO	1000 MΩ
Pitch	4.2 mm
Gender	Female

Certification
UL Approval	E323964

Wire Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Rows	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples
649002113322	SPEC	3 files CAD files ZIP 3D 649002113322_1 (rev1).pdf \| 51.1 KB IGS 649002113322 (rev1).iges \| 868.1 KB STP 649002113322 (rev1).stp \| 199.6 KB Download all 3 files as zip archive ZIP	2	4.2	Female	Receptacle Housing	Dual	Cable	5.4	Bag	649001
649004113322	SPEC	3 files CAD files ZIP 3D 649004113322_1 (rev1).pdf \| 84.8 KB IGS 649004113322 (rev1).iges \| 1.5 MB STP 649004113322 (rev1).stp \| 346.7 KB Download all 3 files as zip archive ZIP	4	4.2	Female	Receptacle Housing	Dual	Cable	9.6	Bag	649001
649006113322	SPEC	3 files CAD files ZIP 3D 649006113322_1 (rev1).pdf \| 125.8 KB IGS 649006113322 (rev1).iges \| 2.2 MB STP 649006113322 (rev1).stp \| 509.6 KB Download all 3 files as zip archive ZIP	6	4.2	Female	Receptacle Housing	Dual	PCB	13.8	Bag	649001
649008113322	SPEC	3 files CAD files ZIP 3D 649008113322_1 (rev1).pdf \| 154.1 KB IGS 649008113322 (rev1).iges \| 2.8 MB STP 649008113322 (rev1).stp \| 658.4 KB Download all 3 files as zip archive ZIP	8	4.2	Female	Receptacle Housing	Dual	Cable	18	Bag	649001
649010113322	SPEC	3 files CAD files ZIP 3D 649010113322_1 (rev1).pdf \| 184.8 KB IGS 649010113322 (rev1).iges \| 3.4 MB STP 649010113322 (rev1).stp \| 805.3 KB Download all 3 files as zip archive ZIP	10	4.2	Female	Receptacle Housing	Dual	Cable	22.2	Bag	649001
649012113322	SPEC	3 files CAD files ZIP 3D 649012113322_1 (rev1).pdf \| 215 KB IGS 649012113322 (rev1).iges \| 4 MB STP 649012113322 (rev1).stp \| 966.7 KB Download all 3 files as zip archive ZIP	12	4.2	Female	Receptacle Housing	Dual	Cable	26.4	Bag	649001
649014113322	SPEC	3 files CAD files ZIP 3D 649014113322_1 (rev1).pdf \| 245.7 KB IGS 649014113322 (rev1).iges \| 4.6 MB STP 649014113322 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	14	4.2	Female	Receptacle Housing	Dual	Cable	30.6	Bag	649001
649016113322	SPEC	3 files CAD files ZIP 3D 649016113322_1 (rev1).pdf \| 276.6 KB IGS 649016113322 (rev1).iges \| 5.2 MB STP 649016113322 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	16	4.2	Female	Receptacle Housing	Dual	Cable	34.8	Bag	649001
649018113322	SPEC	3 files CAD files ZIP 3D 649018113322_1 (rev1).pdf \| 306.7 KB IGS 649018113322 (rev1).iges \| 5.8 MB STP 649018113322 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	18	4.2	Female	Receptacle Housing	Dual	Cable	39	Bag	649001
649020113322	SPEC	3 files CAD files ZIP 3D 649020113322_1 (rev1).pdf \| 337.7 KB IGS 649020113322 (rev1).iges \| 6.5 MB STP 649020113322 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	20	4.2	Female	Receptacle Housing	Dual	Cable	43.2	Bag	649001
649022113322	SPEC	3 files CAD files ZIP 3D 649022113322_1 (rev1).pdf \| 367.9 KB IGS 649022113322 (rev1).iges \| 7.1 MB STP 649022113322 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	22	4.2	Female	Receptacle Housing	Dual	Cable	47.4	Bag	649001
649024113322	SPEC	3 files CAD files ZIP 3D 649024113322_1 (rev1).pdf \| 399.6 KB IGS 649024113322 (rev1).iges \| 7.7 MB STP 649024113322 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	24	4.2	Female	Receptacle Housing	Dual	Cable	51.6	Bag	649001

Order Code	Datasheet
649002113322	SPEC
649004113322	SPEC
649006113322	SPEC
649008113322	SPEC
649010113322	SPEC
649012113322	SPEC
649014113322	SPEC
649016113322	SPEC
649018113322	SPEC
649020113322	SPEC
649022113322	SPEC
649024113322	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Pitch (mm)	Gender	Type	Rows	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-MPC4 4.20 mm Male Dual Row Vertical Header

WR-MPC4 4.20 mm Male Dual Row Vertical Header w. Mounting Pegs

WR-MPC4 4.20 mm Male Dual Row Angled Header

WR-MPC4 4.20 mm Male Dual Row Angled Header w. Mounting Pegs

WR-MPC4 4.20 mm Male Dual Row Angled Header w. Mounting Flanges for Screw-in Retention

WR-MPC4 4.20 mm Male Dual Row Plug w. Panel Mounting Ears

Use with

WR-MPC4 4.20 mm Female Terminal

WR-MPC4 Female Pre-crimped wire

Tools

WR-MPC4 4.20 mm Manual Crimping Tool

WR-MPC4 4.20 mm Manual Extraction Tool

WR-MPC4 Manual Insulation Stripper

WR-MPC4 4.20 mm Automatic Crimping Tool

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MPC4 Mini Power Connectors
