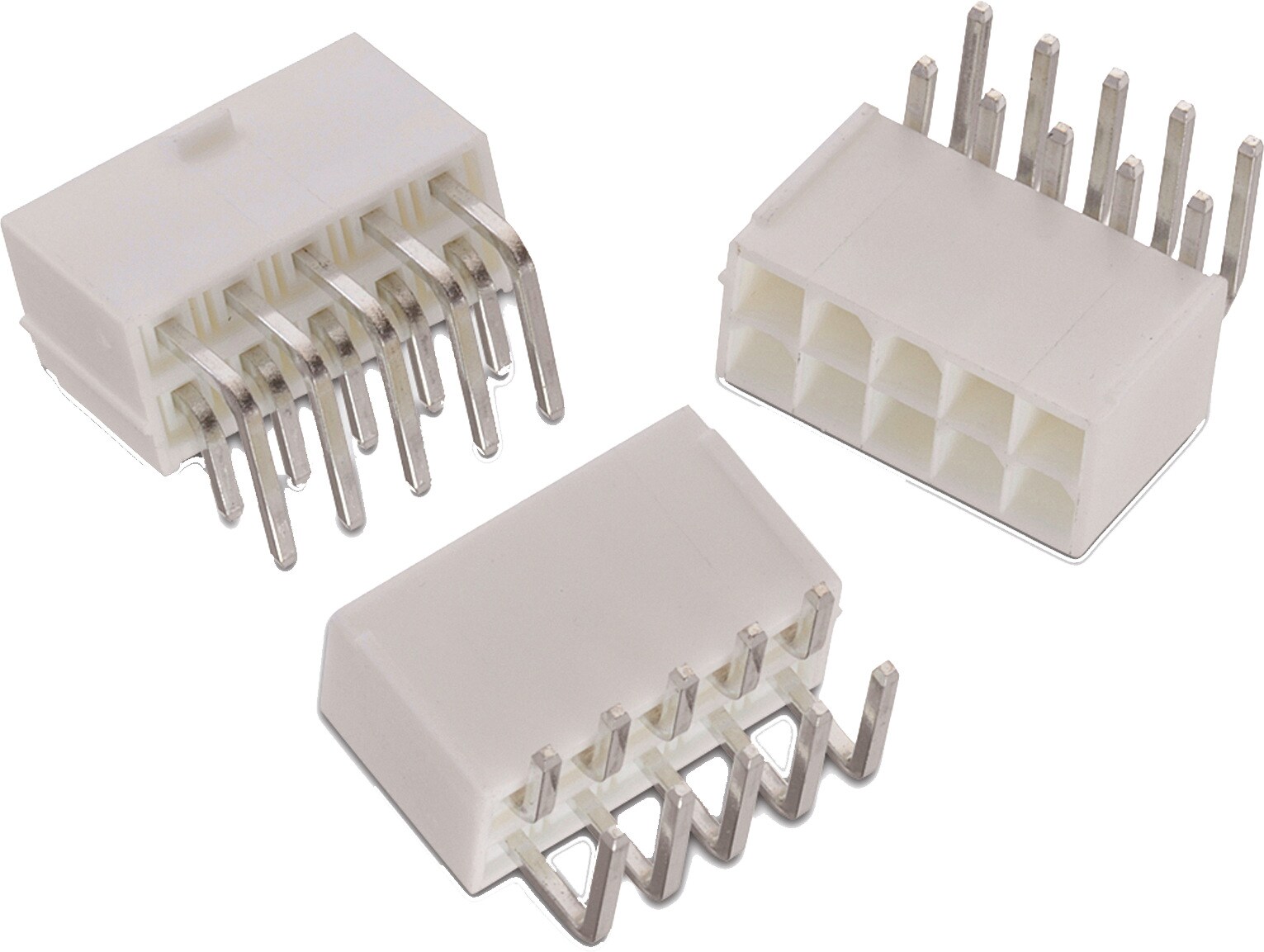

WR-MPC4 4.20 mm Male Dual Row Angled Header

Kind Properties
Pitch4.2 mm
GenderMale
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorWhite
Contact MaterialCopper Alloy
Contact PlatingTin
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
Working Voltage600 V (AC)
Withstanding Voltage1500 V (AC)
Contact Resistance10 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Wire Properties
PackagingTray

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeRowsMountWorking Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
64900229522SPEC
6 files 2 4.2 Male Right Angled Dual THT 600 PCB 10 max. 5.4 Tray649001
64900429522SPEC
6 files 4 4.2 Male Right Angled Dual THT 600 PCB 10 max. 9.6 Tray649001
64900629522SPEC
6 files 6 4.2 Male Right Angled Dual THT 600 PCB 10 max. 13.8 Tray612690
649001
64900829522SPEC
6 files 8 4.2 Male Right Angled Dual THT 600 PCB 10 max. 18 Tray649001
64901029522SPEC
6 files 10 4.2 Male Right Angled Dual THT 600 PCB 10 max. 22.2 Tray649001
64901229522SPEC
6 files 12 4.2 Male Right Angled Dual THT 600 PCB 10 max. 26.4 Tray649001
64901429522SPEC
6 files 14 4.2 Male Right Angled Dual THT 600 PCB 10 max. 30.6 Tray649001
64901629522SPEC
6 files 16 4.2 Male Right Angled Dual THT 600 PCB 10 max. 34.8 Tray649001
64901829522SPEC
6 files 18 4.2 Male Right Angled Dual THT 600 PCB 10 max. 39 Tray649001
64902029522SPEC
6 files 20 4.2 Male Right Angled Dual THT 600 PCB 10 max. 43.2 Tray649001
64902229522SPEC
6 files 22 4.2 Male Right Angled Dual THT 600 PCB 10 max. 47.4 Tray649001
64902429522SPEC
6 files 24 4.2 Male Right Angled Dual THT 600 PCB 10 max. 51.6 Tray649001
Order Code Data­sheet
64900229522SPEC
64900429522SPEC
64900629522SPEC
64900829522SPEC
64901029522SPEC
64901229522SPEC
64901429522SPEC
64901629522SPEC
64901829522SPEC
64902029522SPEC
64902229522SPEC
64902429522SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeRowsMountWorking Voltage
(V (AC))
PCB/Cable/PanelContact Resistance
(mΩ)
Tol. RL
(mm)
PackagingDesign Kit Samples
