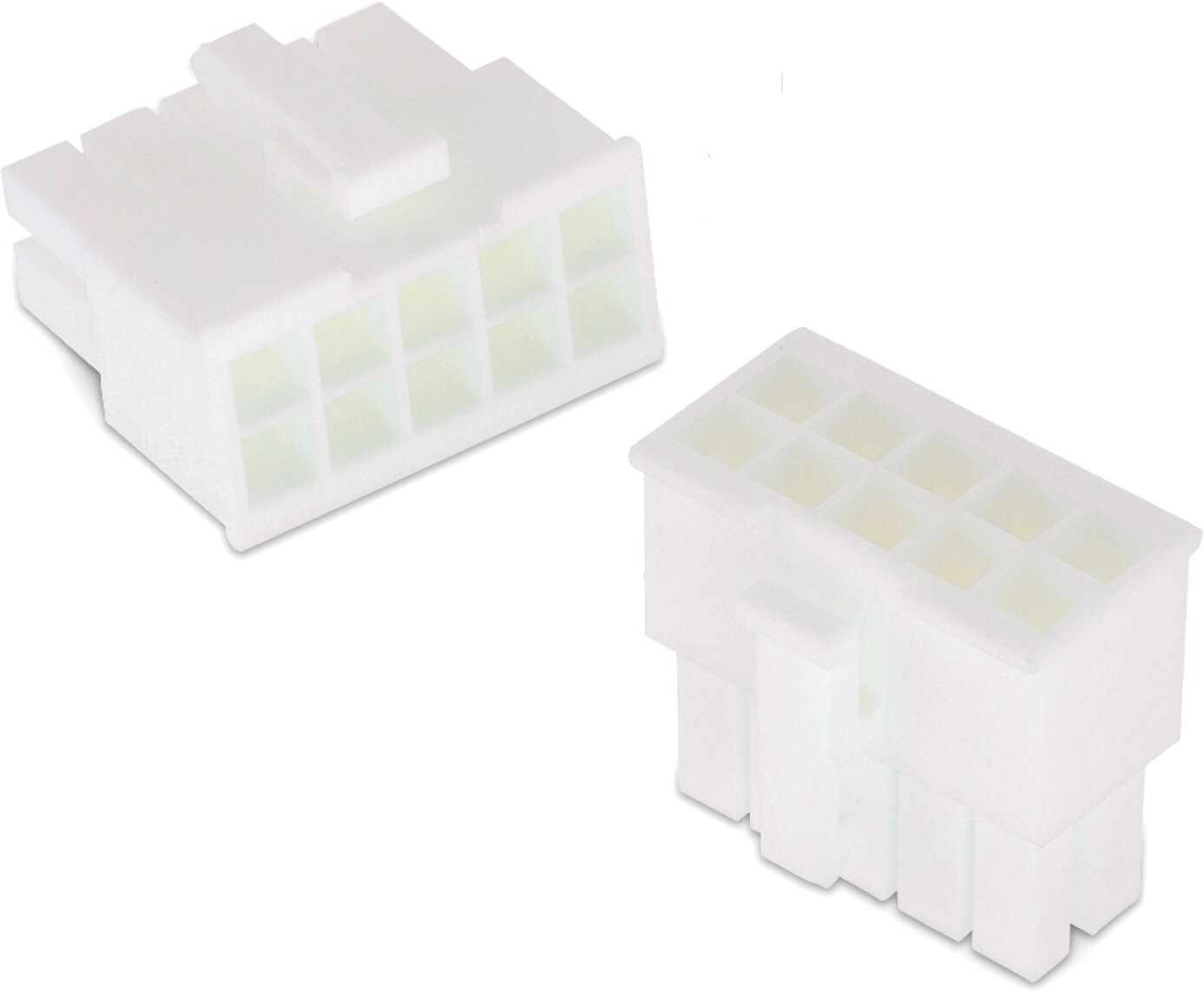

WR-MPC4 4.20 mm Female Dual Row Plug

Kind Properties
Pitch4.2 mm
GenderFemale
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorWhite
General Information
Operating Temperature-40 up to +105 °C
Withstanding Voltage1500 V (AC)
RISO1000 MΩ
Certification
UL ApprovalE323964
Wire Properties
PackagingBag

Products

Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeRowsPCB/Cable/PanelL
(mm)
PackagingDesign Kit Samples
649002113322SPEC
3 files 2 4.2 Female Receptacle Housing Dual Cable 5.4 Bag649001
649004113322SPEC
3 files 4 4.2 Female Receptacle Housing Dual Cable 9.6 Bag649001
649006113322SPEC
3 files 6 4.2 Female Receptacle Housing Dual PCB 13.8 Bag612690
649001
649008113322SPEC
3 files 8 4.2 Female Receptacle Housing Dual Cable 18 Bag649001
649010113322SPEC
3 files 10 4.2 Female Receptacle Housing Dual Cable 22.2 Bag649001
649012113322SPEC
3 files 12 4.2 Female Receptacle Housing Dual Cable 26.4 Bag649001
649014113322SPEC
3 files 14 4.2 Female Receptacle Housing Dual Cable 30.6 Bag649001
649016113322SPEC
3 files 16 4.2 Female Receptacle Housing Dual Cable 34.8 Bag649001
649018113322SPEC
3 files 18 4.2 Female Receptacle Housing Dual Cable 39 Bag649001
649020113322SPEC
3 files 20 4.2 Female Receptacle Housing Dual Cable 43.2 Bag649001
649022113322SPEC
3 files 22 4.2 Female Receptacle Housing Dual Cable 47.4 Bag649001
649024113322SPEC
3 files 24 4.2 Female Receptacle Housing Dual Cable 51.6 Bag649001
Order Code Data­sheet
649002113322SPEC
649004113322SPEC
649006113322SPEC
649008113322SPEC
649010113322SPEC
649012113322SPEC
649014113322SPEC
649016113322SPEC
649018113322SPEC
649020113322SPEC
649022113322SPEC
649024113322SPEC
Samples
Order Code Data­sheet DownloadsPins
(mm)
Pitch
(mm)
GenderTypeRowsPCB/Cable/PanelL
(mm)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
