Smart integration of monitoring and protection functions

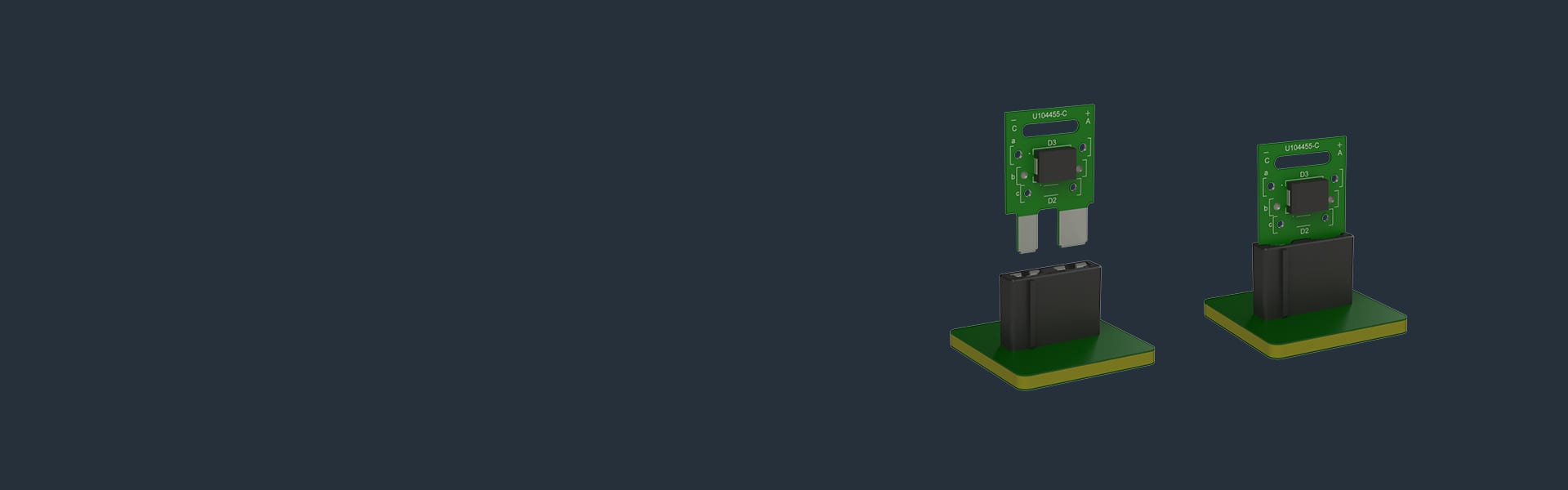

The SMD FlexCon is a compact, pluggable solution for the easy integration of diodes, LEDs, resistors, or sensors into central electrical systems and REDline Power Boxes. Via an ATO fuse holder, the SMD FlexCon can be connected to the PCB quickly and flexibly.
The SMD FlexCon can be flexibly equipped with various components such as diodes, LEDs, or resistors. In addition, different pad sizes and layout configurations are available.
Typical applications for SMD FlexCon:
| Operating Temperature |
-40°C to + 85°C |
|---|---|
| Operating Range | Up to 48 V DC |
| Dimensions |
19 x 27 mm |
| Layout options |
Green, red, white |
| Article number | Description | Soldering type | PCB colour |
|---|---|---|---|
| ICS-104455 | Diode 5 A | SMT | Green |
| ICS-104490 | Diode 5 A* // S5GC | SMT | Green |
| ICS-104591 | Diode 10 A | SMT | Green |
| ICS-104753 | Diode 1N5408K | THT | Green |
| ICS-104433 | Bidirectional TVS diode 600 W | SMT | Red |
| ICS-104593 | Fuse tester 24 V | SMT | White |
| ICS-105205 | Fuse tester 48 V | SMT | White |
*higher values will be evaluated on special request
Would you like us to customize the SMD FlexCon for you?
No problem, the assembly with individual soldering components can be realised according to your individual requirements.
