DC/DC Converters

DC/DC Converters

Voltage Converters for Constant Power

DC/DC Converters, also known as direct current (DC) voltage converters, are electronic devices that convert a DC voltage from one level to another. They play a central role in energy distribution and supply in vehicles – especially in modern electric and hybrid vehicles.

Our DC/DC Converters are specifically developed and qualified for use in mobile machines and commercial vehicles. As a standard solution, we offer buck converters for switch-mode operation at 24/12 V.

Other variants such as boost or buck-boost converters can be individually designed to meet your specific requirements. Share your specifications with us – we will develop the right solution for you.

Product request
Functions of DC/DC Converters
  • Voltage adaptation between different battery systems
  • Protection features such as overvoltage, short-circuit, and temperature monitoring
  • Voltage stabilization to protect sensitive electronics
  • Increase of energy efficiency: Less energy is wasted thanks to efficient conversion

Your Advantages with DC/DC Converters from Würth Elektronik ICS

High Reliability Energy Efficiency Durability Versatility High Performance Advanced Protection
Icon Quality

Stable voltage conversion ensures consistent performance, reduced downtime and maintenance costs.
Icon Power Flash

Optimized power utilization lowers energy consumption, helping to reduce operating costs.


Icon Langlebigkeit

Sealed design and rugged construction withstand harsh environments, extending component life.


Icon Control Panel

Wide input voltage range and no minimum load requirements make integration easy across different vehicle platforms.
Icon Measurement Sensing

Reliable output power up to 85°C guarantees dependable operation even under demanding thermal conditions.
Icon Shieling

Protection against reverse polarity, over-current, over-voltage, short-circuit, and overheating for enhanced safety and reliability.

Data & Facts

  • High efficiency (> 85%): Ensures efficient energy conversion, reduces losses, and delivers optimal performance with minimal power consumption.
  • Electronic overload protection: Reliably protects the system from damage caused by current overload, enhancing operational safety.
  • Integrated overheat self-protection: Automatic temperature monitoring prevents overheating and extends the device’s lifespan.
  • Reverse polarity protection at input: Prevents damage from incorrectly connected power sources, ensuring maximum operational safety.
  • Environmental Compliance: Fully compliant with RoHS and CE standards for sustainability.
  • EMC Compliance: Meets ECE R10 standards to ensure electromagnetic compatibility.
Banner DCDC Topology


Type Buck/ Step-Down  Converter  Boost/ Step-up Converter Buck-Boost / Flyback Converter
Functionality

Converts a higher input voltage to a lower output voltage

Increases the input voltage to a higher level

Can either increase or decrease the voltage depending on requirements
Example

Step-Down 24V main power supply for 12V infotainment system

Step-Up 12V auxiliary battery to power 24V hydraulic control valves

Isolated 12/24V supply for sensitive control electronics and communication modules

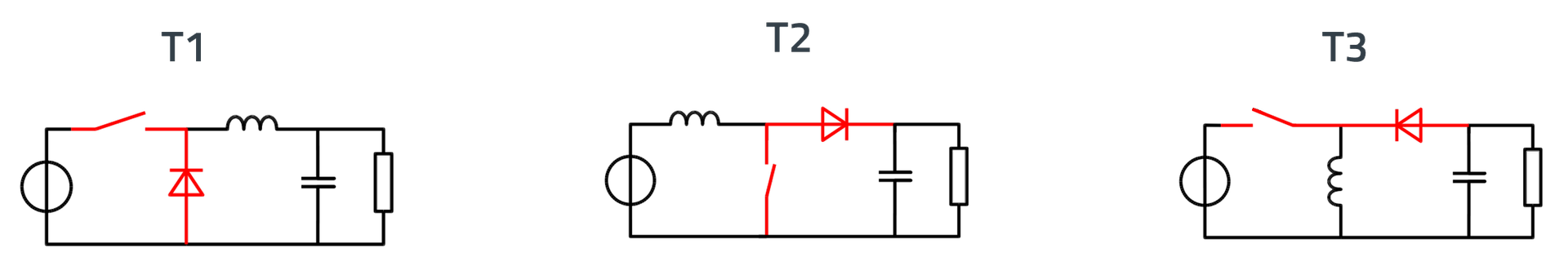

Topology T1 T2 T3



Standard DC/DC Converter
Article number Description Number of Pins Connector Voltage range Mounting
A08022 Switch Mode 12/24 V 2 A 3 Relay socket 18 - 32 V DC With bracket
A08867 Switch Mode 24/12 V 25 A 4 ATP04-4P 18 - 32 V DC With screws
X09009 Switch Mode 24/12 V 40 A 6 + 4

AT15-6P

ATP15-4P

 18 - 32 V DC With screws



Banner DCDC V2 englisch
Request now
