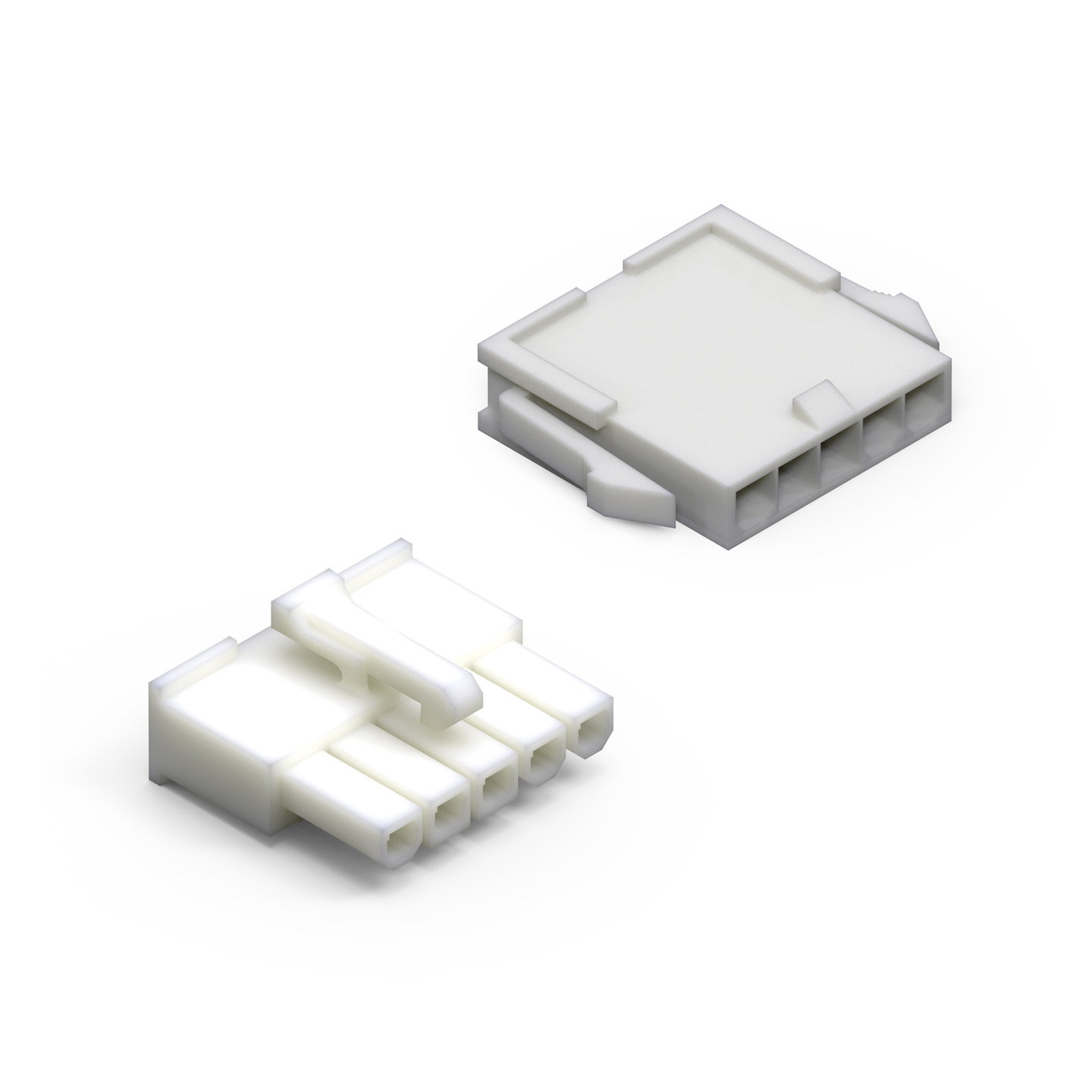

WR-MPC4 Receptacle & Plug Single Row

Characteristics

Rated Current: 8-9 A
Working Voltage: 600 V
Operating Temperature: -40 °C up to +105 °C
Durability: 25 Mating cycles
Pitch: 4.2 mm

Applications

Industrial
Home Appliances
Telecommunication

Products

All

Plug Housing

Receptacle Housing

Filter article data

show article in 2 product lines

article in 2 product lines

	Order Code	Datasheet	Downloads	Status	Pins	Gender	Variant	Type	PCB/Cable/Panel	Packaging	Design Kit	Samples
	649002013322	2, Female, –	Downloads3 files CAD files ZIP 3D 649002013322 (rev1).pdf \| 47 KB IGS 649002013322 (rev1).iges \| 778.1 KB STP 649002013322 (rev1).stp \| 169.4 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	GenderFemale	–	TypeReceptacle Housing	PCB/Cable/PanelCable	PackagingBag	Design Kit 649001
	64900211822	2, Male, with Panel Mounting Ears	Downloads3 files CAD files ZIP 3D 64900211822_1 (rev1).pdf \| 58.5 KB IGS 64900211822 (rev1).iges \| 952.1 KB STP 64900211822 (rev1).stp \| 218.8 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	GenderMale	Variantwith Panel Mounting Ears	TypePlug Housing	PCB/Cable/PanelCable/Panel	PackagingBag	Design Kit 649001
	649003013322	3, Female, –	Downloads5 files CAD files ZIP 3D 649003013322 (rev1).pdf \| 63.7 KB 3D 649003013322_1 (rev1).pdf \| 63.7 KB IGS 649003013322 (rev1).iges \| 1.1 MB IGS 649003013322 (rev1).iges \| 1.1 MB STP 649003013322 (rev1).stp \| 244.2 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	GenderFemale	–	TypeReceptacle Housing	PCB/Cable/PanelCable	PackagingBag	Design Kit 612690 649001
	64900311822	3, Male, with Panel Mounting Ears	Downloads3 files CAD files ZIP 3D 64900311822_1 (rev1).pdf \| 76.2 KB IGS 64900311822 (rev1).iges \| 1.2 MB STP 64900311822 (rev1).stp \| 286.7 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	GenderMale	Variantwith Panel Mounting Ears	TypePlug Housing	PCB/Cable/PanelCable/Panel	PackagingBag	Design Kit 612690 649001
	649004013322	4, Female, –	Downloads5 files CAD files ZIP 3D 649004013322 (rev1).pdf \| 72.4 KB 3D 649004013322_1 (rev1).pdf \| 74.3 KB IGS 649004013322 (rev1).iges \| 1.3 MB IGS 649004013322 (rev1).iges \| 1.3 MB STP 649004013322 (rev1).stp \| 301.3 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	GenderFemale	–	TypeReceptacle Housing	PCB/Cable/PanelCable	PackagingBag	Design Kit 649001
	64900411822	4, Male, with Panel Mounting Ears	Downloads3 files CAD files ZIP 3D 64900411822_1 (rev1).pdf \| 89.2 KB IGS 64900411822 (rev1).iges \| 1.5 MB STP 64900411822 (rev1).stp \| 347.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	GenderMale	Variantwith Panel Mounting Ears	TypePlug Housing	PCB/Cable/PanelCable/Panel	PackagingBag	Design Kit 649001
	649005013322	5, Female, –	Downloads5 files CAD files ZIP 3D 649005013322 (rev1).pdf \| 85.8 KB 3D 649005013322_1 (rev1).pdf \| 89 KB IGS 649005013322 (rev1).iges \| 1.6 MB IGS 649005013322 (rev1).iges \| 1.5 MB STP 649005013322 (rev1).stp \| 366.7 KB Download all 5 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	GenderFemale	–	TypeReceptacle Housing	PCB/Cable/PanelCable	PackagingBag	Design Kit 649001
	64900511822	5, Male, with Panel Mounting Ears	Downloads3 files CAD files ZIP 3D 64900511822_1 (rev1).pdf \| 104.5 KB IGS 64900511822 (rev1).iges \| 1.8 MB STP 64900511822 (rev1).stp \| 418.3 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	GenderMale	Variantwith Panel Mounting Ears	TypePlug Housing	PCB/Cable/PanelCable/Panel	PackagingBag	Design Kit 649001
