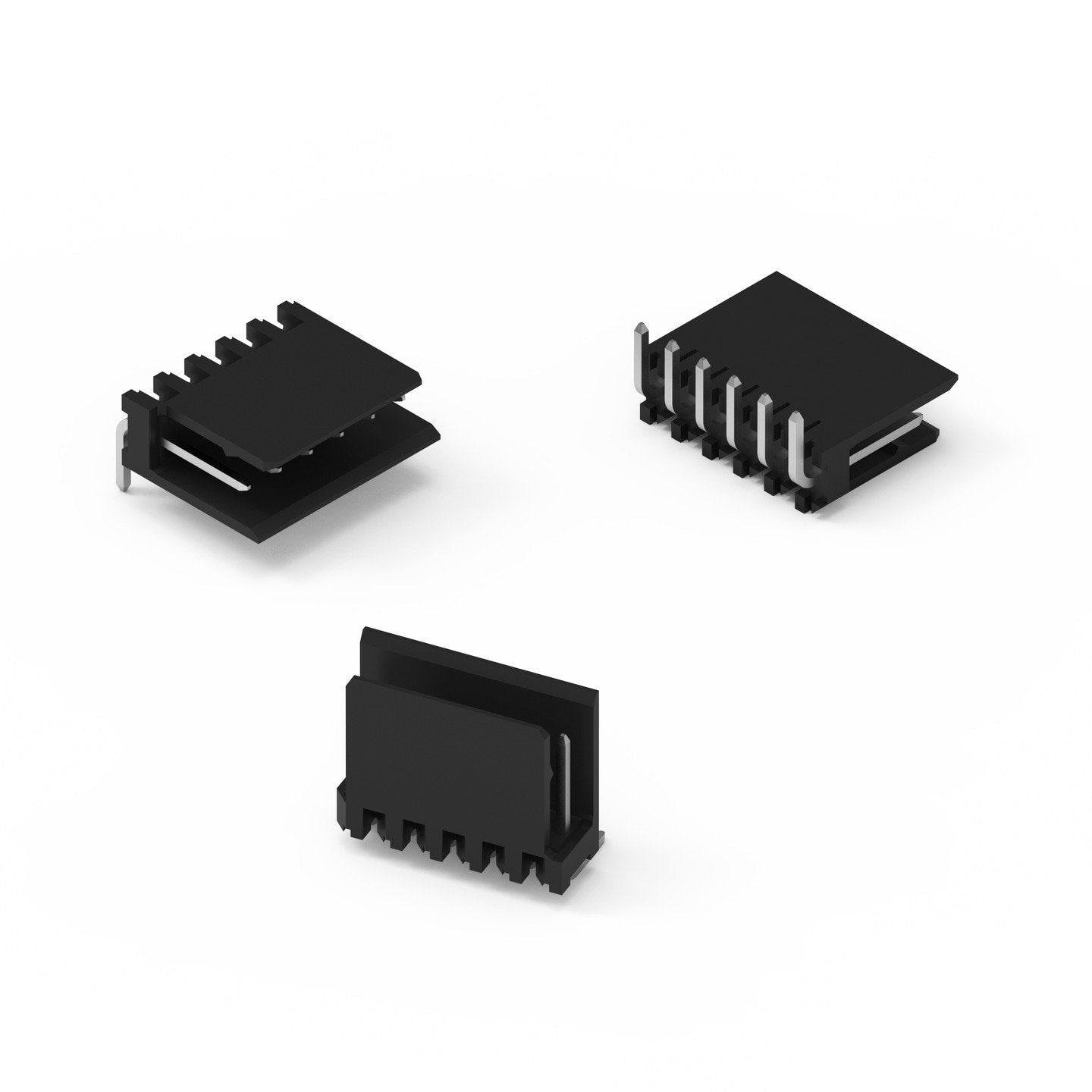

WR-WTB 2.54 mm Male Right Angled Shrouded Header

Material Properties
Insulator Material	co
Insulator Flammability Rating	UL94 V-0
Color	Black
Contact Material	Phosphor Bronze
Contact Plating	Tin

General Information
Operating Temperature	-40 °C up to +125 °C
Compliance	RoHS
I_R	3 A
Working Voltage	50 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
Pitch	2.54 mm
Gender	Male
Type	Right Angled

Packaging Properties
Packaging	Box

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples
	66100211722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB CAD files ZIP 3D 66100211722_1 (rev1).pdf \| 54.7 KB IGS 66100211722 (rev1).iges \| 891.2 KB STP 66100211722 (rev1).stp \| 257.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	2.54	Male	Right Angled	THT	3	50	PCB	20	max.	4.78	Box	–
	66100311722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB CAD files ZIP 3D 66100311722_1 (rev1).pdf \| 67.7 KB IGS 66100311722 (rev1).iges \| 1.1 MB STP 66100311722 (rev1).stp \| 336.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	2.54	Male	Right Angled	THT	3	50	PCB	20	max.	7.32	Box	–
	66100411722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB CAD files ZIP 3D 66100411722_1 (rev1).pdf \| 80.4 KB IGS 66100411722 (rev1).iges \| 1.4 MB STP 66100411722 (rev1).stp \| 416.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	2.54	Male	Right Angled	THT	3	50	PCB	20	max.	9.86	Box	–
	66100511722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB CAD files ZIP 3D 66100511722_1 (rev1).pdf \| 94.3 KB IGS 66100511722 (rev1).iges \| 1.7 MB STP 66100511722 (rev1).stp \| 498.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	2.54	Male	Right Angled	THT	3	50	PCB	20	max.	12.4	Box	–
	66100811722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB CAD files ZIP 3D 66100811722_1 (rev1).pdf \| 127 KB IGS 66100811722 (rev1).iges \| 2.4 MB STP 66100811722 (rev1).stp \| 723.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2.54	Male	Right Angled	THT	3	50	PCB	20	max.	20.02	Box	612690
	66101011722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB CAD files ZIP 3D 66101011722_1 (rev1).pdf \| 153.1 KB IGS 66101011722 (rev1).iges \| 2.9 MB STP 66101011722 (rev1).stp \| 886.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Male	Right Angled	THT	3	50	PCB	20	max.	25.1	Box	–
	66100611722	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB CAD files ZIP 3D 3D_66100611722 (rev1).pdf \| 65.8 KB IGS IGES_66100611722 (rev1).iges \| 1.1 MB STP STP_66100611722 (rev1).stp \| 302.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	–	2.54	Male	–	–	3	–	–	20	max.	–	Box	–

	Order Code	Datasheet
	66100211722	SPEC
	66100311722	SPEC
	66100411722	SPEC
	66100511722	SPEC
	66100811722	SPEC
	66101011722	SPEC
	66100611722	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB 2.54 mm Female IDC Connector Discrete Wires AWG 28-26

WR-WTB 2.54 mm Female IDC Connector Ribbon Flat Cable AWG 22-24

WR-WTB 2.54 mm Female IDC Connector Ribbon Flat Cable AWG 28-26

WR-WTB 2.54 mm Female Terminal Housing

WR-WTB 2.54 mm Female IDC Connector Discrete Wires AWG 22-24
