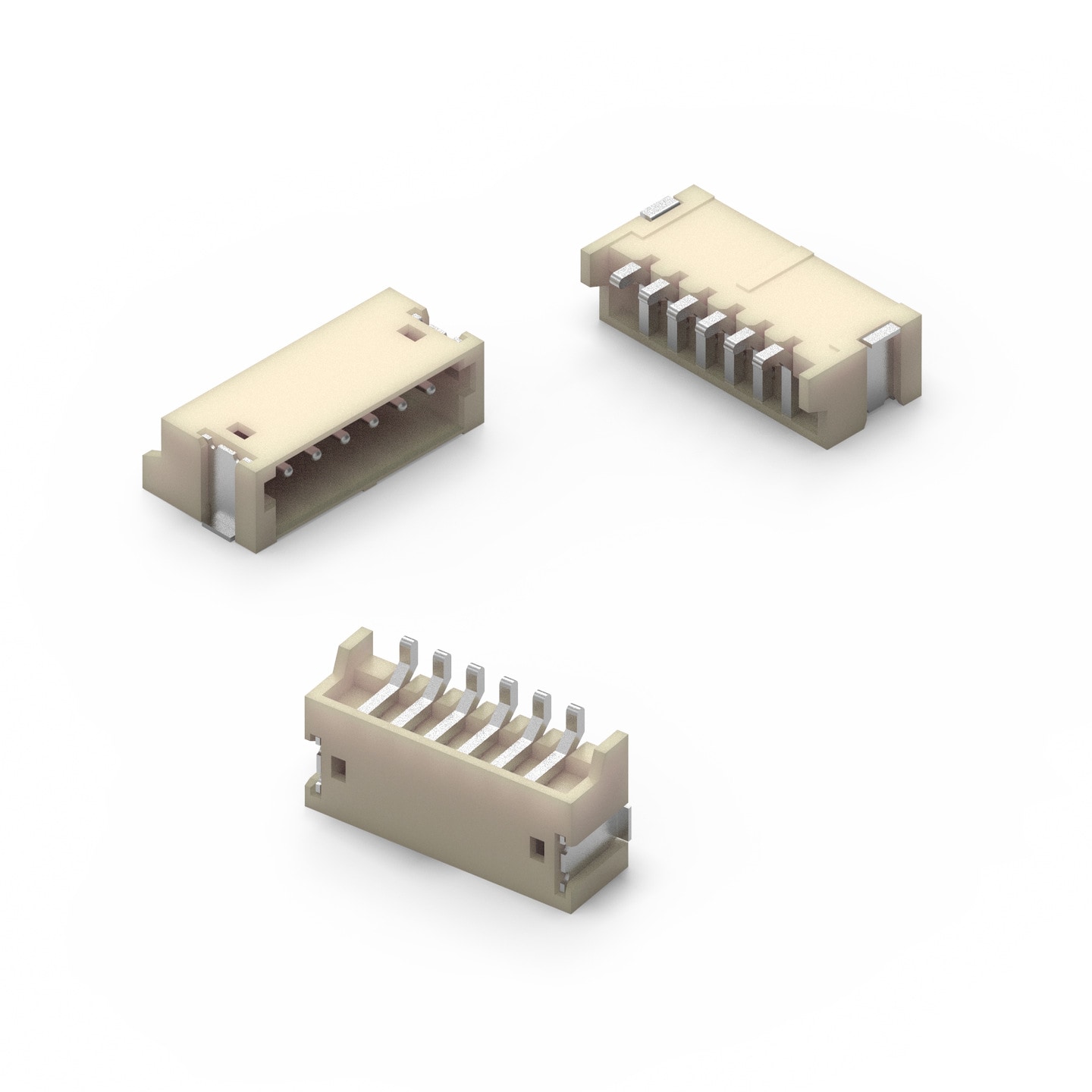

WR-WTB 1.50 mm SMT Male Horizontal Shrouded Header

Material Properties
Insulator Material	PA6T
Insulator Flammability Rating	UL94 V-0
Color	Ivory
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-25 °C up to +85 °C
Compliance	RoHS
I_R	1 A
Working Voltage	50 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	500 MΩ
Pitch	1.5 mm
Gender	Male
Type	Horizontal

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples
	648102131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 648102131822_1 (rev1).pdf \| 85.7 KB IGS 648102131822 (rev1).iges \| 898 KB STP 648102131822 (rev1).stp \| 202.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	1.5	Male	Horizontal	SMT	1	50	PCB	20	max.	6	Tape and Reel	645001
	648103131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 648103131822_1 (rev1).pdf \| 88.7 KB IGS 648103131822 (rev1).iges \| 962.7 KB STP 648103131822 (rev1).stp \| 216.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	1.5	Male	Horizontal	SMT	1	50	PCB	20	max.	7.5	Tape and Reel	645001
	648104131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 648104131822_1 (rev1).pdf \| 91.8 KB IGS 648104131822 (rev1).iges \| 1018.3 KB STP 648104131822 (rev1).stp \| 228.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	1.5	Male	Horizontal	SMT	1	50	PCB	20	max.	9	Tape and Reel	645001
	648105131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 648105131822_1 (rev1).pdf \| 96.9 KB IGS 648105131822 (rev1).iges \| 1.1 MB STP 648105131822 (rev1).stp \| 249.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	1.5	Male	Horizontal	SMT	1	50	PCB	20	max.	10.5	Tape and Reel	645001
	648106131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 648106131822_1 (rev1).pdf \| 102.7 KB IGS 648106131822 (rev1).iges \| 1.1 MB STP 648106131822 (rev1).stp \| 263.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1.5	Male	Horizontal	SMT	1	50	PCB	20	max.	12	Tape and Reel	645001
	648107131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 648107131822_1 (rev1).pdf \| 106.3 KB IGS 648107131822 (rev1).iges \| 1.2 MB STP 648107131822 (rev1).stp \| 277.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	1.5	Male	Horizontal	SMT	1	50	PCB	20	max.	13.5	Tape and Reel	645001
	648108131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 648108131822_1 (rev1).pdf \| 111 KB IGS 648108131822 (rev1).iges \| 1.3 MB STP 648108131822 (rev1).stp \| 297.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	1.5	Male	Horizontal	SMT	1	50	PCB	20	max.	15	Tape and Reel	645001
	648109131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 648109131822_1 (rev1).pdf \| 114.7 KB IGS 648109131822 (rev1).iges \| 1.3 MB STP 648109131822 (rev1).stp \| 311.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	1.5	Male	Horizontal	SMT	1	50	PCB	20	max.	16.5	Tape and Reel	645001
	648110131822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-WTB (rev23a).IntLib \| 11.7 MB CDS Cadence_WR-WTB (rev23b).zip \| 53.1 MB EAG Eagle_WR-WTB (rev23a).lbr \| 2.3 MB CAD files ZIP 3D 648110131822_1 (rev1).pdf \| 117.8 KB IGS 648110131822 (rev1).iges \| 1.4 MB STP 648110131822 (rev1).stp \| 325.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.5	Male	Horizontal	SMT	1	50	PCB	20	max.	18	Tape and Reel	612690 645001

	Order Code	Datasheet
	648102131822	SPEC
	648103131822	SPEC
	648104131822	SPEC
	648105131822	SPEC
	648106131822	SPEC
	648107131822	SPEC
	648108131822	SPEC
	648109131822	SPEC
	648110131822	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB 1.50 mm Female Terminal Housing

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
