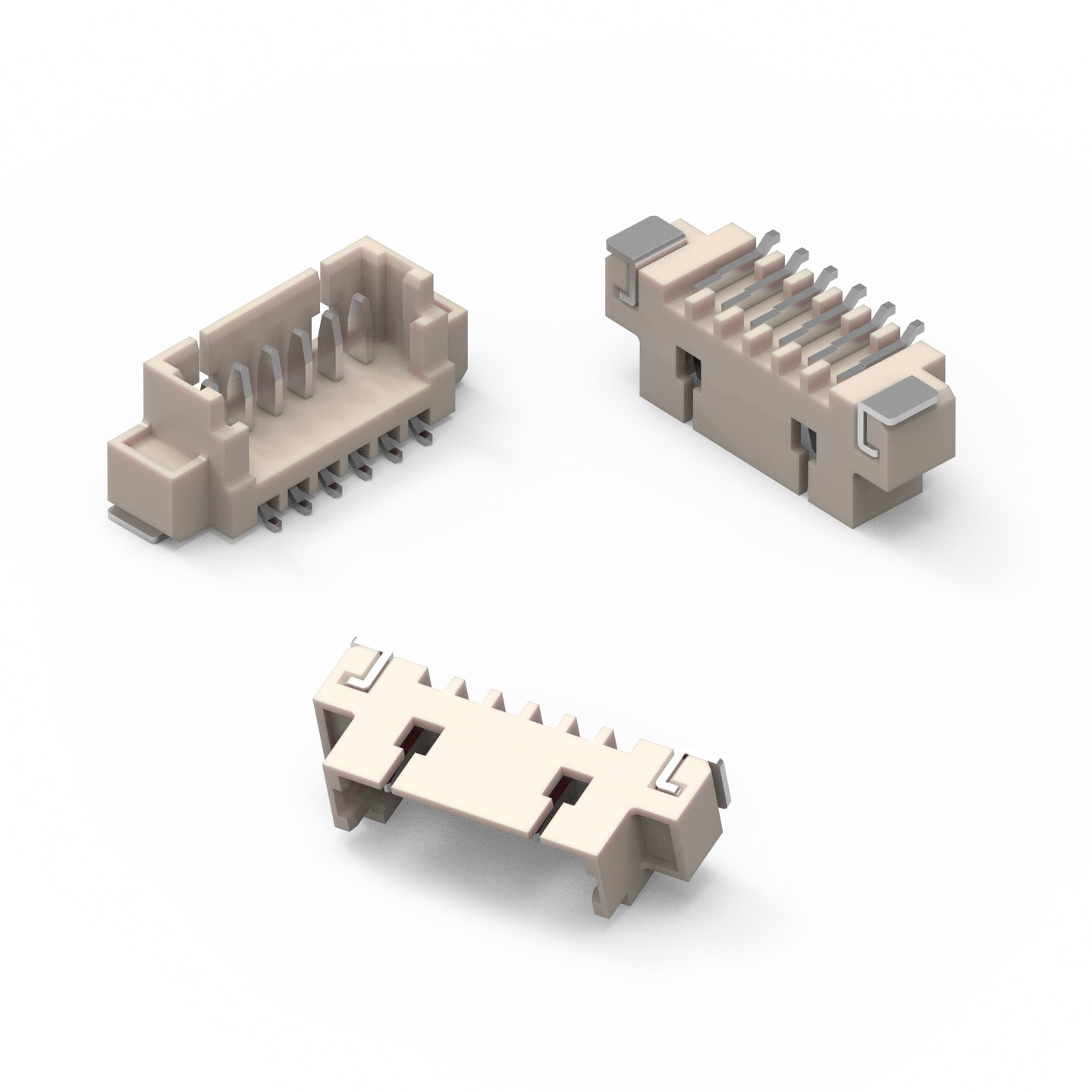

WR-WTB 1.25 mm SMT Male Vertical Shrouded Header

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Color	Ivory
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +85 °C
Compliance	RoHS
I_R	1 A
Working Voltage	125 V (AC)
Withstanding Voltage	250 V (AC)
Contact Resistance	20 mΩ
R_ISO	100 MΩ
Pitch	1.25 mm
Gender	Male
Type	Vertical

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel

Application Notes

ANE018 Plastic Material Properties
PDF

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples
	653102124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653102124022_1 (rev1).pdf \| 57 KB IGS Download_IGES_653102124022 (rev1).iges \| 879.5 KB STP 653102124022 (rev1).stp \| 205.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	7.25	Tape and Reel	645001
	653103124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653103124022_1 (rev1).pdf \| 59 KB IGS Download_IGES_653103124022 (rev1).iges \| 952.5 KB STP 653103124022 (rev1).stp \| 391.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	8.5	Tape and Reel	645001
	653104124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653104124022_1 (rev1).pdf \| 66.8 KB IGS Download_IGES_653104124022 (rev1).iges \| 1.1 MB STP Download_STP_653104124022 (rev1).stp \| 249.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	9.75	Tape and Reel	645001
	653105124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653105124022_1 (rev1).pdf \| 69.8 KB IGS Download_IGES_653105124022 (rev1).iges \| 1.1 MB STP 653105124022 (rev1).stp \| 471.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	11	Tape and Reel	645001
	653106124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653106124022_1 (rev1).pdf \| 76.1 KB IGS Download_IGES_653106124022 (rev1).iges \| 1.2 MB STP 653106124022 (rev1).stp \| 501.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	12.25	Tape and Reel	645001
	653107124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653107124022_1 (rev1).pdf \| 81.9 KB IGS Download_IGES_653107124022 (rev1).iges \| 1.3 MB STP 653107124022 (rev1).stp \| 300 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	13.5	Tape and Reel	645001
	653108124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653108124022_1 (rev1).pdf \| 86.1 KB IGS Download_IGES_653108124022 (rev1).iges \| 1.3 MB STP 653108124022 (rev1).stp \| 315.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	14.75	Tape and Reel	645001
	653109124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653109124022_1 (rev1).pdf \| 88.7 KB IGS Download_IGES_653109124022 (rev1).iges \| 1.4 MB STP 653109124022 (rev1).stp \| 589.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	16	Tape and Reel	645001
	653110124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653110124022_1 (rev1).pdf \| 92.4 KB IGS Download_IGES_653110124022 (rev1).iges \| 1.5 MB STP 653110124022 (rev1).stp \| 620.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	17.25	Tape and Reel	612690 645001
	653111124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653111124022_1 (rev1).pdf \| 98.2 KB IGS Download_IGES_653111124022 (rev1).iges \| 1.6 MB STP 653111124022 (rev1).stp \| 363.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	11	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	18.5	Tape and Reel	645001
	653112124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653112124022_1 (rev1).pdf \| 102.5 KB IGS Download_IGES_653112124022 (rev1).iges \| 1.6 MB STP 653112124022 (rev1).stp \| 383.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	19.75	Tape and Reel	645001
	653113124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653113124022_1 (rev1).pdf \| 106.7 KB IGS Download_IGES_653113124022 (rev1).iges \| 1.7 MB STP 653113124022 (rev1).stp \| 398.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	13	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	21	Tape and Reel	645001
	653114124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653114124022_1 (rev1).pdf \| 111 KB IGS Download_IGES_653114124022 (rev1).iges \| 1.8 MB STP 653114124022 (rev1).stp \| 418.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	22.25	Tape and Reel	645001
	653115124022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-WTB (rev25b).IntLib \| 12.4 MB CDS Cadence_WR-WTB (rev25a).zip \| 54.3 MB EAG Eagle_WR-WTB (rev25a).lbr \| 2.4 MB KIC KiCad_WR-WTB (rev25a).zip \| 219.1 MB CAD files ZIP 3D 653115124022_1 (rev1).pdf \| 113.6 KB IGS Download_IGES_653114124022 (rev1).iges \| 1.8 MB STP 653115124022 (rev1).stp \| 772 KB	Active i\| Production is active. Expected lifetime: >10 years.	15	1.25	Male	Vertical	SMT	1	125	PCB	20	max.	23.5	Tape and Reel	645001

	Order Code	Datasheet
	653102124022	SPEC
	653103124022	SPEC
	653104124022	SPEC
	653105124022	SPEC
	653106124022	SPEC
	653107124022	SPEC
	653108124022	SPEC
	653109124022	SPEC
	653110124022	SPEC
	653111124022	SPEC
	653112124022	SPEC
	653113124022	SPEC
	653114124022	SPEC
	653115124022	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Pitch (mm)	Gender	Type	Mount	I_R (A)	Working Voltage (V (AC))	PCB/Cable/Panel	Contact Resistance (mΩ)	Tol. R	L (mm)	Packaging	Design Kit	Samples

Mates with

WR-WTB Female Terminal Housing

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
