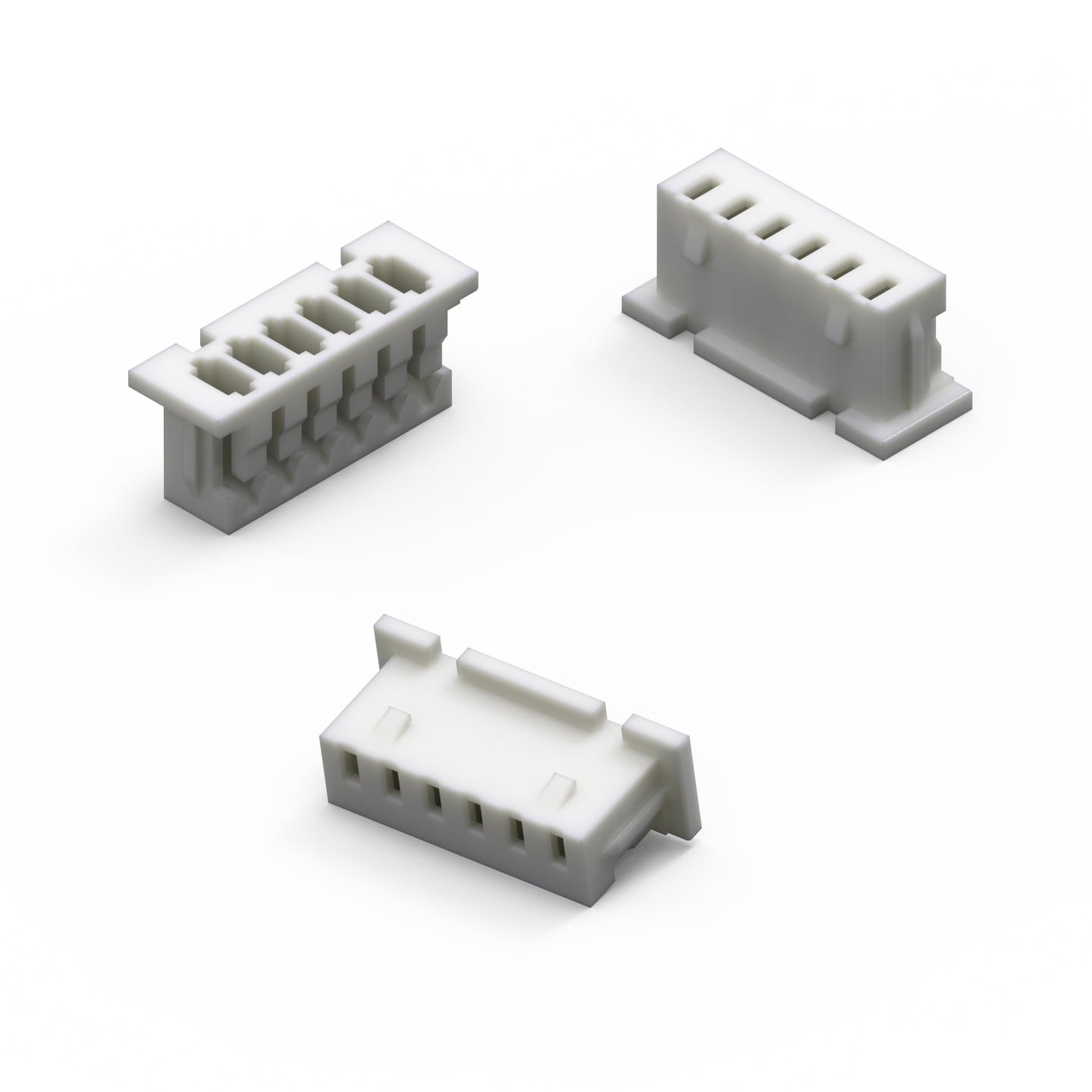

WR-WTB Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Color	White

General Information
Compliance	RoHS
Withstanding Voltage	250 V (AC)
R_ISO	100 MΩ
Pitch	1.25 mm
Gender	Female
Type	Terminal Housing
Operating Temperature	-40 °C up to +85 °C

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Gender	Pins	Type	Packaging	Mates with	Design Kit	Samples
	653002113322	Female, 2, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653002113322 (rev1).pdf \| 41.3 KB IGS Download_IGES_653002113322 (rev1).iges \| 647.4 KB STP 653002113322 (rev1).stp \| 147.6 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 2	Type Terminal Housing	Packaging Bag	Mates with 653002114822 653002117322 653102124022 653102131822	Design Kit 645001
	653003113322	Female, 3, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653003113322 (rev1).pdf \| 52.1 KB IGS Download_IGES_653003113322 (rev1).iges \| 870.1 KB STP 653003113322 (rev1).stp \| 197.4 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 3	Type Terminal Housing	Packaging Bag	Mates with 653003114822 653003117322 653103124022 653103131822	Design Kit 645001
	653004113322	Female, 4, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653004113322 (rev1).pdf \| 65.5 KB IGS Download_IGES_653004113322 (rev1).iges \| 1.1 MB STP 653004113322 (rev1).stp \| 257.8 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 4	Type Terminal Housing	Packaging Bag	Mates with 653004114822 653004117322 653104131822 653104124022	Design Kit 645001
	653005113322	Female, 5, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653005113322 (rev1).pdf \| 76.8 KB IGS Download_IGES_653005113322 (rev1).iges \| 1.3 MB STP 653005113322 (rev1).stp \| 309.7 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 5	Type Terminal Housing	Packaging Bag	Mates with 653005114822 653005117322 653105124022 653105131822	Design Kit 645001
	653006113322	Female, 6, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653006113322 (rev1).pdf \| 89.1 KB IGS Download_IGES_653006113322 (rev1).iges \| 1.6 MB STP 653006113322 (rev1).stp \| 361 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 6	Type Terminal Housing	Packaging Bag	Mates with 653006114822 653006117322 653106124022 653106131822	Design Kit 645001
	653007113322	Female, 7, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653007113322 (rev1).pdf \| 100.3 KB IGS Download_IGES_653007113322 (rev1).iges \| 1.8 MB STP 653007113322 (rev1).stp \| 408.4 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 7	Type Terminal Housing	Packaging Bag	Mates with 653007114822 653007117322 653107124022 653107131822	Design Kit 645001
	653008113322	Female, 8, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653008113322 (rev1).pdf \| 111.5 KB IGS Download_IGES_653008113322 (rev1).iges \| 2 MB STP 653008113322 (rev1).stp \| 464.4 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 8	Type Terminal Housing	Packaging Bag	Mates with 653008114822 653008117322 653108124022 653108131822	Design Kit 645001
	653009113322	Female, 9, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653009113322 (rev1).pdf \| 122.8 KB IGS Download_IGES_653009113322 (rev1).iges \| 2.2 MB STP 653009113322 (rev1).stp \| 517.4 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 9	Type Terminal Housing	Packaging Bag	Mates with 653009114822 653009117322 653109124022 653109131822	Design Kit 645001
	653010113322	Female, 10, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653010113322 (rev1).pdf \| 133.8 KB IGS Download_IGES_653010113322 (rev1).iges \| 2.5 MB STP 653010113322 (rev1).stp \| 572.1 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 10	Type Terminal Housing	Packaging Bag	Mates with 653010114822 653010117322 653110124022 653110131822	Design Kit 612690 645001
	653011113322	Female, 11, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653011113322 (rev1).pdf \| 145.1 KB IGS Download_IGES_653011113322 (rev1).iges \| 2.7 MB STP 653011113322 (rev1).stp \| 619.8 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 11	Type Terminal Housing	Packaging Bag	Mates with 653111124022 653111131822	Design Kit 645001
	653012113322	Female, 12, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653012113322 (rev1).pdf \| 156.4 KB IGS Download_IGES_653012113322 (rev1).iges \| 2.9 MB STP 653012113322 (rev1).stp \| 680.8 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 12	Type Terminal Housing	Packaging Bag	Mates with 653112124022 653112131822	Design Kit 645001
	653013113322	Female, 13, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653013113322 (rev1).pdf \| 167.8 KB IGS Download_IGES_653013113322 (rev1).iges \| 3.1 MB STP 653013113322 (rev1).stp \| 726.2 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 13	Type Terminal Housing	Packaging Bag	Mates with 653113124022 653113131822	Design Kit 645001
	653014113322	Female, 14, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653014113322 (rev1).pdf \| 179.2 KB IGS Download_IGES_653014113322 (rev1).iges \| 3.4 MB STP 653014113322 (rev1).stp \| 783.1 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 14	Type Terminal Housing	Packaging Bag	Mates with 653114124022 653114131822	Design Kit 645001
	653015113322	Female, 15, Terminal Housing	Downloads 3 files CAD files ZIP 3D 653015113322 (rev1).pdf \| 190.5 KB IGS Download_IGES_653015113322 (rev1).iges \| 3.6 MB STP 653015113322 (rev1).stp \| 832.1 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Gender Female	Pins 15	Type Terminal Housing	Packaging Bag	Mates with 653115124022	Design Kit 645001
