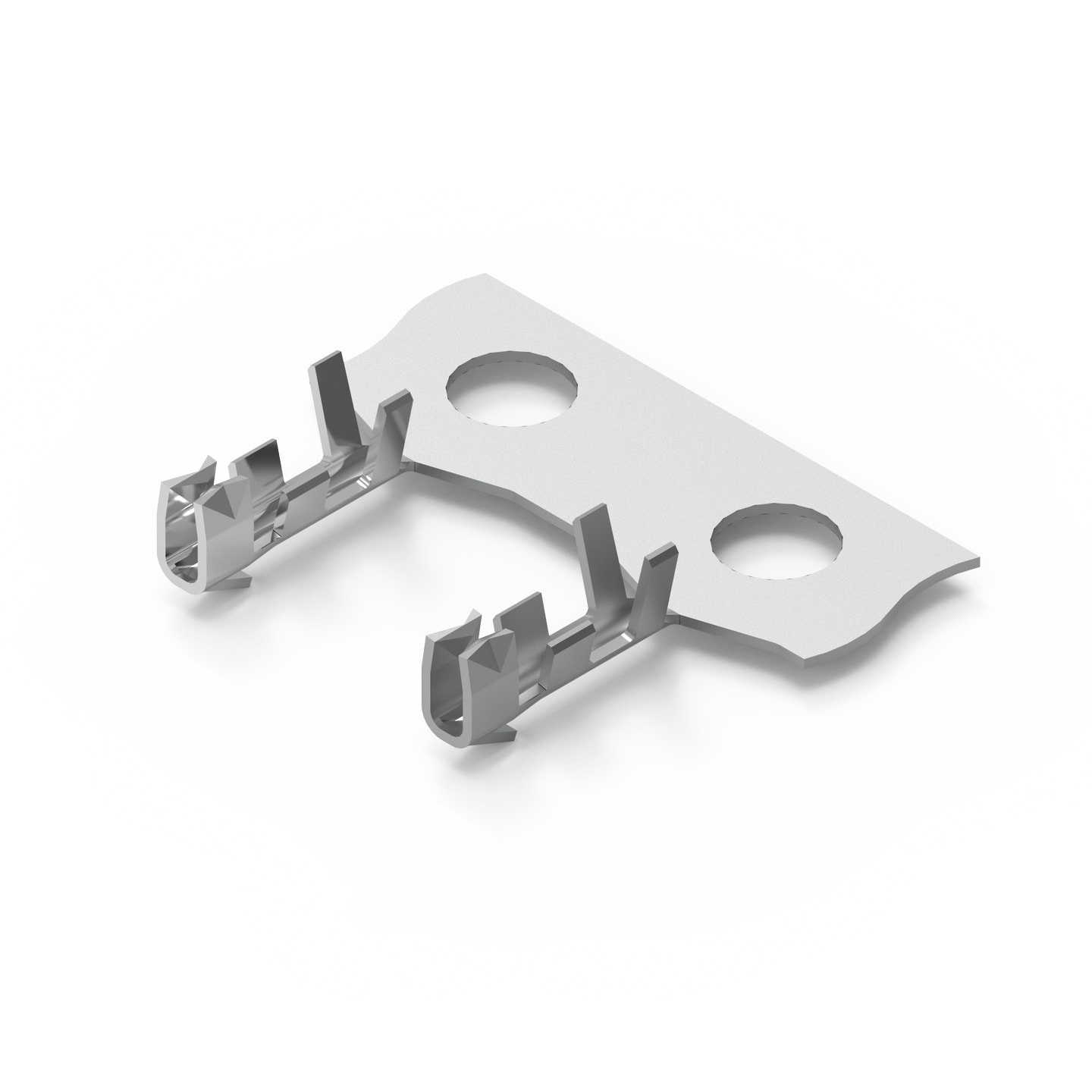

WR-WTB 1.25 mm Female Crimp Contact

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Compliance	RoHS
I_R	1 A
Working Voltage	125 V (AC)
Contact Resistance	20 mΩ
Pitch	1.25 mm
Gender	Female
Type	Crimp Terminal
Operating Temperature	-40 °C up to +85 °C

Wire Properties
Stranded Wire Section (AWG)	30 to 28 (AWG)
Stranded Wire Section (Metric)	0.0509 to 0.0810 (mm²)

Packaging Properties
Packaging	Bag; Big Reel; Small Reel

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty.(pcs)	Manual Crimping Tool	Automatic Crimping Tool	Design Kit	Samples
	65300113722	Female, 30 to 28 (AWG), 0.0509 to 0.0810 (mm²)	Downloads3 files CAD files ZIP 3D 65300113722_1 (rev1).pdf \| 316.6 KB IGS 65300113722 (rev1).igs \| 2.5 MB STP 65300113722 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)30 to 28 (AWG)	Stranded Wire Section (Metric)0.0509 to 0.0810 (mm²)	PackagingBig Reel	Packaging Unit15000 pcs	Manual Crimping Tool 600648230220	Automatic Crimping Tool 600653401	Design Kit –
	65300113722DEC	Female, 30 to 28 (AWG), 0.0509 to 0.0810 (mm²)	Downloads3 files CAD files ZIP 3D 65300113722DEC_1 (rev1).pdf \| 167.9 KB IGS 65300113722DEC (rev1).igs \| 1.3 MB STP 65300113722DEC (rev1).stp \| 522.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)30 to 28 (AWG)	Stranded Wire Section (Metric)0.0509 to 0.0810 (mm²)	PackagingBag	Packaging Unit100 pcs	Manual Crimping Tool 600648230220	Automatic Crimping Tool –	Design Kit 612690 645001
	65310113722	Female, 30 to 28 (AWG), 0.0509 to 0.0810 (mm²)	Downloads3 files CAD files ZIP 3D 65310113722_1 (rev1).pdf \| 316.6 KB IGS 65310113722 (rev1).igs \| 2.5 MB STP 65310113722 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	GenderFemale	Stranded Wire Section (AWG)30 to 28 (AWG)	Stranded Wire Section (Metric)0.0509 to 0.0810 (mm²)	PackagingSmall Reel	Packaging Unit1500 pcs	Manual Crimping Tool 600648230220	Automatic Crimping Tool 600653401	Design Kit –

Use with

WR-WTB Female Terminal Housing

Tools

WR-WTB Manual Crimping Tool: 600648230220

WR-WTB Automatic Crimping Tool: 600653401

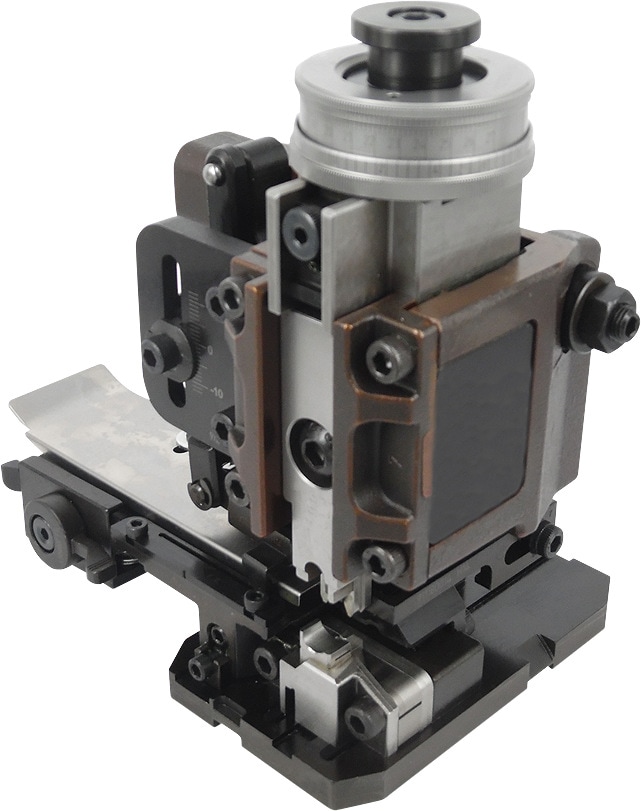

WR-WTB Automatic Crimping Tool

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
