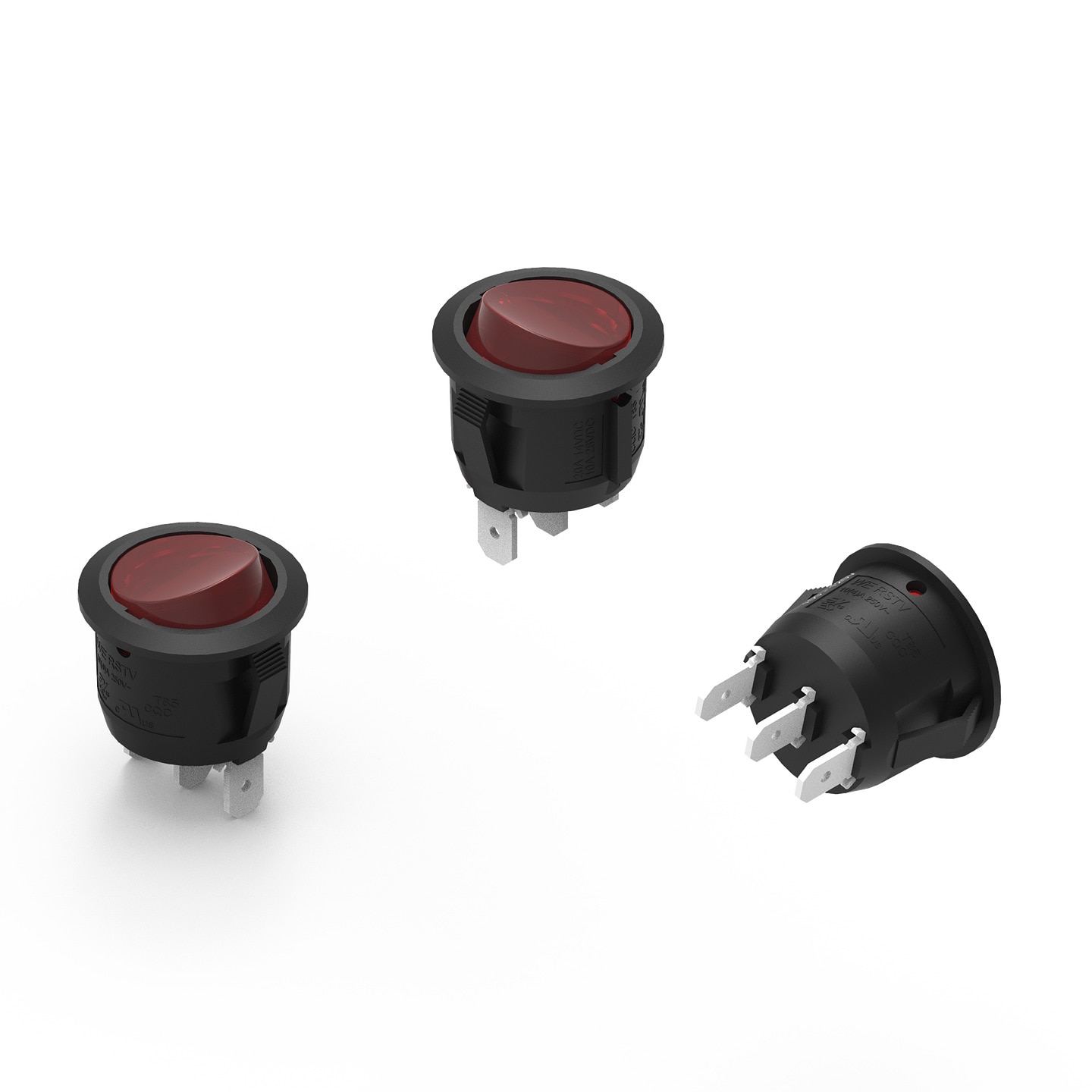

WS-RSTV illuminated panel cut-out rocker switch Ø 20.2 mm with 0.187" quick connect terminal

Material Properties
Actuator Material	PC
Actuator Flammability Rating	UL94 V-2
Frame Material	PA66
Frame Flammability Rating	UL94 V-2
Moveable Contact Material	Copper Alloy
Moveable Contact Plating	Silver
Stationary Contact Material	Copper Alloy
Terminal Material	Copper Alloy
Terminal Plating	Silver

Mechanical Properties
Electrical Life	10000 Cycles
Schematic	SPST

General Information
Operating Temperature	0 °C up to +85 °C
Ingress Protection Code	None

Packaging Properties
Packaging	Tray

Certification
UL Approval	E483308
ENEC 15 Approval	ENEC-03145
CQC Approval	released
Glow Wire Approval	GWEPT: 750

Products

Order Code	Datasheet	Downloads	Status	Test Condition I	Actuator Color	Emitting Color	Schematic
471NS04268640	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-RSTV (rev24e).IntLib \| 19.1 MB CDS Cadence_WS-RSTV (rev24e).zip \| 62.6 MB EAG Eagle_WS-RSTV (rev24e).lbr \| 275.1 KB CAD files ZIP 3D 3D_471NS04268640 (rev1).pdf \| 1.3 MB IGS IGS_471NS04268640 (rev1).igs \| 8.5 MB STP STP_471NS04268640 (rev1).stp \| 2.3 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220 V(AC)	Amber Transparent	Red	SPST
471NS03268840	SPEC	5 files EDA models: Components ZIP ALT Altium_WS-RSTV (rev24e).IntLib \| 19.1 MB EAG Eagle_WS-RSTV (rev24e).lbr \| 275.1 KB CAD files ZIP 3D 3D_471NS03268840 (rev1).pdf \| 1.4 MB IGS IGS_471NS03268840 (rev1).igs \| 9.2 MB STP STP_471NS03268840 (rev1).stp \| 2.8 MB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	110 V(AC)	Green Transparent	Green	SPST
471NS04268840	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-RSTV (rev24e).IntLib \| 19.1 MB CDS Cadence_WS-RSTV (rev24e).zip \| 62.6 MB EAG Eagle_WS-RSTV (rev24e).lbr \| 275.1 KB CAD files ZIP 3D 3D_471NS04268840 (rev1).pdf \| 1.3 MB IGS IGS_471NS04268840 (rev1).igs \| 8.5 MB STP STP_471NS04268840 (rev1).stp \| 2.3 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220 V(AC)	Green Transparent	Green	SPST
471NS03268540	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-RSTV (rev24e).IntLib \| 19.1 MB CDS Cadence_WS-RSTV (rev24e).zip \| 62.6 MB EAG Eagle_WS-RSTV (rev24e).lbr \| 275.1 KB CAD files ZIP 3D 3D_471NS03268540 (rev1).pdf \| 1.4 MB IGS IGS_471NS03268540 (rev1).igs \| 9.2 MB STP STP_471NS03268540 (rev1).stp \| 2.8 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	110 V(AC)	Red Transparent	Red	SPST
471NS04268540	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-RSTV (rev24e).IntLib \| 19.1 MB CDS Cadence_WS-RSTV (rev24e).zip \| 62.6 MB EAG Eagle_WS-RSTV (rev24e).lbr \| 275.1 KB CAD files ZIP 3D 3D_471NS04268540 (rev1).pdf \| 1.3 MB IGS IGS_471NS04268540 (rev1).igs \| 8.5 MB STP STP_471NS04268540 (rev1).stp \| 2.4 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	220 V(AC)	Red Transparent	Red	SPST
471NS03268640	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-RSTV (rev24e).IntLib \| 19.1 MB CDS Cadence_WS-RSTV (rev24e).zip \| 62.6 MB EAG Eagle_WS-RSTV (rev24e).lbr \| 275.1 KB CAD files ZIP 3D 3D_471NS03268640 (rev1).pdf \| 1.4 MB IGS IGS_471NS03268640 (rev1).igs \| 9.2 MB STP STP_471NS03268640 (rev1).stp \| 2.8 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	110 V(AC)	Amber Transparent	Red	SPST

	Order Code	Datasheet
	471NS04268640	SPEC
	471NS03268840	SPEC
	471NS04268840	SPEC
	471NS03268540	SPEC
	471NS04268540	SPEC
	471NS03268640	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Test Condition I	Actuator Color	Emitting Color	Schematic	Samples

Let's meet our WS-RSTV Rocker Switches series

WS-RSTV Rocker Switches

Introducing the Würth Elektronik Rocker Switch Series WS-RSTV - the ultimate solution for your switching needs. With UL/IEC/CQC 61058 certification and CE UKCA compliance, you can be assured of its quality and safety. Available in current ratings of 12, 28 and 60 VDC, these switches are built to last. And with a UV test certification of 60068-2-5, you can be confident that they can withstand even the harshest conditions. Try the WS-RSTV today and experience the difference.
