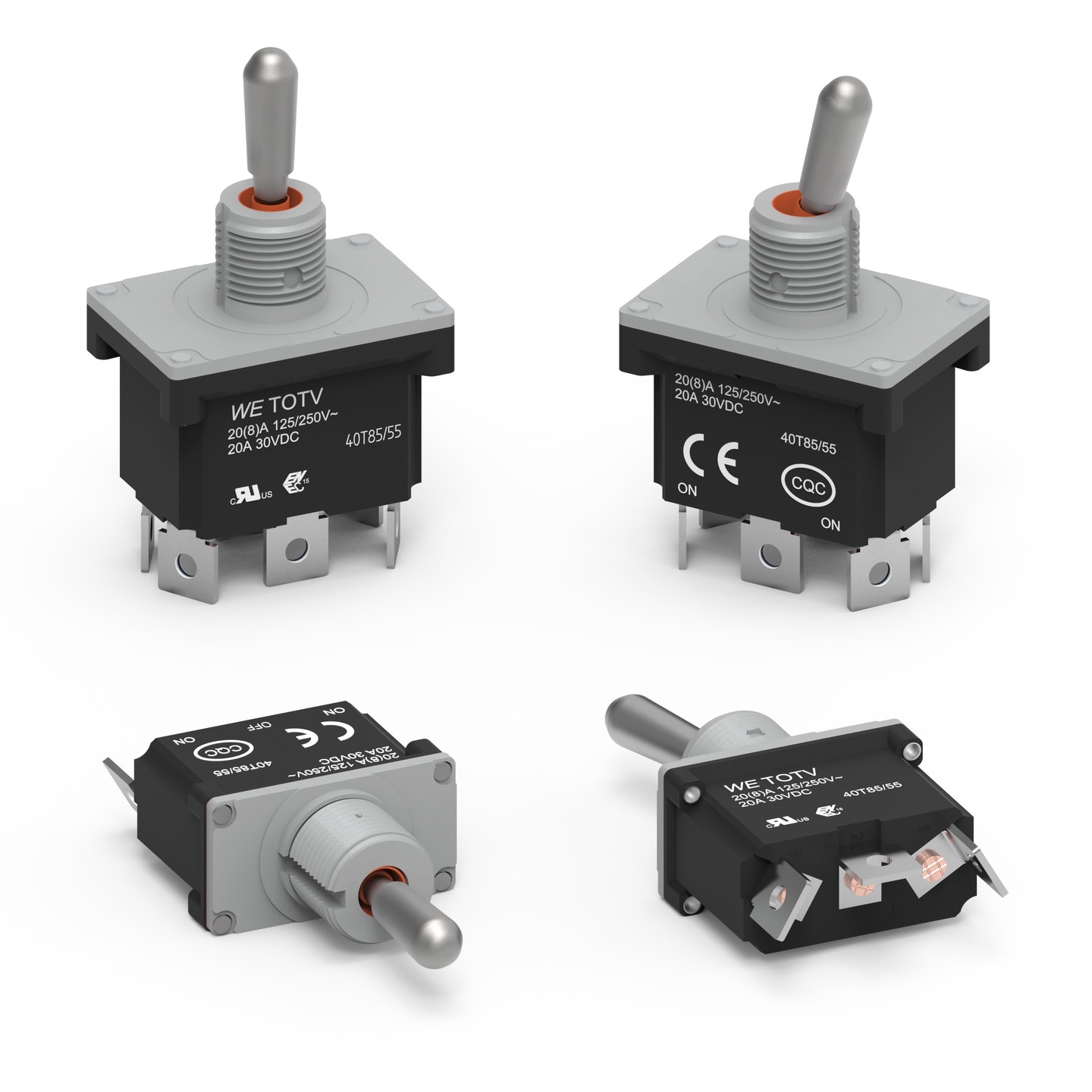

WS-TOTV Ø 12 mm Panel Cut-Out Vertical Operation Toggle Switch with Screw Terminal

General Information
Ingress Protection Code	IP68 (actuator sealed and panel sealed)

Certification
UL Approval	E483308
ENEC 15 Approval	ENEC-05165
CQC Approval	CQC25002468864
Glow Wire Approval	GWEPT: 850

Material Properties
Actuator Material	Copper Alloy
Cover Material	Aluminium Alloy
Frame Material	PA66
Frame Flammability Rating	UL94 V-0
Moveable Contact Material	Silver Alloy
Stationary Contact Material	Silver Alloy
Terminal Material	Copper Alloy
Terminal Plating	Nickel

Mechanical Properties
Electrical Life	10000 Cycles
Connection Type	Opposite Side Connection

Products

	Order Code	Datasheet	Downloads	Status	Switching Function	Schematic	Samples
	472223010140	SPEC	7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25a).zip \| 19 MB CAD files ZIP 3D 472223010140_3D (rev1).pdf \| 1.4 MB IGS 472223010140 (rev1).igs \| 9 MB STP 472223010140 (rev1).stp \| 3.3 MB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	ON-OFF-ON	SPDT
	472221010140	SPEC	7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25a).zip \| 19 MB CAD files ZIP 3D 472221010140_3D (rev1).pdf \| 1.7 MB IGS 472221010140 (rev1).igs \| 8.7 MB STP 472221010140 (rev1).stp \| 3.2 MB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	ON-ON	SPDT
	472231010140	SPEC	7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25a).zip \| 19 MB CAD files ZIP 3D 472231010140_3D (rev1).pdf \| 1.7 MB IGS 472231010140 (rev1).igs \| 9.3 MB STP 472231010140 (rev1).stp \| 4.4 MB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	ON-ON	DPDT
	472233010140	SPEC	7 files EDA models: Components ZIP ALT Altium_WS-TOTV (rev25a).IntLib \| 10.1 MB CDS Cadence_WS-TOTV (rev25a).zip \| 37.4 MB EAG Eagle_WS-TOTV (rev25a).lbr \| 151.1 KB KIC KiCad_WS-TOTV (rev25a).zip \| 19 MB CAD files ZIP 3D 472233010140_3D (rev1).pdf \| 1.6 MB IGS 472233010140 (rev1).igs \| 9.9 MB STP 472233010140 (rev1).stp \| 4.5 MB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	ON-OFF-ON	DPDT
