WS-TASV SMT IP67 Tact Switch 6.2 x 4.1 mm

WS-TASV SMT IP67 Tact Switch 6.2 x 4.1 mm
General Information
Operating Temperature-40 °C up to +85 °C
WashableYes
Ingress Protection CodeIP67
Material Properties
Actuator MaterialSilicone Rubber
Actuator Flammability RatingUL94 HB
Frame MaterialHTN
Frame Flammability RatingUL94 V-0
Contact PlatingSilver
Terminal PlatingSilver
Electrical Properties
IR50 mA
VR12 V (DC)
Contact Resistance Initial100 mΩ
RISO100 MΩ
Withstanding Voltage250 V (AC)
Mechanical Properties
Operation Force160 g; 260 g
Electrical Life500000 Cycles; 1000000 Cycles
Packaging Properties
PackagingTape and Reel

Application Notes

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
H(mm)
Operation Force(g)
Electrical Life(Cycles)
Actuator Color
Washable
Vaporphase process
Design Kit
Samples
WS-TASV SMT IP67 Tact Switch 6.2 x 4.1 mm
434771025826
2.5 mm, 260 g, 500000 Cycles
Downloads6 files

EDA models: Components ZIP

CAD files ZIP

Download all 6 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Height2.5 mm
Operation Force260 g
Electrical Life500000 Cycles
Actuator ColorWhite
WashableYes
Vaporphase processYes
Design Kit
499001
WS-TASV SMT IP67 Tact Switch 6.2 x 4.1 mm
434781025816
2.5 mm, 160 g, 1000000 Cycles
Downloads6 files

EDA models: Components ZIP

CAD files ZIP

Download all 6 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Height2.5 mm
Operation Force160 g
Electrical Life1000000 Cycles
Actuator ColorBlack
WashableYes
Vaporphase processYes
Design Kit
499001

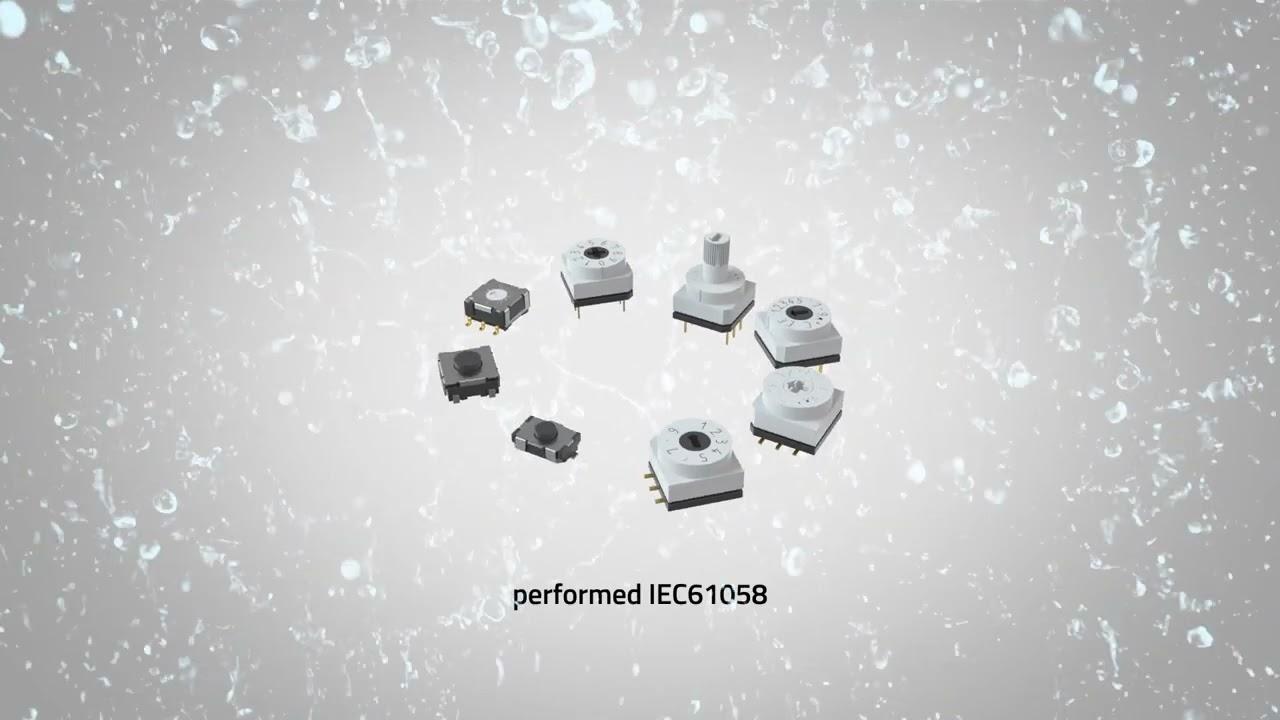

Switches for IP applications

Switches for IP applications

Würth Elektronik offers IP67 classified rotary switches as well as tact switches. Tested according to IEC61058 and IEC60068, these components are ideally designed for use in harsh industrial environments.If you would like to know more about the IP certified products, your Würth Elektronik field sales will be happy to provide you with advice and support.

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Switches
