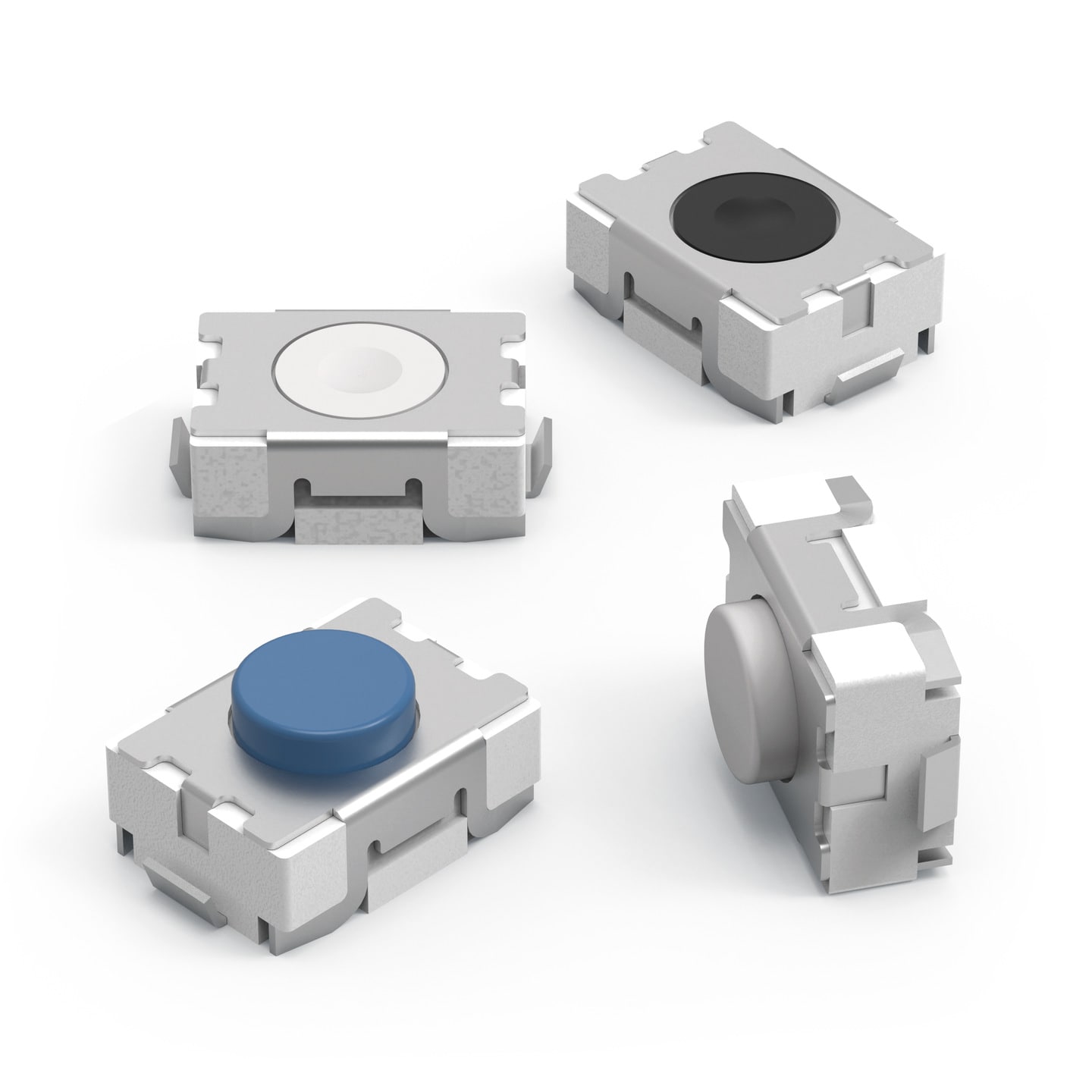

WS-TASV SMT Tact Switch 3.9 x 2.9 mm

General Information
Operating Temperature	-40 °C up to +125 °C
Washable	No
Ingress Protection Code	None

Material Properties
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Frame Material	PA46
Frame Flammability Rating	UL94 HB
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force	160 gf; 250 gf
Electrical Life	100000 Cycles; 200000 Cycles

Packaging Properties
Packaging	Tape and Reel

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	H(mm)	Operation Force(gf)	Electrical Life(Cycles)	Actuator Color	Washable	Vaporphase process	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	435154015816	SPEC1.5 mm, 160 gf, 200000 Cycles	Availability –	Downloads7 files ALT Altium_WS-TASV (rev26b).IntLib \| 2.3 MB CDS Cadence_WS-TASV (rev26b).zip \| 15.5 MB EAG Eagle_WS-TASV (rev26b).lbr \| 480.6 KB KIC KiCad_WS-TASV (rev26c).zip \| 4 MB 3D 3D_WS-TASV_435154015816 (rev1).pdf \| 145.7 KB IGS IGS_WS-TASV_435154015816 (rev1).igs \| 1.3 MB STP STP_WS-TASV_435154015816 (rev1).stp \| 283.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Height1.5 mm	Operation Force160 gf	Electrical Life200000 Cycles	Actuator ColorBlack	WashableNo	Vaporphase processnot specified	–Check availability
	435134015825	SPEC1.5 mm, 250 gf, 100000 Cycles	Availability –	Downloads7 files ALT Altium_WS-TASV (rev26b).IntLib \| 2.3 MB CDS Cadence_WS-TASV (rev26b).zip \| 15.5 MB EAG Eagle_WS-TASV (rev26b).lbr \| 480.6 KB KIC KiCad_WS-TASV (rev26c).zip \| 4 MB 3D 3D_WS-TASV_435134015825 (rev1).pdf \| 146.3 KB IGS IGS_WS-TASV_435134015825 (rev1).igs \| 1.3 MB STP STP_WS-TASV_435134015825 (rev1).stp \| 283.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Height1.5 mm	Operation Force250 gf	Electrical Life100000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified	–Check availability
	435154020816	SPEC2 mm, 160 gf, 200000 Cycles	Availability –	Downloads7 files ALT Altium_WS-TASV (rev26b).IntLib \| 2.3 MB CDS Cadence_WS-TASV (rev26b).zip \| 15.5 MB EAG Eagle_WS-TASV (rev26b).lbr \| 480.6 KB KIC KiCad_WS-TASV (rev26c).zip \| 4 MB 3D 3D_WS-TASV_435154020816 (rev1).pdf \| 145.4 KB IGS IGS_WS-TASV_435154020816 (rev1).igs \| 1.2 MB STP STP_WS-TASV_43515020816 (rev1).stp \| 282.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Height2 mm	Operation Force160 gf	Electrical Life200000 Cycles	Actuator ColorWhite	WashableNo	Vaporphase processnot specified	–Check availability
	435134020825	SPEC2 mm, 250 gf, 100000 Cycles	Availability –	Downloads7 files ALT Altium_WS-TASV (rev26b).IntLib \| 2.3 MB CDS Cadence_WS-TASV (rev26b).zip \| 15.5 MB EAG Eagle_WS-TASV (rev26b).lbr \| 480.6 KB KIC KiCad_WS-TASV (rev26c).zip \| 4 MB 3D 3D_WS-TASV_435134020825 (rev1).pdf \| 145.4 KB IGS IGS_WS-TASV_435134020825 (rev1).igs \| 1.2 MB STP STP_WS-TASV_435134020825 (rev1).stp \| 282.8 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Height2 mm	Operation Force250 gf	Electrical Life100000 Cycles	Actuator ColorBlue	WashableNo	Vaporphase processnot specified	–Check availability
