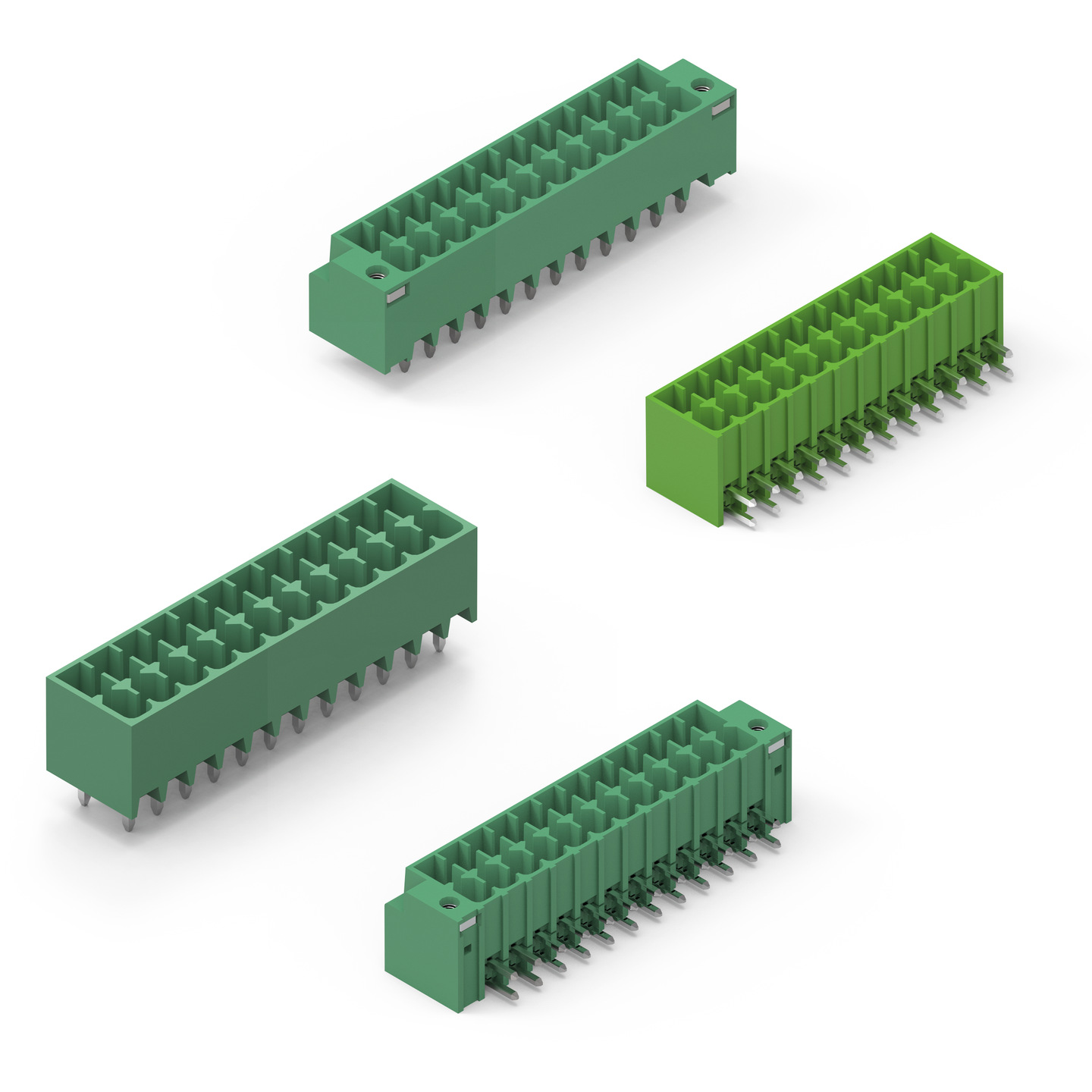

WR-TBL Terminal Blocks - PCB Header Dual Row - 3.5mm pitch - THT | Electromechanical Components

Size	Dimensions	Mount
NEWHorizontal		THT
NEWVertical		THT
NEWHorizontal w/ flanges		THT
NEWVertical w/ flanges		THT

Characteristics

Rated Current: 8A
Working Voltage: 150V / 300V
Operating temperature: -40°C up to +115°C
UL approval: E315414
UL 94-V0

Applications

Industrial

Application Notes

Other polarities, plastic housing color and printings are possible. Please contact your local sales contact if you are interested in this variant.
