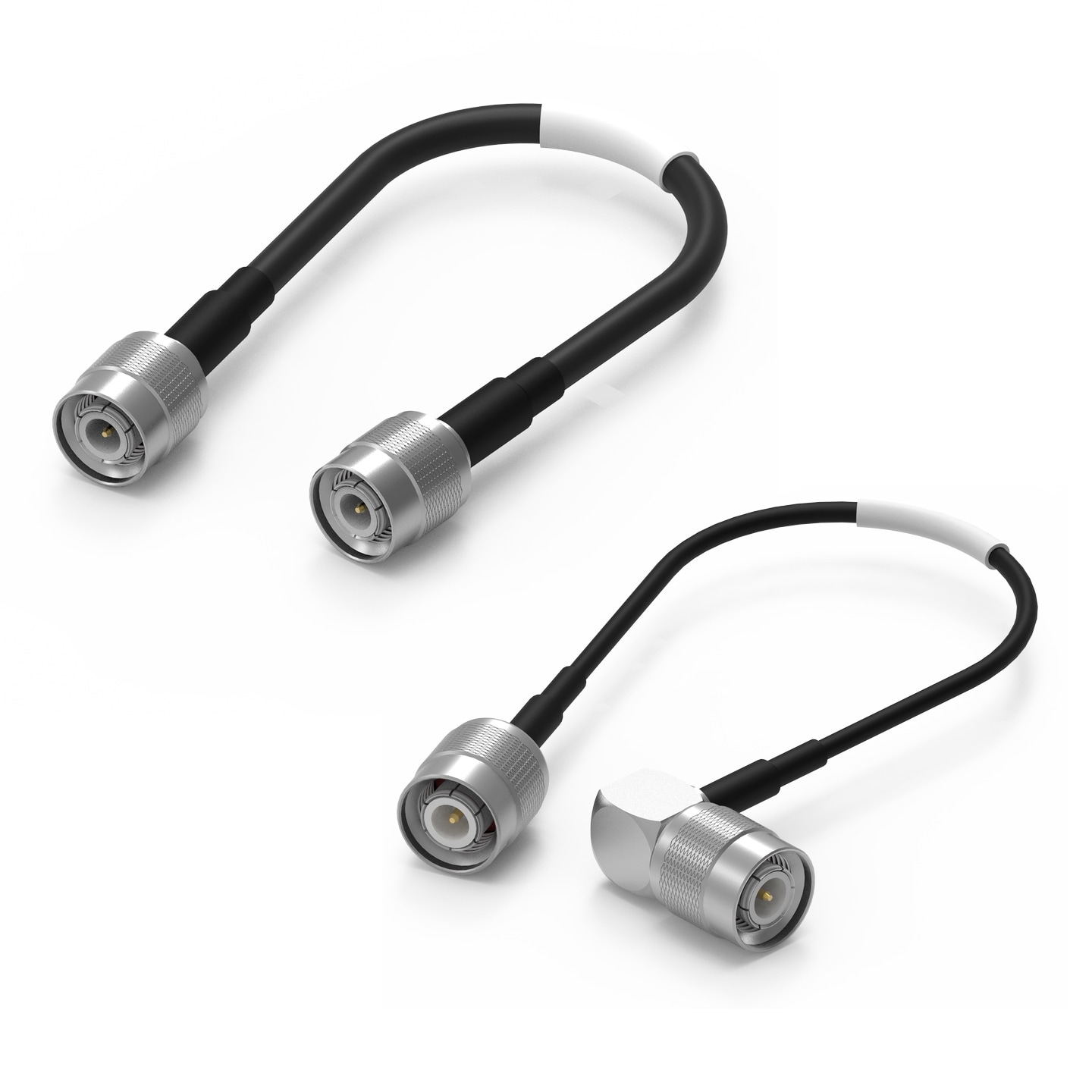

WR-CXASY TNC to TNC Series

Size	Dimensions

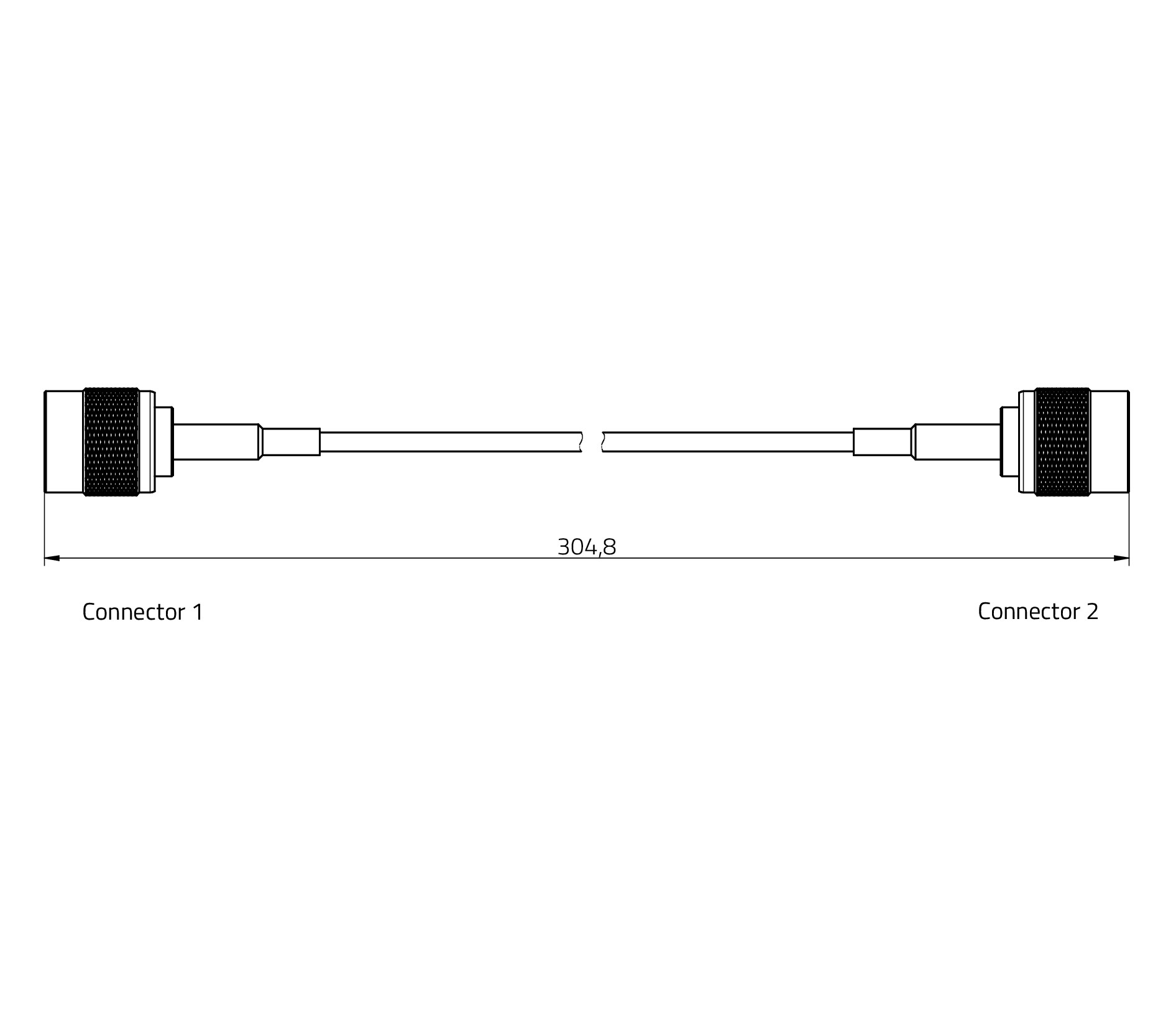

EXT.TNC Straight Plug \| TNC Straight Plug

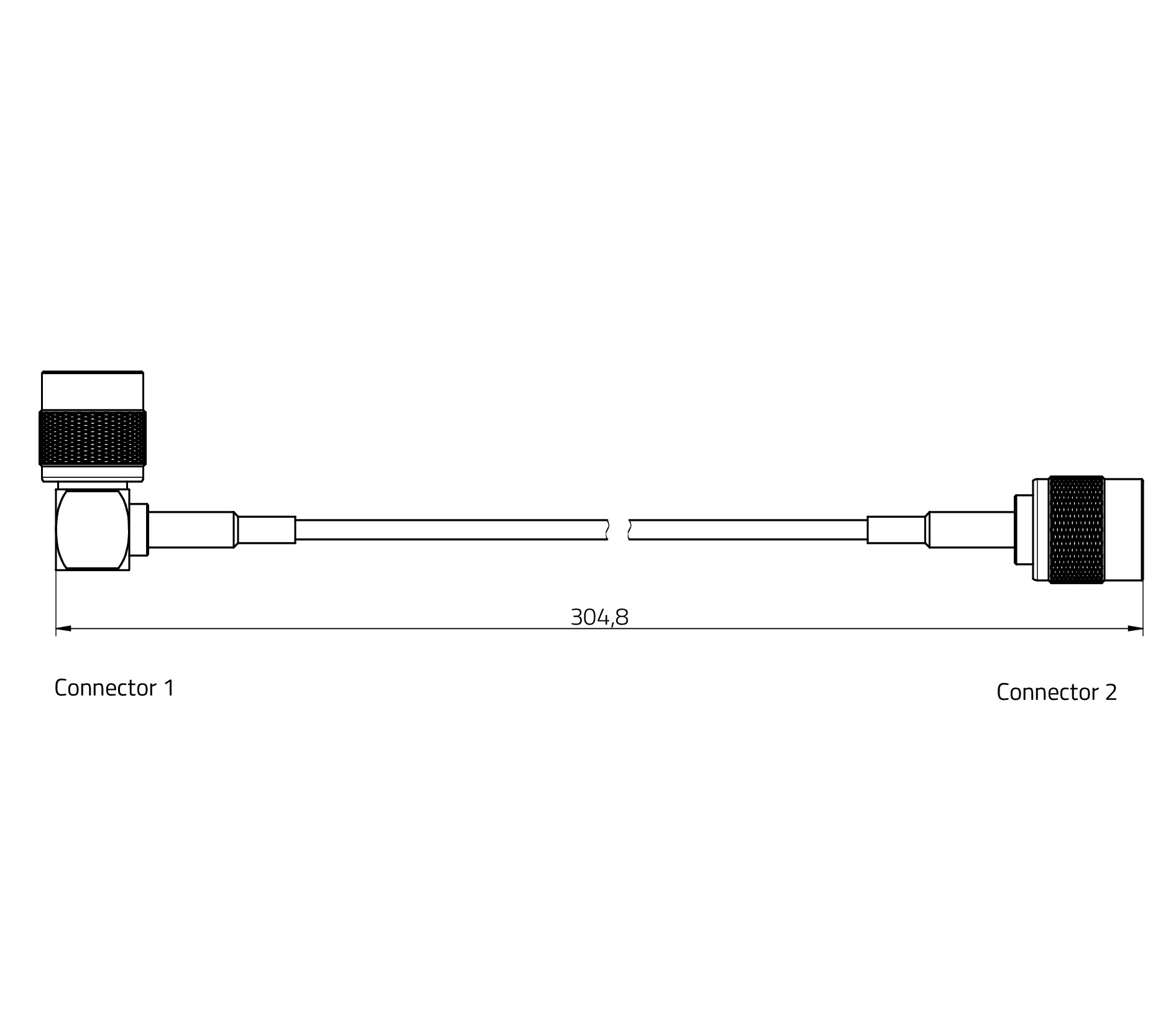

EXT.TNC Right Angle Plug \| TNC Straight Plug
NEWTNC Straight Plug ⅼ TNC Straight Jack
NEWTNC Straight Plug ⅼ TNC Straight Bulkhead Jack

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50Ω
Insulation Resistance: 1000M Ohm (min)
Withstanding Voltage: 750 Vrms (min.)
Mating: Screw (Recommended by torque wrench tool)

Applications

Network and communications
RF Test and measurement equipment
Industrial application
Outdoor or humidity environment

Didn't find the right cable? Configure and request directly

Products

All

TNC Straight Plug | TNC Straight Plug

TNC Right Angle Plug | TNC Straight Plug

TNC Straight Plug ⅼ TNC Straight Jack

TNC Straight Plug ⅼ TNC Straight Bulkhead Jack

Filter article data

show article in 4 product lines

article in 4 product lines

Order Code	Datasheet	Downloads	Status	Connector Type 1	Connector Type 2	Cable	Nominal Cable Length(mm)	f	Z(Ω)	Ingress Protection Code	SamplesAvailability & Sample
65510110330501	SPECTNC, TNC, RG-174/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_WERI_ConCXASY_65510110330501 (rev1).pdf \| 4.6 MB IGS IGS_WERI_ConCXASY_65510110330501 (rev1).igs \| 53.2 MB STP STP_WERI_ConCXASY_65510110330501 (rev1).stp \| 19.4 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1TNC	Connector Type 2TNC	CableRG-174/U	Nominal Cable Length304.8 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability
65510110130501	SPECTNC, TNC, RG-58 C/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_WERI_ConCXASY_65510110130501_3d (rev1).pdf \| 4.6 MB IGS IGS_WERI_ConCXASY_65510110130501 (rev1).igs \| 53.5 MB STP STP_WERI_ConCXASY_65510110130501 (rev1).stp \| 19.5 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1TNC	Connector Type 2TNC	CableRG-58 C/U	Nominal Cable Length304.8 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability
65512411650001	SPECTNC, TNC, RG-316/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConCXASY_65512411650001 (rev1).pdf \| 6.9 MB IGS IGS_ConCXASY_65512411650001 (rev1).igs \| 74 MB STP STP_ConCXASY_65512411650001 (rev1).stp \| 30.1 MB	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1TNC	Connector Type 2TNC	CableRG-316/U	Nominal Cable Length500 mm	Frequency RangeDC~6 GHz	Impedance50 Ω	Ingress Protection CodeIP67	–Check availability
65512410150001	SPECTNC, TNC, RG-58 C/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConCXASY_65512410150001 (rev1).pdf \| 6.8 MB IGS IGS_ConCXASY_65512410150001 (rev1).igs \| 68.7 MB STP STP_ConCXASY_65512410150001 (rev1).stp \| 25.5 MB	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1TNC	Connector Type 2TNC	CableRG-58 C/U	Nominal Cable Length500 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeIP67	–Check availability
65512211650001	SPECTNC, TNC, RG-316/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConCXASY_65512211650001 (rev1).pdf \| 5.6 MB IGS IGS_ConCXASY_65512211650001 (rev1).igs \| 54 MB STP STP_ConCXASY_65512211650001 (rev1).stp \| 21.5 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1TNC	Connector Type 2TNC	CableRG-316/U	Nominal Cable Length500 mm	Frequency RangeDC~6 GHz	Impedance50 Ω	–	–Check availability
65512210150001	SPECTNC, TNC, RG-58 C/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConCXASY_65512210150001 (rev1).pdf \| 5.4 MB IGS IGS_ConCXASY_65512210150001 (rev1).igs \| 46.3 MB STP STP_ConCXASY_65512210150001 (rev1).stp \| 15.4 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1TNC	Connector Type 2TNC	CableRG-58 C/U	Nominal Cable Length500 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability
65510010330501	SPEC–, –, RG-174/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_WERI_ConCXASY_65510010330501_3d (rev1).pdf \| 4.3 MB IGS IGS_WERI_ConCXASY_65510010330501 (rev1).igs \| 52.3 MB STP STP_WERI_ConCXASY_65510010330501 (rev1).stp \| 19 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	–	–	CableRG-174/U	Nominal Cable Length304.8 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability
65510010130501	SPEC–, –, RG-58 C/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_WERI_ConCXASY_65510010130501 (rev1).pdf \| 4.4 MB IGS IGS_WERI_ConCXASY_65510010130501 (rev1).igs \| 52.6 MB STP STP_WERI_ConCXASY_65510010130501 (rev1).stp \| 19 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	–	–	CableRG-58 C/U	Nominal Cable Length304.8 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	–	–Check availability

Mates with

WR-TNC TNC PCB Connectors
