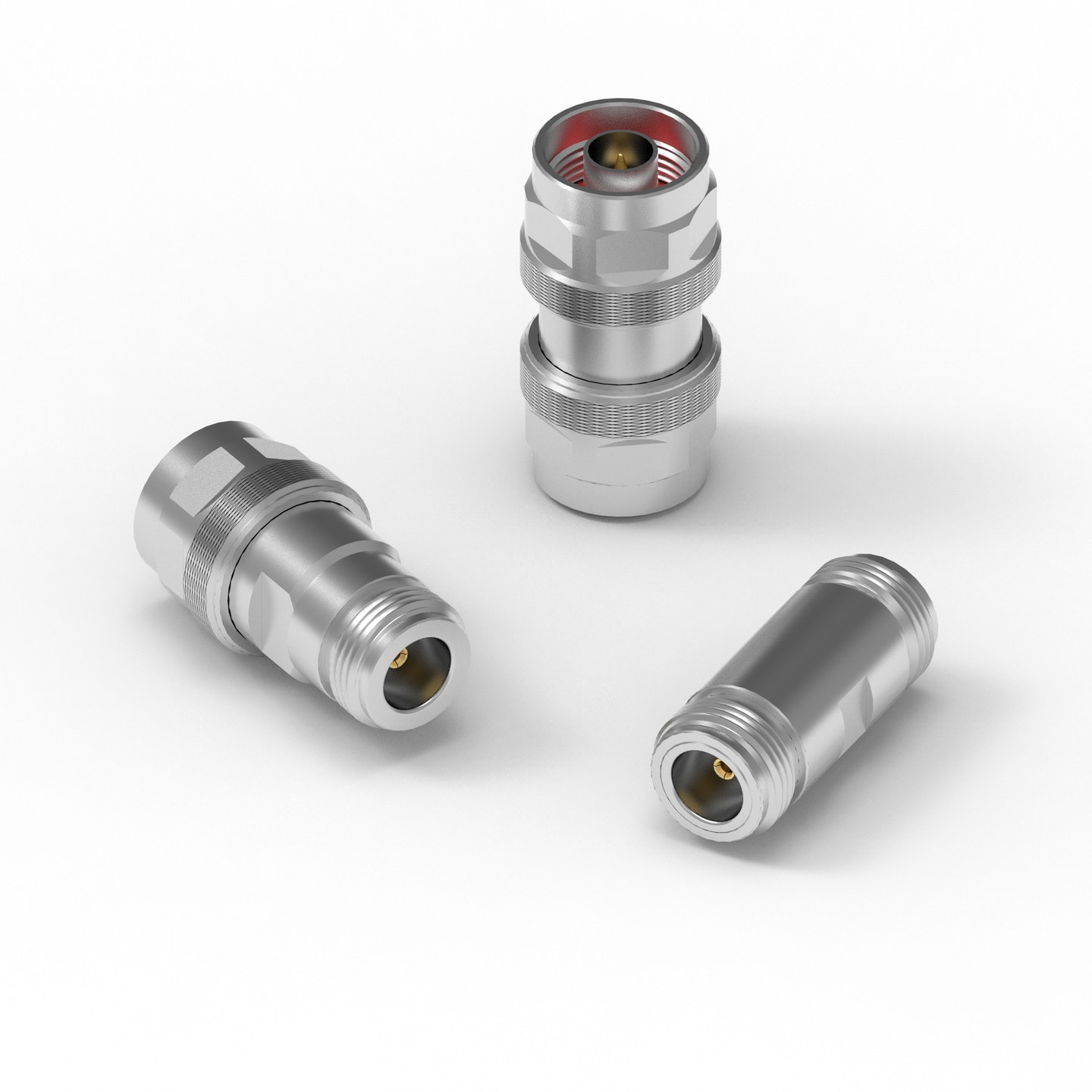

WR-ADPT N Type to N Type

Characteristics

Interface MIL-STD-348
Mating Cycle 500 Cycles
Impedance 50Ω
Plating Nickel and Gold

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
High power machinery

General Information
Operating Temperature	-65 °C up to +165 °C
Interface	MIL-STD-348

Material Properties
Insulator Material	PTFE
Insulator Color	White
Center Contact Material	Brass; Phosphor Bronze
Center Contact Plating	Gold, min. 0.076µm over Nickel
Body Material	Brass
Body Plating	Nickel, min. 2.54 µm over Copper
Coupling Nut Material	Brass
Coupling Nut Plating	Nickel, min. 2.54 µm over Copper

Electrical Properties
f	DC~11 GHz

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Connector Type 1	Gender 1	Connector Type 2	Gender 2	f	Operating Temperature	Samples
	64404104111000	N Type, Jack, N Type	Downloads3 files CAD files ZIP 3D 3D_64404104111000 (rev1).pdf \| 571.6 KB IGS IGS_64404104111000 (rev1).igs \| 1.7 MB STP STP_64404104111000 (rev1).stp \| 439.1 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1N Type	Gender 1Jack	Connector Type 2N Type	Gender 2Jack	Frequency RangeDC~11 GHz	Operating Temperature -65 °C up to +165 °C
	64404204111000	N Type, Plug, N Type	Downloads3 files CAD files ZIP 3D 3D_64404204111000 (rev1).pdf \| 2.6 MB IGS IGS_64404204111000 (rev1).igs \| 18.9 MB STP STP_64404204111000 (rev1).stp \| 7.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1N Type	Gender 1Plug	Connector Type 2N Type	Gender 2Jack	Frequency RangeDC~11 GHz	Operating Temperature -65 °C up to +165 °C
	64404204211000	N Type, Plug, N Type	Downloads3 files CAD files ZIP 3D 3D_64404204211000 (rev1).pdf \| 4.4 MB IGS IGS_64404204211000 (rev1).igs \| 35.9 MB STP STP_64404204211000 (rev1).stp \| 14.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1N Type	Gender 1Plug	Connector Type 2N Type	Gender 2Plug	Frequency RangeDC~11 GHz	Operating Temperature -65 °C up to +165 °C

Mates with

WR-NTYPE N Type PCB Connectors
