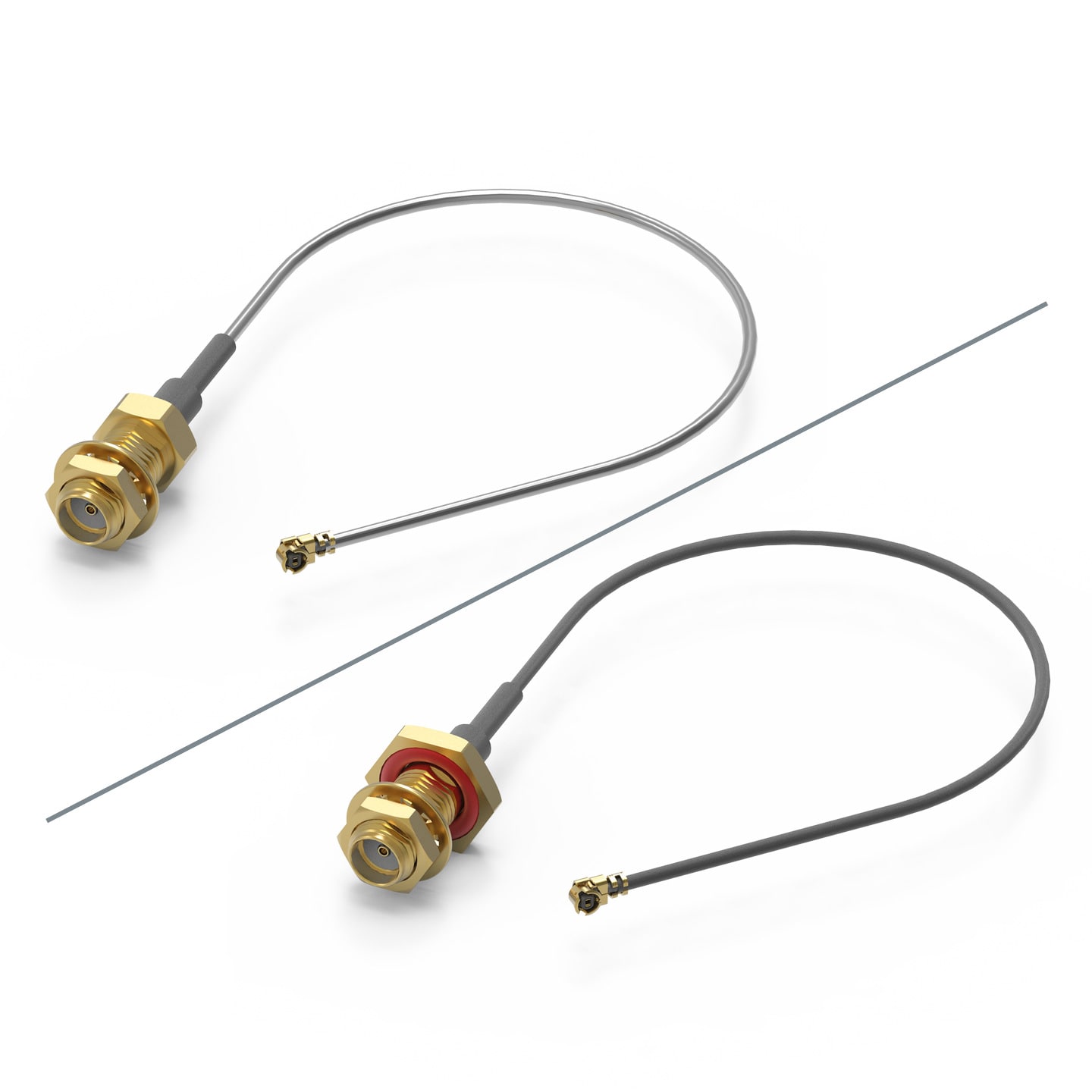

WR-UMRF SMA to UMRF

Size	Dimensions
SMA Straight Jack \| UMRF Right Angle Plug 1.13
SMA Straight Jack \| UMRF Right Angle Plug 1.32
SMA Straight Jack \| UMRF Right Angle Plug 1.37

Characteristics

Interface SMA: MIL-STD-348
Interface UMRF: Equivalent of MHF 1 and U.FL
Mating Cycle: 500 cycles SMA | 30 cycles UMRF
Impedance: 50 Ω
Plating: Gold over Nickel
Mating: Screw SMA | Snap on UMRF
Ingress Protection: None ⅼ IP67

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and device
Outdoor or humidity environment
