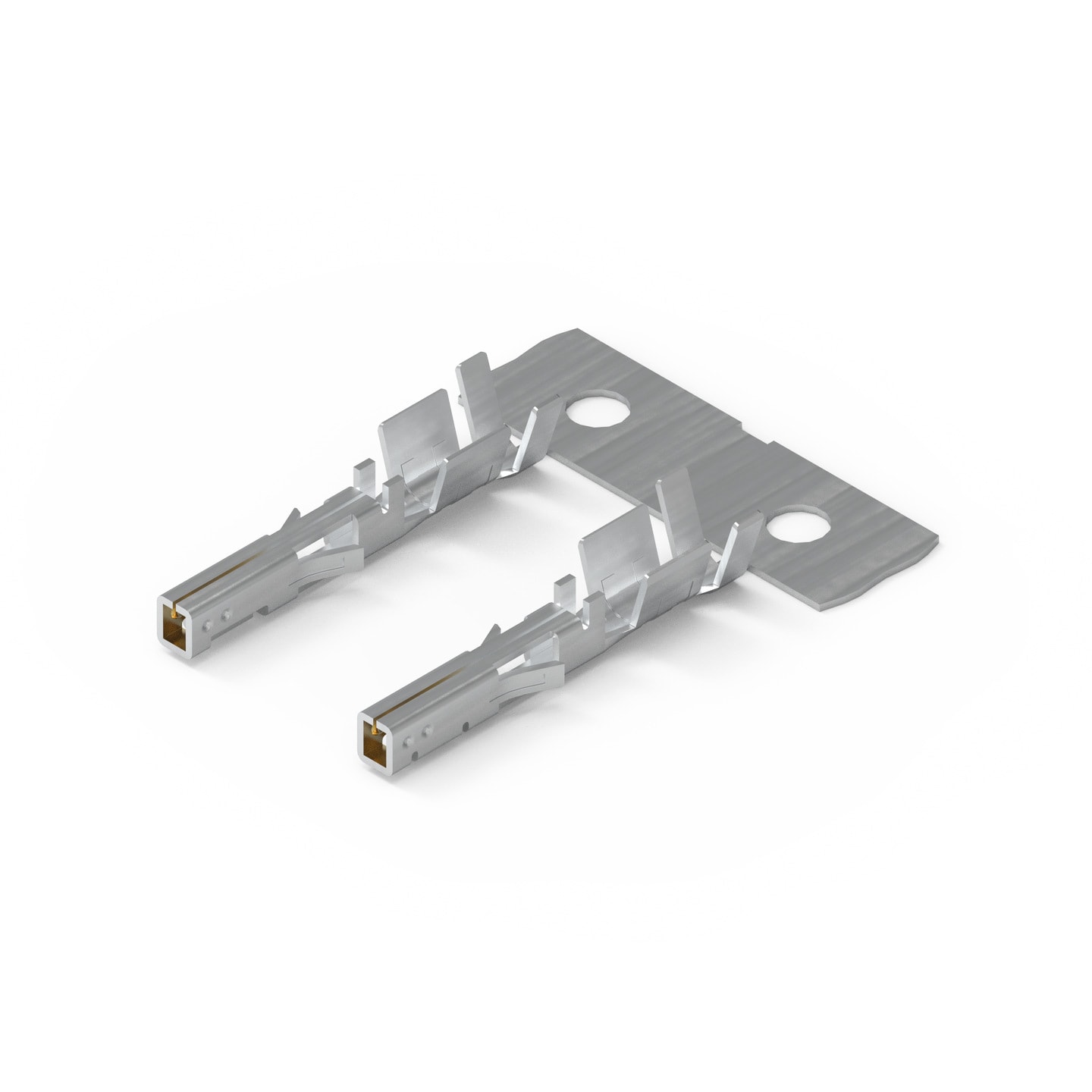

WR-MPC3 3.00 mm Female Crimp Terminal – Selective Gold

General Informations
Type	Crimp Terminal
Operating Temperature	-25 °C up to +105 °C
Durability	75 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Bag; Big Reel; Small Reel
Qty.	100 pcs; 1000 pcs; 10000 pcs

Material Properties
Contact Material	Copper Alloy
Contact Plating	Selective Gold

Wire Properties
Stranded Wire Section (AWG)	24 to 20 (AWG)

Products

Order Code	Datasheet	Downloads	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Type	I_R (A)	Working Voltage (V (AC))	Contact Plating	Contact Resistance (mΩ)	Packaging	Qty. (pcs)	Design Kit	Samples
66200113724	SPEC	3 files CAD files ZIP 3D 662x0113724_3D (rev1).pdf \| 323.1 KB IGS 662x0113724_IGES (rev1).iges \| 3.1 MB STP Downloads_STP_662x0113724 (rev1).stp \| 905.2 KB Download all 3 files as zip archive ZIP	Female	24 to 20 (AWG)	0.205 to 0.518 (mm²)	Crimp Terminal	5	250	Selective Gold	10	Big Reel	10000	–
66200113724DEC	SPEC	3 files CAD files ZIP 3D 66200113724DEC_3D (rev1).pdf \| 323.1 KB IGS Downloads_IGES_66200113722DEC (rev1).iges \| 1.5 MB STP Downloads_STP_66200113722DEC (rev1).stp \| 424.3 KB Download all 3 files as zip archive ZIP	Female	24 to 20 (AWG)	0.205 to 0.518 (mm²)	Crimp Terminal	5	250	Selective Gold	10	Bag	100	612690
66210113724	SPEC	3 files CAD files ZIP 3D 66210113724_3D (rev1).pdf \| 323.1 KB IGS 66210113724_IGES (rev1).iges \| 3.1 MB STP Downloads_STP_662x0113724 (rev1).stp \| 905.2 KB Download all 3 files as zip archive ZIP	Female	24 to 20 (AWG)	0.205 to 0.518 (mm²)	Crimp Terminal	5	250	Selective Gold	10	Small Reel	1000	–

Order Code	Datasheet
66200113724	SPEC
66200113724DEC	SPEC
66210113724	SPEC

Samples

Order Code	Datasheet	Downloads	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Type	I_R (A)	Working Voltage (V (AC))	Contact Plating	Contact Resistance (mΩ)	Packaging	Qty. (pcs)	Design Kit	Samples

Mates with

WR-MPC3 3.00 mm Female Receptacle Housing Single Row

WR-MPC3 3.00 mm Female Receptacle Housing Dual Row

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions
