Size	Dimensions
N Type Straight Plug \| N Type Straight Plug

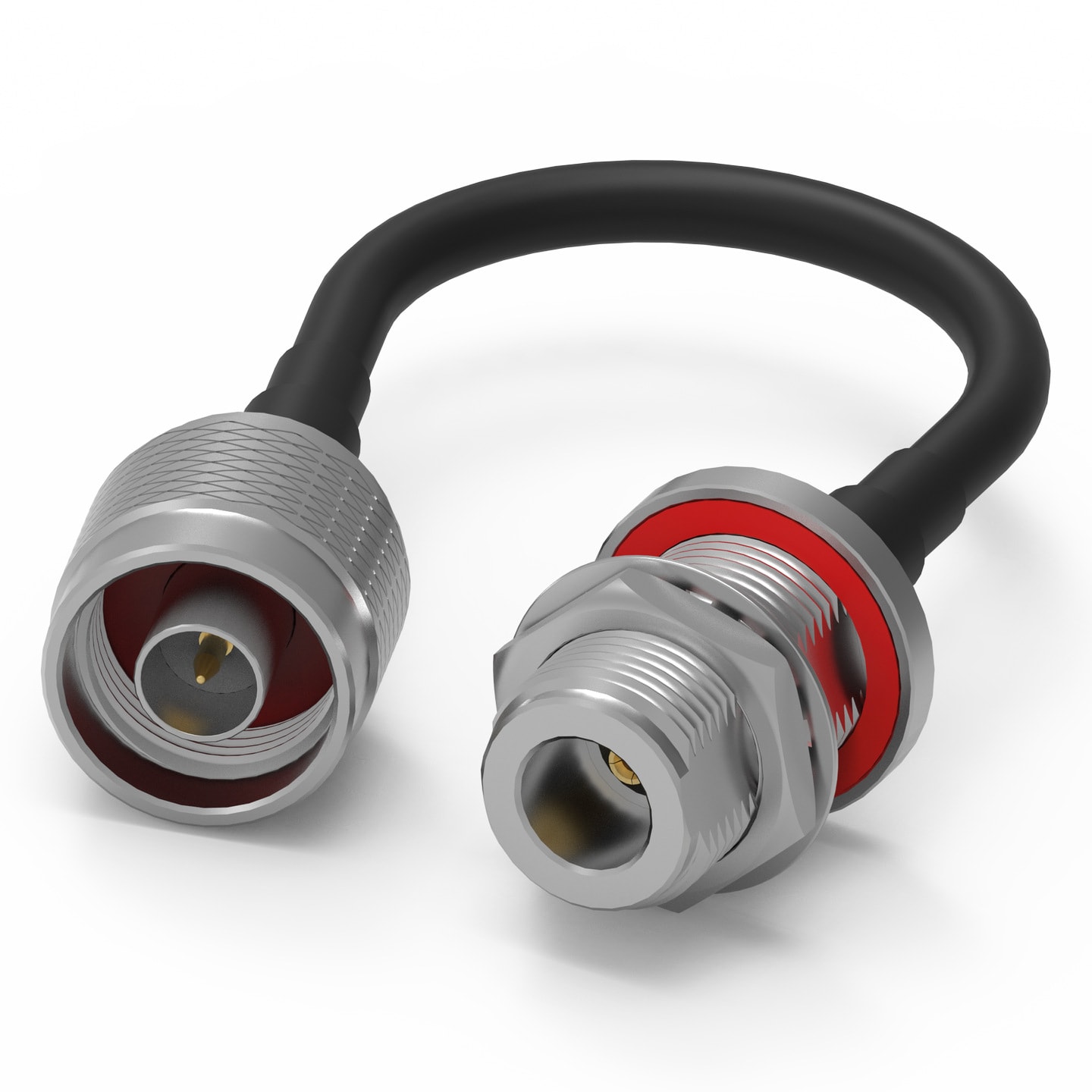

N Type Straight Plug \| N Type Straight Jack
N Type Right Angle Plug \| N Type Straight Jack

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50 Ohm
Insulation Resistance 5000M Ohm (min)
Withstanding Voltage 1000 Vrms (min.)

Applications

Network and Communications
RF Test and Measurement Equipment
Industrial Application
Electronic Consumer and Device

Application Notes

ANE016 Coaxial cables and cable assemblies
PDF

Products

All

N Type Straight Plug | N Type Straight Plug

N Type Straight Plug | N Type Straight Jack

N Type Right Angle Plug | N Type Straight Jack

Order Code	Datasheet	Downloads	Cable	Cable Type	Nominal Cable Length (mm)	f	Nominal Outer Cable Diameter (mm)	Min. Bend Radius (mm)	Operating Temperature	Samples
65506012430501	SPEC	3 files CAD files ZIP 3D 3D_65506012430501 (rev1).pdf \| 4.3 MB IGS Download_IGS_65506012430501 (rev1).igs \| 19.3 MB STP Download_STP_65506012430501 (rev1).stp \| 11.7 MB Download all 3 files as zip archive ZIP	Low Loss 195	Flexible	304.8	DC~6 GHz	4.95	12.7	-40 up to +85 °C
65506412430501	SPEC	3 files CAD files ZIP 3D 3D_65506412430501 (rev1).pdf \| 6 MB IGS Download_IGES_65506412430501 (rev1).igs \| 50.9 MB STP Download_STP_65506412430501 (rev1).stp \| 40.4 MB	Low Loss 195	Flexible	304.8	DC~6 GHz	4.95	12.7	-40 up to +85 °C
65506212430501	SPEC	3 files CAD files ZIP 3D 3D_65506212430501 (rev1).pdf \| 5.2 MB IGS Download_IGS_65506212430501 (rev1).igs \| 36.2 MB STP Download_STP_65506212430501 (rev1).stp \| 29.4 MB Download all 3 files as zip archive ZIP	Low Loss 195	Flexible	304.8	DC~6 GHz	4.95	12.7	-40 up to +85 °C
65506010130501	SPEC	3 files CAD files ZIP 3D 3D_65506010130501 (rev1).pdf \| 4.3 MB IGS Download_IGS_65506010130501 (rev1).igs \| 19.3 MB STP Download_STP_65506010130501 (rev1).stp \| 11.7 MB Download all 3 files as zip archive ZIP	RG-58 C/U	Flexible	304.8	DC~1 GHz	4.95	49.5	-20 up to +80 °C
65506011630501	SPEC	3 files CAD files ZIP 3D 3D_65506011630501 (rev1).pdf \| 4.5 MB IGS Download_IGS_65506011630501 (rev1).igs \| 37.6 MB STP Download_STP_65506011630501 (rev1).stp \| 20.9 MB Download all 3 files as zip archive ZIP	RG-316/U	Flexible	304.8	DC~6 GHz	2.49	12.7	-55 up to +165 °C
65506410130501	SPEC	3 files CAD files ZIP 3D 3D_65506410130501 (rev1).pdf \| 6 MB IGS Download_IGS_65506410130501 (rev1).igs \| 50.9 MB STP Download_STP_65506410130501 (rev1).stp \| 40.4 MB	RG-58 C/U	Flexible	304.8	DC~1 GHz	4.95	49.5	-20 up to +80 °C
65506411630501	SPEC	3 files CAD files ZIP 3D 3D_65506411630501 (rev1).pdf \| 9.7 MB IGS Download_IGS_65506411630501 (rev1).igs \| 16 MB STP Download_STP_65506411630501 (rev1).stp \| 19.7 MB Download all 3 files as zip archive ZIP	RG-316/U	Flexible	304.8	DC~6 GHz	2.49	12.7	-55 up to +165 °C
65506210130501	SPEC	3 files CAD files ZIP 3D 3D_65506210130501 (rev1).pdf \| 5.2 MB IGS Download_IGS_65506210130501 (rev1).igs \| 36.2 MB STP Download_STP_6550621013050 (rev1).stp \| 29.4 MB Download all 3 files as zip archive ZIP	RG-58 C/U	Flexible	304.8	DC~1 GHz	4.95	49.5	-20 up to +80 °C
65506211630501	SPEC	3 files CAD files ZIP 3D 3D_65506211630501 (rev1).pdf \| 6 MB IGS Download_IGS_65506211630501 (rev1).igs \| 13.6 MB STP Download_STP_65506211630501 (rev1).stp \| 19 MB Download all 3 files as zip archive ZIP	RG-316/U	Flexible	304.8	DC~6 GHz	2.49	12.7	-55 up to +165 °C

Order Code	Datasheet
65506012430501	SPEC
65506412430501	SPEC
65506212430501	SPEC
65506010130501	SPEC
65506011630501	SPEC
65506410130501	SPEC
65506411630501	SPEC
65506210130501	SPEC
65506211630501	SPEC
