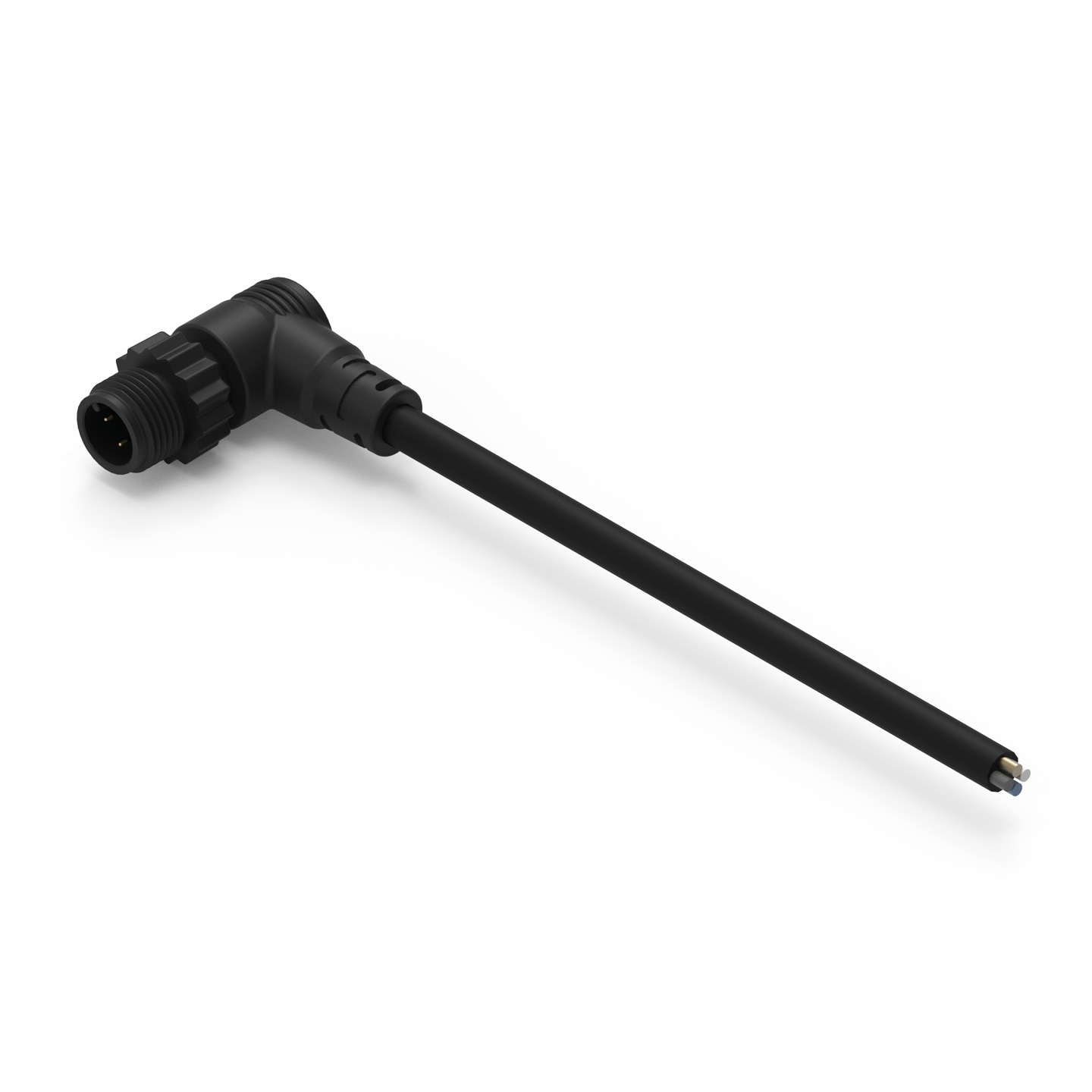

WR-CIRCM12 Screw Mating Cable Assembly Male Angled Plastic Coupling Nut

General Information
Operating Temperature-20 °C up to +80 °C
GenderMale
Durability100 Mating cycles
Packaging Properties
PackagingBag
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 HB
Insulator ColorBlack
Contact MaterialCopper Alloy
Contact PlatingGold
Coupling Nut MaterialPA66
Electrical Properties
IR2 A; 5 A
Working Voltage30 V; 60 V; 250 V
Withstanding Voltage650 V (AC); 1000 V (AC); 1400 V (AC)
Contact Resistance Initial10 mΩ
RISO100 MΩ

Products

Order Code Data­sheet Man­ual DownloadsPolarityGenderIR
(A)
Working Voltage
(V)
Withstanding Voltage
(V (AC))
Packaging Samples
643631120305SPEC
PDF3 files 5 Male 5 60 1000 Bag
643631120304SPEC
PDF3 files 4 Male 5 250 1400 Bag
643631120308SPEC
PDF3 files 8 Male 2 30 650 Bag
Order Code Data­sheet
643631120305SPEC
643631120304SPEC
643631120308SPEC
