WPME-CDI2C I²C Isolators

NEW

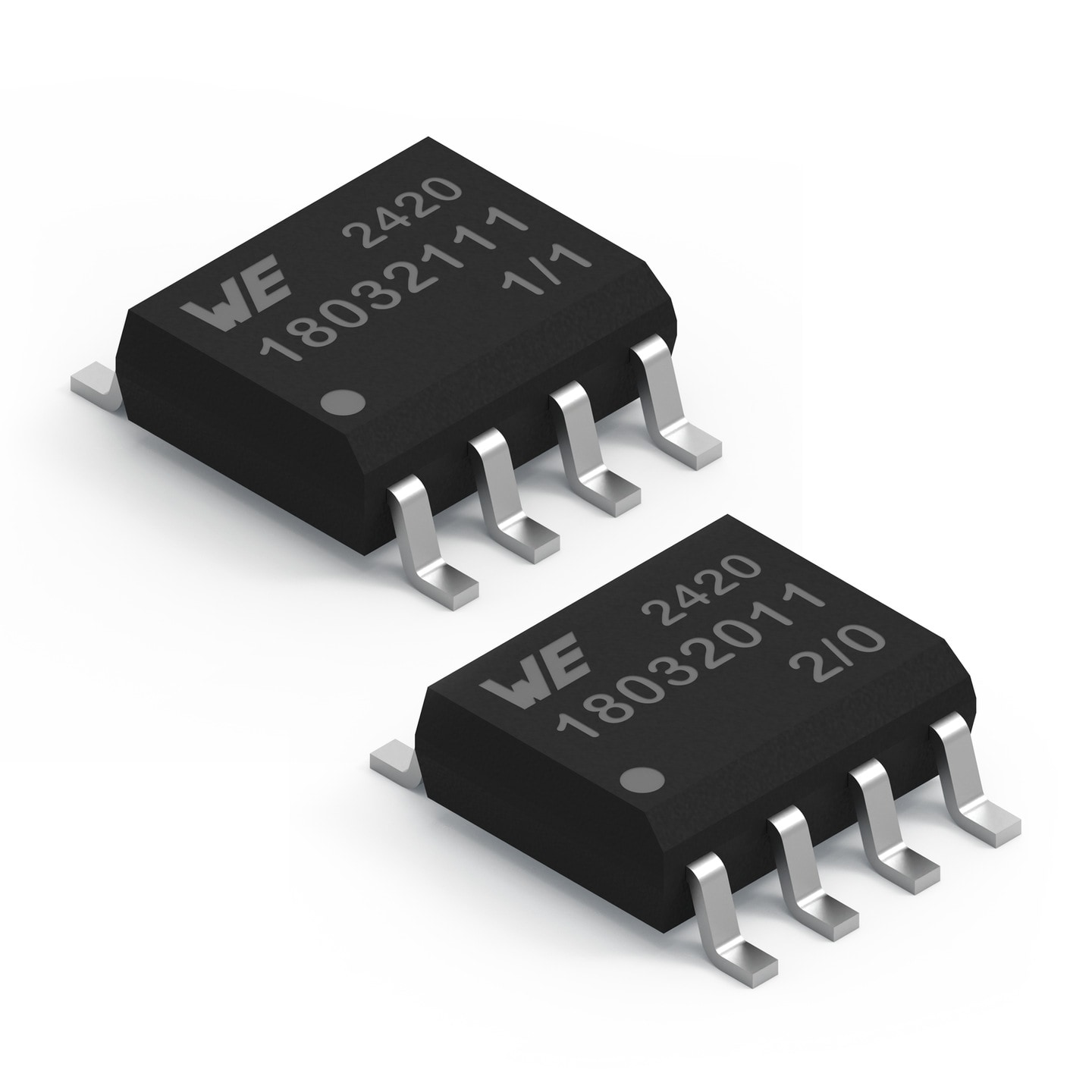

WPME-CDI2C I²C Isolators
SizeDimen­sionsL
(mm)		W
(mm)		H
(mm)		Mount
NEWSOIC-8NB
 4.9 6 1.8 SMT

Characteristics

  • 2-channel bidirectional I²C isolators
  • Isolation voltage up to 3750 VRMS
  • Basic isolation
  • Bidirectional data transfer up to 2 MHz
  • Bidirectional SDA and bi- or unidirectional SCL communication
  • High level of immunity to system noise (CMTI ±150 kV/μs)
  • Industrial standard package and pin configuration
  • UL 1577 recognized
  • DIN EN IEC 60747-17 (VDE 0884-17) certification

Applications

  • Isolated I²C, SMBus and PMBus interfaces
  • Power Over Ethernet (PoE)
  • Battery management systems
  • Motor control
  • Power supplies
  • Instrumentation
  • Isolated ADCs and DACs
  • Isolated sensor interfaces

Products

SOIC-8NB
Reset all
Filter article data
Filter by
Delete all
 show  article in 1 product lines
 article in 1 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
VISO(V (RMS))
Type of Insulation
fmax(MHz)
SamplesAvailability & Sample
18032011
–
Availability
–
Downloads–
Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Isolation Voltage3750 V (RMS)
Type of InsulationBasic
I²C Maximum Frequency2 MHz
–Check availability
18032111
–
Availability
–
Downloads–
Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Isolation Voltage3750 V (RMS)
Type of InsulationBasic
I²C Maximum Frequency2 MHz
–Check availability
