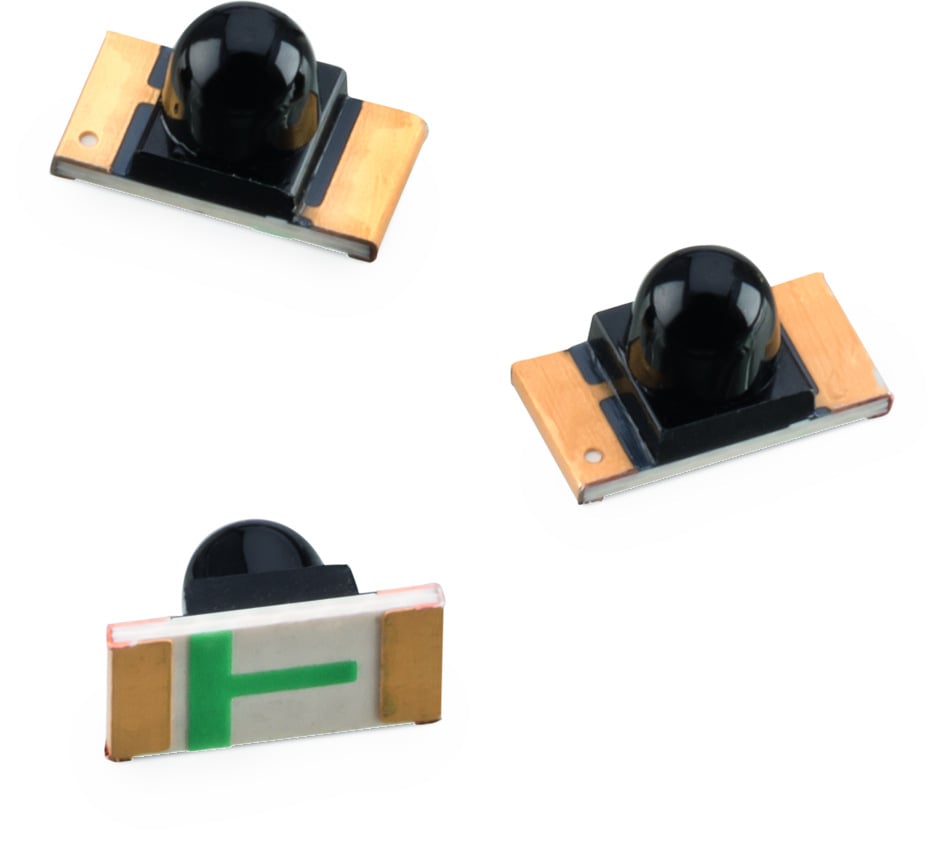

WL-STRB SMT Phototransistor Reverse mount Black

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
1206 dome		3.2	1.6	1.85	SMT

Characteristics

1206 standard package with dome lens
Perfect match with infrared emitter
Phototransistor with daylight filter
Small detection angle
High photo sensitivity

Applications

Encoder
Counters
Security Systems
Position Sensors
Cleaning Roboter
Remote control

Application Notes

ANO014 Signal transmission using IR diodes and photodetectors
PDF

Products

1206 dome

Filter article data

show articles in 1 product lines

articles in 1 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	λ_min.(nm)	λ_max.(nm)	I_{CE.P min.}(mA)	I_{CE.P typ.}(mA)	I_{CEO.Dark max.}(nA)	Chip Technology	2θ_{50% typ.}(°)	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	1541201NC3060	SPEC940 nm, 700 nm, 1100 nm	Simulation	Availability –	Downloads7 files ALT Altium_WL-STRB (rev22b).IntLib \| 45.5 KB CDS Cadence_WL-STRB (rev22a).zip \| 178.8 KB EAG Eagle_WL-STRB (rev22a).lbr \| 24.3 KB KIC KiCad_WL-STRB (rev26a).zip \| 54.2 KB 3D Download_3D_1541201NC3060 (rev1).pdf \| 90.4 KB IGS Download_IGS_1541201NC3060 (rev1).igs \| 402.9 KB STP Download_STP_1541201NC3060 (rev1).stp \| 104.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]700 nm	Range of Spectral Bandwidth [max.]1100 nm	Collector Current [min.]0.6 mA	Collector Current [typ.]4.4 mA	Collector-Emitter Dark Current [max.]100 nA	Chip TechnologySi	Viewing Angle Phi 0° [typ.]30 °	–Check availability
	1541201NC3060P	SPEC940 nm, 700 nm, 1100 nm	Simulation–	Availability –	Downloads4 files ALT Altium_WL-STRB (rev22b).IntLib \| 45.5 KB CDS Cadence_WL-STRB (rev22a).zip \| 178.8 KB EAG Eagle_WL-STRB (rev22a).lbr \| 24.3 KB KIC KiCad_WL-STRB (rev26a).zip \| 54.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]700 nm	Range of Spectral Bandwidth [max.]1100 nm	Collector Current [min.]0.6 mA	Collector Current [typ.]4.4 mA	Collector-Emitter Dark Current [max.]100 nA	Chip TechnologySi	Viewing Angle Phi 0° [typ.]30 °	–Check availability
