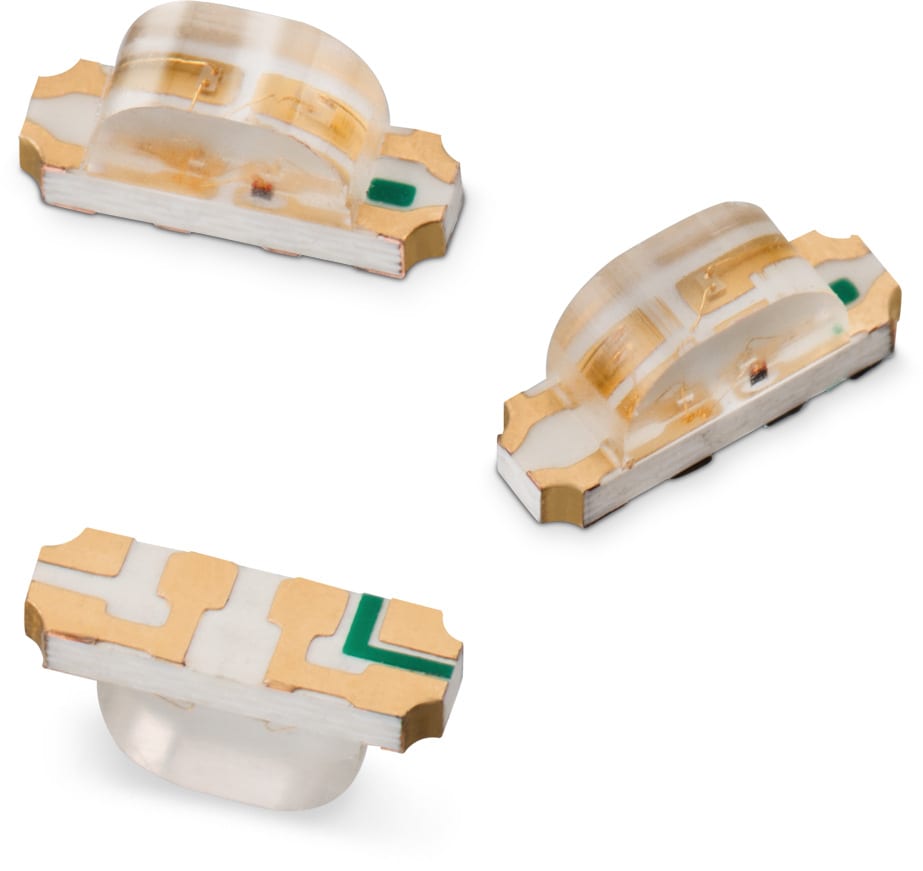

WL-SFSW SMT Full-color Side View Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
1204		3.2	1.5	1	SMT
1204 wave lens		3.2	1	1.5	SMT

LTSpice files

LT
LTSpice_WL-SFSW (rev22b).zip
|
3.7 KB

Characteristics

Common anode
Small 1204 side view package with high intensity output
Industry standard LED package with multiple chips
Standard industrial footprint
Compatible with reflow soldering and pick and place machine

Applications

Backlighting
Status indicator
Front panel indicator
Office automation, home appliances, industrial equipment
Side-lighting application

Products

All

1204

1204 wave lens

Filter article data

show article in 2 product lines

article in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.}(nm)	λ_{Peak G typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Dom B typ.}(nm)	λ_{Dom G typ.}(nm)	λ_{Dom R typ.}(nm)	I_{V B typ.}(mcd)	I_{V G typ.}(mcd)	I_{V R typ.}(mcd)	V_{F B typ.}(V)	V_{F G typ.}(V)	V_{F R typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Demoboard	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	155124M173200	SPECRed & Green & Blue, 460 nm, 515 nm	Availability –	Downloads31 files EDA models: Components ZIP ALT Altium_WL-SFSW (rev22c).IntLib \| 757 KB CDS Cadence_WL-SFSW (rev22a).zip \| 974.1 KB EAG Eagle_WL-SFSW (rev22b).lbr \| 37 KB KIC KiCad_WL-SFSW (rev26a).zip \| 298.3 KB CAD files ZIP 3D Download_3D 155124M173200 (rev1).pdf \| 199.4 KB IGS Download_IGS_WL-SFSW-155124M173200 (rev1).igs \| 1.6 MB STP Download_STP_WL-SFSW-155124M173200 (rev1).stp \| 585.5 KB Electric models ZIP PSP PSpice_WL-SFSW (rev22b).zip \| 4.2 KB RAY files ASA asap-and-apex_dis_155124M173200_5M (rev1).zip \| 363 MB COD CodeV_ray_155124M173200_5M (rev1).zip \| 363 MB FRE Fred_dat_155124M173200_5M (rev1).zip \| 363 MB FRE Fred_txt_155124M173200_5M (rev1).zip \| 565.3 MB LIG LightTools_ray_155124M173200_5M (rev1).zip \| 363 MB LIG LightTools_txt_155124M173200_5M (rev1).zip \| 565.4 MB LUC LucidShape_ray_155124M173200_5M (rev1).zip \| 363 MB LUC LucidShape_txt_155124M173200_5M (rev1).zip \| 565.4 MB OPT OpTaliX_dis_155124M173200_5M (rev1).zip \| 363 MB OPT OpTaliX_txt_155124M173200_5M (rev1).zip \| 565.5 MB OPT OptiCAD_dat_155124M173200_5M (rev1).zip \| 363 MB OPT OptiCAD_txt_156125RG73000_5M (rev1).zip \| 379 MB OPT optisWorks_ray_155124M173200_5M (rev1).zip \| 374.9 MB RIR photopia_rir_155124M173200_5M (rev1).zip \| 363 MB SIM simulux_ray_155124M173200_5M (rev1).zip \| 363 MB SPE speosCAA_ray_155124M173200_5M (rev1).zip \| 374.9 MB SPE speosProEng_ray_155124M173200_5M (rev1).zip \| 374.9 MB SPE speos_ray_155124M173200_5M (rev1).zip \| 374.9 MB SRC Lucaray-maker_src_155124M173200_5M (rev1).zip \| 363 MB TRA TracePro_txt_155124M173200_5M (rev1).zip \| 565.3 MB ZEM zemaxBin_dat_155124M173200_5M (rev1).zip \| 363 MB ZEM zemax_dat_155124M173200_5M (rev1).zip \| 565.4 MB Certificates ZIP CER IR_LED_certificate_WL-SFSW-1204 (rev1).pdf \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]460 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Blue) [typ.]465 nm	Dominant Wavelength (Green) [typ.]523 nm	Dominant Wavelength (Red) [typ.]622 nm	Luminous Intensity (Blue) [typ.]140 mcd	Luminous Intensity (Green) [typ.]850 mcd	Luminous Intensity (Red) [typ.]450 mcd	Forward Voltage (Blue) [typ.]3 V	Forward Voltage (Green) [typ.]2.8 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit 150156	–Check availability
	155124M173200A	SPECRed & Green & Blue, 465 nm, 515 nm	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WL-SFSW (rev22c).IntLib \| 757 KB CDS Cadence_WL-SFSW (rev22a).zip \| 974.1 KB EAG Eagle_WL-SFSW (rev22b).lbr \| 37 KB KIC KiCad_WL-SFSW (rev26a).zip \| 298.3 KB CAD files ZIP 3D Download_3D155124M173200A (rev1).pdf \| 94.9 KB IGS Download_IGS_WL-SFSW-155124M173200A (rev1).igs \| 1.2 MB STP Download_STP_WL-SFSW-155124M173200A (rev1).stp \| 536.4 KB Electric models ZIP PSP PSpice_WL-SFSW (rev22b).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]523 nm	Dominant Wavelength (Red) [typ.]622 nm	Luminous Intensity (Blue) [typ.]150 mcd	Luminous Intensity (Green) [typ.]500 mcd	Luminous Intensity (Red) [typ.]200 mcd	Forward Voltage (Blue) [typ.]3.1 V	Forward Voltage (Green) [typ.]3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150156	–Check availability
	155124M172400	SPECRed & Green & Blue, 480 nm, 515 nm	Availability –	Downloads8 files EDA models: Components ZIP ALT Altium_WL-SFSW (rev22c).IntLib \| 757 KB CDS Cadence_WL-SFSW (rev22a).zip \| 974.1 KB EAG Eagle_WL-SFSW (rev22b).lbr \| 37 KB KIC KiCad_WL-SFSW (rev26a).zip \| 298.3 KB CAD files ZIP 3D 155124M172400_3D (rev1).pdf \| 220.9 KB IGS 155124M172400_IGS (rev1).igs \| 1.9 MB STP 155124M172400_STP (rev1).stp \| 486.7 KB Electric models ZIP PSP PSpice_WL-SFSW (rev22b).zip \| 4.2 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]480 nm	Peak Wavelength (Green) [typ.]515 nm	Peak Wavelength (Red) [typ.]630 nm	Dominant Wavelength (Blue) [typ.]465 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]620 nm	Luminous Intensity (Blue) [typ.]350 mcd	Luminous Intensity (Green) [typ.]1500 mcd	Luminous Intensity (Red) [typ.]950 mcd	Forward Voltage (Blue) [typ.]3 V	Forward Voltage (Green) [typ.]2.8 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]110 °	Demoboard –	Design Kit –	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED - Reverse Mount & Side View

Demoboard Visible LEDs
