WL-SFCW SMT Full-color Chip LED Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

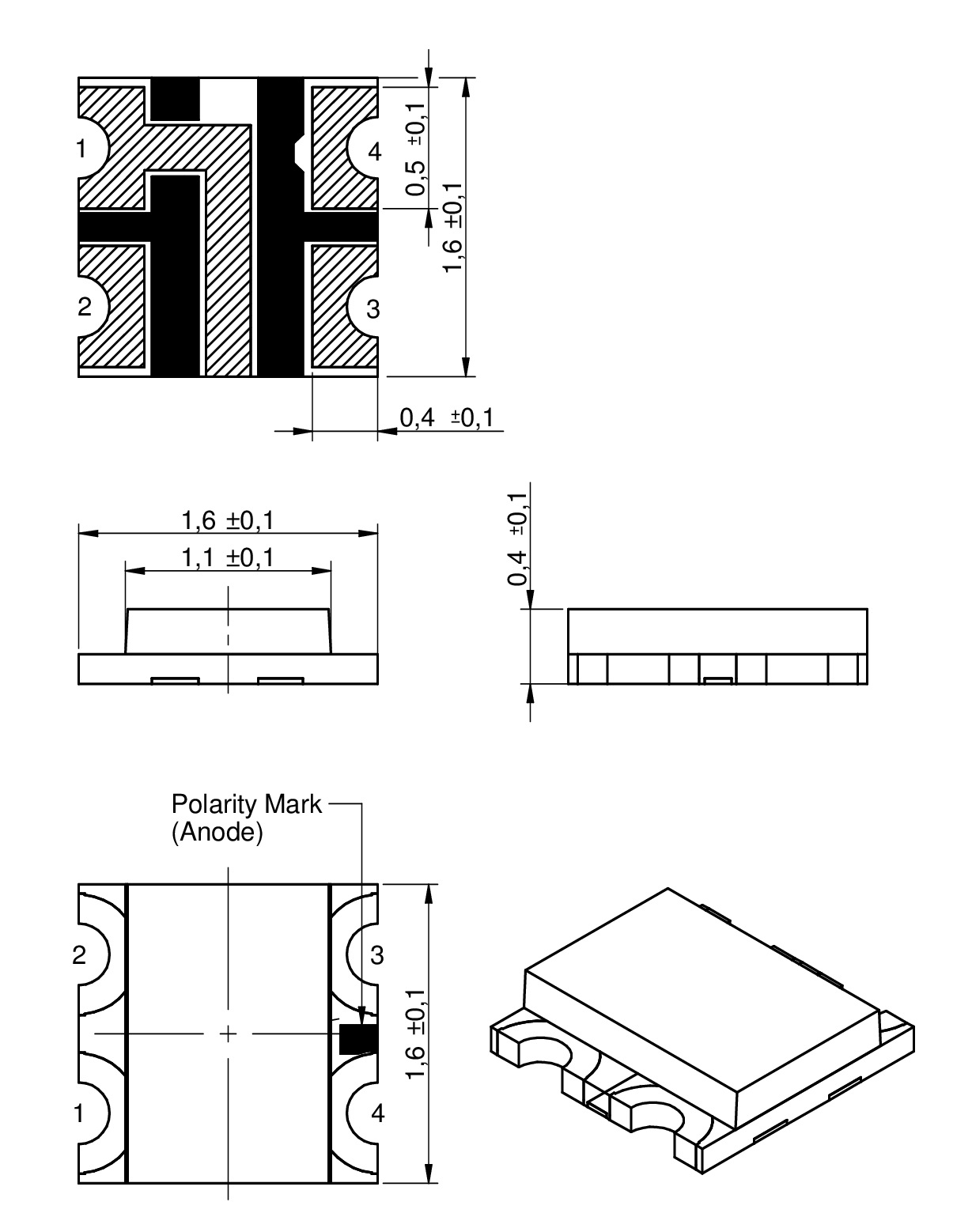

0606		1.6	1.6	0.4	SMT

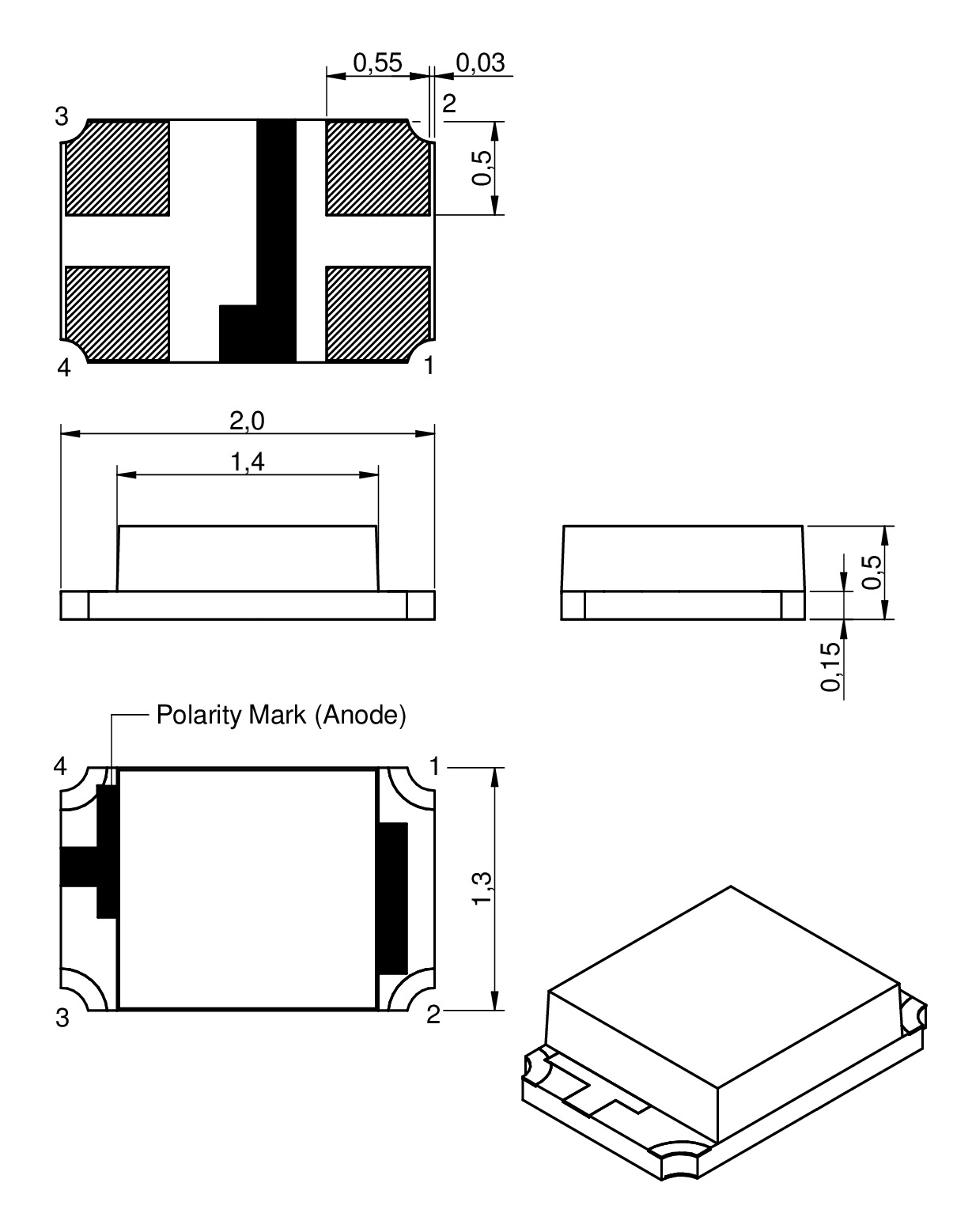

0805		2	1.3	0.5	SMT
1206		3.2	1.6	0.7	-
1206 dome		3.2	1.6	1.1	-

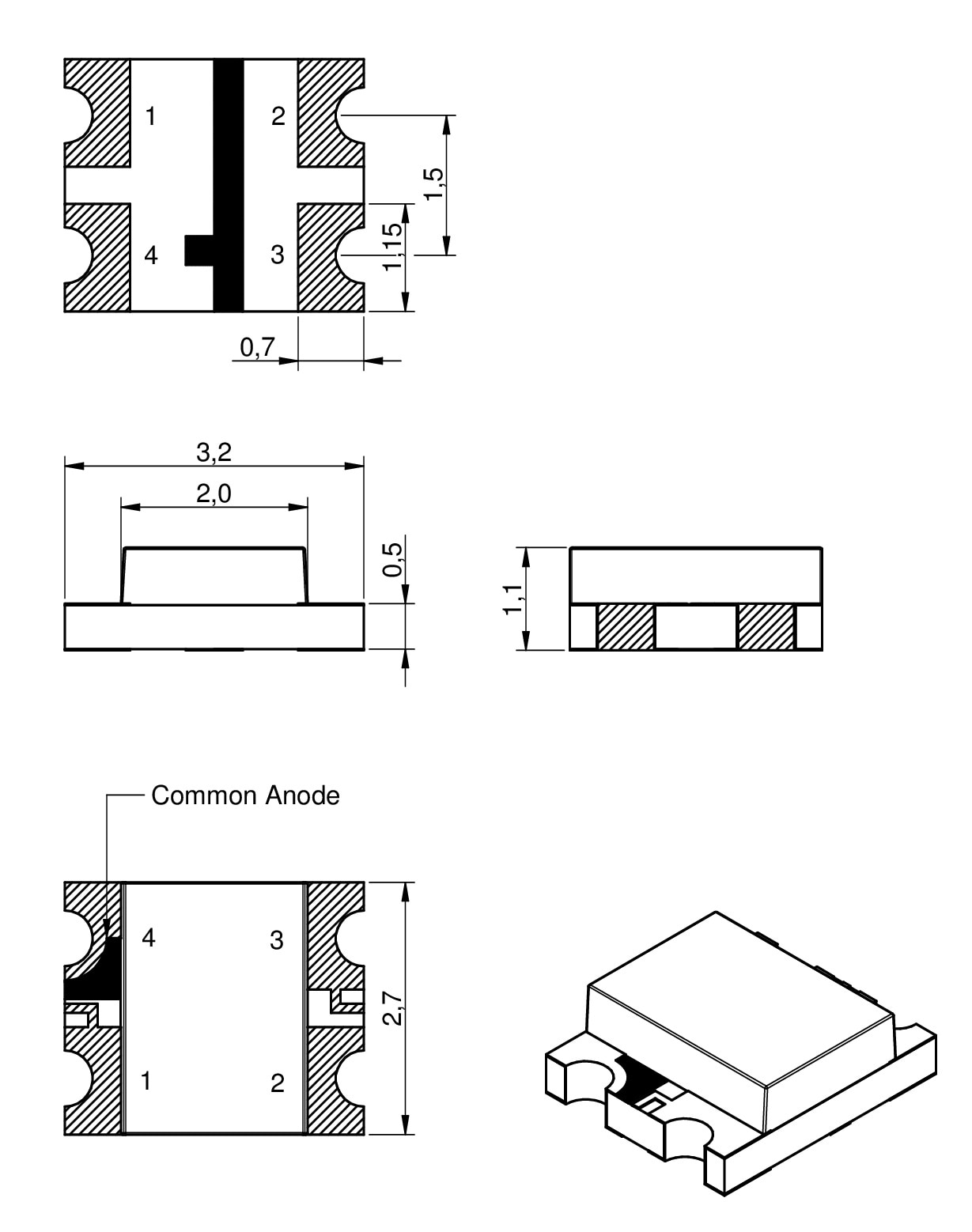

1210		3.2	2.7	1.1	SMT

LTSpice files

LT
LTSpice_WL-SFCW (rev22b).zip
|
5.2 KB

Characteristics

Industry standard footprint
High efficiency
Low power consumption
Wide viewing angle
Small LED package for exceptional brightness
Compatible with automatic placement machine

Applications

Backlighting applications
Status indicator
LED Front panel indicators
Backlighting for keypad, symbol and switch button
Indicator
General lighting

Products

All

0606

0805

1206

1206 dome

1210

Filter article data

show article in 5 product lines

article in 5 product lines

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.}(nm)	λ_{Peak G typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Dom B typ.}(nm)	λ_{Dom G typ.}(nm)	λ_{Dom R typ.}(nm)	I_{V B typ.}(mcd)	I_{V G typ.}(mcd)	I_{V R typ.}(mcd)	V_{F B typ.}(V)	V_{F G typ.}(V)	V_{F R typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Design Kit	Demoboard	Samples
	150066M173000	Red & Green & Blue, 468 nm, 520 nm	Downloads26 files EDA models: Components ZIP ALT Altium_WL-SFCW (rev24a).IntLib \| 304.5 KB CDS Cadence_WL-SFCW (rev22a).zip \| 1.3 MB EAG Eagle_WL-SFCW (rev23a).lbr \| 46.9 KB CAD files ZIP IGS Download_IGS_WL-SFCW-0606 (rev1).igs \| 2.3 MB STP Download_STP_WL-SFCW-0606 (rev1).stp \| 836.7 KB Electric models ZIP PSP PSpice_WL-SFCW (rev22b).zip \| 4.7 KB RAY files ASA ASAP-and-APEX_dis_150066M173000_5M (rev1p0).zip \| 362.4 MB COD CodeV_ray_150066M173000_5M (rev1p0).zip \| 361.6 MB FRE Fred_dat_150066M173000_5M (rev1p0).zip \| 362.4 MB FRE Fred_txt_150066M173000_5M (rev1p0).zip \| 567 MB LIG LightTools_ray_150066M173000_5M (rev1p0).zip \| 362.4 MB LIG LightTools_txt_150066M173000_5M (rev1p0).zip \| 566.9 MB LUC LucidShape_ray_150066M173000_5M (rev1p0).zip \| 362.4 MB LUC LucidShape_txt_150066M173000_5M (rev1p0).zip \| 566.9 MB OPT OpTaliX_txt_150066M173000_5M (rev1p0).zip \| 566.9 MB OPT OptiCAD_dat_150066M173000_5M (rev1p0).zip \| 362.4 MB OPT OptiCAD_txt_150066M173000_5M (rev1p0).zip \| 566.9 MB OPT optalix_DIS_150066M173000_5M (rev1p0).zip \| 362.4 MB RIR Photopia_rir_150066M173000_5M (rev1p0).zip \| 362.4 MB SIM Simulux_ray_150066M173000_5M (rev1p0).zip \| 362.4 MB SPE Speos_ray_150066M173000_5M (rev1p0).zip \| 375.7 MB SRC Lucaray-maker_src_150066M173000_5M (rev1p0).zip \| 362.4 MB TRA TracePro_txt_150066M173000_5M (rev1p0).zip \| 566.9 MB ZEM ZemaxBin_dat_150066M173000_5M (rev1p0).zip \| 362.4 MB ZEM Zemax_dat_150066M173000_5M (rev1p0).zip \| 566.9 MB Certificates ZIP CER IR_LED_certificate_WL-SFCW-0606_150066M173000 (rev1).pdf \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]468 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]636 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]527 nm	Dominant Wavelength (Red) [typ.]622 nm	Luminous Intensity (Blue) [typ.]80 mcd	Luminous Intensity (Green) [typ.]360 mcd	Luminous Intensity (Red) [typ.]70 mcd	Forward Voltage (Blue) [typ.]3.3 V	Forward Voltage (Green) [typ.]3.3 V	Forward Voltage (Red) [typ.]1.9 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003
	150080M173000	Red & Green & Blue, 468 nm, 520 nm	Downloads26 files EDA models: Components ZIP ALT Altium_WL-SFCW (rev24a).IntLib \| 304.5 KB CDS Cadence_WL-SFCW (rev22a).zip \| 1.3 MB EAG Eagle_WL-SFCW (rev23a).lbr \| 46.9 KB CAD files ZIP IGS Download_IGS_WL-SFCW-0805 (rev1).igs \| 994.5 KB STP Download_STP_WL-SFCW-0805 (rev1).stp \| 426.4 KB Electric models ZIP PSP PSpice_WL-SFCW (rev22b).zip \| 4.7 KB RAY files ASA ASAP-and-APEX_dis_150080M173000_5M (rev1p0).zip \| 362.3 MB COD CodeV_ray_150080M173000_5M (rev1p0).zip \| 362.3 MB FRE Fred_dat_150080M173000_5M (rev1p0).zip \| 362.3 MB FRE Fred_txt_150080M173000_5M (rev1p0).zip \| 566.9 MB LIG LightTools_ray_150080M173000_5M (rev1p0).zip \| 362.3 MB LIG LightTools_txt_150080M173000_5M (rev1p0).zip \| 566.9 MB LUC LucidShape_ray_150080M173000_5M (rev1p0).zip \| 362.3 MB LUC LucidShape_txt_150080M173000_5M (rev1p0).zip \| 567 MB OPT OpTaliX_txt_150080M173000_5M (rev1p0).zip \| 566.9 MB OPT OptiCAD_dat_150080M173000_5M (rev1p0).zip \| 362.3 MB OPT OptiCAD_txt_150080M173000_5M (rev1p0).zip \| 567 MB OPT optalix_DIS_150080M173000_5M (rev1p0).zip \| 362.3 MB RIR Photopia_rir_150080M173000_5M (rev1p0).zip \| 362.3 MB SIM Simulux_ray_150080M173000_5M (rev1p0).zip \| 362.3 MB SPE Speos_ray_150080M173000_5M (rev1p0).zip \| 376.1 MB SRC Lucaray-maker_src_150080M173000_5M (rev1p0).zip \| 362.3 MB TRA TracePro_txt_150080M173000_5M (rev1p0).zip \| 567 MB ZEM ZemaxBin_dat_150080M173000_5M (rev1p0).zip \| 362.3 MB ZEM Zemax_dat_150080M173000_5M (rev1p0).zip \| 567 MB Certificates ZIP CER IR_LED_certificate_WL-SFCW-0805_150080M173000 (rev1).pdf \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]468 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]624 nm	Luminous Intensity (Blue) [typ.]70 mcd	Luminous Intensity (Green) [typ.]285 mcd	Luminous Intensity (Red) [typ.]112 mcd	Forward Voltage (Blue) [typ.]3.3 V	Forward Voltage (Green) [typ.]3.3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003
	150121M173000	Red & Green & Blue, 468 nm, 520 nm	Downloads6 files EDA models: Components ZIP ALT Altium_WL-SFCW (rev24a).IntLib \| 304.5 KB CDS Cadence_WL-SFCW (rev22a).zip \| 1.3 MB EAG Eagle_WL-SFCW (rev23a).lbr \| 46.9 KB CAD files ZIP IGS Download_IGS_WL-SFCW-1210 (rev1).igs \| 782.6 KB STP Download_STP_WL-SFCW-1210 (rev1).stp \| 161.6 KB Electric models ZIP PSP PSpice_WL-SFCW (rev22b).zip \| 4.7 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]468 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]624 nm	Luminous Intensity (Blue) [typ.]80 mcd	Luminous Intensity (Green) [typ.]285 mcd	Luminous Intensity (Red) [typ.]70 mcd	Forward Voltage (Blue) [typ.]3.3 V	Forward Voltage (Green) [typ.]3.3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit 150155	Demoboard 9999003
	150120M173000	Red & Green & Blue, 468 nm, 520 nm	Downloads7 files EDA models: Components ZIP ALT Altium_WL-SFCW (rev24a).IntLib \| 304.5 KB CDS Cadence_WL-SFCW (rev22a).zip \| 1.3 MB EAG Eagle_WL-SFCW (rev23a).lbr \| 46.9 KB CAD files ZIP IGS Download_IGS_150120M173000 (rev1).igs \| 881.7 KB STP Download_STEP_150120M173000 (rev1).stp \| 281.3 KB Electric models ZIP PSP PSpice_WL-SFCW (rev22b).zip \| 4.7 KB Certificates ZIP CER IR_LED_certificate_WL-SFCW-1206_150120M173000 (rev1).pdf \| 1.5 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]468 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]632 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]624 nm	Luminous Intensity (Blue) [typ.]350 mcd	Luminous Intensity (Green) [typ.]1000 mcd	Luminous Intensity (Red) [typ.]360 mcd	Forward Voltage (Blue) [typ.]3.3 V	Forward Voltage (Green) [typ.]3.3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Design Kit –	Demoboard –
	150120M183000	Red & Green & Blue, 465 nm, 520 nm	Downloads7 files EDA models: Components ZIP ALT Altium_WL-SFCW (rev24a).IntLib \| 304.5 KB CDS Cadence_WL-SFCW (rev22a).zip \| 1.3 MB EAG Eagle_WL-SFCW (rev23a).lbr \| 46.9 KB CAD files ZIP 3D Downloads_3D_150120M183000 (rev1).pdf \| 115 KB IGS Downloads_IGS_150120M183000 (rev1).igs \| 1012 KB STP Downloads_STP_150120M183000 (rev1).stp \| 255.1 KB Electric models ZIP PSP PSpice_WL-SFCW (rev22b).zip \| 4.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]630 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]625 nm	Luminous Intensity (Blue) [typ.]280 mcd	Luminous Intensity (Green) [typ.]1000 mcd	Luminous Intensity (Red) [typ.]300 mcd	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Green) [typ.]3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]30 °	Design Kit –	Demoboard –

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED – Top View

Demoboard Visible LEDs
