WL-SFCC SMT Full-color Chip LED Compact

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

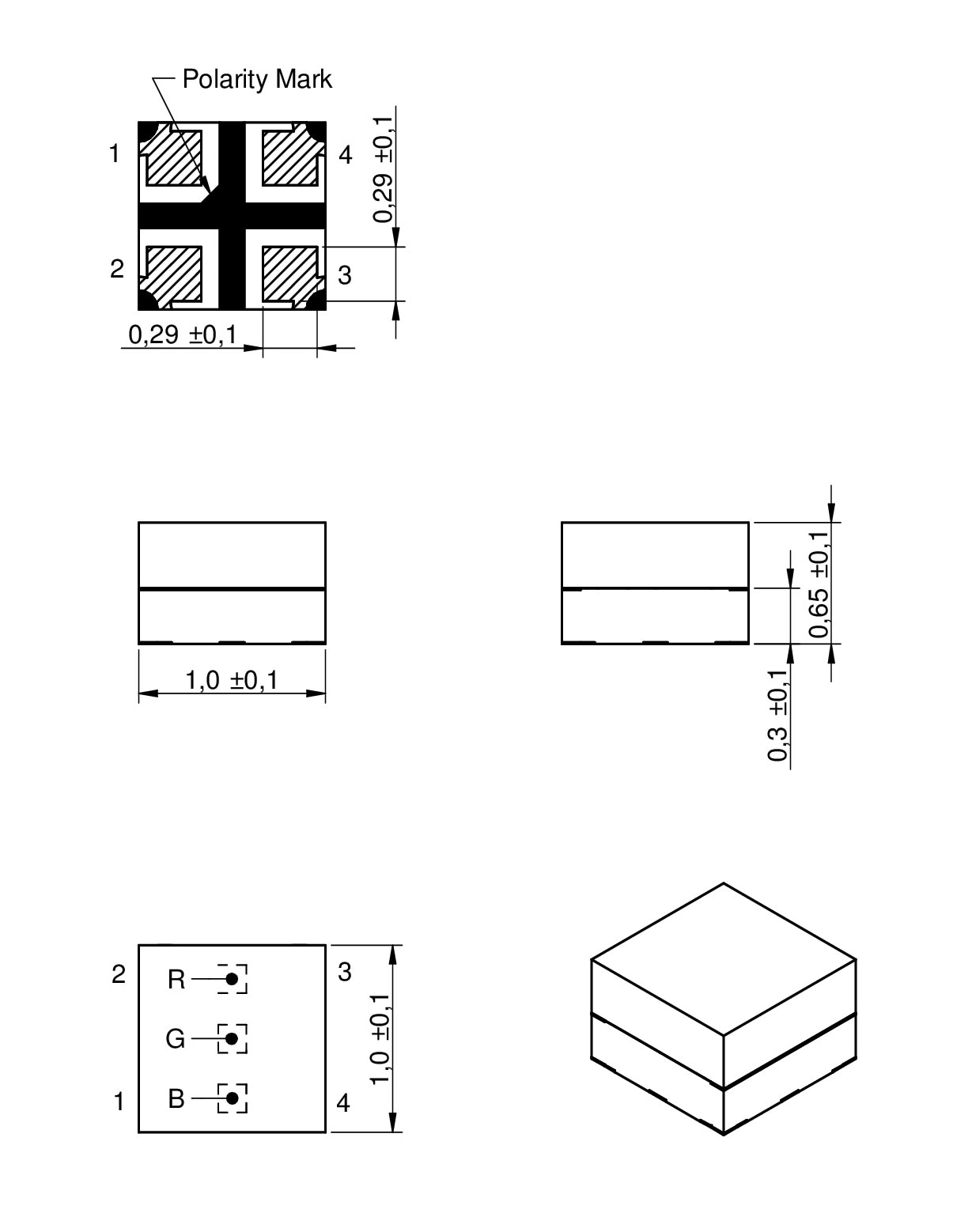

0404		1	1	0.65	SMT

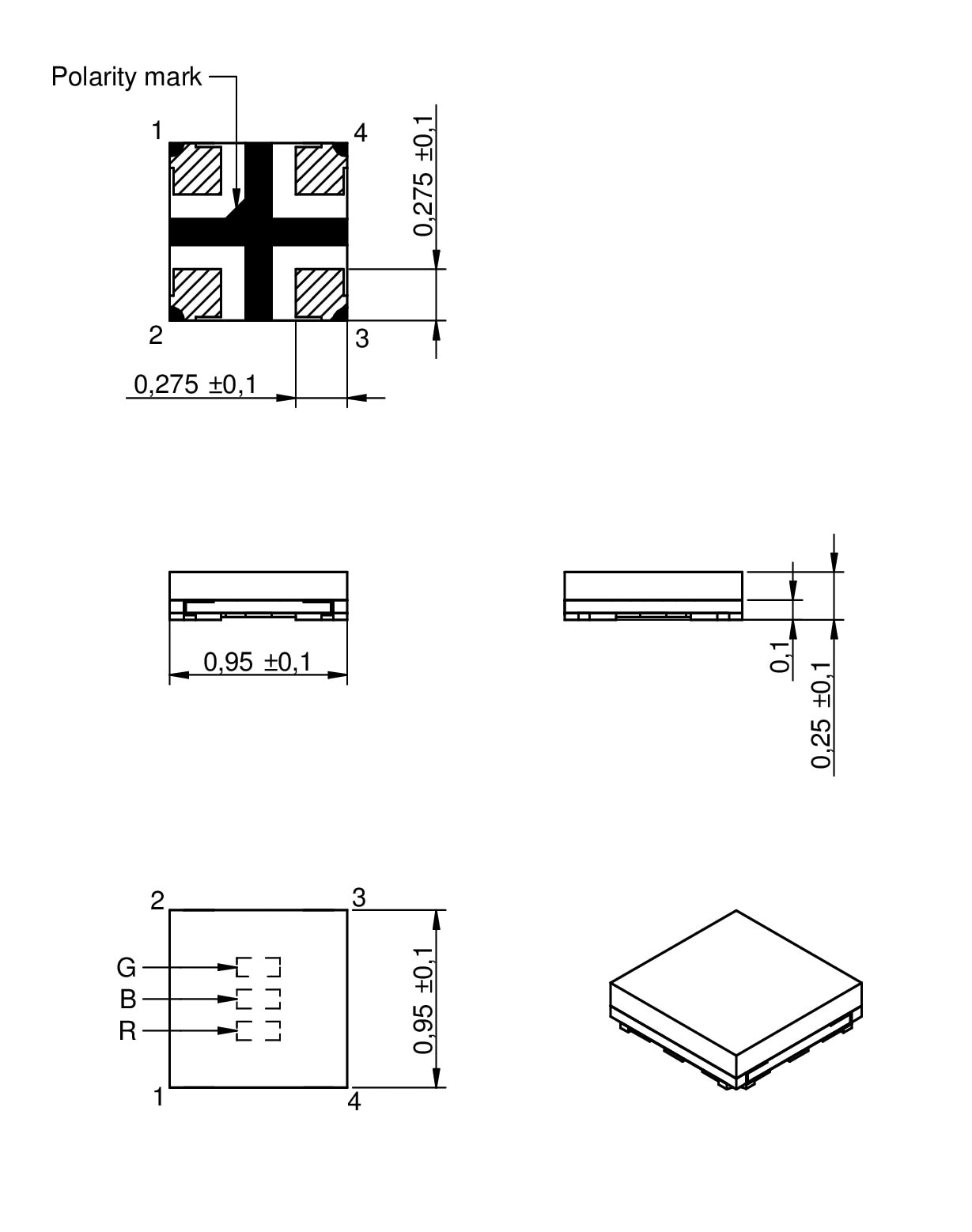

0404 Super Flat		1	1	0.25	SMT

LTSpice files

LT
LTSpice_WL-SFCC (rev22b).zip
|
2.8 KB

Characteristics

Anti-reflection surface
Smallest RGB package
Very wide viewing angle

Applications

Full-color display
Indoor video walls
Backlighting
Indicator
Front panel indicator
Home and smart appliances
Wearable and portable devices
Healthcare applications
Signal control system

Products

All

0404

0404 Super Flat

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.}(nm)	λ_{Peak G typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Dom B typ.}(nm)	λ_{Dom G typ.}(nm)	λ_{Dom R typ.}(nm)	I_{V B typ.}(mcd)	I_{V G typ.}(mcd)	I_{V R typ.}(mcd)	V_{F B typ.}(V)	V_{F G typ.}(V)	V_{F R typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	150044M155260	SPECRed & Green & Blue, 465 nm, 522 nm	Availability –	Downloads26 files ALT Altium_WL-SFCC (rev22c).IntLib \| 646 KB CDS Cadence_WL-SFCC (rev22a).zip \| 396.9 KB EAG Eagle_WL-SFCC (rev25a).lbr \| 25.4 KB KIC KiCad_WL-SFCC (rev26a).zip \| 129.7 KB IGS Download_IGS_WL-SFCC_150044M175200 (rev1).igs \| 1.2 MB STP Download_STP_WL-SFCC_150044M175200 (rev1).stp \| 374.9 KB PSP PSpice_WL-SFCC (rev22b).zip \| 3.6 KB RAY files ASA ASAP-and-APEX_dis_150044M155260_5M (rev1p0).zip \| 361.4 MB COD CodeV_ray_150044M155260_5M (rev1p0).zip \| 361.4 MB FRE Fred_dat_150044M155260_5M (rev1p0).zip \| 361.4 MB FRE Fred_txt_150044M155260_5M (rev1p0).zip \| 566 MB LIG LightTools_ray_150044M155260_5M (rev1p0).zip \| 361.4 MB LIG LightTools_txt_150044M155260_5M (rev1p0).zip \| 565.9 MB LUC LucidShape_ray_150044M155260_5M (rev1p0).zip \| 361.4 MB LUC LucidShape_txt_150044M155260_5M (rev1p0).zip \| 566 MB OPT OpTaliX_txt_150044M155260_5M (rev1p0).zip \| 565.9 MB OPT OptiCAD_dat_150044M155260_5M (rev1p0).zip \| 361.4 MB OPT OptiCAD_txt_150044M155260_5M (rev1p0).zip \| 566 MB OPT optalix_DIS_150044M155260_5M (rev1p0).zip \| 361.4 MB RIR Photopia_rir_150044M155260_5M (rev1p0).zip \| 361.4 MB SIM Simulux_ray_150044M155260_5M (rev1p0).zip \| 361.4 MB SPE Speos_ray_150044M155260_5M (rev1p0).zip \| 374 MB SRC Lucaray-maker_src_150044M155260_5M (rev1p0).zip \| 361.4 MB TRA TracePro_txt_150044M155260_5M (rev1p0).zip \| 566 MB ZEM ZemaxBin_dat_150044M155260_5M (rev1p0).zip \| 361.4 MB ZEM Zemax_dat_150044M155260_5M (rev1p0).zip \| 566 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Green) [typ.]522 nm	Peak Wavelength (Red) [typ.]625 nm	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Green) [typ.]530 nm	Dominant Wavelength (Red) [typ.]621 nm	Luminous Intensity (Blue) [typ.]50 mcd	Luminous Intensity (Green) [typ.]180 mcd	Luminous Intensity (Red) [typ.]80 mcd	Forward Voltage (Blue) [typ.]2.8 V	Forward Voltage (Green) [typ.]2.7 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]140 °	Design Kit 150155	–Check availability
	150044M155220	SPECRed & Green & Blue, 460 nm, 520 nm	Availability –	Downloads8 files ALT Altium_WL-SFCC (rev22c).IntLib \| 646 KB CDS Cadence_WL-SFCC (rev22a).zip \| 396.9 KB EAG Eagle_WL-SFCC (rev25a).lbr \| 25.4 KB KIC KiCad_WL-SFCC (rev26a).zip \| 129.7 KB 3D 150044M155220_3D (rev1).pdf \| 57.4 KB IGS 150044M155220_IGS (rev1).igs \| 772 KB STP 150044M155220_STP (rev1).stp \| 183.3 KB PSP PSpice_WL-SFCC (rev22b).zip \| 3.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Green & Blue	Peak Wavelength (Blue) [typ.]460 nm	Peak Wavelength (Green) [typ.]520 nm	Peak Wavelength (Red) [typ.]630 nm	Dominant Wavelength (Blue) [typ.]465 nm	Dominant Wavelength (Green) [typ.]525 nm	Dominant Wavelength (Red) [typ.]623 nm	Luminous Intensity (Blue) [typ.]110 mcd	Luminous Intensity (Green) [typ.]500 mcd	Luminous Intensity (Red) [typ.]200 mcd	Forward Voltage (Blue) [typ.]3 V	Forward Voltage (Green) [typ.]3 V	Forward Voltage (Red) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]140 °	Design Kit –	–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Chip LED – Top View
