WL-SBTW SMT Bi-color TOP LED Waterclear

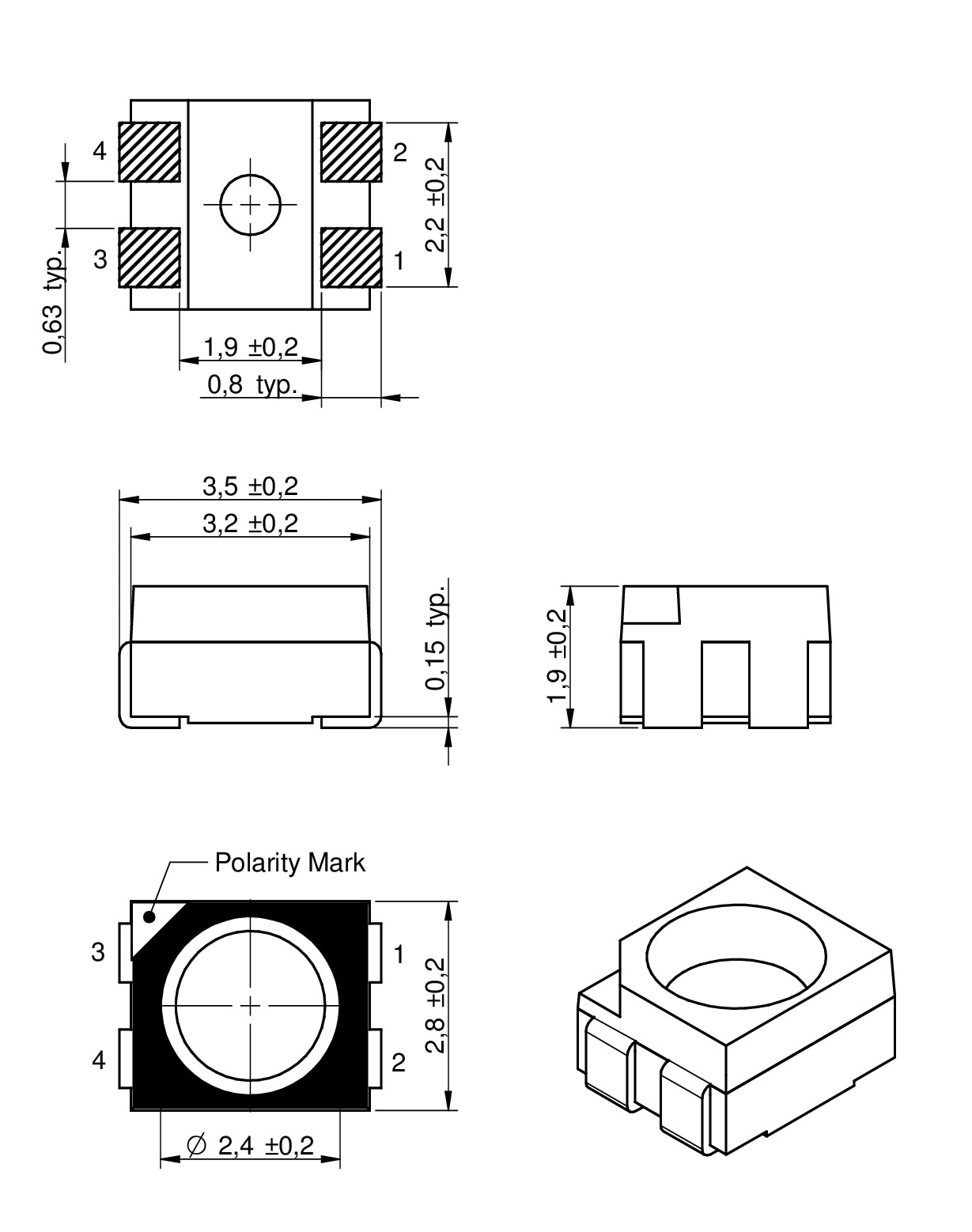

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
3528		3.5	2.8	1.9	SMT

LTSpice files

LT
LTSpice_WL-SBTW (rev22a).zip
|
6 KB

Characteristics

Low energy consumption
High reliability
Low current requirement
Fast switching
No UV/IR radiation
None diffused lens
LED with Black surface
Compact package outline

Applications

Flat backlight for LCDs, switches and symbols
Decorative lighting

Products

3528

Filter article data

show articles in 1 product lines

articles in 1 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Emitting Color	λ_{Peak B typ.}(nm)	λ_{Peak R typ.}(nm)	λ_{Peak S typ.}(nm)	λ_{Peak V typ.}(nm)	λ_{Peak Y typ.}(nm)	λ_{Dom B typ.}(nm)	λ_{Dom R typ.}(nm)	λ_{Dom S typ.}(nm)	λ_{Dom V typ.}(nm)	λ_{Dom Y typ.}(nm)	I_{V B typ.}(mcd)	I_{V R typ.}(mcd)	I_{V S typ.}(mcd)	I_{V V typ.}(mcd)	I_{V Y typ.}(mcd)	V_{F B typ.}(V)	V_{F R typ.}(V)	V_{F S typ.}(V)	V_{F V typ.}(V)	V_{F Y typ.}(V)	Chip Technology	2θ_{50% typ.}(°)	Demoboard	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	150141YB73100	SPECYellow & Blue, 465 nm, –	Availability –	Downloads7 files ALT Altium_WL-SBTW (rev22c).IntLib \| 54.5 KB CDS Cadence_WL-SBTW (rev22a).zip \| 140.7 KB EAG Eagle_WL-SBTW (rev22a).lbr \| 24.1 KB KIC KiCad_WL-SBTW (rev26a).zip \| 41.3 KB IGS Download_IGS_WL-SBTW-3528 (rev1).igs \| 556.2 KB STP Download_STP_WL-SBTW-3528 (rev1).stp \| 130.7 KB PSP PSpice_WL-SBTW (rev22a).zip \| 4.5 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorYellow & Blue	Peak Wavelength (Blue) [typ.]465 nm	–	–	–	Peak Wavelength (Yellow) [typ.]592 nm	Dominant Wavelength (Blue) [typ.]470 nm	–	–	–	Dominant Wavelength (Yellow) [typ.]590 nm	Luminous Intensity (Blue) [typ.]240 mcd	–	–	–	Luminous Intensity (Yellow) [typ.]220 mcd	Forward Voltage (Blue) [typ.]3.2 V	–	–	–	Forward Voltage (Yellow) [typ.]2 V	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit 150151	–Check availability
	150141YV73100	SPECYellow & Bright Green, –, –	Availability –	Downloads7 files ALT Altium_WL-SBTW (rev22c).IntLib \| 54.5 KB CDS Cadence_WL-SBTW (rev22a).zip \| 140.7 KB EAG Eagle_WL-SBTW (rev22a).lbr \| 24.1 KB KIC KiCad_WL-SBTW (rev26a).zip \| 41.3 KB IGS Download_IGS_WL-SBTW-3528 (rev1).igs \| 556.2 KB STP Download_STP_WL-SBTW-3528 (rev1).stp \| 130.7 KB PSP PSpice_WL-SBTW (rev22a).zip \| 4.5 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorYellow & Bright Green	–	–	–	Peak Wavelength (Bright Green) [typ.]572 nm	Peak Wavelength (Yellow) [typ.]592 nm	–	–	–	Dominant Wavelength (Bright Green) [typ.]570 nm	Dominant Wavelength (Yellow) [typ.]590 nm	–	–	–	Luminous Intensity (Bright Green) [typ.]60 mcd	Luminous Intensity (Yellow) [typ.]220 mcd	–	–	–	Forward Voltage (Bright Green) [typ.]2 V	Forward Voltage (Yellow) [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit 150151	–Check availability
	150141YV73110	SPECYellow & Bright Green, –, –	Availability –	Downloads7 files ALT Altium_WL-SBTW (rev22c).IntLib \| 54.5 KB CDS Cadence_WL-SBTW (rev22a).zip \| 140.7 KB EAG Eagle_WL-SBTW (rev22a).lbr \| 24.1 KB KIC KiCad_WL-SBTW (rev26a).zip \| 41.3 KB IGS Download_IGS_WL-SBTW-3528 (rev1).igs \| 556.2 KB STP Download_STP_WL-SBTW-3528 (rev1).stp \| 130.7 KB PSP PSpice_WL-SBTW (rev22a).zip \| 4.5 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorYellow & Bright Green	–	–	–	Peak Wavelength (Bright Green) [typ.]572 nm	Peak Wavelength (Yellow) [typ.]592 nm	–	–	–	Dominant Wavelength (Bright Green) [typ.]570 nm	Dominant Wavelength (Yellow) [typ.]590 nm	–	–	–	Luminous Intensity (Bright Green) [typ.]40 mcd	Luminous Intensity (Yellow) [typ.]230 mcd	–	–	–	Forward Voltage (Bright Green) [typ.]2 V	Forward Voltage (Yellow) [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150151	–Check availability
	150141RV73100	SPECRed & Bright Green, –, 630 nm	Availability –	Downloads7 files ALT Altium_WL-SBTW (rev22c).IntLib \| 54.5 KB CDS Cadence_WL-SBTW (rev22a).zip \| 140.7 KB EAG Eagle_WL-SBTW (rev22a).lbr \| 24.1 KB KIC KiCad_WL-SBTW (rev26a).zip \| 41.3 KB IGS Download_IGS_WL-SBTW-3528 (rev1).igs \| 556.2 KB STP Download_STP_WL-SBTW-3528 (rev1).stp \| 130.7 KB PSP PSpice_WL-SBTW (rev22a).zip \| 4.5 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Bright Green	–	Peak Wavelength (Red) [typ.]630 nm	–	Peak Wavelength (Bright Green) [typ.]572 nm	–	–	Dominant Wavelength (Red) [typ.]625 nm	–	Dominant Wavelength (Bright Green) [typ.]570 nm	–	–	Luminous Intensity (Red) [typ.]250 mcd	–	Luminous Intensity (Bright Green) [typ.]60 mcd	–	–	Forward Voltage (Red) [typ.]2 V	–	Forward Voltage (Bright Green) [typ.]2 V	–	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit 150151	–Check availability
	150141RB73100	SPECRed & Blue, 465 nm, 630 nm	Availability –	Downloads7 files ALT Altium_WL-SBTW (rev22c).IntLib \| 54.5 KB CDS Cadence_WL-SBTW (rev22a).zip \| 140.7 KB EAG Eagle_WL-SBTW (rev22a).lbr \| 24.1 KB KIC KiCad_WL-SBTW (rev26a).zip \| 41.3 KB IGS Download_IGS_WL-SBTW-3528 (rev1).igs \| 556.2 KB STP Download_STP_WL-SBTW-3528 (rev1).stp \| 130.7 KB PSP PSpice_WL-SBTW (rev22a).zip \| 4.5 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Blue	Peak Wavelength (Blue) [typ.]465 nm	Peak Wavelength (Red) [typ.]630 nm	–	–	–	Dominant Wavelength (Blue) [typ.]470 nm	Dominant Wavelength (Red) [typ.]625 nm	–	–	–	Luminous Intensity (Blue) [typ.]240 mcd	Luminous Intensity (Red) [typ.]260 mcd	–	–	–	Forward Voltage (Blue) [typ.]3.2 V	Forward Voltage (Red) [typ.]2 V	–	–	–	Chip TechnologyAlInGaP + InGaN	Viewing Angle Phi 0° [typ.]120 °	Demoboard 9999003	Design Kit 150151	–Check availability
	150141RY73110	SPECRed & Yellow, –, 630 nm	Availability –	Downloads7 files ALT Altium_WL-SBTW (rev22c).IntLib \| 54.5 KB CDS Cadence_WL-SBTW (rev22a).zip \| 140.7 KB EAG Eagle_WL-SBTW (rev22a).lbr \| 24.1 KB KIC KiCad_WL-SBTW (rev26a).zip \| 41.3 KB IGS Download_IGS_WL-SBTW-3528 (rev1).igs \| 556.2 KB STP Download_STP_WL-SBTW-3528 (rev1).stp \| 130.7 KB PSP PSpice_WL-SBTW (rev22a).zip \| 4.5 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorRed & Yellow	–	Peak Wavelength (Red) [typ.]630 nm	–	–	Peak Wavelength (Yellow) [typ.]592 nm	–	Dominant Wavelength (Red) [typ.]625 nm	–	–	Dominant Wavelength (Yellow) [typ.]590 nm	–	Luminous Intensity (Red) [typ.]150 mcd	–	–	Luminous Intensity (Yellow) [typ.]230 mcd	–	Forward Voltage (Red) [typ.]2 V	–	–	Forward Voltage (Yellow) [typ.]2 V	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150151	–Check availability
	150141SV73110	SPECSuper Red & Bright Green, –, –	Availability –	Downloads7 files ALT Altium_WL-SBTW (rev22c).IntLib \| 54.5 KB CDS Cadence_WL-SBTW (rev22a).zip \| 140.7 KB EAG Eagle_WL-SBTW (rev22a).lbr \| 24.1 KB KIC KiCad_WL-SBTW (rev26a).zip \| 41.3 KB IGS Download_IGS_WL-SBTW-3528 (rev1).igs \| 556.2 KB STP Download_STP_WL-SBTW-3528 (rev1).stp \| 130.7 KB PSP PSpice_WL-SBTW (rev22a).zip \| 4.5 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Emitting ColorSuper Red & Bright Green	–	–	Peak Wavelength (Super Red) [typ.]645 nm	Peak Wavelength (Bright Green) [typ.]572 nm	–	–	–	Dominant Wavelength (Super Red) [typ.]630 nm	Dominant Wavelength (Bright Green) [typ.]570 nm	–	–	–	Luminous Intensity (Super Red) [typ.]60 mcd	Luminous Intensity (Bright Green) [typ.]40 mcd	–	–	–	Forward Voltage (Super Red) [typ.]2 V	Forward Voltage (Bright Green) [typ.]2 V	–	Chip TechnologyAlInGaP	Viewing Angle Phi 0° [typ.]120 °	Demoboard –	Design Kit 150151	–Check availability
