WE-XHMI SMT Power Inductor
EXTENDEDShielded
| Size | Dimensions | L (mm) | W (mm) | H (mm) | Mount | |
|---|---|---|---|---|---|---|
1090 | 11.6 | 10.5 | 8.8 | SMT | ||
1510 | 16.4 | 15.4 | 10 | SMT | ||
EXT.4020 | 4.3 | 4.3 | 2 | SMT | ||
4030 | 4.3 | 4.3 | 3 | SMT | ||
4040 | 4.3 | 4.3 | 4.1 | SMT | ||
5020 | 5.55 | 5.35 | 2 | SMT | ||
5030 | 5.55 | 5.35 | 3 | SMT | ||
EXT.5050 | 5.55 | 5.35 | 5.1 | SMT | ||
6030 | 6.65 | 6.45 | 3 | SMT | ||
6060 | 6.65 | 6.45 | 6.1 | SMT | ||
7030 | 7.9 | 7.6 | 3 | SMT | ||
7070 | 7.9 | 7.6 | 7.1 | SMT | ||
8080 | 8.8 | 8.3 | 7.8 | SMT | ||
NEW1010 P | 11.3 | 10 | 10 | SMT | ||
NEW1060 P | 11.3 | 10 | 6 | SMT | ||
NEW6030 P | 6.6 | 6.4 | 3.1 | SMT | ||
NEW6060 P | 6.6 | 6.4 | 6.1 | SMT |
LTSpice files
Characteristics

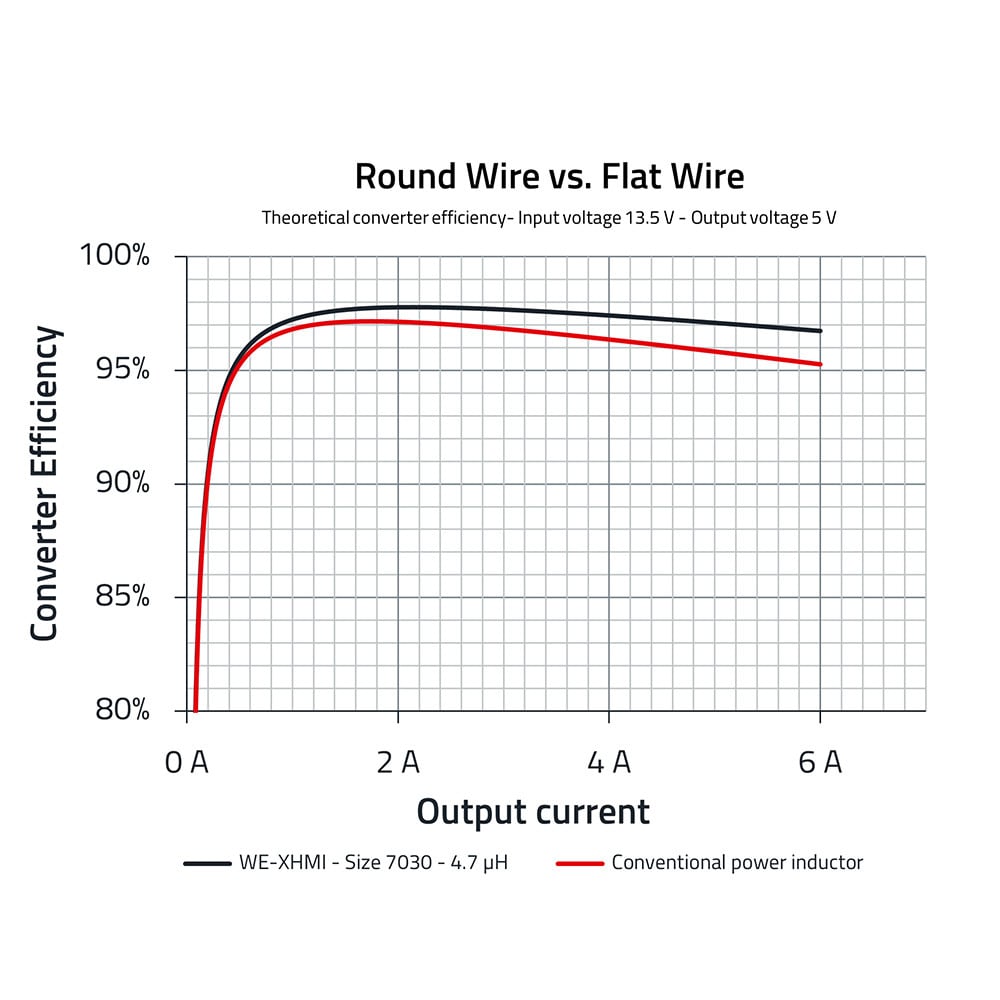

- Flat wire coil for low copper losses
- Iron core material allows high saturation currents
- Soft saturation enables high current capability and handles high transient current spikes
- Magnetically shielded construction
- Low leakage flux noise
- WE-XHMI Performance:
- Operating temperature: -55°C up to +150°C
- Optimized for ultra low RDC and AC losses to enhance efficiency and minimize self-heating
- WE-XHMI:
- Operating temperature: -40°C up to +125°C
- Reliable inductor featuring a balanced combination of low losses and high current capability
Applications
- DC/DC-converter for high current power supplies
- DC/DC-converter for Field Programmable Gate Array (FPGA)
- Power supplies for mobile devices
- POL-converters
- Mainboards / graphic cards
- Battery powered devices
- Wireless communication devices
- Filter
Application Notes
- ANP049 EMC & Efficiency Optimization of High Power DC/DC Converter
- ANP118 Acoustic noise & Coil whine effect
- ANP126 Voltage specification for molded inductors
- ANP128 Introduction to thermal aging in molded power inductors
- ANP135 The SEPIC with coupled and uncoupled inductors
- ANP138 Custom Rated Current Calculator
- ANP142 Effects of molded power inductor degradation due to higher voltage or temperature in a DC/DC converter
