WE-VE femtoF

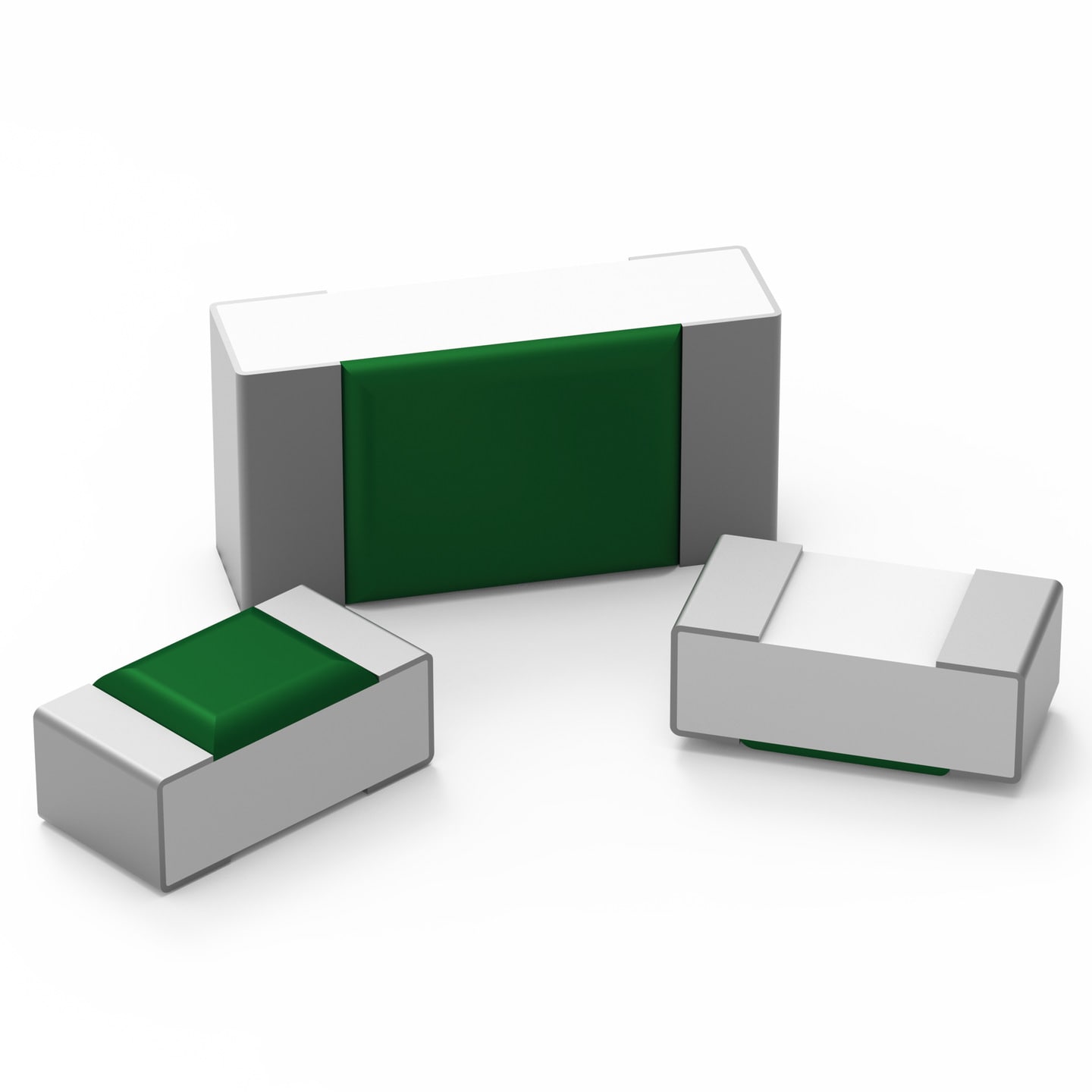

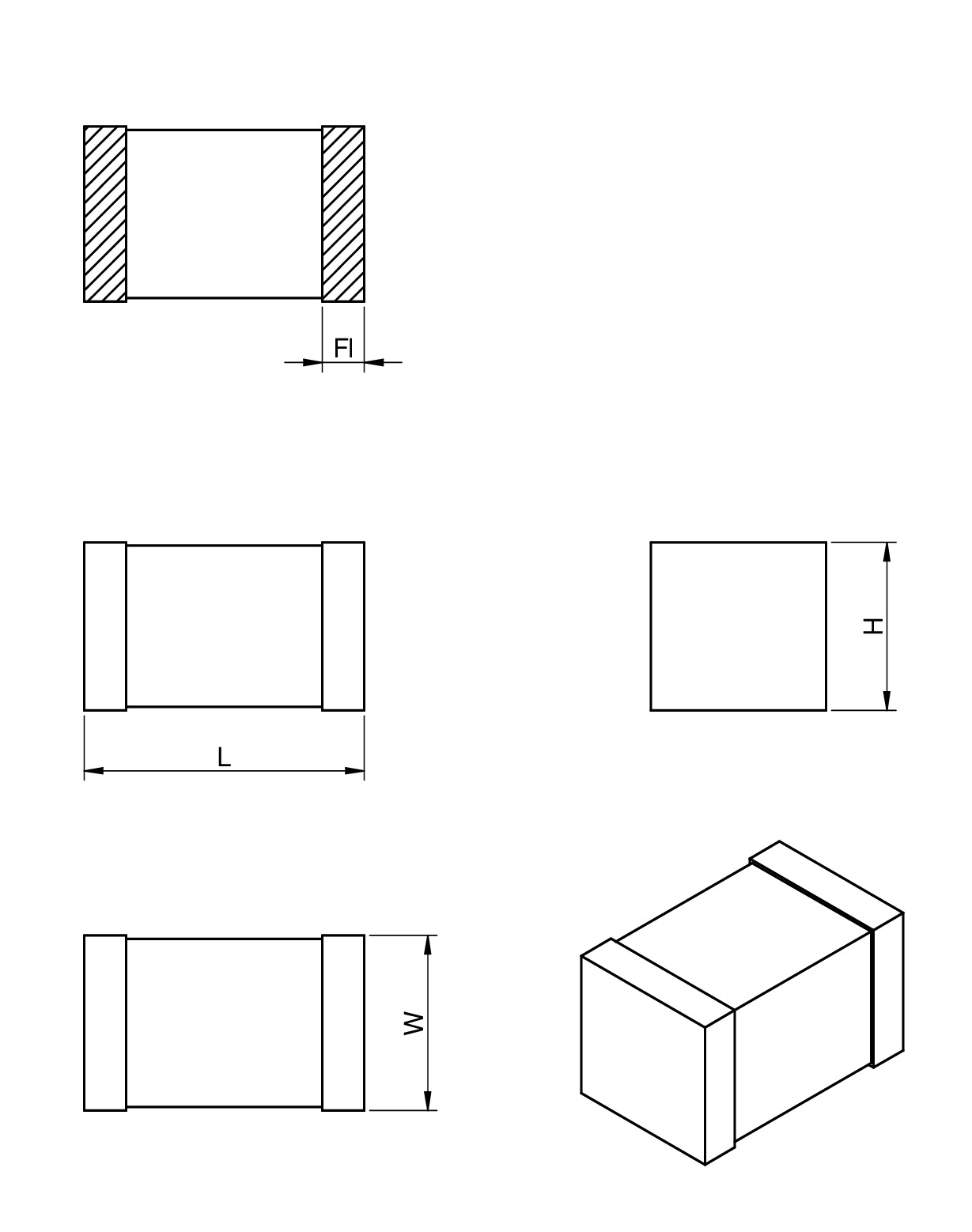

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Fl (mm)	Mount
0402			1	0.52	0.6	0.25	SMT
0603			1.6	0.8	0.9	0.35	SMT

LTSpice files

LT
LTspice_WE-VE_femtoF (rev25a).zip
|
2.9 KB

Characteristics

Lowest Capacitance
Fast response time
Low leakage current
Low clamping voltage
Almost no energy consumption in stand-by mode
Excellent absorption for ESD-impulses
Operating temperature: –40 ºC to +85 ºC
Nickel barrier

Applications

Protection of, data lines, bus systems or semiconductors
ESD protection in accordance with EN 61000-4-2:
8 kV contact discharge
15 kV air discharge

Application Notes

ANP116 Gigabit Ethernet interface from an EMC perspective
PDF

Products

All

0402

0603

Filter article data

show article in 2 product lines

article in 2 product lines

Order Code	Datasheet	Simulation	Downloads	Status	C_{Ch typ.}(pF)	V_{Ch Clamp ESD typ.}(V)	Size	V_{ESD Contact}(kV)	Design Kit	Samples
8231606A	0.05 pF, 40 V, 0603	Simulation–	Downloads8 files EDA models: Components ZIP ALT Altium_WE-VE femtoF (rev22a).IntLib \| 52.5 KB CDS Cadence_WE-VE femtoF (rev21a).zip \| 144.1 KB EAG Eagle_WE-VE-femtoF (rev26a).lbr \| 18.3 KB KIC KiCad_WE-VE-femtoF (rev25b).zip \| 42.8 KB ZUK Cadstar_WE-VE femtoF (rev21a).zip \| 5 KB CAD files ZIP IGS IGS_WE-VE-femtoF_0603 (rev1).igs \| 244.7 KB STP STP_WE-VE-femtoF_0603 (rev1).stp \| 104.5 KB Electric models ZIP PSP PSpice_WE-VE_femtoF (rev25a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	(Channel) Input Capacitance [typ.]0.05 pF	Channel ESD Clamping Voltage [typ.]40 V	Size0603	ESD Contact Discharge Capability8 kV	Design Kit –
8231614A	0.05 pF, 45 V, 0603	Simulation–	Downloads8 files EDA models: Components ZIP ALT Altium_WE-VE femtoF (rev22a).IntLib \| 52.5 KB CDS Cadence_WE-VE femtoF (rev21a).zip \| 144.1 KB EAG Eagle_WE-VE-femtoF (rev26a).lbr \| 18.3 KB KIC KiCad_WE-VE-femtoF (rev25b).zip \| 42.8 KB ZUK Cadstar_WE-VE femtoF (rev21a).zip \| 5 KB CAD files ZIP IGS IGS_WE-VE-femtoF_0603 (rev1).igs \| 244.7 KB STP STP_WE-VE-femtoF_0603 (rev1).stp \| 104.5 KB Electric models ZIP PSP PSpice_WE-VE_femtoF (rev25a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	(Channel) Input Capacitance [typ.]0.05 pF	Channel ESD Clamping Voltage [typ.]45 V	Size0603	ESD Contact Discharge Capability8 kV	Design Kit –
8231626A	0.05 pF, 50 V, 0603	Simulation–	Downloads8 files EDA models: Components ZIP ALT Altium_WE-VE femtoF (rev22a).IntLib \| 52.5 KB CDS Cadence_WE-VE femtoF (rev21a).zip \| 144.1 KB EAG Eagle_WE-VE-femtoF (rev26a).lbr \| 18.3 KB KIC KiCad_WE-VE-femtoF (rev25b).zip \| 42.8 KB ZUK Cadstar_WE-VE femtoF (rev21a).zip \| 5 KB CAD files ZIP IGS IGS_WE-VE-femtoF_0603 (rev1).igs \| 244.7 KB STP STP_WE-VE-femtoF_0603 (rev1).stp \| 104.5 KB Electric models ZIP PSP PSpice_WE-VE_femtoF (rev25a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	(Channel) Input Capacitance [typ.]0.05 pF	Channel ESD Clamping Voltage [typ.]50 V	Size0603	ESD Contact Discharge Capability8 kV	Design Kit –
8231706A	0.05 pF, 40 V, 0402	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WE-VE femtoF (rev22a).IntLib \| 52.5 KB CDS Cadence_WE-VE femtoF (rev21a).zip \| 144.1 KB EAG Eagle_WE-VE-femtoF (rev26a).lbr \| 18.3 KB KIC KiCad_WE-VE-femtoF (rev25b).zip \| 42.8 KB ZUK Cadstar_WE-VE femtoF (rev21a).zip \| 5 KB CAD files ZIP IGS IGS_WE-VE-femtoF_0402 (rev1).igs \| 243.5 KB STP STP_WE-VE-femtoF_0402 (rev1).stp \| 104.6 KB Electric models ZIP PSP PSpice_WE-VE_femtoF (rev25a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	(Channel) Input Capacitance [typ.]0.05 pF	Channel ESD Clamping Voltage [typ.]40 V	Size0402	ESD Contact Discharge Capability8 kV	Design Kit 823999
8231714A	0.05 pF, 45 V, 0402	Simulation–	Downloads8 files EDA models: Components ZIP ALT Altium_WE-VE femtoF (rev22a).IntLib \| 52.5 KB CDS Cadence_WE-VE femtoF (rev21a).zip \| 144.1 KB EAG Eagle_WE-VE-femtoF (rev26a).lbr \| 18.3 KB KIC KiCad_WE-VE-femtoF (rev25b).zip \| 42.8 KB ZUK Cadstar_WE-VE femtoF (rev21a).zip \| 5 KB CAD files ZIP IGS IGS_WE-VE-femtoF_0402 (rev1).igs \| 243.5 KB STP STP_WE-VE-femtoF_0402 (rev1).stp \| 104.6 KB Electric models ZIP PSP PSpice_WE-VE_femtoF (rev25a).zip \| 4.9 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	(Channel) Input Capacitance [typ.]0.05 pF	Channel ESD Clamping Voltage [typ.]45 V	Size0402	ESD Contact Discharge Capability8 kV	Design Kit –
