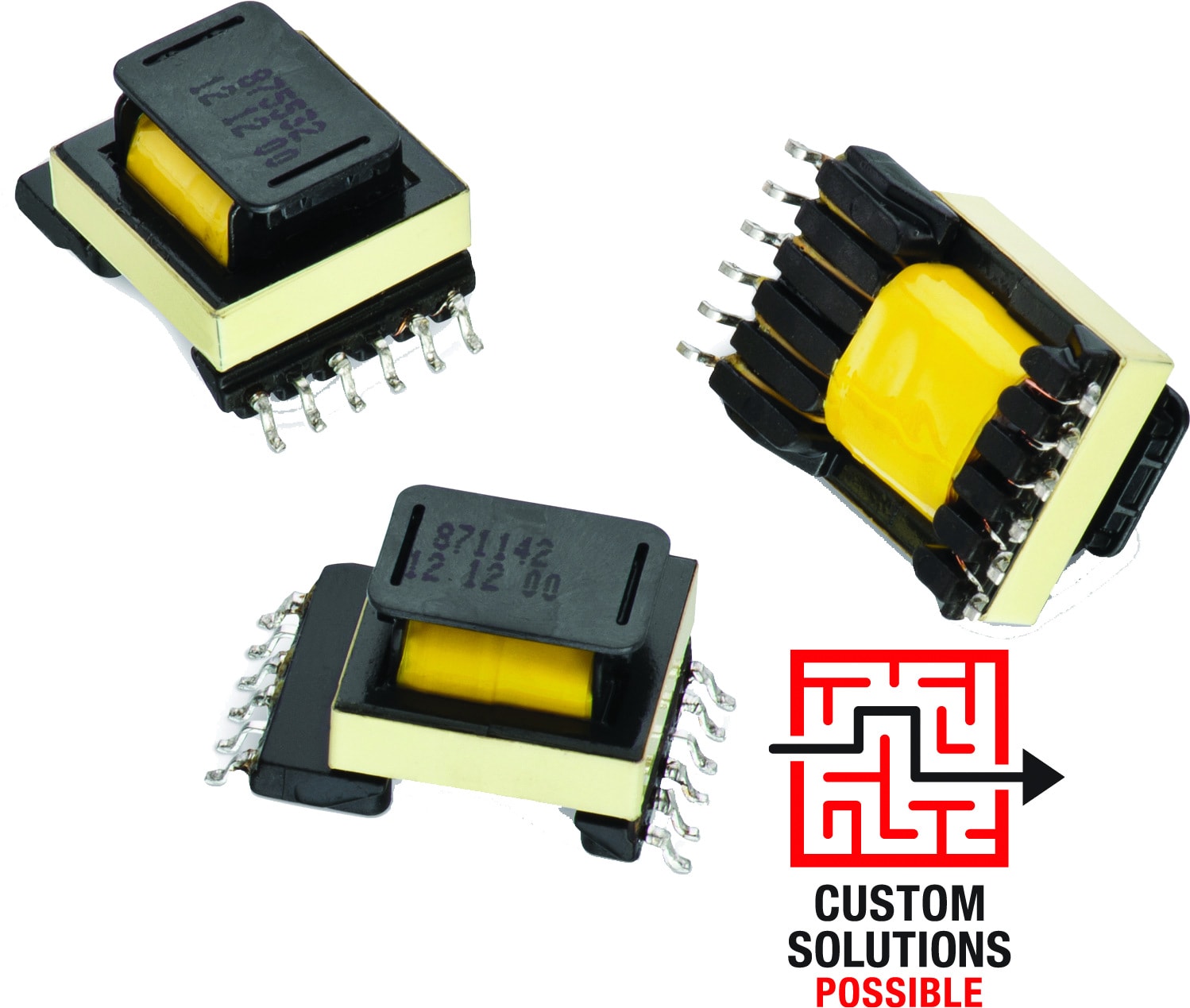

WE-UOST Universal Offline Standard Transformers

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount
EE16/8/5			25.81	16.6	13.5	SMT

LTSpice files

LT
LTSpice_WE-UOST (rev22a).zip
|
8 KB

Characteristics

Input voltage range 85-265VAC (125-375VDC)
Output power 12-16W
Designed to comply with EN61558-2-16: Reinforced insulation
Creepage and clearance distance > 6.5 mm
Insulation test voltage 4.2kV(AC)
For SMT assembly

Applications

SMPS with power up to 16W
Auxiliary power supplies
Usable with all low power AC/DC ICs like LT3798/3799, UCC28610, ViPER & Tiny/ Link Switch

Can’t find the suitable product?

We will be glad to help you! We will take your specifications and work to find a solution that fits your needs. Simply fill out our inquiry form with your specifications.

Find your custom solution

Products

EE16/8/5

Filter article data

show article in 1 product lines

article in 1 product lines

Order Code	Datasheet	Downloads	Status	V_IN	V_Out1(V)	I_Out1(A)	V_Out2(V)	I_Out2(A)	V_aux(V)	L(µH)	f_switch	n	R_{DC 1}(mΩ)	R_{DC 2}(mΩ)	R_{DC 3}(mΩ)	R_{DC 4}(mΩ)	Size	L_S(µH)	Mount	Samples
760871113	85 - 265 V (AC), 5 V, 1.25 A	Downloads8 files EDA models: Components ZIP ALT WE-UOST (rev23a).IntLib \| 250.5 KB CDS Cadence_WE-UOST (rev22a).zip \| 1.4 MB EAG Eagle_WE-UOST (rev19a).lbr \| 33.8 KB KIC KiCad_WE-UOST (rev25b).zip \| 301.7 KB ZUK Cadstar_WE-UOST (rev19a).zip \| 7 KB CAD files ZIP IGS WE-UOST_EE16_8_5_SMD (rev1).igs \| 4.3 MB STP WE-UOST_EE16_8_5_SMD (rev1).stp \| 1.6 MB Electric models ZIP PSP Pspice_WE-UOST (rev22a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 11.25 A	Output Voltage 25 V	Output Current 21.25 A	Auxiliary Voltage14 V	Inductance1310 µH	Switching Frequency60-150	Turns Ratio140 : 6 : 6 : 16	DC Resistance 13000 mΩ	DC Resistance 225 mΩ	DC Resistance 325 mΩ	DC Resistance 4450 mΩ	SizeEE16/8/5	Leakage Inductance40 µH	MountSMT
760871135	85 - 265 V (AC), 12 V, 0.55 A	Downloads8 files EDA models: Components ZIP ALT WE-UOST (rev23a).IntLib \| 250.5 KB CDS Cadence_WE-UOST (rev22a).zip \| 1.4 MB EAG Eagle_WE-UOST (rev19a).lbr \| 33.8 KB KIC KiCad_WE-UOST (rev25b).zip \| 301.7 KB ZUK Cadstar_WE-UOST (rev19a).zip \| 7 KB CAD files ZIP IGS WE-UOST_EE16_8_5_SMD (rev1).igs \| 4.3 MB STP WE-UOST_EE16_8_5_SMD (rev1).stp \| 1.6 MB Electric models ZIP PSP Pspice_WE-UOST (rev22a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 112 V	Output Current 10.55 A	Output Voltage 212 V	Output Current 20.55 A	Auxiliary Voltage14 V	Inductance1250 µH	Switching Frequency60-150	Turns Ratio136 : 13 : 13 : 15	DC Resistance 12920 mΩ	DC Resistance 292 mΩ	DC Resistance 392 mΩ	DC Resistance 4400 mΩ	SizeEE16/8/5	Leakage Inductance53 µH	MountSMT
760871543	85 - 265 V (AC), 24 V, 0.3 A	Downloads8 files EDA models: Components ZIP ALT WE-UOST (rev23a).IntLib \| 250.5 KB CDS Cadence_WE-UOST (rev22a).zip \| 1.4 MB EAG Eagle_WE-UOST (rev19a).lbr \| 33.8 KB KIC KiCad_WE-UOST (rev25b).zip \| 301.7 KB ZUK Cadstar_WE-UOST (rev19a).zip \| 7 KB CAD files ZIP IGS WE-UOST_EE16_8_5_SMD (rev1).igs \| 4.3 MB STP WE-UOST_EE16_8_5_SMD (rev1).stp \| 1.6 MB Electric models ZIP PSP Pspice_WE-UOST (rev22a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 124 V	Output Current 10.3 A	Output Voltage 25 V	Output Current 21.15 A	Auxiliary Voltage14 V	Inductance1310 µH	Switching Frequency60-150	Turns Ratio140 : 22 : 6 : 16	DC Resistance 13000 mΩ	DC Resistance 2450 mΩ	DC Resistance 325 mΩ	DC Resistance 4400 mΩ	SizeEE16/8/5	Leakage Inductance35 µH	MountSMT
760871534	85 - 265 V (AC), 12 V, 0.55 A	Downloads8 files EDA models: Components ZIP ALT WE-UOST (rev23a).IntLib \| 250.5 KB CDS Cadence_WE-UOST (rev22a).zip \| 1.4 MB EAG Eagle_WE-UOST (rev19a).lbr \| 33.8 KB KIC KiCad_WE-UOST (rev25b).zip \| 301.7 KB ZUK Cadstar_WE-UOST (rev19a).zip \| 7 KB CAD files ZIP IGS WE-UOST_EE16_8_5_SMD (rev1).igs \| 4.3 MB STP WE-UOST_EE16_8_5_SMD (rev1).stp \| 1.6 MB Electric models ZIP PSP Pspice_WE-UOST (rev22a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 112 V	Output Current 10.55 A	Output Voltage 25 V	Output Current 21.25 A	Auxiliary Voltage14 V	Inductance1250 µH	Switching Frequency60-150	Turns Ratio140 : 9 : 7 : 18	DC Resistance 13000 mΩ	DC Resistance 2190 mΩ	DC Resistance 330 mΩ	DC Resistance 4400 mΩ	SizeEE16/8/5	Leakage Inductance35 µH	MountSMT
760871142	85 - 265 V (AC), 24 V, 0.28 A	Downloads8 files EDA models: Components ZIP ALT WE-UOST (rev23a).IntLib \| 250.5 KB CDS Cadence_WE-UOST (rev22a).zip \| 1.4 MB EAG Eagle_WE-UOST (rev19a).lbr \| 33.8 KB KIC KiCad_WE-UOST (rev25b).zip \| 301.7 KB ZUK Cadstar_WE-UOST (rev19a).zip \| 7 KB CAD files ZIP IGS WE-UOST_EE16_8_5_SMD (rev1).igs \| 4.3 MB STP WE-UOST_EE16_8_5_SMD (rev1).stp \| 1.6 MB Electric models ZIP PSP Pspice_WE-UOST (rev22a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 124 V	Output Current 10.28 A	Output Voltage 224 V	Output Current 20.28 A	Auxiliary Voltage14 V	Inductance1250 µH	Switching Frequency60-150	Turns Ratio140 : 27 : 27 : 16	DC Resistance 13000 mΩ	DC Resistance 2620 mΩ	DC Resistance 3620 mΩ	DC Resistance 4450 mΩ	SizeEE16/8/5	Leakage Inductance40 µH	MountSMT
760875112	85 - 265 V (AC), 5 V, 1.5 A	Downloads8 files EDA models: Components ZIP ALT WE-UOST (rev23a).IntLib \| 250.5 KB CDS Cadence_WE-UOST (rev22a).zip \| 1.4 MB EAG Eagle_WE-UOST (rev19a).lbr \| 33.8 KB KIC KiCad_WE-UOST (rev25b).zip \| 301.7 KB ZUK Cadstar_WE-UOST (rev19a).zip \| 7 KB CAD files ZIP IGS WE-UOST_EE16_8_5_SMD (rev1).igs \| 4.3 MB STP WE-UOST_EE16_8_5_SMD (rev1).stp \| 1.6 MB Electric models ZIP PSP Pspice_WE-UOST (rev22a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 11.5 A	Output Voltage 25 V	Output Current 21.5 A	Auxiliary Voltage14 V	Inductance1500 µH	Switching Frequency60-150	Turns Ratio160 : 7 : 7 : 18	DC Resistance 14200 mΩ	DC Resistance 233.5 mΩ	DC Resistance 333.5 mΩ	DC Resistance 4400 mΩ	SizeEE16/8/5	Leakage Inductance50 µH	MountSMT
760875131	195 - 265 V (AC), 12 V, 0.65 A	Downloads8 files EDA models: Components ZIP ALT WE-UOST (rev23a).IntLib \| 250.5 KB CDS Cadence_WE-UOST (rev22a).zip \| 1.4 MB EAG Eagle_WE-UOST (rev19a).lbr \| 33.8 KB KIC KiCad_WE-UOST (rev25b).zip \| 301.7 KB ZUK Cadstar_WE-UOST (rev19a).zip \| 7 KB CAD files ZIP IGS WE-UOST_EE16_8_5_SMD (rev1).igs \| 4.3 MB STP WE-UOST_EE16_8_5_SMD (rev1).stp \| 1.6 MB Electric models ZIP PSP Pspice_WE-UOST (rev22a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 195 - 265 V (AC)	Output Voltage 112 V	Output Current 10.65 A	Output Voltage 212 V	Output Current 20.65 A	Auxiliary Voltage14 V	Inductance1500 µH	Switching Frequency60-150	Turns Ratio160 : 14 : 14 : 16	DC Resistance 14200 mΩ	DC Resistance 2140 mΩ	DC Resistance 3140 mΩ	DC Resistance 4450 mΩ	SizeEE16/8/5	Leakage Inductance60 µH	MountSMT
760875532	195 - 265 V (AC), 12 V, 0.7 A	Downloads8 files EDA models: Components ZIP ALT WE-UOST (rev23a).IntLib \| 250.5 KB CDS Cadence_WE-UOST (rev22a).zip \| 1.4 MB EAG Eagle_WE-UOST (rev19a).lbr \| 33.8 KB KIC KiCad_WE-UOST (rev25b).zip \| 301.7 KB ZUK Cadstar_WE-UOST (rev19a).zip \| 7 KB CAD files ZIP IGS WE-UOST_EE16_8_5_SMD (rev1).igs \| 4.3 MB STP WE-UOST_EE16_8_5_SMD (rev1).stp \| 1.6 MB Electric models ZIP PSP Pspice_WE-UOST (rev22a).zip \| 5.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 195 - 265 V (AC)	Output Voltage 112 V	Output Current 10.7 A	Output Voltage 25 V	Output Current 21.36 A	Auxiliary Voltage14 V	Inductance1500 µH	Switching Frequency60-150	Turns Ratio160 : 10 : 7 : 16	DC Resistance 16500 mΩ	DC Resistance 286 mΩ	DC Resistance 324 mΩ	DC Resistance 4370 mΩ	SizeEE16/8/5	Leakage Inductance60 µH	MountSMT
