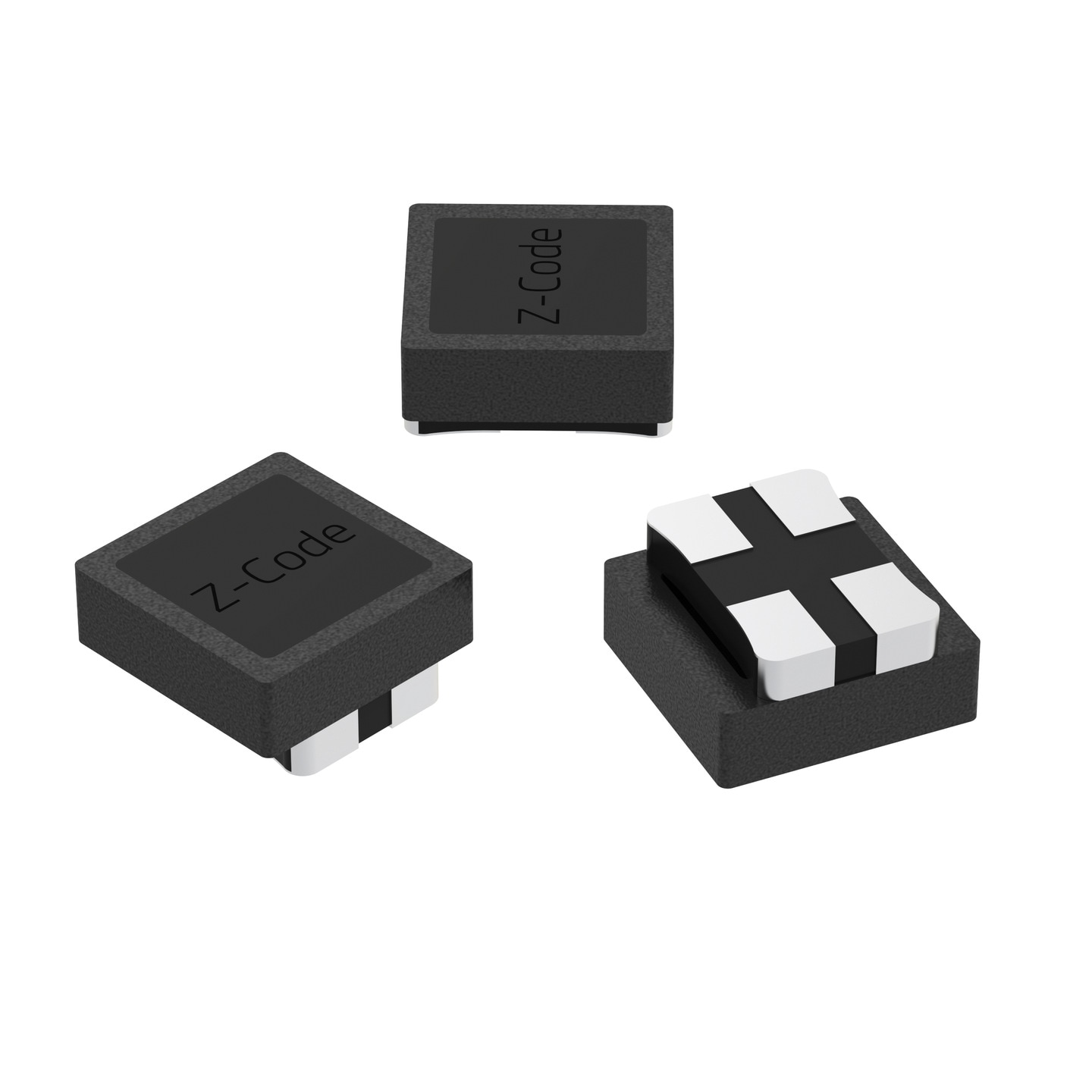

WE-SLSP Common Mode Choke Line Slim Profile

NEW
WE-SLSP Common Mode Choke Line Slim ProfileNEW
WE-SLSP Common Mode Choke Line Slim Profile

LTSpice files

Characteristics

  • High current up to 6 A

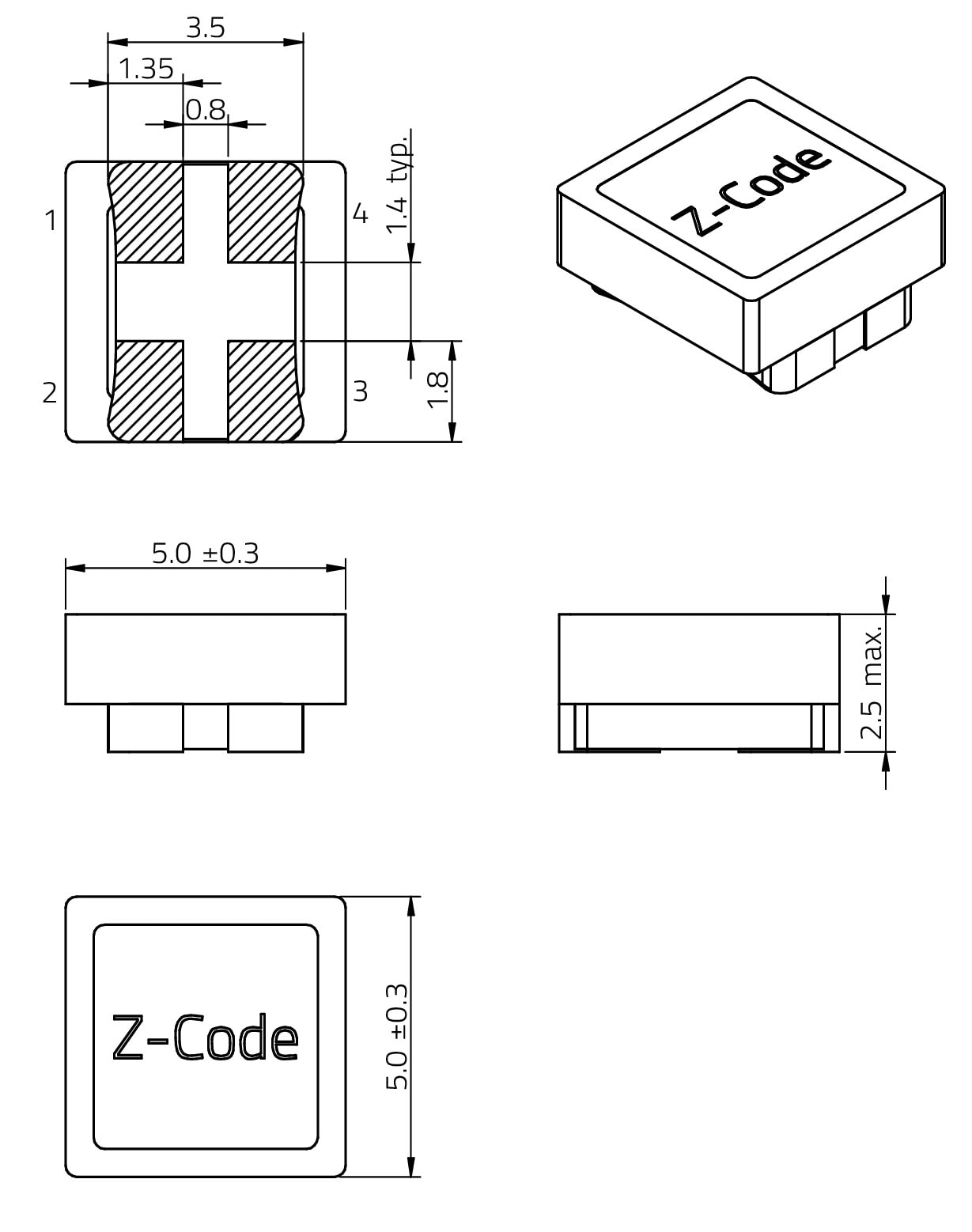

  • Low profile in SMT construction, only 2.5 mm height
  • Compact Case
  • Low leackage inductance
  • Rated voltage up to 100 V
  • AEC-Q200 qualified

Applications

  • Data lines
  • PoE (Power over Ethernet)
  • USB
  • PLC 24 V to 48 V bus systems
  • Micro inverters

Products

Filter article data
Filter by
Delete all
 show  articles in 0 product lines
 articles in 0 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
Z @ 100 MHz(Ω)
Z @ 10 MHz(Ω)
Zmax(Ω)
IR(A)
RDC max.(mΩ)
VR(V (DC))
L(mm)
W(mm)
H(mm)
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
744241101
SPEC100 Ω, 15 Ω, 150 Ω
Simu­lation
Availability
–
Downloads8 files

Status
NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
Impedance @ 100 MHz100 Ω
Impedance @ 10 MHz15 Ω
Maximum Impedance150 Ω
Rated Current6 A
DC Resistance15 mΩ
Rated Voltage100 V (DC)
Length5 mm
Width5 mm
Height2.5 mm
–Check availability
744241251
SPEC250 Ω, 40 Ω, 350 Ω
Simu­lation
Availability
–
Downloads8 files

Status
NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
Impedance @ 100 MHz250 Ω
Impedance @ 10 MHz40 Ω
Maximum Impedance350 Ω
Rated Current5 A
DC Resistance20 mΩ
Rated Voltage100 V (DC)
Length5 mm
Width5 mm
Height2.5 mm
–Check availability
744241501
SPEC530 Ω, 65 Ω, 600 Ω
Simu­lation
Availability
–
Downloads8 files

Status
NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
Impedance @ 100 MHz530 Ω
Impedance @ 10 MHz65 Ω
Maximum Impedance600 Ω
Rated Current4 A
DC Resistance30 mΩ
Rated Voltage100 V (DC)
Length5 mm
Width5 mm
Height2.5 mm
–Check availability
744241701
SPEC1000 Ω, 90 Ω, 1000 Ω
Simu­lation
Availability
–
Downloads8 files

Status
NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
Impedance @ 100 MHz1000 Ω
Impedance @ 10 MHz90 Ω
Maximum Impedance1000 Ω
Rated Current3.5 A
DC Resistance35 mΩ
Rated Voltage100 V (DC)
Length5 mm
Width5 mm
Height2.5 mm
–Check availability
744241102
SPEC1000 Ω, 130 Ω, 1000 Ω
Simu­lation
Availability
–
Downloads8 files

Status
NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
Impedance @ 100 MHz1000 Ω
Impedance @ 10 MHz130 Ω
Maximum Impedance1000 Ω
Rated Current2 A
DC Resistance45 mΩ
Rated Voltage100 V (DC)
Length5 mm
Width5 mm
Height2.5 mm
–Check availability
744241142
SPEC1400 Ω, 200 Ω, 1500 Ω
Simu­lation
Availability
–
Downloads8 files

Status
NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
Impedance @ 100 MHz1400 Ω
Impedance @ 10 MHz200 Ω
Maximum Impedance1500 Ω
Rated Current1.5 A
DC Resistance55 mΩ
Rated Voltage100 V (DC)
Length5 mm
Width5 mm
Height2.5 mm
–Check availability
744241202
SPEC1800 Ω, 230 Ω, 2050 Ω
Simu­lation
Availability
–
Downloads8 files

Status
NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
Impedance @ 100 MHz1800 Ω
Impedance @ 10 MHz230 Ω
Maximum Impedance2050 Ω
Rated Current1.3 A
DC Resistance73 mΩ
Rated Voltage100 V (DC)
Length5 mm
Width5 mm
Height2.5 mm
–Check availability
