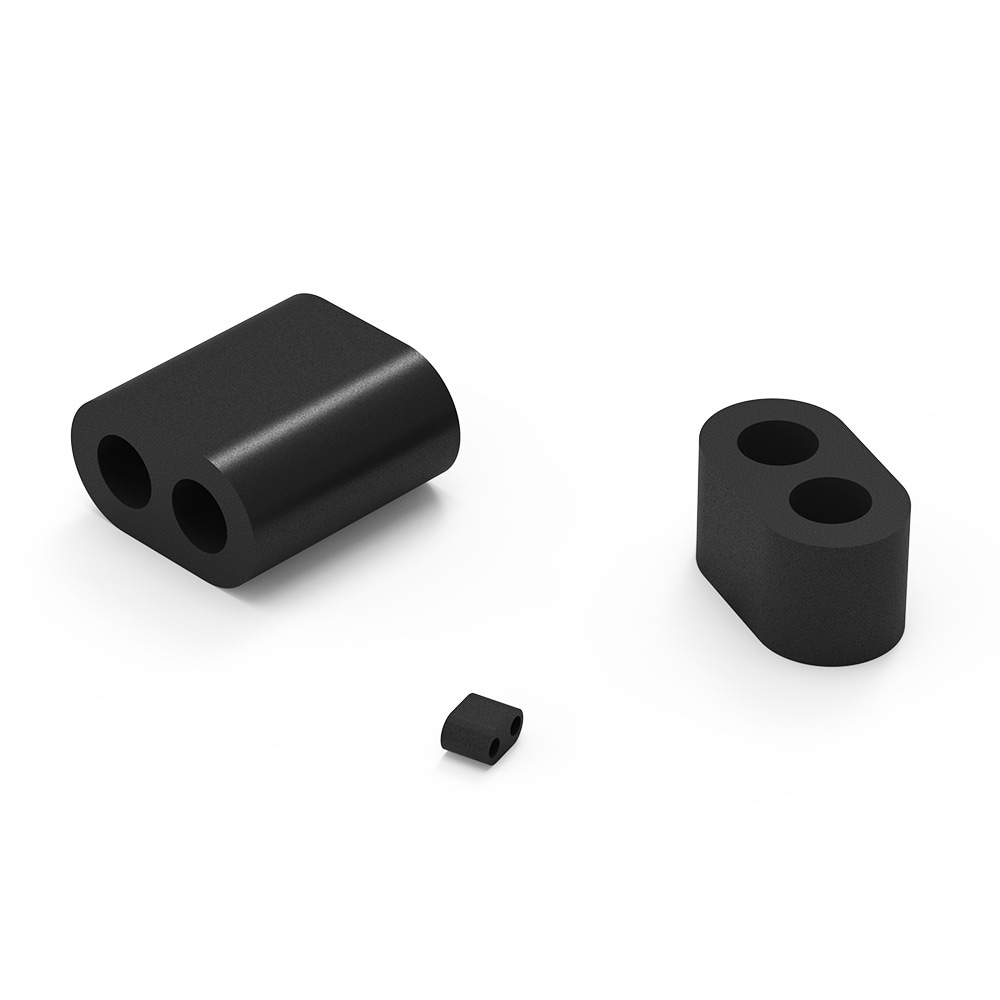

WE-RIB

Characteristics

High Curie temperature: <200 ºC
Operating temperature: –25 ºC to +125 ºC
Custom designs on request

Applications

Data lines for telecommunication
Balun-transformer

Products

Filter article data

show articles in 0 product lines

articles in 0 product lines

Log in now to view availability and request availability forecasts. LOGIN

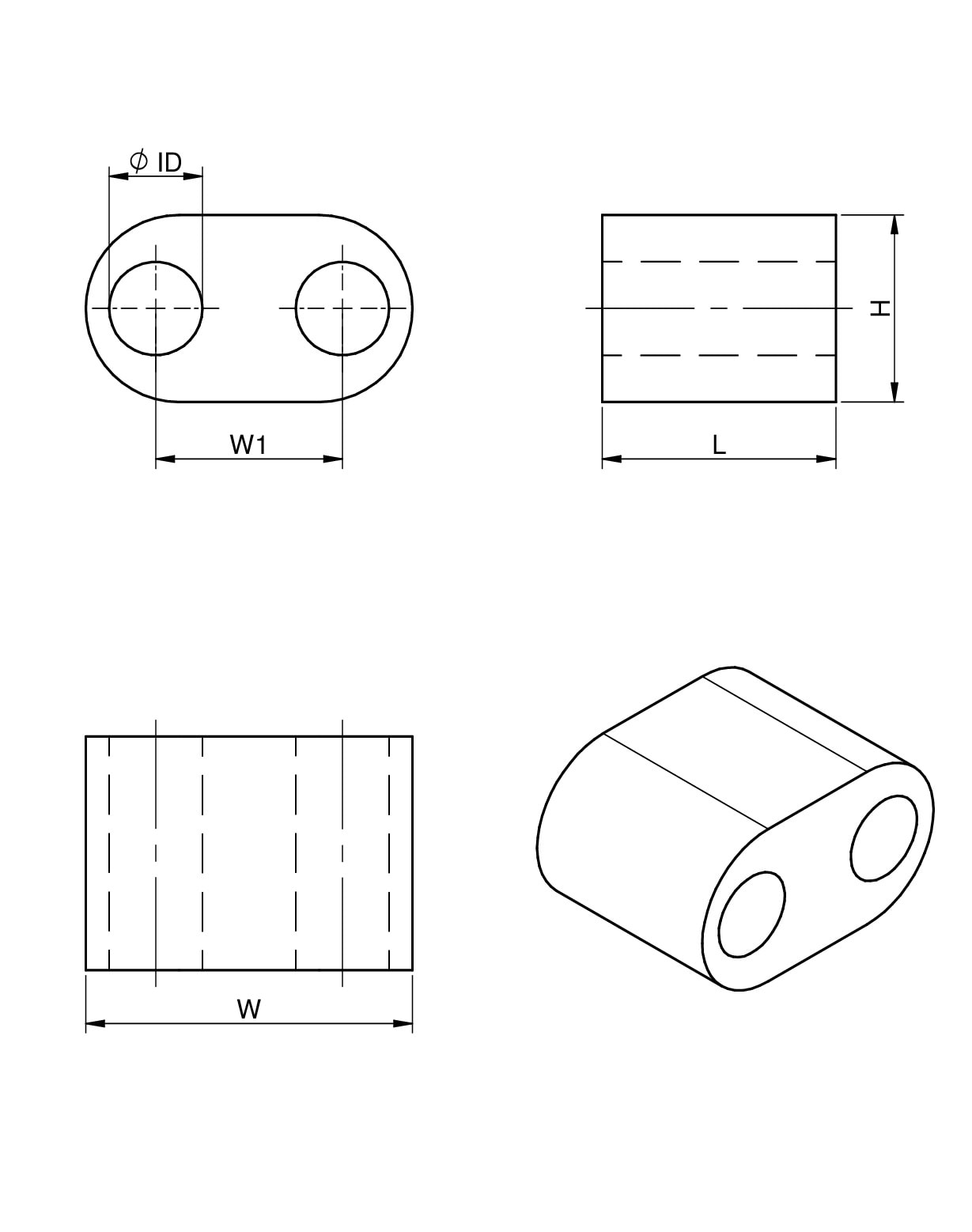

	Order Code	Datasheet	Downloads	Status	Ø Cable max.(mm)	L(mm)	W(mm)	W1(mm)	H(mm)	Ø ID(mm)	Z @ 25 MHz 1 wire(Ω)	Z @ 100 MHz 1 wire(Ω)	Z @ 25 MHz 2 wires(Ω)	Z @ 100 MHz 2 wires(Ω)	Material	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	7427052	SPEC0.8 mm, 2.5 mm, 3.5 mm PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads2 files IGS 7427052 (rev1).igs \| 91.4 KB STP 7427052 (rev1).stp \| 18.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter Max.0.8 mm	Length2.5 mm	Width3.5 mm	Width2 mm	Height2 mm	Inner Diameter1 mm	Impedance @ 25 MHz 1 wire35 Ω	Impedance @ 100 MHz 1 wire91 Ω	Impedance @ 25 MHz 2 wires33 Ω	Impedance @ 100 MHz 2 wires102 Ω	Material3 W 180	–Check availability
	7427057	SPEC1 mm, 2 mm, 5 mm PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads2 files IGS 7427057 (rev1).igs \| 91.4 KB STP 7427057 (rev1).stp \| 18.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter Max.1 mm	Length2 mm	Width5 mm	Width2.6 mm	Height3 mm	Inner Diameter1.2 mm	Impedance @ 25 MHz 1 wire38 Ω	Impedance @ 100 MHz 1 wire97 Ω	Impedance @ 25 MHz 2 wires33 Ω	Impedance @ 100 MHz 2 wires104 Ω	Material3 W 180	–Check availability
	7427050	SPEC1 mm, 5 mm, 5 mm PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads2 files IGS 7427050 (rev1).igs \| 91.4 KB STP 7427050 (rev1).stp \| 18.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter Max.1 mm	Length5 mm	Width5 mm	Width2.6 mm	Height3 mm	Inner Diameter1.2 mm	Impedance @ 25 MHz 1 wire66 Ω	Impedance @ 100 MHz 1 wire146 Ω	Impedance @ 25 MHz 2 wires50 Ω	Impedance @ 100 MHz 2 wires134 Ω	Material3 W 180	–Check availability
	7427054	SPEC1.5 mm, 3.2 mm, 6.4 mm PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads2 files IGS 7427054 (rev1).igs \| 91.8 KB STP 7427054 (rev1).stp \| 18.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter Max.1.5 mm	Length3.2 mm	Width6.4 mm	Width3 mm	Height3.5 mm	Inner Diameter1.8 mm	Impedance @ 25 MHz 1 wire44 Ω	Impedance @ 100 MHz 1 wire94 Ω	Impedance @ 25 MHz 2 wires34 Ω	Impedance @ 100 MHz 2 wires92 Ω	Material3 W 180	–Check availability
	7427051	SPEC1.5 mm, 5 mm, 6.4 mm PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads2 files IGS 7427051 (rev1).igs \| 91.8 KB STP 7427051 (rev1).stp \| 18.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter Max.1.5 mm	Length5 mm	Width6.4 mm	Width3 mm	Height3.5 mm	Inner Diameter1.8 mm	Impedance @ 25 MHz 1 wire59 Ω	Impedance @ 100 MHz 1 wire127 Ω	Impedance @ 25 MHz 2 wires43 Ω	Impedance @ 100 MHz 2 wires114 Ω	Material3 W 180	–Check availability
	7427055	SPEC3.5 mm, 7 mm, 13.5 mm PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads2 files IGS 7427055 (rev1).igs \| 91.8 KB STP 7427055 (rev1).stp \| 18.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter Max.3.5 mm	Length7 mm	Width13.5 mm	Width5.5 mm	Height7.5 mm	Inner Diameter4 mm	Impedance @ 25 MHz 1 wire72 Ω	Impedance @ 100 MHz 1 wire154 Ω	Impedance @ 25 MHz 2 wires51 Ω	Impedance @ 100 MHz 2 wires122 Ω	Material3 W 180	–Check availability
	7427056	SPEC3.5 mm, 14 mm, 13.5 mm PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads2 files IGS 7427056 (rev1).igs \| 89.9 KB STP 7427056 (rev1).stp \| 18.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Cable Diameter Max.3.5 mm	Length14 mm	Width13.5 mm	Width5.5 mm	Height7.5 mm	Inner Diameter4 mm	Impedance @ 25 MHz 1 wire126 Ω	Impedance @ 100 MHz 1 wire260 Ω	Impedance @ 25 MHz 2 wires80 Ω	Impedance @ 100 MHz 2 wires182 Ω	Material3 W 180	–Check availability
