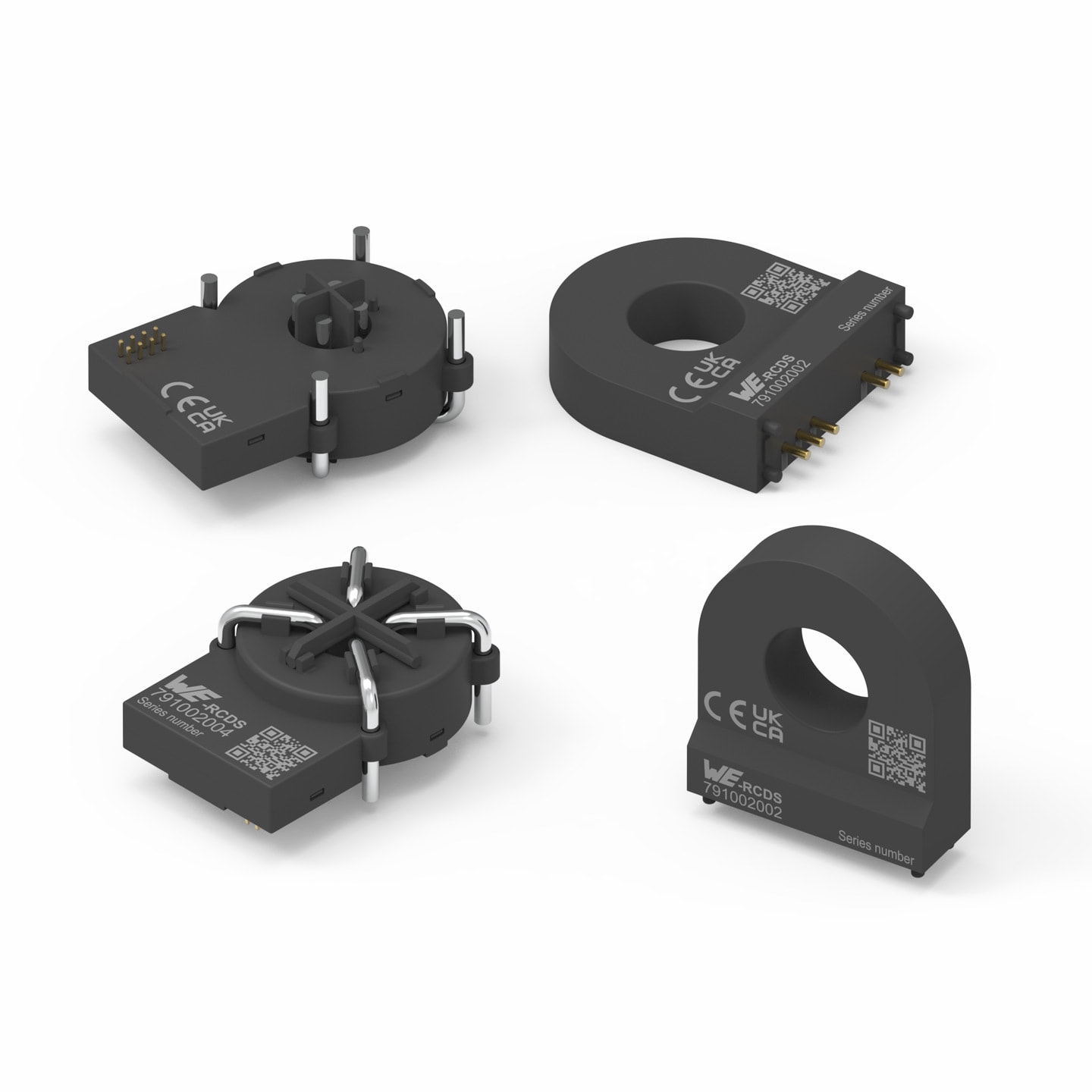

WE-RCDS Residual Current Detection Sensor

Characteristics

Compact design for PCB board mounting
DC 6mA residual direct current detecting RDC-M-Module for mode 3 EV charging
System fault indication
Supply voltage drop monitoring
Module Software certified according to ANSI/UL 1998, Class 1
Relevant EMC tests according to IEC 62955: 2018 and EN 60730-1
CE Declaration of Conformity

Applications

DC- Residual current detection sensor for stationary EV charging devices
To meet IEC 6181-1 (ensure the disconnection of the supply in case of DC fault)

Products

Order Code	Datasheet	Downloads	Version	Type	I_Δn	I_P	Operating Temperature	Offer
791002004	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-RCDS (rev24a).IntLib \| 2.6 MB CDS Cadence_WE-RCDS (rev24a).zip \| 9.8 MB EAG Eagle_WE-RCDS (rev24a).lbr \| 24 KB CAD files ZIP 3D Downloads_3D_WSEN-RCDS_791002004 (rev1).pdf \| 36.2 MB IGS Downloads_IGS_WSEN-RCDS_791002004 (rev1).igs \| 16.3 MB STP Downloads_STP_WSEN-RCDS_791002004 (rev1).stp \| 3.3 MB Download all 6 files as zip archive ZIP	Horizontal	3-phase primary conductor	6 mA DC	40 A max.	-40 °C up to +105 °C
791002002	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-RCDS (rev24a).IntLib \| 2.6 MB CDS Cadence_WE-RCDS (rev24a).zip \| 9.8 MB EAG Eagle_WE-RCDS (rev24a).lbr \| 24 KB CAD files ZIP 3D Downloads_3D_WSEN-RCDS_791002002 (rev1).pdf \| 5.2 MB IGS Downloads_IGS_WSEN-RCDS_791002002 (rev1).igs \| 34.5 MB STP Downloads_STP_WSEN-RCDS_791002002 (rev1).stp \| 10.9 MB Download all 6 files as zip archive ZIP	Vertical	Cable Through Hole	6 mA DC	80 / 40 A max.	-40 °C up to +105 °C
