WE-PPTM Push-Pull Tiny Multi-Output Transformers

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount

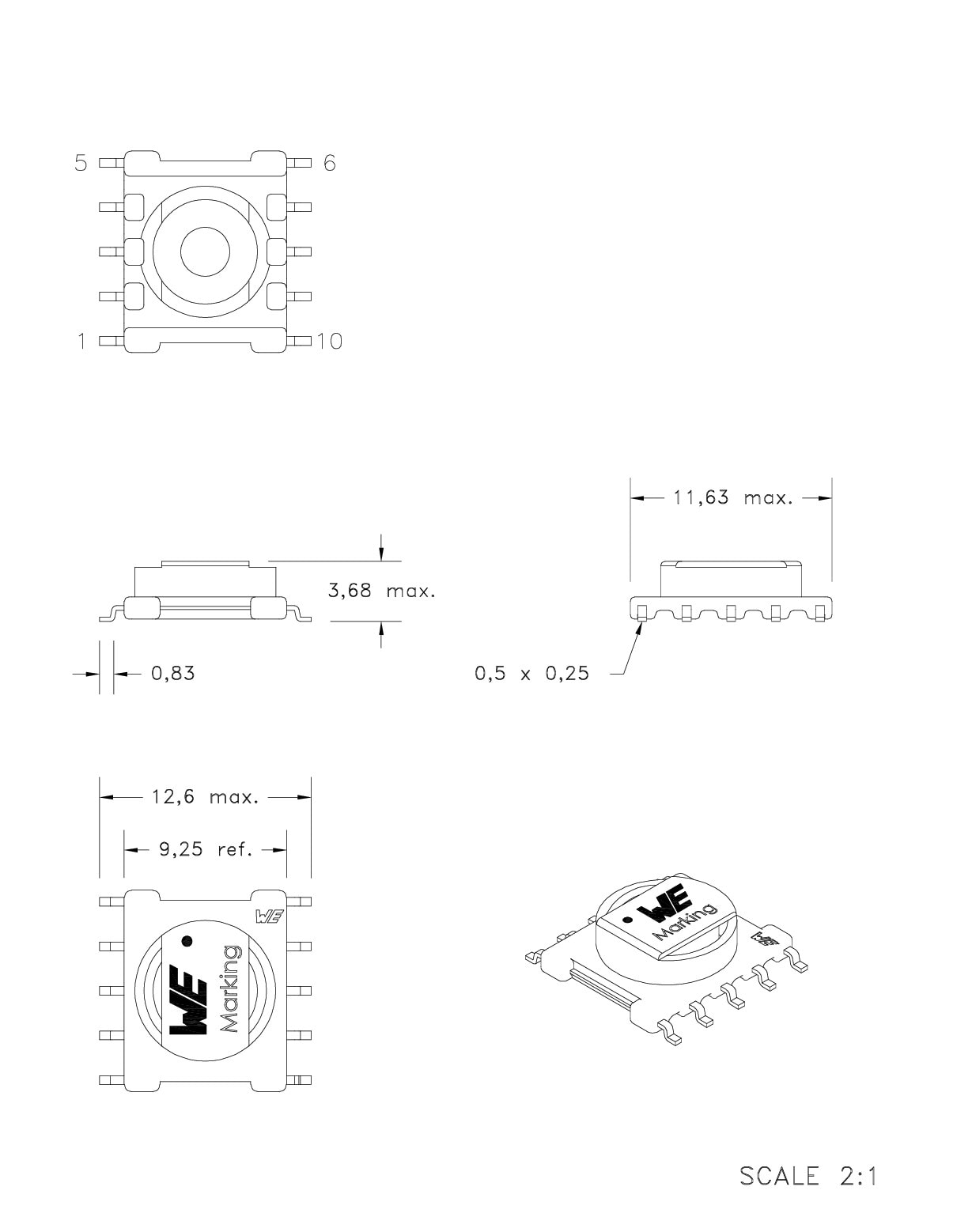

1212			11.63	12.6	3.68	SMT

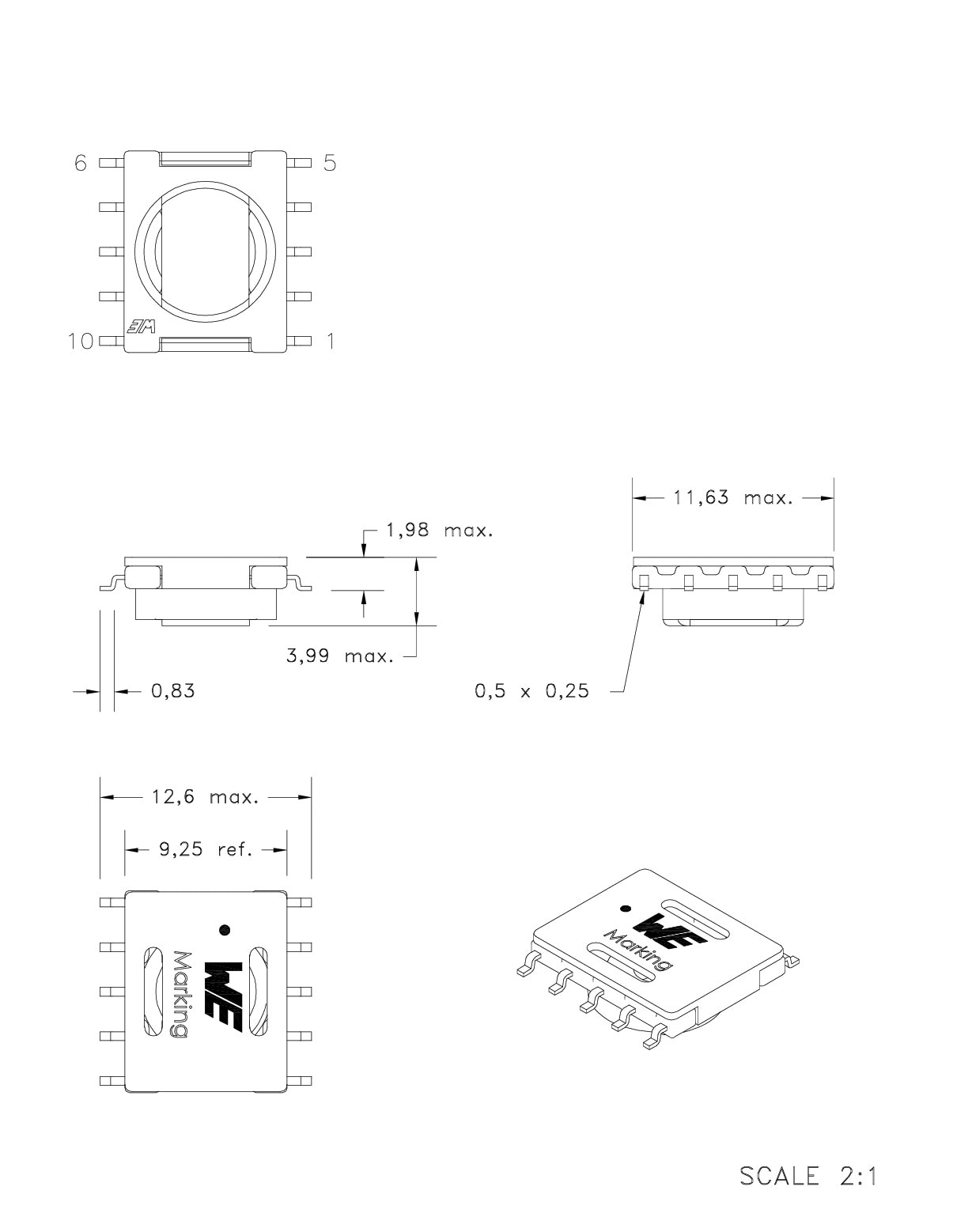

1212TB			11.63	12.6	1.98	SMT

LTSpice files

LT
LTspice_WE-PPTM (rev25a).zip
|
2.6 KB

Characteristics

Small size
Surface mount
Through the board options
Low profile
Operating temp: -40°C to 125°C
Multiple outputs
Functional insulation
SN6501 Push Pull Driver Training Video

Applications

Isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, lower-power LAN
Industrial automation
Process control
Medical equipment
PLC analog and digital I/O modules
Isolated gate driver power supplies
AC motor drives
Uninterruptible power supplies (UPS)
Solar inverters
Polyphase energy meters
Protection relays and IEDs

Can’t find the suitable product?

We will be glad to help you! We will take your specifications and work to find a solution that fits your needs. Simply fill out our inquiry form with your specifications.

Find your custom solution

Products

All

1212

1212TB

Filter article data

show article in 2 product lines

article in 2 product lines

	Order Code	Datasheet	Downloads	Status	V_IN	f_switch(kHz)	V_Out1(V)	I_Out1(mA)	V_Out2(V)	I_Out2(mA)	V_Out3(V)	I_Out3(mA)	V_Out4(V)	I_Out4(mA)	∫Udt(Vµs)	L(µH)	N_PRI : N_SEC	Type of Insulation	V_T(V (AC))	L(mm)	W(mm)	H(mm)	Mount	Samples
	750316016	5 V (DC), 400, 12.85 V	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PPTM (rev25a).IntLib \| 440.5 KB CDS Cadence_WE-PPTM (rev25a).zip \| 2.6 MB EAG Eagle_WE-PPTM (rev25a).lbr \| 56.4 KB KIC KiCad_WE-PPTM (rev25b).zip \| 1017.4 KB CAD files ZIP IGS Download_IGS_250-1240 (rev1).IGS \| 2.1 MB STP Download_STP_250-1240 (rev1).STEP \| 958.2 KB Electric models ZIP LT LTspice_WE-PPTM (rev25a).zip \| 2.6 KB PSP Pspice_WE-PPTM (rev25a).zip \| 6.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Switching Frequency 400	Output Voltage 112.85 V	Output Current 1100 mA	Output Voltage 25.7 V	Output Current 2200 mA	Output Voltage 3-5.7 V	Output Current 3200 mA	Output Voltage 4-12.85 V	Output Current 495 mA	Voltage-µSecond8.9 Vµs	Inductance60 µH	Turns Ratio1:2.57:1.14	Type of InsulationFunctional	Insulation Test Voltage2500 V (AC)	Length11.63 mm	Width12.6 mm	Height3.68 mm	MountSMT
	750316017	5 V (DC), 400, 12.85 V	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PPTM (rev25a).IntLib \| 440.5 KB CDS Cadence_WE-PPTM (rev25a).zip \| 2.6 MB EAG Eagle_WE-PPTM (rev25a).lbr \| 56.4 KB KIC KiCad_WE-PPTM (rev25b).zip \| 1017.4 KB CAD files ZIP IGS Download_IGS_250-1240 (rev1).IGS \| 2.1 MB STP Download_STP_250-1240 (rev1).STEP \| 958.2 KB Electric models ZIP LT LTspice_WE-PPTM (rev25a).zip \| 2.6 KB PSP Pspice_WE-PPTM (rev25a).zip \| 6.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Switching Frequency 400	Output Voltage 112.85 V	Output Current 1100 mA	Output Voltage 24.27 V	Output Current 2200 mA	Output Voltage 3-4.27 V	Output Current 3200 mA	Output Voltage 4-12.85 V	Output Current 495 mA	Voltage-µSecond8.9 Vµs	Inductance60 µH	Turns Ratio1.17:3:1	Type of InsulationFunctional	Insulation Test Voltage2500 V (AC)	Length11.63 mm	Width12.6 mm	Height3.68 mm	MountSMT
	750316018	5 V (DC), 400, 15.7 V	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PPTM (rev25a).IntLib \| 440.5 KB CDS Cadence_WE-PPTM (rev25a).zip \| 2.6 MB EAG Eagle_WE-PPTM (rev25a).lbr \| 56.4 KB KIC KiCad_WE-PPTM (rev25b).zip \| 1017.4 KB CAD files ZIP IGS Download_IGS_250-1240 (rev1).IGS \| 2.1 MB STP Download_STP_250-1240 (rev1).STEP \| 958.2 KB Electric models ZIP LT LTspice_WE-PPTM (rev25a).zip \| 2.6 KB PSP Pspice_WE-PPTM (rev25a).zip \| 6.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Switching Frequency 400	Output Voltage 115.7 V	Output Current 185 mA	Output Voltage 25.7 V	Output Current 2200 mA	Output Voltage 3-5.7 V	Output Current 3200 mA	Output Voltage 4-15.7 V	Output Current 485 mA	Voltage-µSecond8.9 Vµs	Inductance60 µH	Turns Ratio1:3.14:1.14	Type of InsulationFunctional	Insulation Test Voltage2500 V (AC)	Length11.63 mm	Width12.6 mm	Height3.68 mm	MountSMT
	750316668	5 V (DC), 400, 12.85 V	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PPTM (rev25a).IntLib \| 440.5 KB CDS Cadence_WE-PPTM (rev25a).zip \| 2.6 MB EAG Eagle_WE-PPTM (rev25a).lbr \| 56.4 KB KIC KiCad_WE-PPTM (rev25b).zip \| 1017.4 KB CAD files ZIP IGS Download_IGS_250-1239 (rev1).IGS \| 2.7 MB STP Download_STP_250-1239 (rev1).STEP \| 1.3 MB Electric models ZIP LT LTspice_WE-PPTM (rev25a).zip \| 2.6 KB PSP Pspice_WE-PPTM (rev25a).zip \| 6.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Switching Frequency 400	Output Voltage 112.85 V	Output Current 1100 mA	Output Voltage 25.7 V	Output Current 2200 mA	Output Voltage 3-5.7 V	Output Current 3200 mA	Output Voltage 4-12.85 V	Output Current 495 mA	Voltage-µSecond8.9 Vµs	Inductance60 µH	Turns Ratio1:2.57:1.14	Type of InsulationFunctional	Insulation Test Voltage2500 V (AC)	Length11.63 mm	Width12.6 mm	Height1.98 mm	MountSMT
	750316669	5 V (DC), 400, 12.85 V	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PPTM (rev25a).IntLib \| 440.5 KB CDS Cadence_WE-PPTM (rev25a).zip \| 2.6 MB EAG Eagle_WE-PPTM (rev25a).lbr \| 56.4 KB KIC KiCad_WE-PPTM (rev25b).zip \| 1017.4 KB CAD files ZIP IGS Download_IGS_250-1239 (rev1).IGS \| 2.7 MB STP Download_STP_250-1239 (rev1).STEP \| 1.3 MB Electric models ZIP LT LTspice_WE-PPTM (rev25a).zip \| 2.6 KB PSP Pspice_WE-PPTM (rev25a).zip \| 6.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Switching Frequency 400	Output Voltage 112.85 V	Output Current 1100 mA	Output Voltage 24.27 V	Output Current 2200 mA	Output Voltage 3-4.27 V	Output Current 3200 mA	Output Voltage 4-12.85 V	Output Current 495 mA	Voltage-µSecond8.9 Vµs	Inductance60 µH	Turns Ratio1.17:3:1	Type of InsulationFunctional	Insulation Test Voltage2500 V (AC)	Length11.63 mm	Width12.6 mm	Height1.98 mm	MountSMT
	750316670	5 V (DC), 400, 15.7 V	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PPTM (rev25a).IntLib \| 440.5 KB CDS Cadence_WE-PPTM (rev25a).zip \| 2.6 MB EAG Eagle_WE-PPTM (rev25a).lbr \| 56.4 KB KIC KiCad_WE-PPTM (rev25b).zip \| 1017.4 KB CAD files ZIP IGS Download_IGS_250-1239 (rev1).IGS \| 2.7 MB STP Download_STP_250-1239 (rev1).STEP \| 1.3 MB Electric models ZIP LT LTspice_WE-PPTM (rev25a).zip \| 2.6 KB PSP Pspice_WE-PPTM (rev25a).zip \| 6.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Switching Frequency 400	Output Voltage 115.7 V	Output Current 185 mA	Output Voltage 25.7 V	Output Current 2200 mA	Output Voltage 3-5.7 V	Output Current 3200 mA	Output Voltage 4-15.7 V	Output Current 485 mA	Voltage-µSecond8.9 Vµs	Inductance60 µH	Turns Ratio1:3.14:1.14	Type of InsulationFunctional	Insulation Test Voltage2500 V (AC)	Length11.63 mm	Width12.6 mm	Height1.98 mm	MountSMT
	750316671	5 V (DC), 400, 15.7 V	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PPTM (rev25a).IntLib \| 440.5 KB CDS Cadence_WE-PPTM (rev25a).zip \| 2.6 MB EAG Eagle_WE-PPTM (rev25a).lbr \| 56.4 KB KIC KiCad_WE-PPTM (rev25b).zip \| 1017.4 KB CAD files ZIP IGS Download_IGS_250-1239 (rev1).IGS \| 2.7 MB STP Download_STP_250-1239 (rev1).STEP \| 1.3 MB Electric models ZIP LT LTspice_WE-PPTM (rev25a).zip \| 2.6 KB PSP Pspice_WE-PPTM (rev25a).zip \| 6.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Switching Frequency 400	Output Voltage 115.7 V	Output Current 1100 mA	Output Voltage 24.27 V	Output Current 2200 mA	Output Voltage 3-4.27 V	Output Current 3200 mA	Output Voltage 4-15.7 V	Output Current 495 mA	Voltage-µSecond8.9 Vµs	Inductance60 µH	Turns Ratio1.17:3.67:1	Type of InsulationFunctional	Insulation Test Voltage2500 V (AC)	Length11.63 mm	Width12.6 mm	Height1.98 mm	MountSMT
	750316019	5 V (DC), 400, 15.7 V	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PPTM (rev25a).IntLib \| 440.5 KB CDS Cadence_WE-PPTM (rev25a).zip \| 2.6 MB EAG Eagle_WE-PPTM (rev25a).lbr \| 56.4 KB KIC KiCad_WE-PPTM (rev25b).zip \| 1017.4 KB CAD files ZIP IGS Download_IGS_250-1240 (rev1).IGS \| 2.1 MB STP Download_STP_250-1240 (rev1).STEP \| 958.2 KB Electric models ZIP LT LTspice_WE-PPTM (rev25a).zip \| 2.6 KB PSP Pspice_WE-PPTM (rev25a).zip \| 6.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 5 V (DC)	Switching Frequency 400	Output Voltage 115.7 V	Output Current 1100 mA	Output Voltage 24.27 V	Output Current 2200 mA	Output Voltage 3-4.27 V	Output Current 3200 mA	Output Voltage 4-15.7 V	Output Current 495 mA	Voltage-µSecond8.9 Vµs	Inductance60 µH	Turns Ratio1.17:3.67:1	Type of InsulationFunctional	Insulation Test Voltage2500 V (AC)	Length11.63 mm	Width12.6 mm	Height3.68 mm	MountSMT
	750317843	24 V (DC), 400, 16.7 V	Downloads6 files EDA models: Components ZIP ALT Altium_WE-PPTM (rev25a).IntLib \| 440.5 KB CDS Cadence_WE-PPTM (rev25a).zip \| 2.6 MB EAG Eagle_WE-PPTM (rev25a).lbr \| 56.4 KB KIC KiCad_WE-PPTM (rev25b).zip \| 1017.4 KB Electric models ZIP LT LTspice_WE-PPTM (rev25a).zip \| 2.6 KB PSP Pspice_WE-PPTM (rev25a).zip \| 6.6 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 24 V (DC)	Switching Frequency 400	Output Voltage 116.7 V	Output Current 160 mA	Output Voltage 25.8 V	Output Current 2175 mA	Output Voltage 3-5.8 V	Output Current 3175 mA	Output Voltage 4-16.7 V	Output Current 460 mA	Voltage-µSecond35 Vµs	Inductance1470 µH	Turns Ratio8.25:5.75:1:1	Type of InsulationFunctional	Insulation Test Voltage1500 V (AC)	Length11.63 mm	Width12.6 mm	Height1.98 mm	MountSMT
