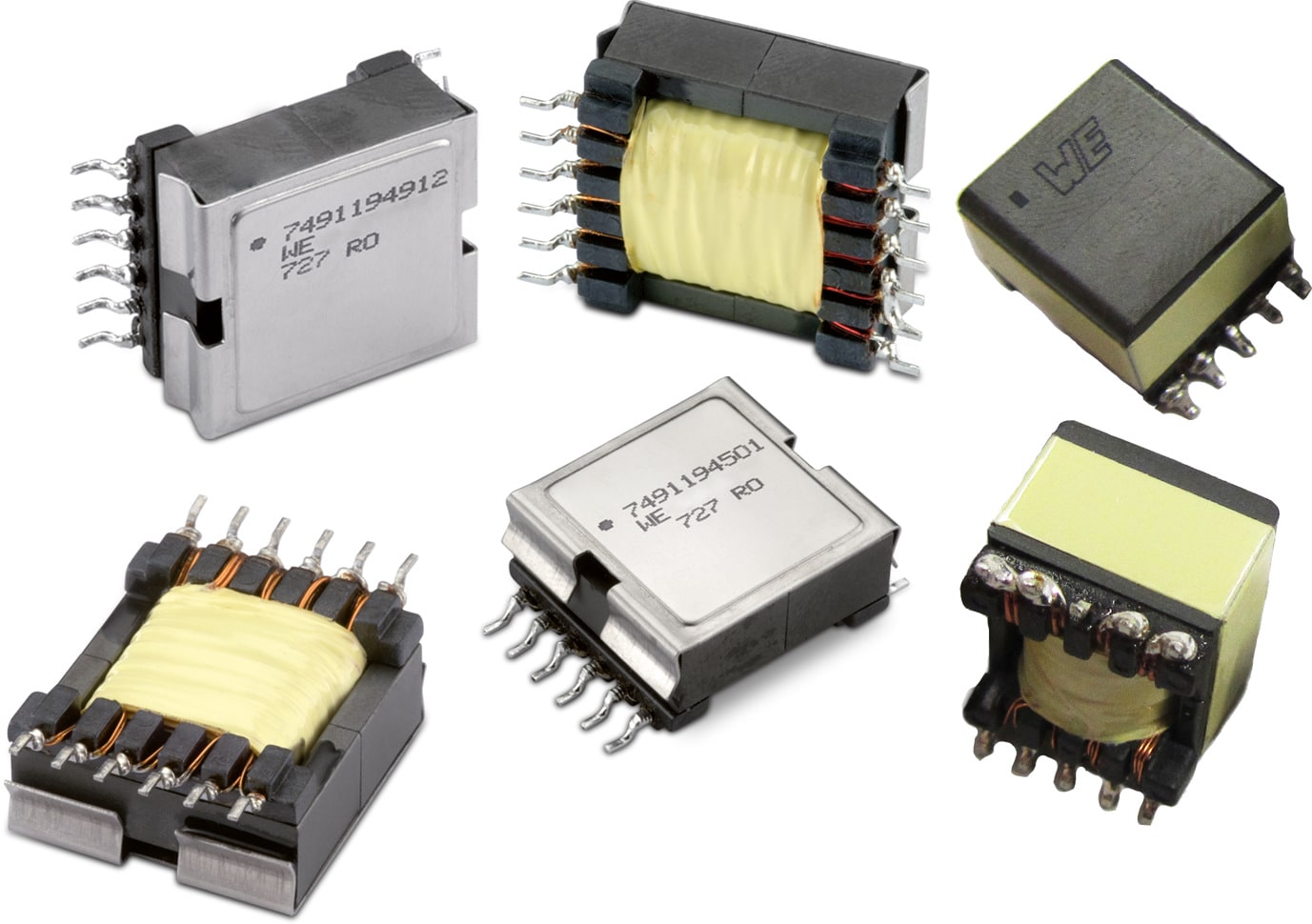

WE-PoE+ Power over Ethernet Plus Transformer

Size	L (mm)	W (mm)	H (mm)	Mount
EFD20	-	-	-	SMT
EP13	13.46	17.75	12.7	SMT
EPW15	15.5	21.69	13.5	SMT

LTSpice files

LT
LTSpice_WE-PoE (rev25a).zip
|
89 KB

Characteristics

Designed to meet 30 W PoE+ objectives of IEEE802.3at
Frequency range: 250–400 kHz
Input voltage range: 36–72 V
1.5 kV Hipot test between primary and secondary
Operating temperature: –40 °C to +125 °C (incl. self-heating)
Reference Designs
RD022 GB PoE+-Ethernet-USB“ adapter for industrial use with an EMC perspective

Applications

PoE+ powered devices
IP Phones
WLAN Access Points
Security cameras

Application Notes

ANP113 Feedback loop compensation of a current-mode Flyback converter with optocoupler
PDF

Can’t find the suitable product?

We will be glad to help you! We will take your specifications and work to find a solution that fits your needs. Simply fill out our inquiry form with your specifications.

Find your custom solution

Products

All

EFD20

EP13

EPW15

Reset all

Filter article data

show article in 3 product lines

article in 3 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	Version	V_IN	V_Out1(V)	I_Out1(A)	V_Out2(V)	I_Out2(A)	V_Out3(V)	I_Out3(A)	L(µH)	n	V_T(V (AC))	Size	V_aux(V)	R_{DC 1}(Ω)	R_{DC 2}(Ω)	R_{DC 3}(Ω)	Mount
750310059	Active Clamp Forward, 36 - 72 V (DC), 5 V	Simulation–	Downloads9 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP 3D 3D_070-4290 (rev1).PDF \| 46.8 KB IGS 070-4290 (rev1).IGS \| 2.4 MB STP Download_STP_070-4290_0169 (rev1).STEP \| 1.1 MB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionActive Clamp Forward	Input Voltage 36 - 72 V (DC)	Output Voltage 15 V	Output Current 16 A	–	–	–	–	Inductance29.2 µH	Turns Ratio8:1:3.5	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage17 V	DC Resistance 10.75 Ω	DC Resistance 20.0045 Ω	DC Resistance 30.75 Ω	MountSMT
750311320	Active Clamp Forward, 33 - 57 V (DC), 12 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP 3D 3D_070-2381 (rev1).PDF \| 37.8 KB IGS Download_IGS_070-2381 (rev1).IGS \| 1.9 MB STP Download_STP_070-2381 (rev1).STEP \| 960.5 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Others ZIP WRL Download_WRL_070-2381 (rev1).wrl \| 109 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionActive Clamp Forward	Input Voltage 33 - 57 V (DC)	Output Voltage 112 V	Output Current 12.5 A	–	–	–	–	Inductance100 µH	Turns Ratio1.8:1:1	Insulation Test Voltage1500 V (AC)	SizeEP13	Auxiliary Voltage12 V	DC Resistance 10.21 Ω	DC Resistance 20.035 Ω	DC Resistance 30.58 Ω	MountSMT
750310925	CCM Flyback, 36 - 72 V (DC), 3.3 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB ZUK Download_Cadstar_WE-PoE-Plus (rev19a).zip \| 11.3 KB CAD files ZIP IGS WE-PoE_Plus_EFD20 (rev1).igs \| 2.6 MB STP WE-PoE_Plus_EFD20 (rev1).stp \| 735.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB PSP Pspice_WE-PoE-Plus (rev22a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 36 - 72 V (DC)	Output Voltage 13.3 V	Output Current 19 A	Output Voltage 26.5 V	Output Current 20.05 A	–	–	Inductance57 µH	Turns Ratio8:1:2:2	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage6.5 V	DC Resistance 10.06 Ω	DC Resistance 20.008 Ω	DC Resistance 30.35 Ω	MountSMT
749119433	CCM Flyback, 36 - 72 V (DC), 3.3 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB ZUK Download_Cadstar_WE-PoE-Plus (rev19a).zip \| 11.3 KB CAD files ZIP IGS WE-PoE_Plus_EFD20 (rev1).igs \| 2.6 MB STP WE-PoE_Plus_EFD20 (rev1).stp \| 735.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB PSP Pspice_WE-PoE-Plus (rev22a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 36 - 72 V (DC)	Output Voltage 13.3 V	Output Current 19 A	–	–	–	–	Inductance42 µH	Turns Ratio11:1:3.3	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage11 V	DC Resistance 10.099 Ω	DC Resistance 20.0032 Ω	DC Resistance 30.22 Ω	MountSMT
749119450	CCM Flyback, 36 - 72 V (DC), 5 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB ZUK Download_Cadstar_WE-PoE-Plus (rev19a).zip \| 11.3 KB CAD files ZIP IGS WE-PoE_Plus_EFD20 (rev1).igs \| 2.6 MB STP WE-PoE_Plus_EFD20 (rev1).stp \| 735.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB PSP Pspice_WE-PoE-Plus (rev22a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 36 - 72 V (DC)	Output Voltage 15 V	Output Current 16 A	–	–	–	–	Inductance65 µH	Turns Ratio7:1:3	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage15 V	DC Resistance 10.116 Ω	DC Resistance 20.004 Ω	DC Resistance 30.23 Ω	MountSMT
7491194501	CCM Flyback, 36 - 72 V (DC), 5 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB ZUK Download_Cadstar_WE-PoE-Plus (rev19a).zip \| 11.3 KB CAD files ZIP IGS WE-PoE_Plus_EFD20 (rev1).igs \| 2.6 MB STP WE-PoE_Plus_EFD20 (rev1).stp \| 735.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB PSP Pspice_WE-PoE-Plus (rev22a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 36 - 72 V (DC)	Output Voltage 15 V	Output Current 16 A	–	–	–	–	Inductance42 µH	Turns Ratio7:1:2.25	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage12 V	DC Resistance 10.084 Ω	DC Resistance 20.005 Ω	DC Resistance 30.17 Ω	MountSMT
750310926	CCM Flyback, 36 - 72 V (DC), 5 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB ZUK Download_Cadstar_WE-PoE-Plus (rev19a).zip \| 11.3 KB CAD files ZIP IGS WE-PoE_Plus_EFD20 (rev1).igs \| 2.6 MB STP WE-PoE_Plus_EFD20 (rev1).stp \| 735.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB PSP Pspice_WE-PoE-Plus (rev22a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 36 - 72 V (DC)	Output Voltage 15 V	Output Current 16 A	Output Voltage 26.5 V	Output Current 20.05 A	–	–	Inductance40 µH	Turns Ratio5:1:1.25:1.25	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage6.5 V	DC Resistance 10.05 Ω	DC Resistance 20.01 Ω	DC Resistance 30.3 Ω	MountSMT
7491194912	CCM Flyback, 36 - 72 V (DC), 12 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB ZUK Download_Cadstar_WE-PoE-Plus (rev19a).zip \| 11.3 KB CAD files ZIP IGS WE-PoE_Plus_EFD20 (rev1).igs \| 2.6 MB STP WE-PoE_Plus_EFD20 (rev1).stp \| 735.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB PSP Pspice_WE-PoE-Plus (rev22a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 36 - 72 V (DC)	Output Voltage 112 V	Output Current 12.5 A	–	–	–	–	Inductance42 µH	Turns Ratio3:1:1	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage12 V	DC Resistance 10.061 Ω	DC Resistance 20.018 Ω	DC Resistance 30.18 Ω	MountSMT
750310927	CCM Flyback, 36 - 72 V (DC), 12 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB ZUK Download_Cadstar_WE-PoE-Plus (rev19a).zip \| 11.3 KB CAD files ZIP IGS WE-PoE_Plus_EFD20 (rev1).igs \| 2.6 MB STP WE-PoE_Plus_EFD20 (rev1).stp \| 735.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB PSP Pspice_WE-PoE-Plus (rev22a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 36 - 72 V (DC)	Output Voltage 112 V	Output Current 12.5 A	–	–	–	–	Inductance112 µH	Turns Ratio3:1:0.5	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage6 V	DC Resistance 10.15 Ω	DC Resistance 20.05 Ω	DC Resistance 30.07 Ω	MountSMT
750310742	CCM Flyback, 37 - 57 V (DC), 12 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB ZUK Download_Cadstar_WE-PoE-Plus (rev19a).zip \| 11.3 KB CAD files ZIP IGS WE-PoE_Plus_EP13 (rev1).igs \| 2.2 MB STP WE-PoE_Plus_EP13 (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB PSP Pspice_WE-PoE-Plus (rev22a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 37 - 57 V (DC)	Output Voltage 112 V	Output Current 12.1 A	–	–	–	–	Inductance38 µH	Turns Ratio2:1:1.1	Insulation Test Voltage1500 V (AC)	SizeEP13	Auxiliary Voltage12.5 V	DC Resistance 10.085 Ω	DC Resistance 20.025 Ω	DC Resistance 30.155 Ω	MountSMT
750310743	CCM Flyback, 37 - 57 V (DC), 3.3 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB ZUK Download_Cadstar_WE-PoE-Plus (rev19a).zip \| 11.3 KB CAD files ZIP IGS WE-PoE_Plus_EP13 (rev1).igs \| 2.2 MB STP WE-PoE_Plus_EP13 (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB PSP Pspice_WE-PoE-Plus (rev22a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 37 - 57 V (DC)	Output Voltage 13.3 V	Output Current 17.5 A	–	–	–	–	Inductance38 µH	Turns Ratio6.67:1:4	Insulation Test Voltage1500 V (AC)	SizeEP13	Auxiliary Voltage12.7 V	DC Resistance 10.1 Ω	DC Resistance 20.003 Ω	DC Resistance 30.182 Ω	MountSMT
750310744	CCM Flyback, 37 - 57 V (DC), 5 V	Simulation–	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB ZUK Download_Cadstar_WE-PoE-Plus (rev19a).zip \| 11.3 KB CAD files ZIP IGS WE-PoE_Plus_EP13 (rev1).igs \| 2.2 MB STP WE-PoE_Plus_EP13 (rev1).stp \| 716.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB PSP Pspice_WE-PoE-Plus (rev22a).zip \| 6.5 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 37 - 57 V (DC)	Output Voltage 15 V	Output Current 15 A	–	–	–	–	Inductance38 µH	Turns Ratio5:1:2.5	Insulation Test Voltage1500 V (AC)	SizeEP13	Auxiliary Voltage12 V	DC Resistance 10.1 Ω	DC Resistance 20.0045 Ω	DC Resistance 30.255 Ω	MountSMT
750318587	CCM Flyback, 17 - 57 V (DC), 24 V	Simulation–	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP IGS WE-PoE_Plus_EFD20 (rev1).igs \| 2.6 MB STP WE-PoE_Plus_EFD20 (rev1).stp \| 735.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 17 - 57 V (DC)	Output Voltage 124 V	Output Current 11 A	–	–	–	–	Inductance80 µH	Turns Ratio1:1:0.46	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage10.6 V	DC Resistance 10.125 Ω	DC Resistance 20.1 Ω	DC Resistance 30.165 Ω	MountSMT
750317723	CCM Flyback, 20 - 48 V (DC), 24 V	Simulation–	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP IGS WE-PoE_Plus_EFD20 (rev1).igs \| 2.6 MB STP WE-PoE_Plus_EFD20 (rev1).stp \| 735.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 20 - 48 V (DC)	Output Voltage 124 V	Output Current 11.3 A	–	–	–	–	Inductance8 µH	Turns Ratio1:1:0.42	Insulation Test Voltage2500 V (AC)	SizeEFD20	Auxiliary Voltage10 V	DC Resistance 10.03 Ω	DC Resistance 20.035 Ω	DC Resistance 30.055 Ω	MountSMT
7491194924	CCM Flyback, 36 - 72 V (DC), 24 V	Simulation–	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP IGS WE-PoE_Plus_EFD20 (rev1).igs \| 2.6 MB STP WE-PoE_Plus_EFD20 (rev1).stp \| 735.4 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionCCM Flyback	Input Voltage 36 - 72 V (DC)	Output Voltage 124 V	Output Current 11.25 A	–	–	–	–	Inductance42 µH	Turns Ratio1.5:1:0.5	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage12 V	DC Resistance 10.06 Ω	DC Resistance 20.055 Ω	DC Resistance 30.195 Ω	MountSMT
750310167	Flyback, 36 - 72 V (DC), 3.3 V	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP 3D 3D_070-4275 (rev1).PDF \| 51.9 KB IGS Download_IGS_070-4275 (rev1).IGS \| 2.7 MB STP Download_STP_070-4275-0169 (rev1).STEP \| 1.3 MB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Others ZIP WRL Download_WRL_070-4275 (rev1).WRL \| 159.7 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionFlyback	Input Voltage 36 - 72 V (DC)	Output Voltage 13.3 V	Output Current 13 A	Output Voltage 212 V	Output Current 21.6 A	Output Voltage 35 V	Output Current 30.4 A	Inductance25 µH	Turns Ratio6.67:1:2.67:1.33:2.67	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage12 V	DC Resistance 10.07 Ω	DC Resistance 20.009 Ω	DC Resistance 30.023 Ω	MountSMT
750310346	Flyback, 36 - 72 V (DC), 12 V	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP 3D 3D_070-4275 (rev1).PDF \| 51.9 KB IGS Download_IGS_070-4275 (rev1).IGS \| 2.7 MB STP Download_STP_070-4275-0169 (rev1).STEP \| 1.3 MB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Others ZIP WRL Download_WRL_070-4275 (rev1).WRL \| 159.7 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionFlyback	Input Voltage 36 - 72 V (DC)	Output Voltage 112 V	Output Current 12.5 A	–	–	–	–	Inductance100 µH	Turns Ratio3:1:1	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage12 V	DC Resistance 10.085 Ω	DC Resistance 20.025 Ω	DC Resistance 30.245 Ω	MountSMT
750314783	Flyback, 48 - 57 V (DC), 5 V	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP IGS 070-5465 (rev1).IGS \| 1.9 MB STP 070-5465 (rev1).STEP \| 959.7 KB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Others ZIP WRL 070-5465 (rev1).wrl \| 110.5 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionFlyback	Input Voltage 48 - 57 V (DC)	Output Voltage 15 V	Output Current 17 A	–	–	–	–	Inductance26 µH	Turns Ratio4.5:1:2.5	Insulation Test Voltage2400 V (AC)	SizeEP13	Auxiliary Voltage12 V	DC Resistance 10.094 Ω	DC Resistance 20.007 Ω	DC Resistance 30.233 Ω	MountSMT
750316116	Flyback, 41 - 57 V (DC), 12 V	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP 3D 3D_070-5899 (rev1).PDF \| 51 KB STP Download_STP_070-5899 (rev1).STEP \| 1.3 MB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionFlyback	Input Voltage 41 - 57 V (DC)	Output Voltage 112 V	Output Current 14 A	–	–	–	–	Inductance18 µH	Turns Ratio2:1:1	Insulation Test Voltage1500 V (AC)	SizeEFD20	Auxiliary Voltage12 V	DC Resistance 10.02 Ω	DC Resistance 20.011 Ω	DC Resistance 30.066 Ω	MountSMT
750316331	Flyback, 36 - 57 V (DC), 3.3 V	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP IGS Download_IGS_070-6782 (rev1).IGS \| 2.4 MB STP Download_STP_070-6782 (rev1).STEP \| 1.1 MB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Others ZIP WRL Download_WRL_070-6782 (rev1).wrl \| 416.9 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionFlyback	Input Voltage 36 - 57 V (DC)	Output Voltage 13.3 V	Output Current 18 A	–	–	–	–	Inductance54 µH	Turns Ratio8:1:3.67	Insulation Test Voltage1500 V (AC)	SizeEPW15	Auxiliary Voltage12 V	DC Resistance 10.12 Ω	DC Resistance 20.01 Ω	DC Resistance 30.125 Ω	MountSMT
750316332	Flyback, 36 - 57 V (DC), 5 V	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP IGS Download_IGS_070-6782 (rev1).IGS \| 2.4 MB STP Download_STP_070-6782 (rev1).STEP \| 1.1 MB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Others ZIP WRL Download_WRL_070-6782 (rev1).wrl \| 416.9 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionFlyback	Input Voltage 36 - 57 V (DC)	Output Voltage 15 V	Output Current 16 A	–	–	–	–	Inductance48 µH	Turns Ratio5:1:2.2	Insulation Test Voltage1500 V (AC)	SizeEPW15	Auxiliary Voltage12 V	DC Resistance 10.065 Ω	DC Resistance 20.01 Ω	DC Resistance 30.14 Ω	MountSMT
750316333	Flyback, 36 - 57 V (DC), 12 V	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-PoE+ (rev25a).IntLib \| 913.5 KB CDS Cadence_WE-POE+ (rev25a).zip \| 4.9 MB EAG Eagle_WE-POE-Plus (rev25a).lbr \| 142.6 KB KIC KiCad_WE-PoE+ (rev25b).zip \| 1.1 MB CAD files ZIP IGS Download_IGS_070-6782 (rev1).IGS \| 2.4 MB STP Download_STP_070-6782 (rev1).STEP \| 1.1 MB Electric models ZIP LT LTSpice_WE-PoE (rev25a).zip \| 89 KB PSP PSpice_WE-PoE (rev25a).zip \| 37.6 KB Others ZIP WRL Download_WRL_070-6782 (rev1).wrl \| 416.9 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	VersionFlyback	Input Voltage 36 - 57 V (DC)	Output Voltage 112 V	Output Current 13 A	–	–	–	–	Inductance41 µH	Turns Ratio2.67:1:1	Insulation Test Voltage1500 V (AC)	SizeEPW15	Auxiliary Voltage12 V	DC Resistance 10.05 Ω	DC Resistance 20.02 Ω	DC Resistance 30.089 Ω	MountSMT
