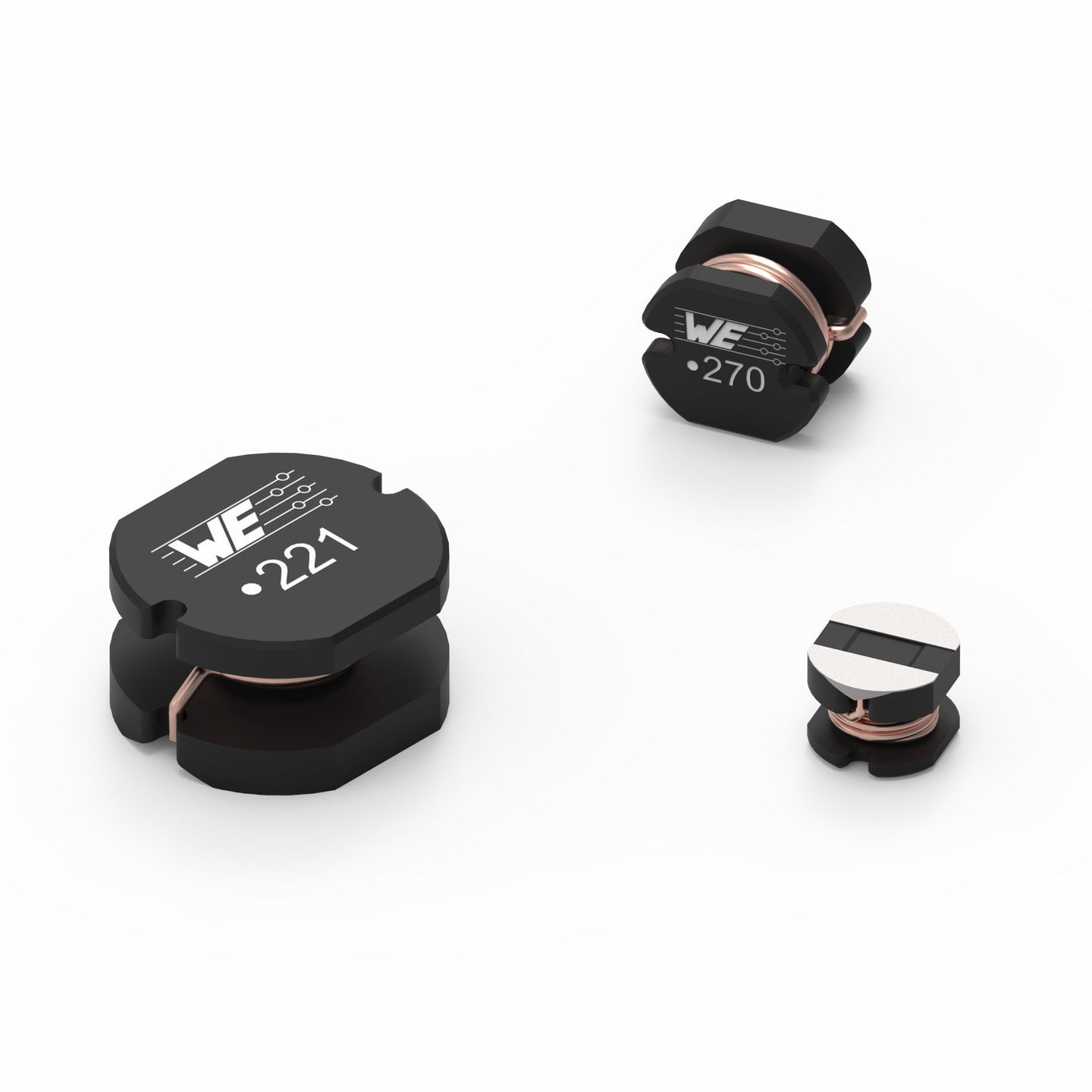

WE-PD2A SMT Power Inductor

WE-PD2A SMT Power Inductor
SizeDimen­sionsL
(mm)		W
(mm)		H
(mm)		Mount
4532
 4 4.5 3.2 SMT
5848
 5.2 5.8 4.5 SMT
7850
 7 7.8 5 SMT
1054
 9 10 5.4 SMT

Datasheet

LTSpice files

Characteristics

  • Open size / unshielded
  • Saturation currents up to 15 A
  • Low tolerances at high inductance values
  • Operating temperature: -40°C to +125°C
  • Automotive approved

Applications

  • Integrated DC/DC-converter
  • Switching regulators with low operating voltage
  • Perfectly suitable for switching regulators with extremely high efficiency
  • Optimal attenuation in MHz frequency range

Products

All
4532
5848
7850
1054
Reset all
Filter article data
Filter by
Delete all
 show  articles in 4 product lines
 articles in 4 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
L(µH)
IR(A)
ISAT(A)
fres(MHz)
Mount
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
784774006
SPEC0.6 µH, 8.2 A, 13.5 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance0.6 µH
Rated Current8.2 A
Saturation Current13.5 A
Self Resonant Frequency210 MHz
MountSMT
Design Kit –
–Check availability
7847730
SPEC1 µH, 4 A, 5.72 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance1 µH
Rated Current4 A
Saturation Current5.72 A
Self Resonant Frequency110 MHz
MountSMT
Design Kit
784701
–Check availability
784773018
SPEC1.8 µH, 2.7 A, 3.6 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance1.8 µH
Rated Current2.7 A
Saturation Current3.6 A
Self Resonant Frequency85 MHz
MountSMT
Design Kit –
–Check availability
784773022
SPEC2.2 µH, 2.5 A, 3.38 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance2.2 µH
Rated Current2.5 A
Saturation Current3.38 A
Self Resonant Frequency74 MHz
MountSMT
Design Kit –
–Check availability
784774022
SPEC2.2 µH, 4.6 A, 8.2 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance2.2 µH
Rated Current4.6 A
Saturation Current8.2 A
Self Resonant Frequency54 MHz
MountSMT
Design Kit –
–Check availability
784774027
SPEC2.7 µH, 4 A, 8 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance2.7 µH
Rated Current4 A
Saturation Current8 A
Self Resonant Frequency50 MHz
MountSMT
Design Kit
784701
–Check availability
784773033
SPEC3.3 µH, 2 A, 2.88 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance3.3 µH
Rated Current2 A
Saturation Current2.88 A
Self Resonant Frequency55 MHz
MountSMT
Design Kit –
–Check availability
784774033
SPEC3.3 µH, 3.7 A, 7.5 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance3.3 µH
Rated Current3.7 A
Saturation Current7.5 A
Self Resonant Frequency43 MHz
MountSMT
Design Kit –
–Check availability
784773039
SPEC3.9 µH, 1.88 A, 2.57 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance3.9 µH
Rated Current1.88 A
Saturation Current2.57 A
Self Resonant Frequency50 MHz
MountSMT
Design Kit –
–Check availability
784773047
SPEC4.7 µH, 1.82 A, 2.46 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance4.7 µH
Rated Current1.82 A
Saturation Current2.46 A
Self Resonant Frequency45 MHz
MountSMT
Design Kit
784701
–Check availability
784774047
SPEC4.7 µH, 3 A, 5.5 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance4.7 µH
Rated Current3 A
Saturation Current5.5 A
Self Resonant Frequency33 MHz
MountSMT
Design Kit
784701
–Check availability
784775047
SPEC4.7 µH, 4.5 A, 4.5 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance4.7 µH
Rated Current4.5 A
Saturation Current4.5 A
Self Resonant Frequency47 MHz
MountSMT
Design Kit –
–Check availability
784776047
SPEC4.7 µH, 5 A, 6 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance4.7 µH
Rated Current5 A
Saturation Current6 A
Self Resonant Frequency43 MHz
MountSMT
Design Kit –
–Check availability
784773056
SPEC5.6 µH, 1.58 A, 2.43 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance5.6 µH
Rated Current1.58 A
Saturation Current2.43 A
Self Resonant Frequency40 MHz
MountSMT
Design Kit
784701
–Check availability
784775056
SPEC5.6 µH, 4 A, 4 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance5.6 µH
Rated Current4 A
Saturation Current4 A
Self Resonant Frequency34 MHz
MountSMT
Design Kit –
–Check availability
784776056
SPEC5.6 µH, 4.8 A, 5.5 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance5.6 µH
Rated Current4.8 A
Saturation Current5.5 A
Self Resonant Frequency40 MHz
MountSMT
Design Kit –
–Check availability
784773068
SPEC6.8 µH, 1.54 A, 2.1 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance6.8 µH
Rated Current1.54 A
Saturation Current2.1 A
Self Resonant Frequency35 MHz
MountSMT
Design Kit –
–Check availability
784774068
SPEC6.8 µH, 2.4 A, 5 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance6.8 µH
Rated Current2.4 A
Saturation Current5 A
Self Resonant Frequency28 MHz
MountSMT
Design Kit –
–Check availability
784775068
SPEC6.8 µH, 3.7 A, 3.8 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance6.8 µH
Rated Current3.7 A
Saturation Current3.8 A
Self Resonant Frequency30 MHz
MountSMT
Design Kit –
–Check availability
784776068
SPEC6.8 µH, 4.4 A, 5 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance6.8 µH
Rated Current4.4 A
Saturation Current5 A
Self Resonant Frequency30 MHz
MountSMT
Design Kit –
–Check availability
784773082
SPEC8.2 µH, 1.5 A, 1.8 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance8.2 µH
Rated Current1.5 A
Saturation Current1.8 A
Self Resonant Frequency30 MHz
MountSMT
Design Kit –
–Check availability
784775082
SPEC8.2 µH, 3.2 A, 3.2 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance8.2 µH
Rated Current3.2 A
Saturation Current3.2 A
Self Resonant Frequency33 MHz
MountSMT
Design Kit –
–Check availability
784776082
SPEC8.2 µH, 4.2 A, 4.25 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance8.2 µH
Rated Current4.2 A
Saturation Current4.25 A
Self Resonant Frequency25 MHz
MountSMT
Design Kit –
–Check availability
78477310
SPEC10 µH, 1.45 A, 1.74 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance10 µH
Rated Current1.45 A
Saturation Current1.74 A
Self Resonant Frequency30 MHz
MountSMT
Design Kit
784701
–Check availability
78477410
SPEC10 µH, 2.2 A, 2.5 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance10 µH
Rated Current2.2 A
Saturation Current2.5 A
Self Resonant Frequency26 MHz
MountSMT
Design Kit
784701
–Check availability
78477510
SPEC10 µH, 2.3 A, 2.95 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance10 µH
Rated Current2.3 A
Saturation Current2.95 A
Self Resonant Frequency23 MHz
MountSMT
Design Kit
784701784775
–Check availability
78477610
SPEC10 µH, 2.98 A, 3.24 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance10 µH
Rated Current2.98 A
Saturation Current3.24 A
Self Resonant Frequency22 MHz
MountSMT
Design Kit
784701784775
–Check availability
784773112
SPEC12 µH, 1.28 A, 1.62 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance12 µH
Rated Current1.28 A
Saturation Current1.62 A
Self Resonant Frequency30 MHz
MountSMT
Design Kit –
–Check availability
784774112
SPEC12 µH, 2 A, 1.94 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance12 µH
Rated Current2 A
Saturation Current1.94 A
Self Resonant Frequency24 MHz
MountSMT
Design Kit –
–Check availability
784775112
SPEC12 µH, 2.18 A, 2.23 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance12 µH
Rated Current2.18 A
Saturation Current2.23 A
Self Resonant Frequency20 MHz
MountSMT
Design Kit
784775
–Check availability
784776112
SPEC12 µH, 2.72 A, 3.15 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance12 µH
Rated Current2.72 A
Saturation Current3.15 A
Self Resonant Frequency20 MHz
MountSMT
Design Kit –
–Check availability
784773115
SPEC15 µH, 1.2 A, 1.46 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance15 µH
Rated Current1.2 A
Saturation Current1.46 A
Self Resonant Frequency27 MHz
MountSMT
Design Kit –
–Check availability
784774115
SPEC15 µH, 1.53 A, 1.9 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance15 µH
Rated Current1.53 A
Saturation Current1.9 A
Self Resonant Frequency20 MHz
MountSMT
Design Kit –
–Check availability
784775115
SPEC15 µH, 1.93 A, 2.2 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance15 µH
Rated Current1.93 A
Saturation Current2.2 A
Self Resonant Frequency18 MHz
MountSMT
Design Kit
784775
–Check availability
784776115
SPEC15 µH, 2.47 A, 2.88 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance15 µH
Rated Current2.47 A
Saturation Current2.88 A
Self Resonant Frequency19 MHz
MountSMT
Design Kit –
–Check availability
784773118
SPEC18 µH, 1.1 A, 1.29 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance18 µH
Rated Current1.1 A
Saturation Current1.29 A
Self Resonant Frequency22 MHz
MountSMT
Design Kit –
–Check availability
784774118
SPEC18 µH, 1.45 A, 1.69 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance18 µH
Rated Current1.45 A
Saturation Current1.69 A
Self Resonant Frequency19 MHz
MountSMT
Design Kit –
–Check availability
784775118
SPEC18 µH, 1.89 A, 2.14 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance18 µH
Rated Current1.89 A
Saturation Current2.14 A
Self Resonant Frequency17 MHz
MountSMT
Design Kit
784775
–Check availability
784776118
SPEC18 µH, 2.36 A, 2.43 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance18 µH
Rated Current2.36 A
Saturation Current2.43 A
Self Resonant Frequency18 MHz
MountSMT
Design Kit
784775
–Check availability
784773122
SPEC22 µH, 1 A, 1.22 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance22 µH
Rated Current1 A
Saturation Current1.22 A
Self Resonant Frequency20 MHz
MountSMT
Design Kit
784701
–Check availability
784774122
SPEC22 µH, 1.28 A, 1.53 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance22 µH
Rated Current1.28 A
Saturation Current1.53 A
Self Resonant Frequency16 MHz
MountSMT
Design Kit
784701
–Check availability
784775122
SPEC22 µH, 1.76 A, 1.81 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance22 µH
Rated Current1.76 A
Saturation Current1.81 A
Self Resonant Frequency15 MHz
MountSMT
Design Kit
784775
–Check availability
784776122
SPEC22 µH, 2.04 A, 2.07 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance22 µH
Rated Current2.04 A
Saturation Current2.07 A
Self Resonant Frequency16 MHz
MountSMT
Design Kit
784775
–Check availability
784773127
SPEC27 µH, 0.94 A, 1 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance27 µH
Rated Current0.94 A
Saturation Current1 A
Self Resonant Frequency17 MHz
MountSMT
Design Kit –
–Check availability
784774127
SPEC27 µH, 1.19 A, 1.4 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance27 µH
Rated Current1.19 A
Saturation Current1.4 A
Self Resonant Frequency15 MHz
MountSMT
Design Kit –
–Check availability
784775127
SPEC27 µH, 1.48 A, 1.62 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance27 µH
Rated Current1.48 A
Saturation Current1.62 A
Self Resonant Frequency14 MHz
MountSMT
Design Kit
784701784775
–Check availability
784776127
SPEC27 µH, 1.95 A, 1.98 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance27 µH
Rated Current1.95 A
Saturation Current1.98 A
Self Resonant Frequency15 MHz
MountSMT
Design Kit
784701784775
–Check availability
784773133
SPEC33 µH, 0.86 A, 0.9 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance33 µH
Rated Current0.86 A
Saturation Current0.9 A
Self Resonant Frequency16 MHz
MountSMT
Design Kit –
–Check availability
784774133
SPEC33 µH, 1.09 A, 1.17 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance33 µH
Rated Current1.09 A
Saturation Current1.17 A
Self Resonant Frequency14 MHz
MountSMT
Design Kit –
–Check availability
784775133
SPEC33 µH, 1.35 A, 1.47 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance33 µH
Rated Current1.35 A
Saturation Current1.47 A
Self Resonant Frequency13 MHz
MountSMT
Design Kit
784775
–Check availability
784776133
SPEC33 µH, 1.78 A, 1.89 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance33 µH
Rated Current1.78 A
Saturation Current1.89 A
Self Resonant Frequency12 MHz
MountSMT
Design Kit
784775
–Check availability
784773139
SPEC39 µH, 0.77 A, 0.87 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance39 µH
Rated Current0.77 A
Saturation Current0.87 A
Self Resonant Frequency15 MHz
MountSMT
Design Kit –
–Check availability
784774139
SPEC39 µH, 0.94 A, 1.1 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance39 µH
Rated Current0.94 A
Saturation Current1.1 A
Self Resonant Frequency12 MHz
MountSMT
Design Kit –
–Check availability
784775139
SPEC39 µH, 1.25 A, 1.33 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance39 µH
Rated Current1.25 A
Saturation Current1.33 A
Self Resonant Frequency12 MHz
MountSMT
Design Kit
784775
–Check availability
784776139
SPEC39 µH, 1.62 A, 1.8 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance39 µH
Rated Current1.62 A
Saturation Current1.8 A
Self Resonant Frequency11 MHz
MountSMT
Design Kit
784775
–Check availability
784773147
SPEC47 µH, 0.68 A, 0.77 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance47 µH
Rated Current0.68 A
Saturation Current0.77 A
Self Resonant Frequency12 MHz
MountSMT
Design Kit
784701
–Check availability
784774147
SPEC47 µH, 0.86 A, 1 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance47 µH
Rated Current0.86 A
Saturation Current1 A
Self Resonant Frequency10 MHz
MountSMT
Design Kit
784701
–Check availability
784775147
SPEC47 µH, 1.17 A, 1.24 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance47 µH
Rated Current1.17 A
Saturation Current1.24 A
Self Resonant Frequency10 MHz
MountSMT
Design Kit
784701784775
–Check availability
784776147
SPEC47 µH, 1.45 A, 1.62 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance47 µH
Rated Current1.45 A
Saturation Current1.62 A
Self Resonant Frequency11 MHz
MountSMT
Design Kit
784701784775
–Check availability
784773156
SPEC56 µH, 0.64 A, 0.75 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance56 µH
Rated Current0.64 A
Saturation Current0.75 A
Self Resonant Frequency12 MHz
MountSMT
Design Kit –
–Check availability
784774156
SPEC56 µH, 0.77 A, 0.9 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance56 µH
Rated Current0.77 A
Saturation Current0.9 A
Self Resonant Frequency10 MHz
MountSMT
Design Kit –
–Check availability
784776156
SPEC56 µH, 1.36 A, 1.53 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance56 µH
Rated Current1.36 A
Saturation Current1.53 A
Self Resonant Frequency9 MHz
MountSMT
Design Kit
784775
–Check availability
784773168
SPEC68 µH, 0.56 A, 0.68 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance68 µH
Rated Current0.56 A
Saturation Current0.68 A
Self Resonant Frequency11 MHz
MountSMT
Design Kit
784701
–Check availability
784774168
SPEC68 µH, 0.64 A, 0.86 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance68 µH
Rated Current0.64 A
Saturation Current0.86 A
Self Resonant Frequency10 MHz
MountSMT
Design Kit –
–Check availability
784775168
SPEC68 µH, 0.99 A, 1.05 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance68 µH
Rated Current0.99 A
Saturation Current1.05 A
Self Resonant Frequency8 MHz
MountSMT
Design Kit
784701784775
–Check availability
784776168
SPEC68 µH, 1.19 A, 1.49 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance68 µH
Rated Current1.19 A
Saturation Current1.49 A
Self Resonant Frequency8 MHz
MountSMT
Design Kit
784701784775
–Check availability
784774182
SPEC82 µH, 0.6 A, 0.72 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance82 µH
Rated Current0.6 A
Saturation Current0.72 A
Self Resonant Frequency8 MHz
MountSMT
Design Kit –
–Check availability
784775182
SPEC82 µH, 0.9 A, 0.95 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance82 µH
Rated Current0.9 A
Saturation Current0.95 A
Self Resonant Frequency7 MHz
MountSMT
Design Kit
784775
–Check availability
784776182
SPEC82 µH, 1.11 A, 1.17 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance82 µH
Rated Current1.11 A
Saturation Current1.17 A
Self Resonant Frequency7 MHz
MountSMT
Design Kit
784775
–Check availability
78477420
SPEC100 µH, 0.57 A, 0.68 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance100 µH
Rated Current0.57 A
Saturation Current0.68 A
Self Resonant Frequency7 MHz
MountSMT
Design Kit
784701
–Check availability
78477520
SPEC100 µH, 0.77 A, 0.86 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance100 µH
Rated Current0.77 A
Saturation Current0.86 A
Self Resonant Frequency7 MHz
MountSMT
Design Kit
784701784775
–Check availability
78477620
SPEC100 µH, 1.02 A, 1.1 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance100 µH
Rated Current1.02 A
Saturation Current1.1 A
Self Resonant Frequency7 MHz
MountSMT
Design Kit
784701784775
–Check availability
784774212
SPEC120 µH, 0.49 A, 0.63 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance120 µH
Rated Current0.49 A
Saturation Current0.63 A
Self Resonant Frequency7 MHz
MountSMT
Design Kit –
–Check availability
784775212
SPEC120 µH, 0.67 A, 0.81 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance120 µH
Rated Current0.67 A
Saturation Current0.81 A
Self Resonant Frequency6 MHz
MountSMT
Design Kit –
–Check availability
784776212
SPEC120 µH, 0.94 A, 0.99 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance120 µH
Rated Current0.94 A
Saturation Current0.99 A
Self Resonant Frequency6 MHz
MountSMT
Design Kit
784775
–Check availability
784774215
SPEC150 µH, 0.46 A, 0.54 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance150 µH
Rated Current0.46 A
Saturation Current0.54 A
Self Resonant Frequency6 MHz
MountSMT
Design Kit –
–Check availability
784775215
SPEC150 µH, 0.6 A, 0.71 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance150 µH
Rated Current0.6 A
Saturation Current0.71 A
Self Resonant Frequency6 MHz
MountSMT
Design Kit
784775
–Check availability
784776215
SPEC150 µH, 0.81 A, 0.9 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance150 µH
Rated Current0.81 A
Saturation Current0.9 A
Self Resonant Frequency5 MHz
MountSMT
Design Kit
784775
–Check availability
784774218
SPEC180 µH, 0.42 A, 0.5 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance180 µH
Rated Current0.42 A
Saturation Current0.5 A
Self Resonant Frequency6 MHz
MountSMT
Design Kit –
–Check availability
784775218
SPEC180 µH, 0.55 A, 0.57 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance180 µH
Rated Current0.55 A
Saturation Current0.57 A
Self Resonant Frequency5 MHz
MountSMT
Design Kit
784775
–Check availability
784776218
SPEC180 µH, 0.76 A, 0.78 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance180 µH
Rated Current0.76 A
Saturation Current0.78 A
Self Resonant Frequency5 MHz
MountSMT
Design Kit
784775
–Check availability
784774222
SPEC220 µH, 0.41 A, 0.47 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance220 µH
Rated Current0.41 A
Saturation Current0.47 A
Self Resonant Frequency5 MHz
MountSMT
Design Kit
784701
–Check availability
784775222
SPEC220 µH, 0.51 A, 0.56 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance220 µH
Rated Current0.51 A
Saturation Current0.56 A
Self Resonant Frequency5 MHz
MountSMT
Design Kit
784701784775
–Check availability
784776222
SPEC220 µH, 0.67 A, 0.77 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance220 µH
Rated Current0.67 A
Saturation Current0.77 A
Self Resonant Frequency4.5 MHz
MountSMT
Design Kit
784701784775
–Check availability
784775227
SPEC270 µH, 0.47 A, 0.51 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance270 µH
Rated Current0.47 A
Saturation Current0.51 A
Self Resonant Frequency4 MHz
MountSMT
Design Kit
784775
–Check availability
784776227
SPEC270 µH, 0.62 A, 0.68 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance270 µH
Rated Current0.62 A
Saturation Current0.68 A
Self Resonant Frequency4 MHz
MountSMT
Design Kit –
–Check availability
784775233
SPEC330 µH, 0.43 A, 0.48 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance330 µH
Rated Current0.43 A
Saturation Current0.48 A
Self Resonant Frequency4 MHz
MountSMT
Design Kit –
–Check availability
784776233
SPEC330 µH, 0.52 A, 0.59 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance330 µH
Rated Current0.52 A
Saturation Current0.59 A
Self Resonant Frequency4 MHz
MountSMT
Design Kit
784775
–Check availability
784775239
SPEC390 µH, 0.38 A, 0.43 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance390 µH
Rated Current0.38 A
Saturation Current0.43 A
Self Resonant Frequency3 MHz
MountSMT
Design Kit
784775
–Check availability
784776239
SPEC390 µH, 0.49 A, 0.54 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance390 µH
Rated Current0.49 A
Saturation Current0.54 A
Self Resonant Frequency3.7 MHz
MountSMT
Design Kit –
–Check availability
784775247
SPEC470 µH, 0.36 A, 0.38 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance470 µH
Rated Current0.36 A
Saturation Current0.38 A
Self Resonant Frequency3 MHz
MountSMT
Design Kit
784701784775
–Check availability
784776247
SPEC470 µH, 0.44 A, 0.5 A
Simu­lation
Availability
–
Downloads9 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Inductance470 µH
Rated Current0.44 A
Saturation Current0.5 A
Self Resonant Frequency3 MHz
MountSMT
Design Kit
784701784775
–Check availability

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-PD2A SMT Power Inductors
Design Kit PD2A & PD2SA SMT Power Inductors
