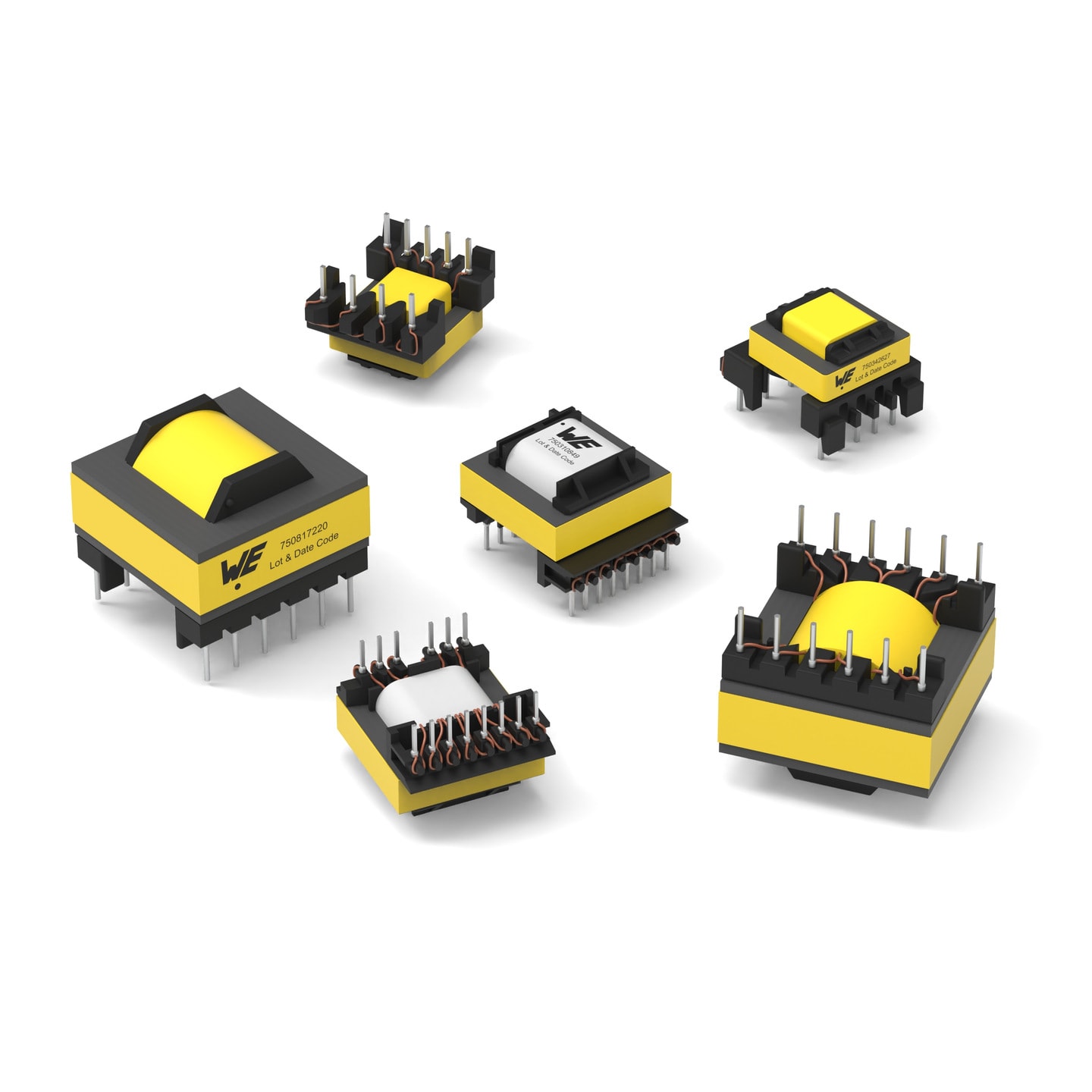

WE-OLPI Offline Flyback Transformers

Size	Dimensions	3D	L (mm)	W (mm)	H (mm)	Mount
EE16/7/5			16.9	18.8	-	THT
EE16/8/5			20.32	24.38	16	THT
EE20/10/6			21	25	16	THT
ER28/14			31	31	25	THT

LTSpice files

LT
LTspice_WE-OLPI (rev24a).zip
|
9.2 KB

Characteristics

Universal offline input voltage: 85 - 265 VAC
Output power from 2 W up to 35 W
Operating temperature: -40 °C to +125 °C
Insulation test voltage up to 4500 VAC

Applications

Offline SMPS
Auxiliary power supplies
Especially designed for several ICs from Power Integrations

Can’t find the suitable product?

We will be glad to help you! We will take your specifications and work to find a solution that fits your needs. Simply fill out our inquiry form with your specifications.

Find your custom solution

Products

All

EE16/7/5

EE16/8/5

EE20/10/6

ER28/14

Filter article data

show article in 4 product lines

article in 4 product lines

	Order Code	Datasheet	Simulation	Downloads	Status	V_IN	V_Out1(V)	I_Out1(mA)	V_Out2(V)	I_Out2(A)	V_aux(V)	L(mH)	f_switch(kHz)	N_PRI : N_SEC : N_AUX	I_SAT(mA)	V_T(V (AC))	Size	SamplesAvailability & Sample
	750811023	SPEC85 - 265 V (AC), 8 V, 300 mA	Simulation	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-OLPI (rev24a).IntLib \| 769.5 KB CDS Cadence_WE-OLPI (rev24a).zip \| 4.4 MB EAG Eagle_WE-OLPI (rev24a).lbr \| 65.6 KB KIC KiCad_WE-OLPI (rev26b).zip \| 505.4 KB CAD files ZIP IGS 070-5280 (rev1).IGS \| 2.3 MB STP 070-5280 (rev1).STEP \| 1.1 MB Electric models ZIP LT 750811023_LTspice (rev1).zip \| 6.6 KB LT LTspice_WE-OLPI (rev24a).zip \| 9.2 KB PSP PSpice_WE-OLPI (rev24a).zip \| 7.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 18 V	Output Current 1300 mA	–	–	Auxiliary Voltage7.2 V	Inductance2.28 mH	Switching Frequency 66	Turns Ratio10.8:1:0.9	Saturation Current300 mA	Insulation Test Voltage4500 V (AC)	SizeEE16/8/5	–Check availability
	7508110102	SPEC85 - 265 V (AC), 5 V, 555 mA	Simulation	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-OLPI (rev24a).IntLib \| 769.5 KB CDS Cadence_WE-OLPI (rev24a).zip \| 4.4 MB EAG Eagle_WE-OLPI (rev24a).lbr \| 65.6 KB KIC KiCad_WE-OLPI (rev26b).zip \| 505.4 KB CAD files ZIP IGS 070-5280 (rev1).IGS \| 2.3 MB STP 070-5280 (rev1).STEP \| 1.1 MB Electric models ZIP LT 7508110102_LTspice (rev1).zip \| 7.1 KB LT LTspice_WE-OLPI (rev24a).zip \| 9.2 KB PSP PSpice_WE-OLPI (rev24a).zip \| 7.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 1555 mA	–	–	Auxiliary Voltage8.6 V	Inductance2.58 mH	Switching Frequency 65	Turns Ratio18.3:1:0.86:0.86	Saturation Current330 mA	Insulation Test Voltage4500 V (AC)	SizeEE16/8/5	–Check availability
	7508110101	SPEC85 - 265 V (AC), 5 V, 1000 mA	Simulation	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-OLPI (rev24a).IntLib \| 769.5 KB CDS Cadence_WE-OLPI (rev24a).zip \| 4.4 MB EAG Eagle_WE-OLPI (rev24a).lbr \| 65.6 KB KIC KiCad_WE-OLPI (rev26b).zip \| 505.4 KB CAD files ZIP IGS 070-5280 (rev1).IGS \| 2.3 MB STP 070-5280 (rev1).STEP \| 1.1 MB Electric models ZIP LT 7508110101_LTspice (rev1).zip \| 7.1 KB LT LTspice_WE-OLPI (rev24a).zip \| 9.2 KB PSP PSpice_WE-OLPI (rev24a).zip \| 7.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 11000 mA	–	–	Auxiliary Voltage8.6 V	Inductance1.07 mH	Switching Frequency 65	Turns Ratio15:1:0.86:0.86	Saturation Current700 mA	Insulation Test Voltage4500 V (AC)	SizeEE16/8/5	–Check availability
	7508110100	SPEC85 - 265 V (AC), 6.2 V, 322 mA	Simulation	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-OLPI (rev24a).IntLib \| 769.5 KB CDS Cadence_WE-OLPI (rev24a).zip \| 4.4 MB EAG Eagle_WE-OLPI (rev24a).lbr \| 65.6 KB KIC KiCad_WE-OLPI (rev26b).zip \| 505.4 KB CAD files ZIP IGS 070-5280 (rev1).IGS \| 2.3 MB STP 070-5280 (rev1).STEP \| 1.1 MB Electric models ZIP LT 7508110100_LTspice (rev1).zip \| 7.5 KB LT LTspice_WE-OLPI (rev24a).zip \| 9.2 KB PSP PSpice_WE-OLPI (rev24a).zip \| 7.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 16.2 V	Output Current 1322 mA	–	–	–	Inductance2.64 mH	Switching Frequency 132	Turns Ratio11.07:1	Saturation Current350 mA	Insulation Test Voltage4500 V (AC)	SizeEE16/8/5	–Check availability
	750811019	SPEC85 - 265 V (AC), 6 V, 330 mA	Simulation	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-OLPI (rev24a).IntLib \| 769.5 KB CDS Cadence_WE-OLPI (rev24a).zip \| 4.4 MB EAG Eagle_WE-OLPI (rev24a).lbr \| 65.6 KB KIC KiCad_WE-OLPI (rev26b).zip \| 505.4 KB CAD files ZIP IGS 070-5280 (rev1).IGS \| 2.3 MB STP 070-5280 (rev1).STEP \| 1.1 MB Electric models ZIP LT 750811019_LTspice (rev1).zip \| 6.6 KB LT LTspice_WE-OLPI (rev24a).zip \| 9.2 KB PSP PSpice_WE-OLPI (rev24a).zip \| 7.8 KB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 16 V	Output Current 1330 mA	–	–	Auxiliary Voltage19 V	Inductance2.7 mH	Switching Frequency 132	Turns Ratio13.5:1:3.13	Saturation Current250 mA	Insulation Test Voltage4500 V (AC)	SizeEE16/8/5	–Check availability
	750871032	SPEC85 - 265 V (AC), 12 V, 350 mA	Simulation	Availability –	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLPI (rev24a).IntLib \| 769.5 KB CDS Cadence_WE-OLPI (rev24a).zip \| 4.4 MB EAG Eagle_WE-OLPI (rev24a).lbr \| 65.6 KB KIC KiCad_WE-OLPI (rev26b).zip \| 505.4 KB CAD files ZIP 3D 3D_070-5472 (rev1).PDF \| 23.8 KB IGS 070-5472 (rev1).IGS \| 922.3 KB STP Download_STP_070-5472 (rev1).STEP \| 476.5 KB Electric models ZIP LT 750871032_LTspice (rev1).zip \| 6.7 KB LT LTspice_WE-OLPI (rev24a).zip \| 9.2 KB PSP PSpice_WE-OLPI (rev24a).zip \| 7.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 112 V	Output Current 1350 mA	–	–	Auxiliary Voltage13 V	Inductance1.55 mH	Switching Frequency 66	Turns Ratio7.14 : 1 : 1.08	–	Insulation Test Voltage3000 V (AC)	SizeEE16/7/5	–Check availability
	750811016	SPEC85 - 265 V (AC), 5 V, 1200 mA	Simulation	Availability –	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLPI (rev24a).IntLib \| 769.5 KB CDS Cadence_WE-OLPI (rev24a).zip \| 4.4 MB EAG Eagle_WE-OLPI (rev24a).lbr \| 65.6 KB KIC KiCad_WE-OLPI (rev26b).zip \| 505.4 KB CAD files ZIP 3D 3D_070-5472_MP7-10 (rev1).PDF \| 23.4 KB IGS Download_IGS_070-5472_MP7-10 (rev1).IGS \| 878.3 KB STP Download_STP_070-5472_MP7-10 (rev1).STEP \| 445.4 KB Electric models ZIP LT 750811016_LTspice (rev1).zip \| 6.7 KB LT LTspice_WE-OLPI (rev24a).zip \| 9.2 KB PSP PSpice_WE-OLPI (rev24a).zip \| 7.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 15 V	Output Current 11200 mA	–	–	Auxiliary Voltage13.5 V	Inductance1.67 mH	Switching Frequency 100	Turns Ratio16.42 : 1 : 2.71	Saturation Current450 mA	Insulation Test Voltage4500 V (AC)	SizeEE16/7/5	–Check availability
	750310849	SPEC85 - 265 V (AC), 12 V, 1000 mA	Simulation	Availability –	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLPI (rev24a).IntLib \| 769.5 KB CDS Cadence_WE-OLPI (rev24a).zip \| 4.4 MB EAG Eagle_WE-OLPI (rev24a).lbr \| 65.6 KB KIC KiCad_WE-OLPI (rev26b).zip \| 505.4 KB CAD files ZIP 3D 3D_070-5443 (rev1).PDF \| 63 KB IGS Download_IGS_070-5443 (rev1).IGS \| 3.7 MB STP Download_STP_070-5443-1170 (rev1).STEP \| 1.6 MB Electric models ZIP LT 750310849_LTspice (rev1).zip \| 8.1 KB LT LTspice_WE-OLPI (rev24a).zip \| 9.2 KB PSP PSpice_WE-OLPI (rev24a).zip \| 7.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 112 V	Output Current 11000 mA	–	–	Auxiliary Voltage22 V	Inductance0.9 mH	Switching Frequency 132	Turns Ratio8:1:2	Saturation Current900 mA	Insulation Test Voltage4000 V (AC)	SizeEE20/10/6	–Check availability
	750811630	SPEC85 - 265 V (AC), 12 V, 2000 mA	Simulation	Availability –	Downloads10 files EDA models: Components ZIP ALT Altium_WE-OLPI (rev24a).IntLib \| 769.5 KB CDS Cadence_WE-OLPI (rev24a).zip \| 4.4 MB EAG Eagle_WE-OLPI (rev24a).lbr \| 65.6 KB KIC KiCad_WE-OLPI (rev26b).zip \| 505.4 KB CAD files ZIP 3D 3D_070-4869 (rev1).PDF \| 42.4 KB IGS 070-4869 (rev1).IGS \| 1.8 MB STP Download_STP_070-4869 (rev1).STEP \| 765.1 KB Electric models ZIP LT 750811630_LTspice (rev1).zip \| 8.6 KB LT LTspice_WE-OLPI (rev24a).zip \| 9.2 KB PSP PSpice_WE-OLPI (rev24a).zip \| 7.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Input Voltage 85 - 265 V (AC)	Output Voltage 112 V	Output Current 12000 mA	Output Voltage 25 V	Output Current 22.2 A	Auxiliary Voltage11.5 V	Inductance1.04 mH	Switching Frequency 66	Turns Ratio23.33:1.33:1:2.33	Saturation Current2200 mA	Insulation Test Voltage4500 V (AC)	SizeER28/14	–Check availability
