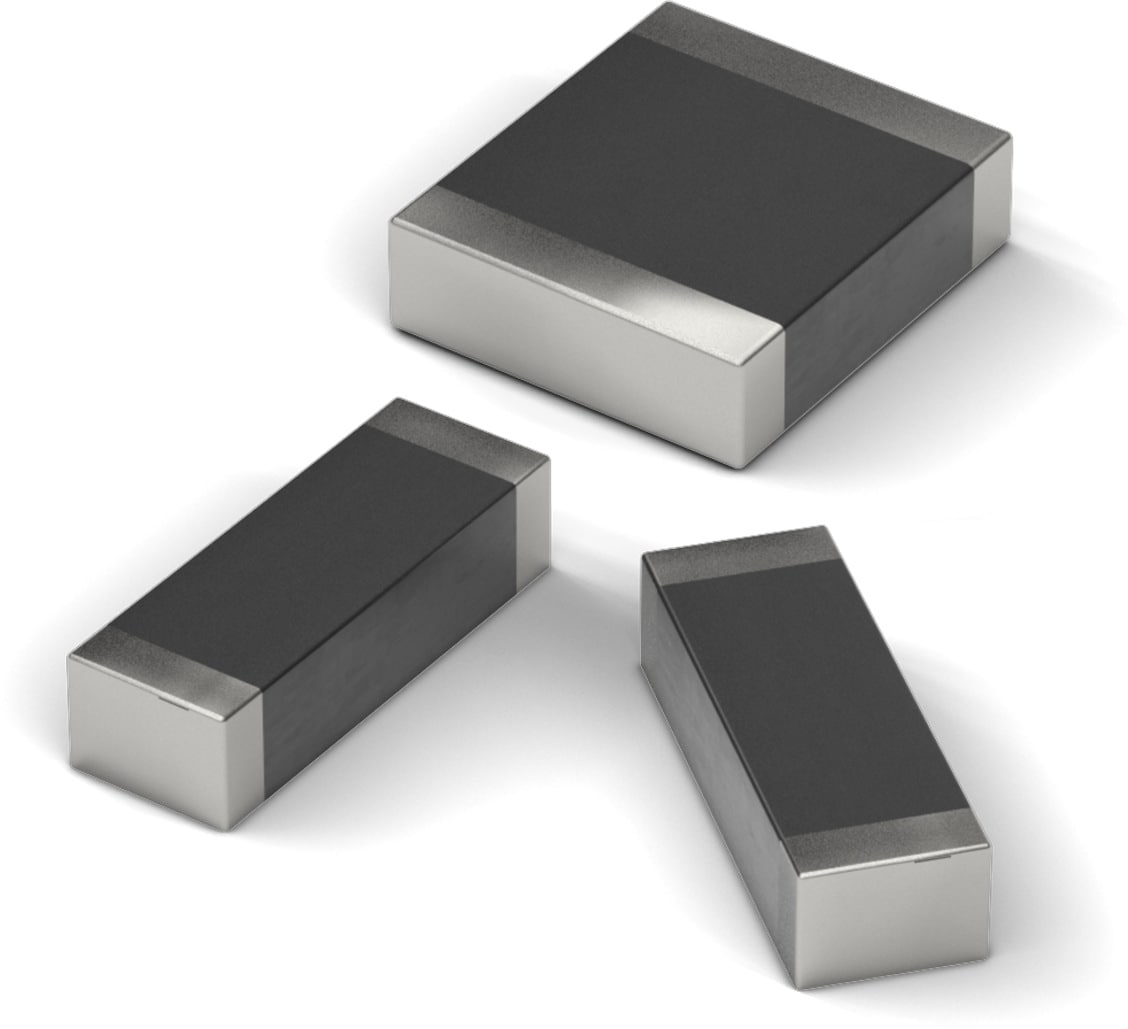

WE-MPSA EMI Multilayer Power Suppression Bead

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
0805		2	1.2	0.9	SMT
1206		3.2	1.6	1.1	SMT
1612		4.06	3.05	2.28	SMT
1812		4.5	3.2	2.3	SMT
2220		5.59	5.08	1.8	SMT
3312		8.5	3.05	2.28	SMT

Datasheet

SPEC
Seriesdatasheet_WE-MPSA_V1 (rev1).pdf
|
2.8 MB

LTSpice files

LT
LTSpice_WE-MPSA (rev23a).zip
|
2.1 KB

Characteristics

Specified peak current capability
Ultra low RDC
High rated current up to 10 A
Operating temperature: - 55 ºC to +125 ºC
AEC-Q200 certified
Automotive approved

Applications

Filter with high inrush current peaks
Applications for noise reduction at power-trains, body control and infotainment systems
Motor interference suppression
Battery management systems, DC/DC converters, audio, etc.
Broadband suppression

Products

All

0805

1206

1612

1812

2220

3312

Filter article data

show article in 6 product lines

article in 6 product lines

Log in now to view availability and request availability forecasts. LOGIN

Order Code	Datasheet	Downloads	Status	Z @ 100 MHz(Ω)	Z_max(Ω)	I_R(A)	R_DC(mΩ)	Type	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
78279223560	SPEC56 Ω, 90 Ω, 10 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_1612 (rev1).igs \| 77.1 KB STP STP_WE-MPSA_1612 (rev1).stp \| 62.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz56 Ω	Maximum Impedance90 Ω	Rated Current10 A	DC Resistance4 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279220800	SPEC80 Ω, 120 Ω, 4 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_0805 (rev1).igs \| 158.2 KB STP STP_WE-MPSA_0805 (rev1).stp \| 34.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz80 Ω	Maximum Impedance120 Ω	Rated Current4 A	DC Resistance18 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279226101	SPEC100 Ω, 160 Ω, 8 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_1812 (rev1).igs \| 157.1 KB STP STP_WE-MPSA_1812 (rev1).stp \| 62.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz100 Ω	Maximum Impedance160 Ω	Rated Current8 A	DC Resistance6 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279225101	SPEC100 Ω, 160 Ω, 10 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_3312 (rev1).igs \| 77.1 KB STP STP_WE-MPSA_3312 (rev1).stp \| 62.5 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz100 Ω	Maximum Impedance160 Ω	Rated Current10 A	DC Resistance4 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279224101	SPEC100 Ω, 160 Ω, 7 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_2220_1_8 (rev1).igs \| 158.4 KB STP STP_WE-MPSA_2220_1_8 (rev1).stp \| 62.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz100 Ω	Maximum Impedance160 Ω	Rated Current7 A	DC Resistance5 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279224151	SPEC150 Ω, 230 Ω, 5 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_2220_1_8 (rev1).igs \| 158.4 KB STP STP_WE-MPSA_2220_1_8 (rev1).stp \| 62.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz150 Ω	Maximum Impedance230 Ω	Rated Current5 A	DC Resistance10 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279224171	SPEC170 Ω, 280 Ω, 4 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_2220_78279224171 (rev1).igs \| 77 KB STP STP_WE-MPSA_2220_78279224171 (rev1).stp \| 62.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz170 Ω	Maximum Impedance280 Ω	Rated Current4 A	DC Resistance15 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279224181	SPEC180 Ω, 240 Ω, 5 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_2220_1_8 (rev1).igs \| 158.4 KB STP STP_WE-MPSA_2220_1_8 (rev1).stp \| 62.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz180 Ω	Maximum Impedance240 Ω	Rated Current5 A	DC Resistance10 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279224251	SPEC250 Ω, 300 Ω, 4 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_2220_1_8 (rev1).igs \| 158.4 KB STP STP_WE-MPSA_2220_1_8 (rev1).stp \| 62.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz250 Ω	Maximum Impedance300 Ω	Rated Current4 A	DC Resistance12 mΩ	TypeHigh Current	Design Kit –	–Check availability
78279224271	SPEC270 Ω, 350 Ω, 4 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_2220_3_2 (rev1).igs \| 157.2 KB STP STP_WE-MPSA_2220_3_2 (rev1).stp \| 62.5 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz270 Ω	Maximum Impedance350 Ω	Rated Current4 A	DC Resistance20 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279221281	SPEC280 Ω, 288 Ω, 3.5 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_1206 (rev1).igs \| 76.6 KB STP STP_WE-MPSA_1206 (rev1).stp \| 62.9 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz280 Ω	Maximum Impedance288 Ω	Rated Current3.5 A	DC Resistance35 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279220321	SPEC320 Ω, 347 Ω, 2.5 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_0805 (rev1).igs \| 158.2 KB STP STP_WE-MPSA_0805 (rev1).stp \| 34.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz320 Ω	Maximum Impedance347 Ω	Rated Current2.5 A	DC Resistance50 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279224401	SPEC400 Ω, 460 Ω, 4.5 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_2220_3_2 (rev1).igs \| 157.2 KB STP STP_WE-MPSA_2220_3_2 (rev1).stp \| 62.5 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz400 Ω	Maximum Impedance460 Ω	Rated Current4.5 A	DC Resistance20 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279224551	SPEC550 Ω, 660 Ω, 4 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_2220_78279224551 (rev1).igs \| 158.4 KB STP STP_WE-MPSA_2220_78279224551 (rev1).stp \| 62.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz550 Ω	Maximum Impedance660 Ω	Rated Current4 A	DC Resistance35 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279220601	SPEC600 Ω, 551 Ω, 2.1 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_0805 (rev1).igs \| 158.2 KB STP STP_WE-MPSA_0805 (rev1).stp \| 34.6 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz600 Ω	Maximum Impedance551 Ω	Rated Current2.1 A	DC Resistance80 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
78279221601	SPEC600 Ω, 610 Ω, 2.5 A	Availability –	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MPSA (rev25a).IntLib \| 122.5 KB CDS Cadence_WE-MPSA (rev19a).zip \| 349.6 KB EAG Eagle_WE-MPSA (rev19a).lbr \| 42.3 KB ZUK CadStar_WE-MPSA (rev19a).zip \| 6.2 KB CAD files ZIP IGS IGS_WE-MPSA_1206 (rev1).igs \| 76.6 KB STP STP_WE-MPSA_1206 (rev1).stp \| 62.9 KB Electric models ZIP ADS ADS_WE-MPSA (rev24a).zip \| 1 MB PSP PSpice_WE-MPSA (rev23a).zip \| 4.9 KB S S-Parameter_WE-MPSA (rev25a).zip \| 4.9 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 100 MHz600 Ω	Maximum Impedance610 Ω	Rated Current2.5 A	DC Resistance50 mΩ	TypeHigh Current	Design Kit 782001	–Check availability
