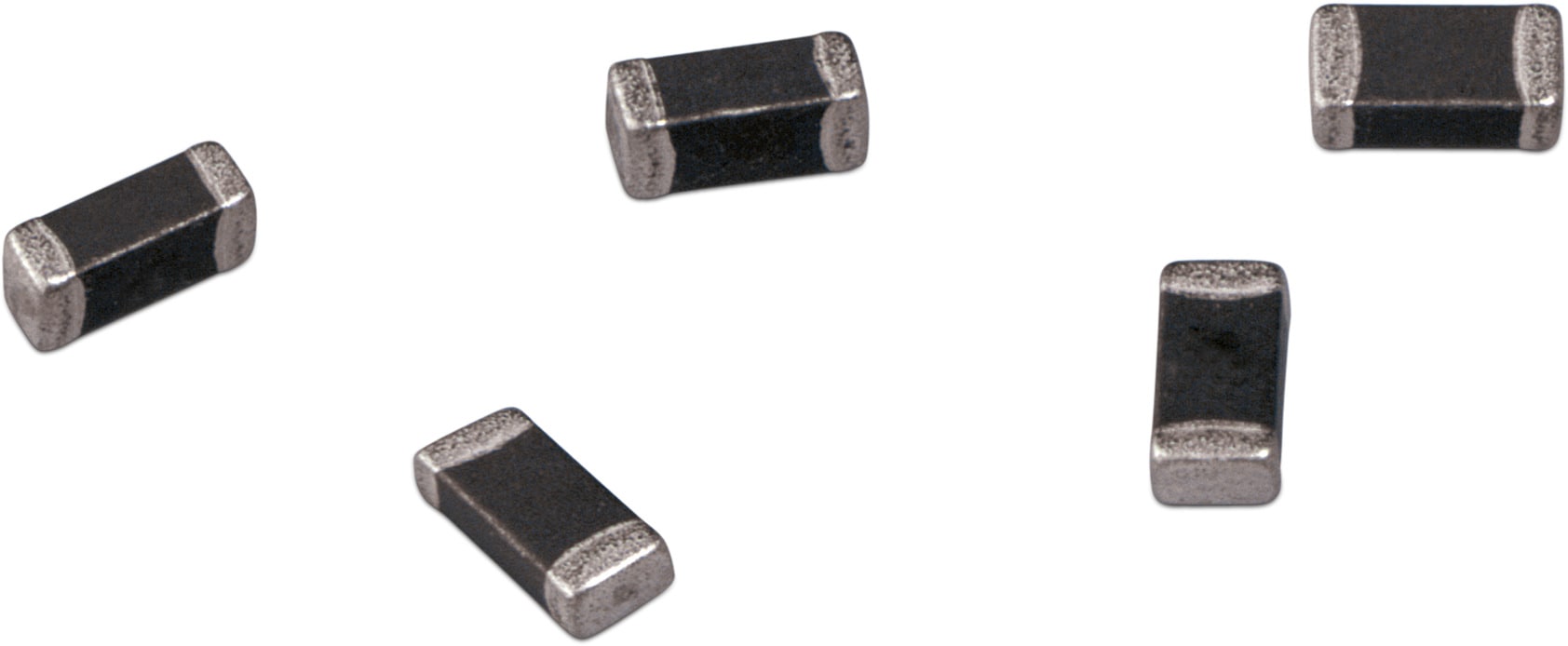

WE-MI SMT Multilayer Inductor

WE-MI SMT multilayer inductors, ideal for high packing densities, magnetically shielded for filter circuits and oscillators from Würth Elektronik

Size	L (mm)	W (mm)	H (mm)	Mount
0603	1.6	0.8	0.8	SMT
0805	2	1.2	-	SMT
1206	3.2	1.6	1.1	SMT

Characteristics

Smallest inductor possible for less space needed on the printed circuit board and therefore perfect suitable for high density mounting
No cross coupling because of closed magnetic circuits
No crosstalk
Operating temperature: –55 °C to +125 °C

Applications

Filter switches
Oscillators
Adjustment networks
Discretely built T- or π-Filter

Products

All

0603

0805

1206

Reset all

Filter article data

show article in 3 product lines

article in 3 product lines

Reset all

Order Code	Datasheet	Downloads	Status	L(µH)	Q(%)	I_R(mA)	R_{DC max.}(Ω)	Design Kit
74479614	0.047 µH, 10 %, 50 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.047 µH	Q-Factor10 %	Rated Current50 mA	DC Resistance0.25 Ω	Design Kit 744790
74479014	0.047 µH, 20 %, 300 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_0 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_0 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.047 µH	Q-Factor20 %	Rated Current300 mA	DC Resistance0.2 Ω	Design Kit 744790
74479114	0.047 µH, 20 %, 300 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.047 µH	Q-Factor20 %	Rated Current300 mA	DC Resistance0.15 Ω	Design Kit –
7447962	0.1 µH, 15 %, 50 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.1 µH	Q-Factor15 %	Rated Current50 mA	DC Resistance0.5 Ω	Design Kit 744790
7447902	0.1 µH, 20 %, 250 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_0 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_0 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.1 µH	Q-Factor20 %	Rated Current250 mA	DC Resistance0.3 Ω	Design Kit 744790
7447912	0.1 µH, 20 %, 250 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.1 µH	Q-Factor20 %	Rated Current250 mA	DC Resistance0.25 Ω	Design Kit 744790
74479623	0.22 µH, 15 %, 50 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.22 µH	Q-Factor15 %	Rated Current50 mA	DC Resistance0.8 Ω	Design Kit 744790
74479023	0.22 µH, 20 %, 250 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_0 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_0 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.22 µH	Q-Factor20 %	Rated Current250 mA	DC Resistance0.5 Ω	Design Kit 744790
744791220	0.22 µH, 20 %, 250 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.22 µH	Q-Factor20 %	Rated Current250 mA	DC Resistance0.4 Ω	Design Kit 744790
74479632	0.47 µH, 15 %, 35 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.47 µH	Q-Factor15 %	Rated Current35 mA	DC Resistance1 Ω	Design Kit 744790
74479032	0.47 µH, 25 %, 200 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.47 µH	Q-Factor25 %	Rated Current200 mA	DC Resistance0.6 Ω	Design Kit 744790
74479132	0.47 µH, 25 %, 200 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance0.47 µH	Q-Factor25 %	Rated Current200 mA	DC Resistance0.6 Ω	Design Kit 744790
7447965	1 µH, 35 %, 25 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance1 µH	Q-Factor35 %	Rated Current25 mA	DC Resistance0.6 Ω	Design Kit 744790
7447905	1 µH, 45 %, 50 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_0 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_0 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance1 µH	Q-Factor45 %	Rated Current50 mA	DC Resistance0.4 Ω	Design Kit 744790
7447915	1 µH, 45 %, 100 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance1 µH	Q-Factor45 %	Rated Current100 mA	DC Resistance0.4 Ω	Design Kit 744790
7447915J	1 µH, 45 %, 100 mA	Downloads4 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance1 µH	Q-Factor45 %	Rated Current100 mA	DC Resistance0.4 Ω	Design Kit –
74479652	2.2 µH, 35 %, 15 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance2.2 µH	Q-Factor35 %	Rated Current15 mA	DC Resistance1 Ω	Design Kit 744790
74479052	2.2 µH, 45 %, 30 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_0 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_0 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance2.2 µH	Q-Factor45 %	Rated Current30 mA	DC Resistance0.6 Ω	Design Kit 744790
74479152	2.2 µH, 45 %, 50 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance2.2 µH	Q-Factor45 %	Rated Current50 mA	DC Resistance0.6 Ω	Design Kit 744790
74479152J	2.2 µH, 45 %, 50 mA	Downloads4 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB Download all 4 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance2.2 µH	Q-Factor45 %	Rated Current50 mA	DC Resistance0.6 Ω	Design Kit –
74479653	3.3 µH, 35 %, 15 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance3.3 µH	Q-Factor35 %	Rated Current15 mA	DC Resistance1.4 Ω	Design Kit 744790
74479053	3.3 µH, 45 %, 30 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance3.3 µH	Q-Factor45 %	Rated Current30 mA	DC Resistance0.8 Ω	Design Kit 744790
74479153	3.3 µH, 45 %, 50 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance3.3 µH	Q-Factor45 %	Rated Current50 mA	DC Resistance0.7 Ω	Design Kit 744790
7447966	4.7 µH, 35 %, 15 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance4.7 µH	Q-Factor35 %	Rated Current15 mA	DC Resistance1.8 Ω	Design Kit 744790
7447906	4.7 µH, 45 %, 30 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance4.7 µH	Q-Factor45 %	Rated Current30 mA	DC Resistance1 Ω	Design Kit 744790
7447916	4.7 µH, 45 %, 50 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance4.7 µH	Q-Factor45 %	Rated Current50 mA	DC Resistance0.9 Ω	Design Kit 744790
74479668	6.8 µH, 35 %, 5 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance6.8 µH	Q-Factor35 %	Rated Current5 mA	DC Resistance1.7 Ω	Design Kit 744790
74479068	6.8 µH, 50 %, 15 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance6.8 µH	Q-Factor50 %	Rated Current15 mA	DC Resistance1 Ω	Design Kit –
74479168	6.8 µH, 50 %, 25 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance6.8 µH	Q-Factor50 %	Rated Current25 mA	DC Resistance0.9 Ω	Design Kit 744790
7447968	10 µH, 30 %, 3 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS WE-MI_0603_MI (rev1).igs \| 158 KB STP WE-MI_0603_MI (rev1).stp \| 60.7 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance10 µH	Q-Factor30 %	Rated Current3 mA	DC Resistance1.85 Ω	Design Kit 744790
7447908	10 µH, 50 %, 15 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance10 µH	Q-Factor50 %	Rated Current15 mA	DC Resistance1 Ω	Design Kit 744790
7447918	10 µH, 50 %, 25 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance10 µH	Q-Factor50 %	Rated Current25 mA	DC Resistance0.6 Ω	Design Kit 744790
74479081	12 µH, 50 %, 15 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI-0805_1 (rev1).igs \| 79.3 KB STP Download_STP_WE-MI-0805_1 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance12 µH	Q-Factor50 %	Rated Current15 mA	DC Resistance1.1 Ω	Design Kit 744790
74479184	33 µH, 35 %, 25 mA	Downloads7 files EDA models: Components ZIP ALT WE-MI (rev22a).IntLib \| 96.5 KB CDS Cadence_WE-MI (rev25a).zip \| 229.9 KB EAG Eagle_WE-MI (rev22a).lbr \| 56 KB KIC KiCad_WE-MI (rev25b).zip \| 54.8 KB ZUK Cadstar_WE-MI (rev19a).zip \| 8.1 KB CAD files ZIP IGS Download_IGS_WE-MI_0805_0,9 (rev1).igs \| 79.2 KB STP Download_STP_WE-MI-0805_1,25 (rev1).stp \| 63.5 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance33 µH	Q-Factor35 %	Rated Current25 mA	DC Resistance0.9 Ω	Design Kit –

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-MI Multilayer SMT Inductors
