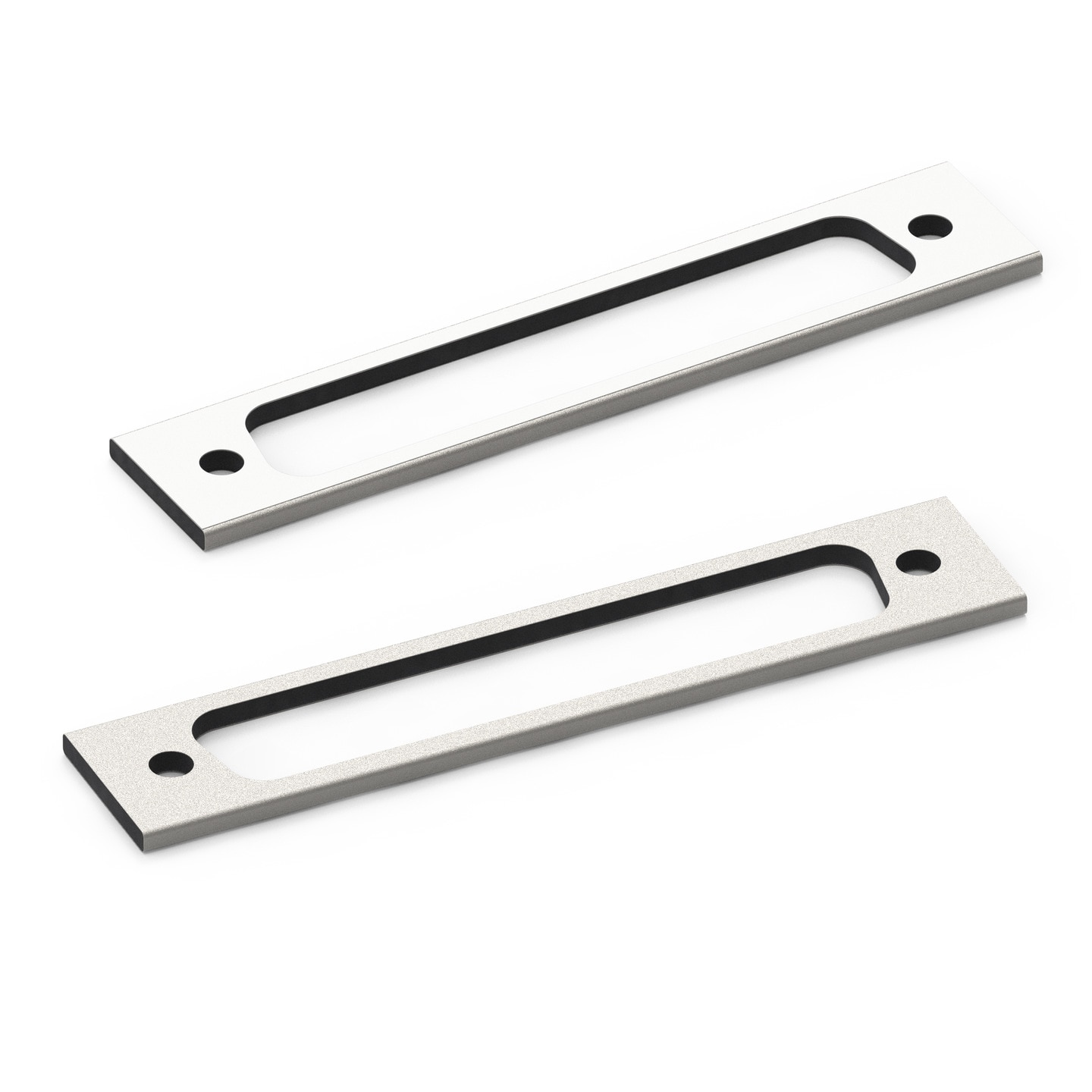

WE-LTS Conductive Shielding Gasket Stampings
Characteristics

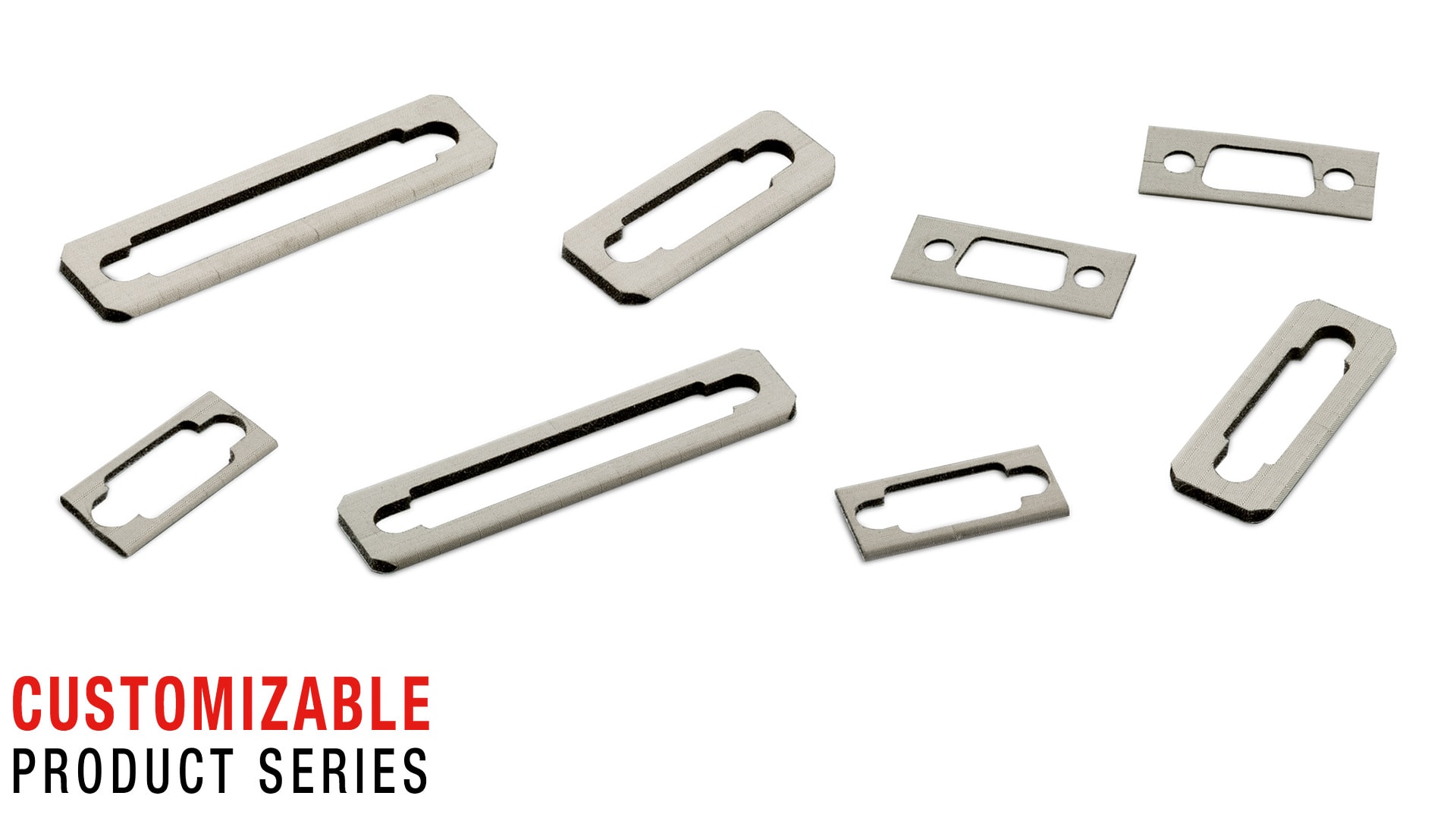

- Customizable Product Series:

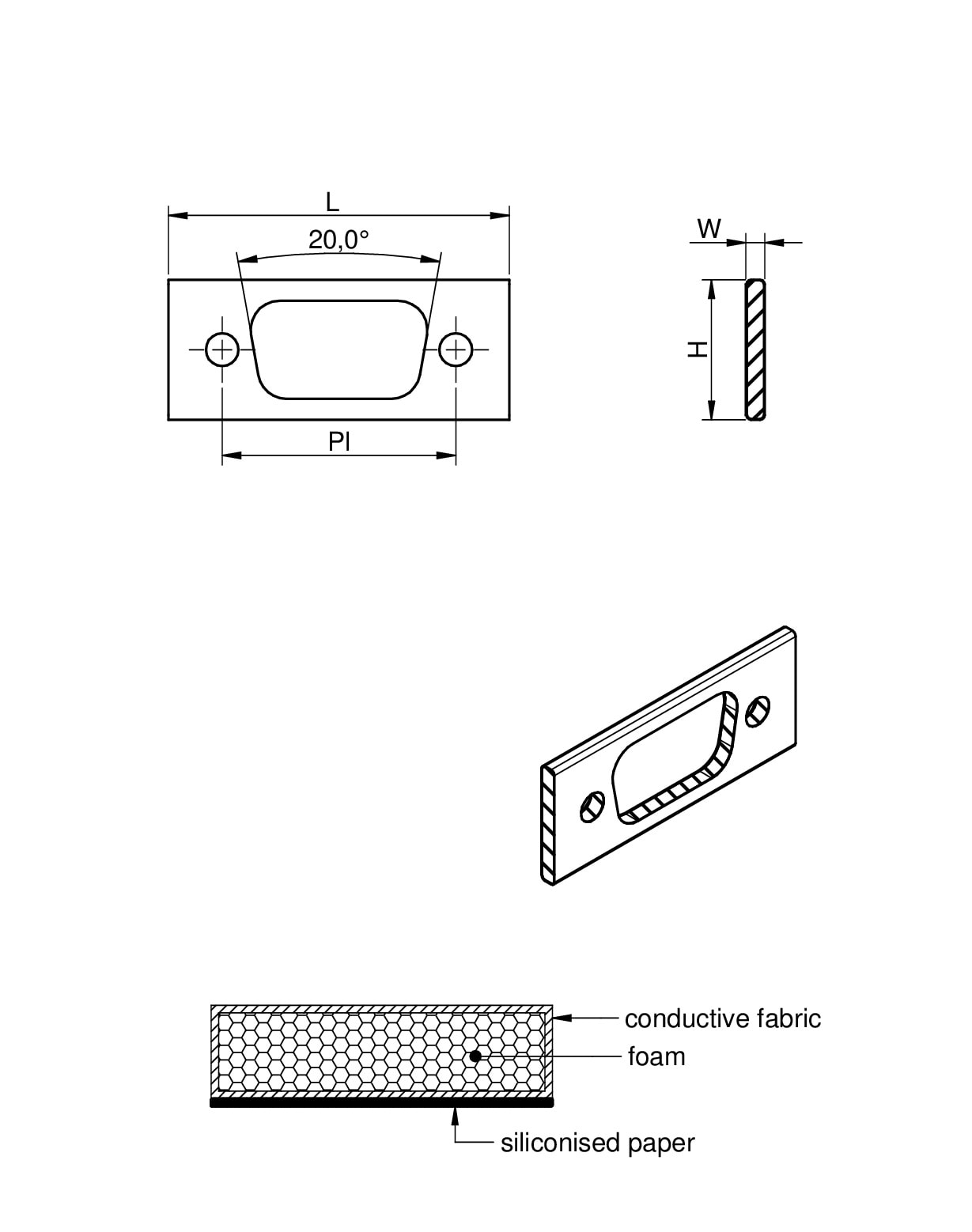

Dimensions
Shape - Ni/Cu textiles with conductive adhesive
- High shielding effectiveness due to a high conductivity
- Surface resistance: 0.11 Ω/cm² typ.
- Volume resistance: 0.03 Ω/cm³ typ.
- Operating temperature: –25 °C to +85 °C
- The shielding gasket is not solderable
- Fast custom design on request
Applications
- Shielding
- D-Sub Connectors
Products
Filter by
show in
article in 0 product lines
Reset allOrder Code | Datasheet | Downloads | Status | W(mm) | H(mm) | Number of Poles | Shielding Effectiveness @ 100 MHz(dB) | Shielding Effectiveness @ 1 GHz(dB) | RS(Ω) | SamplesAvailability & Sample | |
|---|---|---|---|---|---|---|---|---|---|---|---|
34150209 | SPEC2 mm, 15 mm, 9 | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Width2 mm | Height15 mm | Number of Poles9 | Shielding Effectiveness @ 100 MHz80 dB | Shielding Effectiveness @ 1 GHz86 dB | Surface Resistance0.08 Ω | –Check availability | |
34150215 | SPEC2 mm, 15 mm, 15 | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Width2 mm | Height15 mm | Number of Poles15 | Shielding Effectiveness @ 100 MHz80 dB | Shielding Effectiveness @ 1 GHz86 dB | Surface Resistance0.08 Ω | –Check availability | |
34150225 | SPEC2 mm, 15 mm, 25 | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Width2 mm | Height15 mm | Number of Poles25 | Shielding Effectiveness @ 100 MHz80 dB | Shielding Effectiveness @ 1 GHz86 dB | Surface Resistance0.08 Ω | –Check availability | |
34150237 | SPEC2 mm, 15 mm, 37 | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Width2 mm | Height15 mm | Number of Poles37 | Shielding Effectiveness @ 100 MHz80 dB | Shielding Effectiveness @ 1 GHz86 dB | Surface Resistance0.08 Ω | –Check availability |
Availability Forecast
WE item number: –
VPE–
Lead time– weeks
| Expected Availability | Opening inventory | Quantity |
|---|---|---|
| Current Availability | – | – |
Does it just not fit? Please contact us.Simply contact our service team for special orders and bulk quantities.
