| Size | Dimensions | L (mm) | W (mm) | H (mm) | Mount | |
|---|---|---|---|---|---|---|
1210 | 3.2 | 2.5 | 2 | SMT | ||
1812 | 4.5 | 3.2 | 2.6 | SMT |
LTSpice files
Characteristics

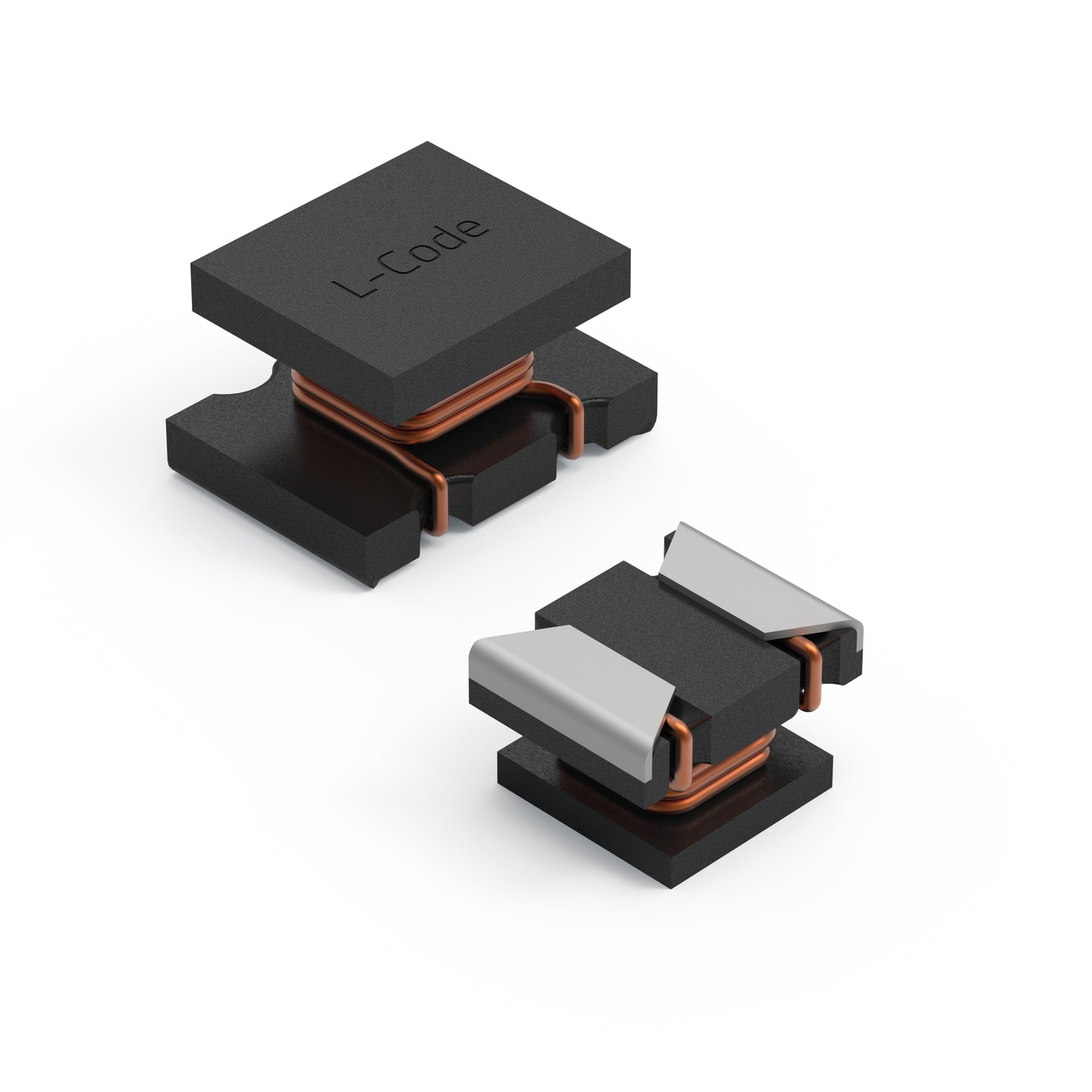

- Miniature chip inductor wound on a special ferrite core
- Small inductances for compact circuits
- High Q at high frequencies
- Low DC-resistance
- Operating temperature: –40 ºC to +125 ºC
- Recommended solder profile: Reflow
Applications
- Low power DC/DC-converters from Linear Technology, National Semiconductor, Texas Instruments, Fairchild Semiconductor, ON Semiconductor, STMicroelectronics, Maxim, MPS, Semtech, Exar, Analogic Tech, Diodes and Cologne Chip
- EMI-Filtering
- RF-circuits
Products
All
1210
1812
Filter by
show in
article in 2 product lines
Reset allOrder Code | Datasheet | Simulation | Downloads | Status | L(µH) | IR(A) | ISAT(A) | RDC max.(Ω) | fres(MHz) | Q | Design Kit | SamplesAvailability & Sample | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
744032001 | SPEC1 µH, 0.75 A, 3.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Rated Current0.75 A | Saturation Current3.2 A | DC Resistance0.1 Ω | Self Resonant Frequency100 MHz | Q-Factor20 | Design Kit | –Check availability | ||
744045001 | SPEC1 µH, 1.8 A, 4.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Rated Current1.8 A | Saturation Current4.4 A | DC Resistance0.08 Ω | Self Resonant Frequency165 MHz | Q-Factor40 | Design Kit | –Check availability | ||
7440320015 | SPEC1.5 µH, 0.66 A, 2.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Rated Current0.66 A | Saturation Current2.1 A | DC Resistance0.13 Ω | Self Resonant Frequency75 MHz | Q-Factor20 | Design Kit | –Check availability | ||
7440450015 | SPEC1.5 µH, 1.75 A, 4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Rated Current1.75 A | Saturation Current4 A | DC Resistance0.09 Ω | Self Resonant Frequency130 MHz | Q-Factor42 | Design Kit | –Check availability | ||
7440320018 | SPEC1.8 µH, 0.64 A, 2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.8 µH | Rated Current0.64 A | Saturation Current2 A | DC Resistance0.14 Ω | Self Resonant Frequency60 MHz | Q-Factor20 | Design Kit | –Check availability | ||
7440450018 | SPEC1.8 µH, 1.7 A, 3.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.8 µH | Rated Current1.7 A | Saturation Current3.5 A | DC Resistance0.1 Ω | Self Resonant Frequency100 MHz | Q-Factor45 | Design Kit | –Check availability | ||
744032002 | SPEC2.2 µH, 0.62 A, 1.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Rated Current0.62 A | Saturation Current1.8 A | DC Resistance0.15 Ω | Self Resonant Frequency50 MHz | Q-Factor20 | Design Kit | –Check availability | ||
744045002 | SPEC2.2 µH, 1.6 A, 2.75 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Rated Current1.6 A | Saturation Current2.75 A | DC Resistance0.11 Ω | Self Resonant Frequency80 MHz | Q-Factor40 | Design Kit | –Check availability | ||
7440320027 | SPEC2.7 µH, 0.6 A, 1.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.7 µH | Rated Current0.6 A | Saturation Current1.6 A | DC Resistance0.18 Ω | Self Resonant Frequency43 MHz | Q-Factor20 | Design Kit | –Check availability | ||
7440450027 | SPEC2.7 µH, 1.5 A, 2.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.7 µH | Rated Current1.5 A | Saturation Current2.7 A | DC Resistance0.12 Ω | Self Resonant Frequency63 MHz | Q-Factor40 | Design Kit | –Check availability | ||
744032003 | SPEC3.3 µH, 0.58 A, 1.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Rated Current0.58 A | Saturation Current1.5 A | DC Resistance0.2 Ω | Self Resonant Frequency38 MHz | Q-Factor20 | Design Kit | –Check availability | ||
744045003 | SPEC3.3 µH, 1.4 A, 2.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Rated Current1.4 A | Saturation Current2.7 A | DC Resistance0.13 Ω | Self Resonant Frequency58 MHz | Q-Factor45 | Design Kit | –Check availability | ||
7440320039 | SPEC3.9 µH, 0.54 A, 1.35 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.9 µH | Rated Current0.54 A | Saturation Current1.35 A | DC Resistance0.25 Ω | Self Resonant Frequency35 MHz | Q-Factor20 | Design Kit | –Check availability | ||
7440450039 | SPEC3.9 µH, 1.32 A, 2.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.9 µH | Rated Current1.32 A | Saturation Current2.5 A | DC Resistance0.14 Ω | Self Resonant Frequency54 MHz | Q-Factor40 | Design Kit | –Check availability | ||
744032004 | SPEC4.7 µH, 0.49 A, 1.25 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Rated Current0.49 A | Saturation Current1.25 A | DC Resistance0.28 Ω | Self Resonant Frequency31 MHz | Q-Factor20 | Design Kit | –Check availability | ||
744045004 | SPEC4.7 µH, 1.24 A, 2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Rated Current1.24 A | Saturation Current2 A | DC Resistance0.15 Ω | Self Resonant Frequency45 MHz | Q-Factor36 | Design Kit | –Check availability | ||
7440320056 | SPEC5.6 µH, 0.44 A, 1.15 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 µH | Rated Current0.44 A | Saturation Current1.15 A | DC Resistance0.36 Ω | Self Resonant Frequency28 MHz | Q-Factor20 | Design Kit | –Check availability | ||
7440450056 | SPEC5.6 µH, 1.18 A, 1.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 µH | Rated Current1.18 A | Saturation Current1.9 A | DC Resistance0.18 Ω | Self Resonant Frequency41 MHz | Q-Factor36 | Design Kit | –Check availability | ||
744032006 | SPEC6.8 µH, 0.42 A, 1.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Rated Current0.42 A | Saturation Current1.1 A | DC Resistance0.4 Ω | Self Resonant Frequency25 MHz | Q-Factor20 | Design Kit | –Check availability | ||
744045006 | SPEC6.8 µH, 1.1 A, 1.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Rated Current1.1 A | Saturation Current1.6 A | DC Resistance0.2 Ω | Self Resonant Frequency37 MHz | Q-Factor36 | Design Kit | –Check availability | ||
744032008 | SPEC8.2 µH, 0.39 A, 0.95 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Rated Current0.39 A | Saturation Current0.95 A | DC Resistance0.45 Ω | Self Resonant Frequency23 MHz | Q-Factor20 | Design Kit | –Check availability | ||
744045008 | SPEC8.2 µH, 1 A, 1.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Rated Current1 A | Saturation Current1.6 A | DC Resistance0.25 Ω | Self Resonant Frequency34 MHz | Q-Factor36 | Design Kit | –Check availability | ||
744032100 | SPEC10 µH, 0.32 A, 0.85 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Rated Current0.32 A | Saturation Current0.85 A | DC Resistance0.65 Ω | Self Resonant Frequency20 MHz | Q-Factor35 | Design Kit | –Check availability | ||
744045100 | SPEC10 µH, 0.95 A, 1.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Rated Current0.95 A | Saturation Current1.5 A | DC Resistance0.3 Ω | Self Resonant Frequency30 MHz | Q-Factor48 | Design Kit | –Check availability | ||
744032120 | SPEC12 µH, 0.29 A, 0.78 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 µH | Rated Current0.29 A | Saturation Current0.78 A | DC Resistance0.7 Ω | Self Resonant Frequency18 MHz | Q-Factor35 | Design Kit | –Check availability | ||
744045120 | SPEC12 µH, 0.8 A, 1.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 µH | Rated Current0.8 A | Saturation Current1.4 A | DC Resistance0.42 Ω | Self Resonant Frequency28 MHz | Q-Factor48 | Design Kit | –Check availability | ||
744032150 | SPEC15 µH, 0.27 A, 0.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Rated Current0.27 A | Saturation Current0.7 A | DC Resistance1 Ω | Self Resonant Frequency16 MHz | Q-Factor35 | Design Kit | –Check availability | ||
744045150 | SPEC15 µH, 0.73 A, 1.24 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Rated Current0.73 A | Saturation Current1.24 A | DC Resistance0.5 Ω | Self Resonant Frequency26 MHz | Q-Factor45 | Design Kit | –Check availability | ||
744032180 | SPEC18 µH, 0.24 A, 0.65 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance18 µH | Rated Current0.24 A | Saturation Current0.65 A | DC Resistance1.1 Ω | Self Resonant Frequency15 MHz | Q-Factor35 | Design Kit | –Check availability | ||
744045180 | SPEC18 µH, 0.68 A, 1.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance18 µH | Rated Current0.68 A | Saturation Current1.1 A | DC Resistance0.6 Ω | Self Resonant Frequency22 MHz | Q-Factor42 | Design Kit | –Check availability | ||
744032220 | SPEC22 µH, 0.22 A, 0.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Rated Current0.22 A | Saturation Current0.6 A | DC Resistance1.3 Ω | Self Resonant Frequency14 MHz | Q-Factor35 | Design Kit | –Check availability | ||
744045220 | SPEC22 µH, 0.63 A, 1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Rated Current0.63 A | Saturation Current1 A | DC Resistance0.7 Ω | Self Resonant Frequency20 MHz | Q-Factor50 | Design Kit | –Check availability | ||
744045330 | SPEC33 µH, 0.43 A, 0.85 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 µH | Rated Current0.43 A | Saturation Current0.85 A | DC Resistance1.1 Ω | Self Resonant Frequency18 MHz | Q-Factor55 | Design Kit – | –Check availability | ||
744045470 | SPEC47 µH, 0.39 A, 0.73 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 µH | Rated Current0.39 A | Saturation Current0.73 A | DC Resistance1.5 Ω | Self Resonant Frequency16 MHz | Q-Factor55 | Design Kit – | –Check availability | ||
744032470 | SPEC47 µH, 0.146 A, 0.4 A | Simulation– | Availability – | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 µH | Rated Current0.146 A | Saturation Current0.4 A | DC Resistance3 Ω | Self Resonant Frequency11 MHz | Q-Factor40 | Design Kit – | –Check availability |
744032680 | SPEC68 µH, 0.13 A, 0.3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance68 µH | Rated Current0.13 A | Saturation Current0.3 A | DC Resistance3.8 Ω | Self Resonant Frequency9 MHz | Q-Factor35 | Design Kit | –Check availability | ||
744045680 | SPEC68 µH, 0.33 A, 0.61 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance68 µH | Rated Current0.33 A | Saturation Current0.61 A | DC Resistance2.1 Ω | Self Resonant Frequency15 MHz | Q-Factor55 | Design Kit – | –Check availability | ||
744045820 | SPEC82 µH, 0.3 A, 0.57 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance82 µH | Rated Current0.3 A | Saturation Current0.57 A | DC Resistance2.3 Ω | Self Resonant Frequency12 MHz | Q-Factor55 | Design Kit – | –Check availability | ||
744032101 | SPEC100 µH, 0.1 A, 0.25 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 µH | Rated Current0.1 A | Saturation Current0.25 A | DC Resistance6.5 Ω | Self Resonant Frequency8 MHz | Q-Factor40 | Design Kit | –Check availability | ||
744045210 | SPEC100 µH, 0.27 A, 0.45 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 µH | Rated Current0.27 A | Saturation Current0.45 A | DC Resistance2.5 Ω | Self Resonant Frequency10 MHz | Q-Factor60 | Design Kit – | –Check availability | ||
744032121 | SPEC120 µH, 0.095 A, 0.18 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance120 µH | Rated Current0.095 A | Saturation Current0.18 A | DC Resistance7 Ω | Self Resonant Frequency7 MHz | Q-Factor40 | Design Kit | –Check availability | ||
744045215 | SPEC150 µH, 0.22 A, 0.42 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance150 µH | Rated Current0.22 A | Saturation Current0.42 A | DC Resistance3.7 Ω | Self Resonant Frequency8 MHz | Q-Factor55 | Design Kit – | –Check availability | ||
744032221 | SPEC220 µH, 0.075 A, 0.24 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance220 µH | Rated Current0.075 A | Saturation Current0.24 A | DC Resistance11.8 Ω | Self Resonant Frequency5 MHz | Q-Factor40 | Design Kit – | –Check availability | ||
744032331 | SPEC330 µH, 0.065 A, 0.18 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance330 µH | Rated Current0.065 A | Saturation Current0.18 A | DC Resistance16.5 Ω | Self Resonant Frequency5 MHz | Q-Factor40 | Design Kit – | –Check availability | ||
744045391 | SPEC390 µH, 0.11 A, 0.27 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance390 µH | Rated Current0.11 A | Saturation Current0.27 A | DC Resistance13 Ω | Self Resonant Frequency5 MHz | Q-Factor50 | Design Kit – | –Check availability | ||
744032471 | SPEC470 µH, 0.055 A, 0.12 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance470 µH | Rated Current0.055 A | Saturation Current0.12 A | DC Resistance25 Ω | Self Resonant Frequency5 MHz | Q-Factor46 | Design Kit – | –Check availability | ||
744045471 | SPEC470 µH, 0.105 A, 0.18 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance470 µH | Rated Current0.105 A | Saturation Current0.18 A | DC Resistance14.2 Ω | Self Resonant Frequency5 MHz | Q-Factor50 | Design Kit – | –Check availability | ||
744045681 | SPEC680 µH, 0.09 A, 0.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance680 µH | Rated Current0.09 A | Saturation Current0.2 A | DC Resistance16.8 Ω | Self Resonant Frequency3 MHz | Q-Factor45 | Design Kit – | –Check availability | ||
744045821 | SPEC820 µH, 0.085 A, 0.15 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance820 µH | Rated Current0.085 A | Saturation Current0.15 A | DC Resistance20 Ω | Self Resonant Frequency2 MHz | Q-Factor50 | Design Kit – | –Check availability | ||
744045102 | SPEC1000 µH, 0.07 A, 0.16 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1000 µH | Rated Current0.07 A | Saturation Current0.16 A | DC Resistance30 Ω | Self Resonant Frequency2 MHz | Q-Factor28 | Design Kit – | –Check availability | ||
744045152 | SPEC1500 µH, 0.055 A, 0.095 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1500 µH | Rated Current0.055 A | Saturation Current0.095 A | DC Resistance38.5 Ω | Self Resonant Frequency2 MHz | Q-Factor35 | Design Kit – | –Check availability | ||
744045222 | SPEC2200 µH, 0.04 A, 0.078 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2200 µH | Rated Current0.04 A | Saturation Current0.078 A | DC Resistance47 Ω | Self Resonant Frequency1 MHz | Q-Factor30 | Design Kit – | –Check availability |
