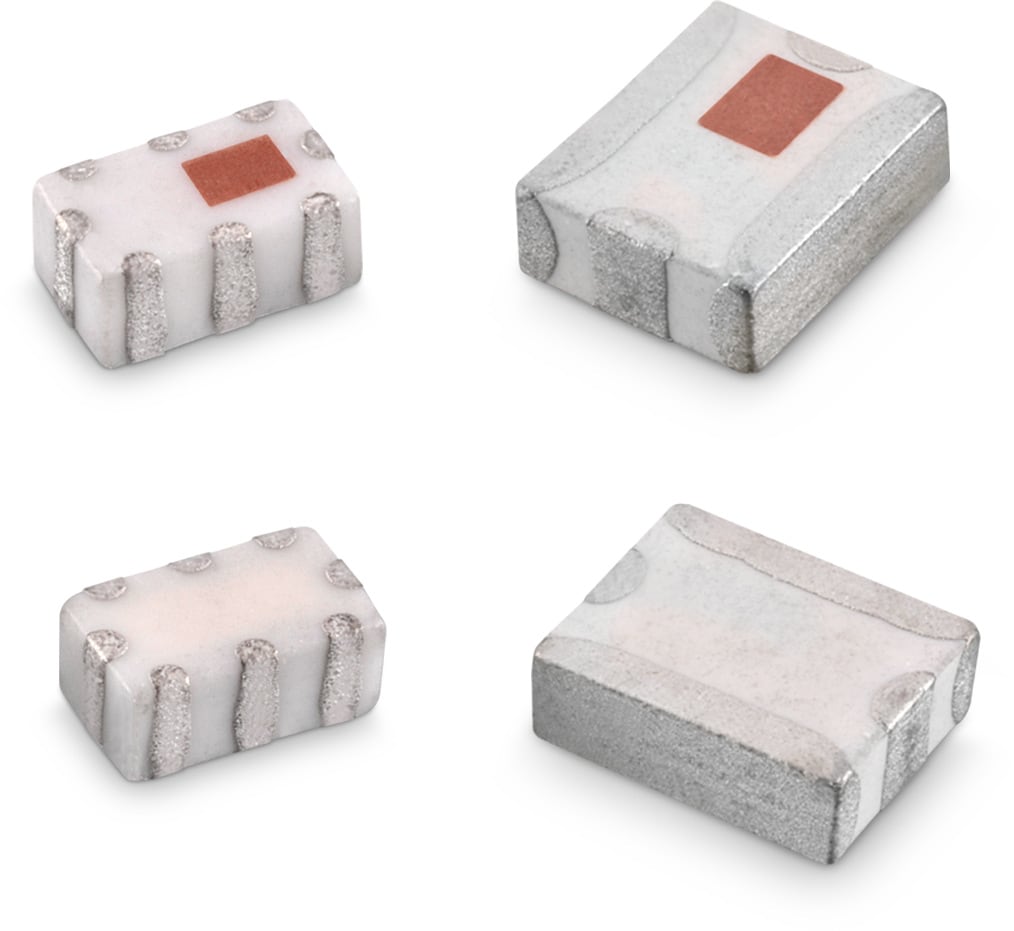

WE-LPF Multilayer Chip Low-Pass Filter

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

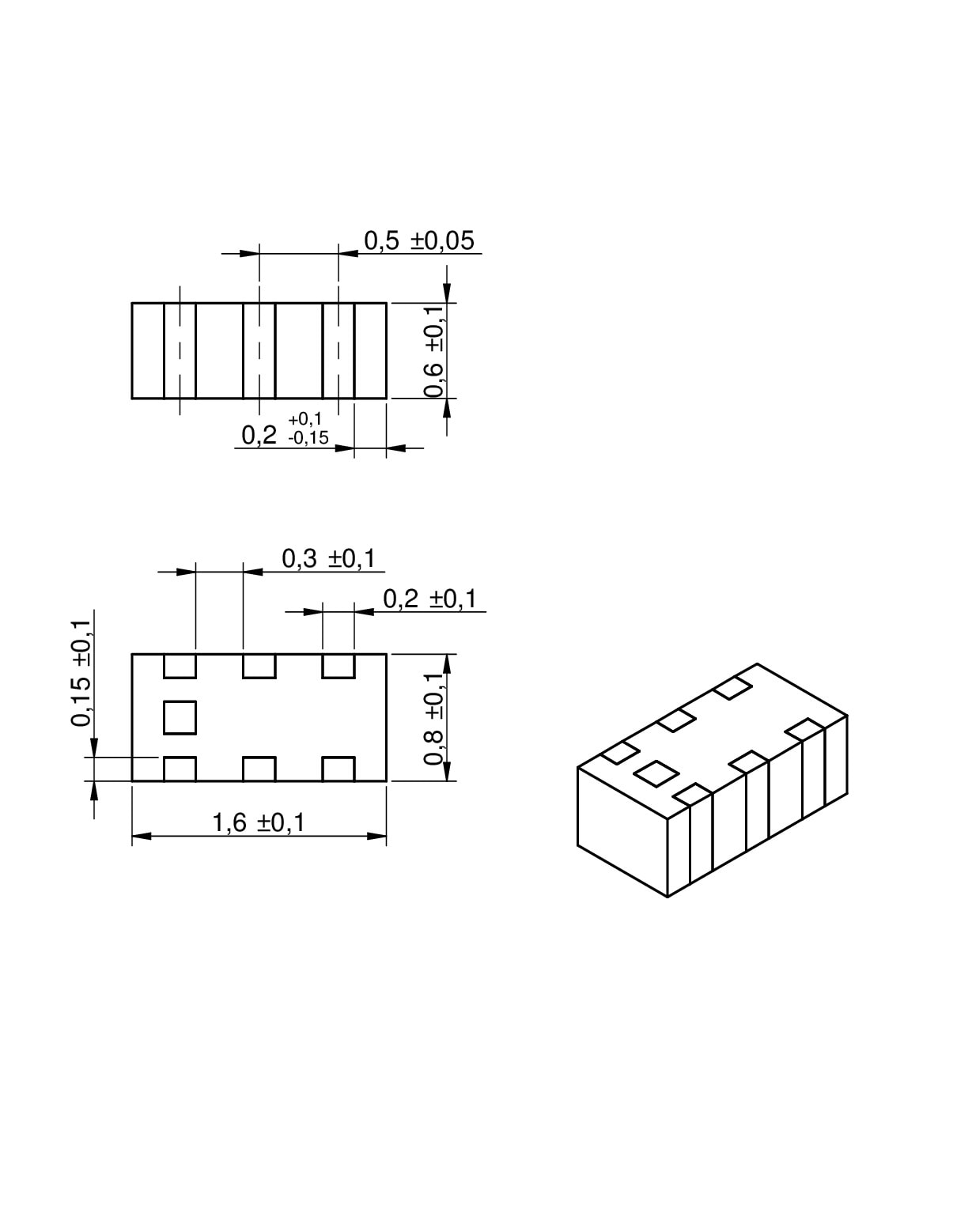

0603		1.6	0.8	0.6	SMT

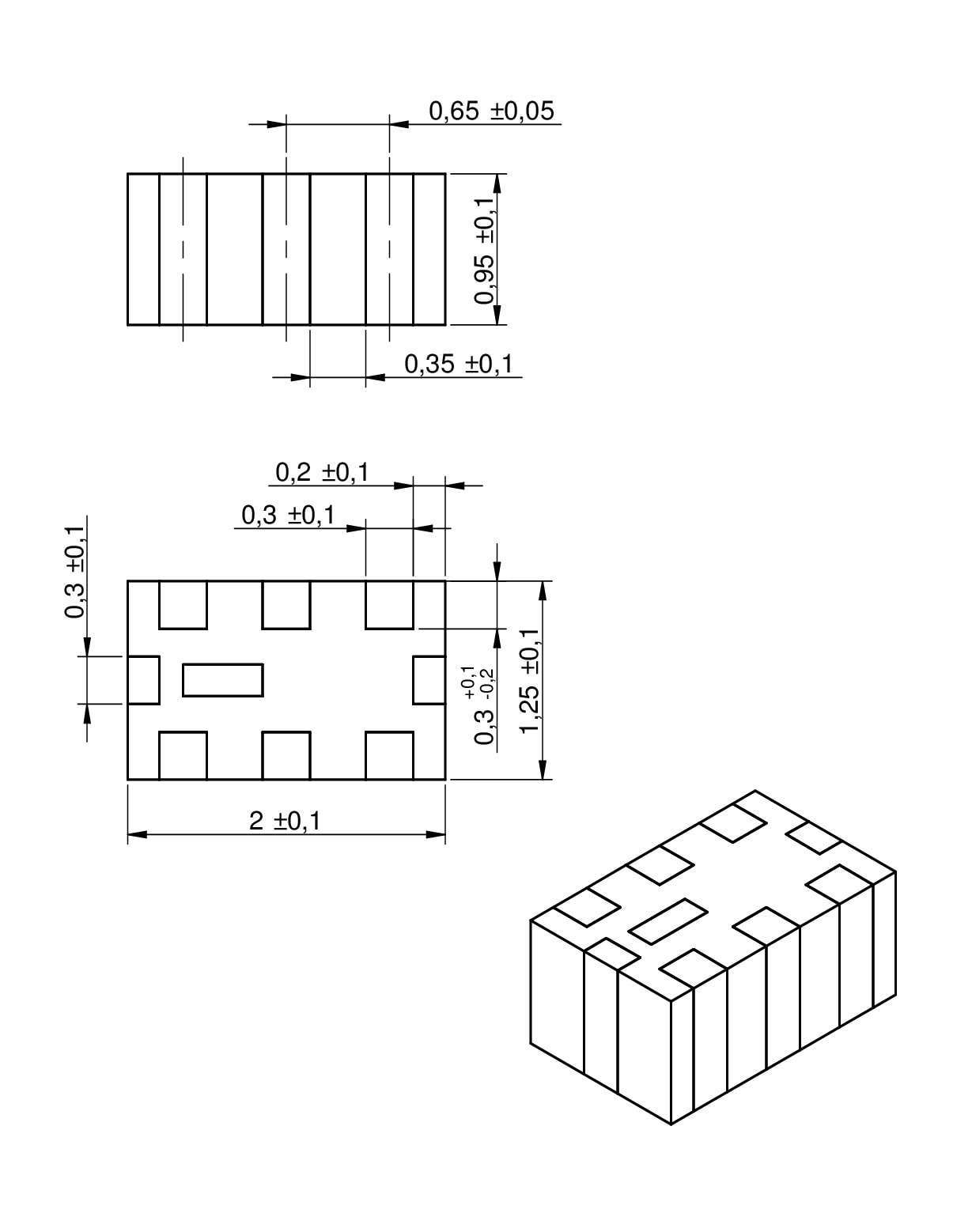

0805		2	1.25	-	SMT

Characteristics

Operating temperature: -55 °C to +125 °C
Power capacity up to 3 W
Low insertion loss and high attenuation in the stop-band

Applications

RF applications
Wireless communication systems like DECT, PACS, PHS, GSM, WLAN, Bluetooth …

Products

All

0603

0805

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

Order Code	Datasheet	Simulation	Downloads	Status	f_min.(MHz)	f_max.(MHz)	IL(dB)	VSWR	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
748111009	SPEC902 MHz, 928 MHz, 0.5 dB	Simulation	Availability –	Downloads9 files ALT Altium_WE-LPF (rev22a).IntLib \| 71 KB CDS Cadence_WE-LPF (rev18a).zip \| 144.6 KB EAG Eagle_WE-LPF (rev19a).lbr \| 19.6 KB KIC KiCad_WE-LPF (rev26b).zip \| 38 KB ZUK Cadstar_WE-LPF (rev19a).zip \| 5.2 KB IGS WE-LPF_0805_LPF (rev1).igs \| 526.3 KB STP WE-LPF_0805_LPF (rev1).stp \| 191.1 KB ADS ADS_WE-LPF (rev24a).zip \| 547.2 KB S S-Parameter_748111009 (rev20a).S2P \| 104 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Frequency min.902 MHz	Frequency max.928 MHz	Insertion Loss0.5 dB	VSWR1.5	–Check availability
748112024	SPEC2400 MHz, 2500 MHz, 0.5 dB	Simulation	Availability –	Downloads9 files ALT Altium_WE-LPF (rev22a).IntLib \| 71 KB CDS Cadence_WE-LPF (rev18a).zip \| 144.6 KB EAG Eagle_WE-LPF (rev19a).lbr \| 19.6 KB KIC KiCad_WE-LPF (rev26b).zip \| 38 KB ZUK Cadstar_WE-LPF (rev19a).zip \| 5.2 KB IGS WE-LPF_0603_LPF (rev1).igs \| 419.1 KB STP WE-LPF_0603_LPF (rev1).stp \| 155 KB ADS ADS_WE-LPF (rev24a).zip \| 547.2 KB S S-Parameter_748112024 (rev20a).S2P \| 104.8 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Frequency min.2400 MHz	Frequency max.2500 MHz	Insertion Loss0.5 dB	VSWR1.5	–Check availability
748125024	SPEC2400 MHz, 2500 MHz, 0.5 dB	Simulation	Availability –	Downloads9 files ALT Altium_WE-LPF (rev22a).IntLib \| 71 KB CDS Cadence_WE-LPF (rev18a).zip \| 144.6 KB EAG Eagle_WE-LPF (rev19a).lbr \| 19.6 KB KIC KiCad_WE-LPF (rev26b).zip \| 38 KB ZUK Cadstar_WE-LPF (rev19a).zip \| 5.2 KB IGS WE-LPF_0805_LPF (rev1).igs \| 526.3 KB STP WE-LPF_0805_LPF (rev1).stp \| 191.1 KB ADS ADS_WE-LPF (rev24a).zip \| 547.2 KB S S-Parameter_748125024 (rev20a).S2P \| 103.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Frequency min.2400 MHz	Frequency max.2500 MHz	Insertion Loss0.5 dB	VSWR1.8	–Check availability
748121055	SPEC5150 MHz, 5875 MHz, 0.6 dB	Simulation	Availability –	Downloads9 files ALT Altium_WE-LPF (rev22a).IntLib \| 71 KB CDS Cadence_WE-LPF (rev18a).zip \| 144.6 KB EAG Eagle_WE-LPF (rev19a).lbr \| 19.6 KB KIC KiCad_WE-LPF (rev26b).zip \| 38 KB ZUK Cadstar_WE-LPF (rev19a).zip \| 5.2 KB IGS WE-LPF_0805_LPF (rev1).igs \| 526.3 KB STP WE-LPF_0805_LPF (rev1).stp \| 191.1 KB ADS ADS_WE-LPF (rev24a).zip \| 547.2 KB S S-Parameter_748121055 (rev20a).S2P \| 104.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Frequency min.5150 MHz	Frequency max.5875 MHz	Insertion Loss0.6 dB	VSWR1.8	–Check availability
