WE-LHMI SMT Power Inductor
Shielded
| Size | Dimensions | L (mm) | W (mm) | H (mm) | Mount | |
|---|---|---|---|---|---|---|

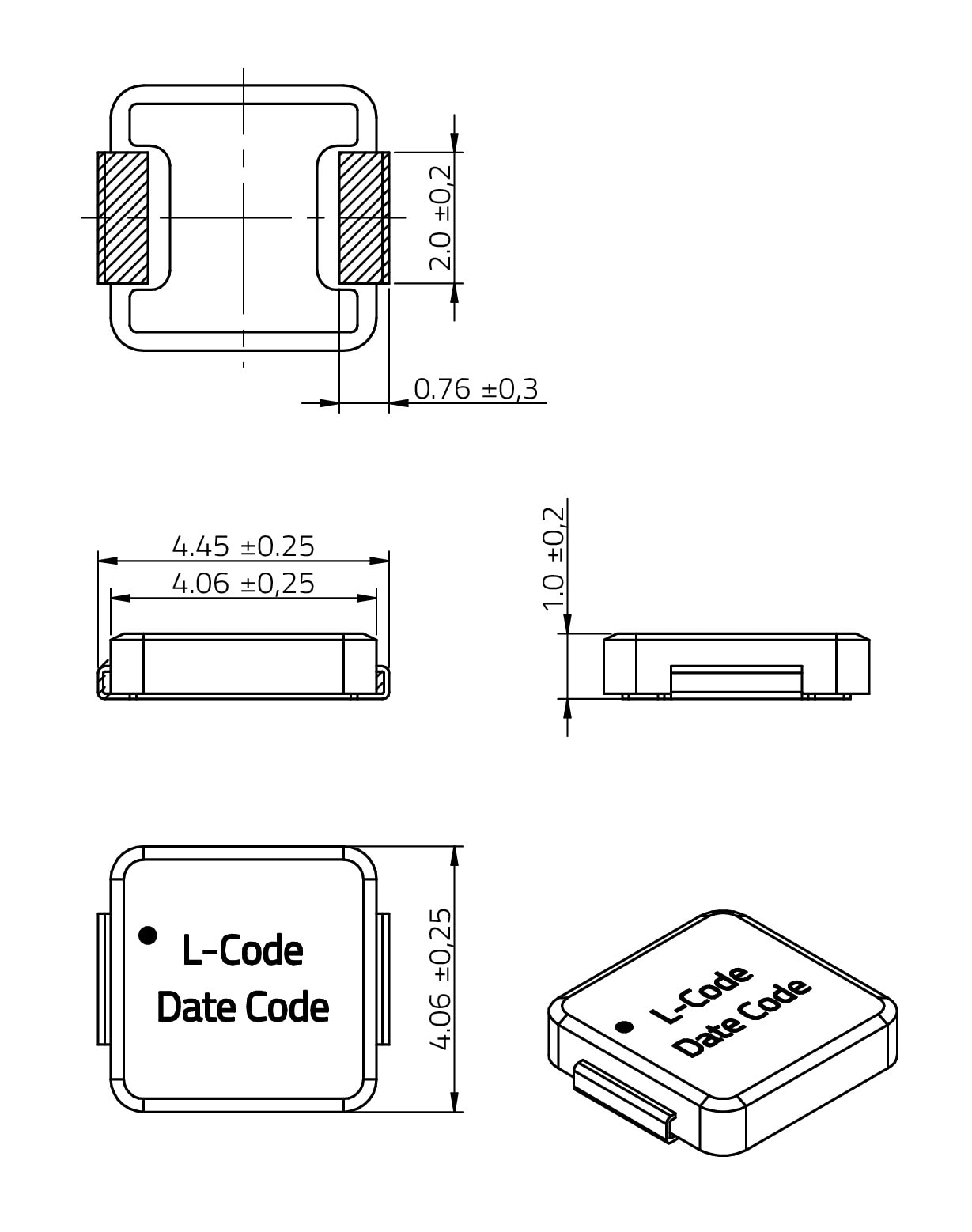

4012 | 4.45 | 4.06 | 1 | SMT | ||
4020 | 4.45 | 4.06 | 1.8 | SMT | ||
4020 HT | 4.45 | 4.06 | 1.8 | SMT | ||

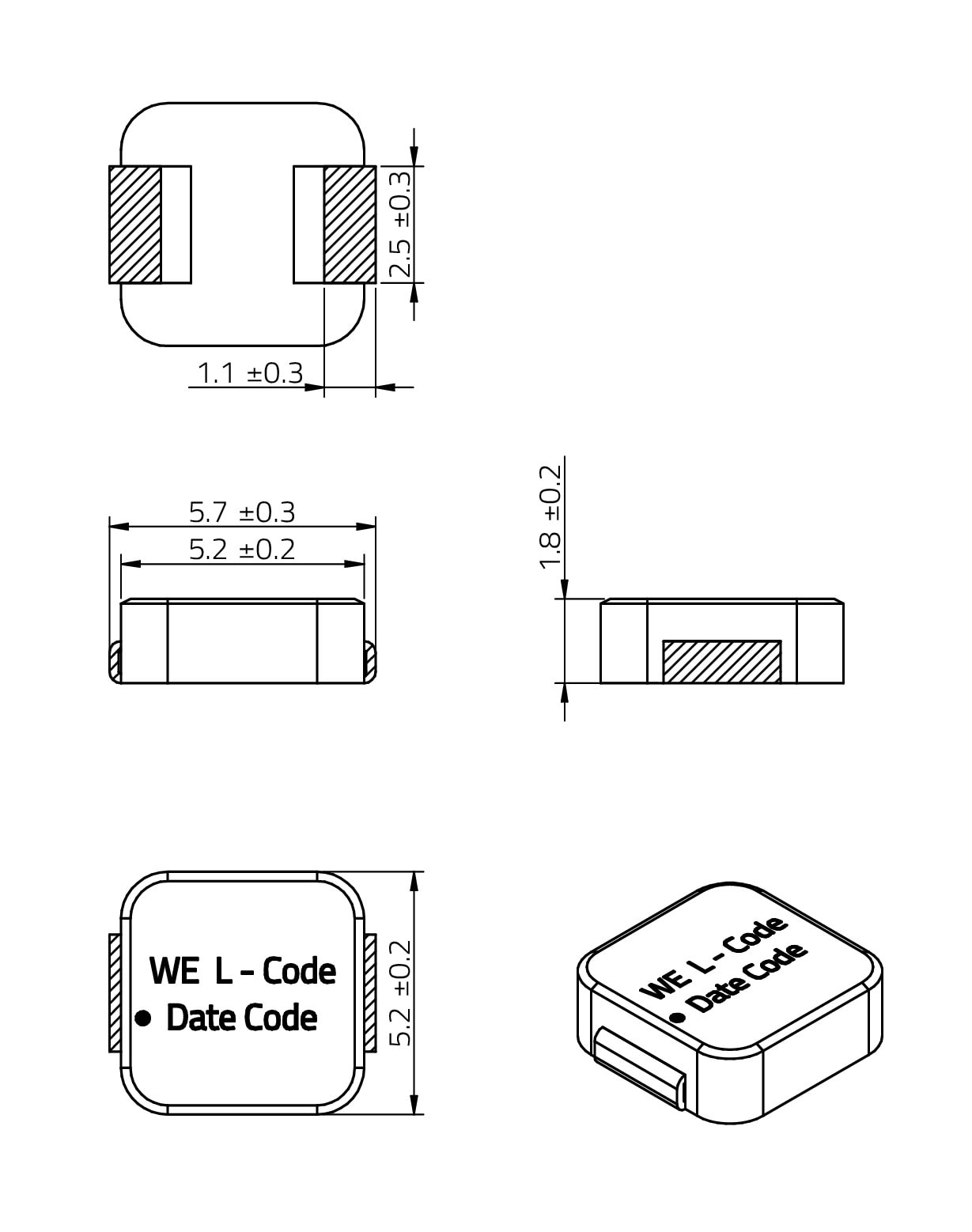

5020 | 5.7 | 5.2 | 1.8 | SMT | ||
5020 HT | 5.7 | 5.2 | 1.8 | SMT | ||
5030 | 5.7 | 5.2 | 2.8 | SMT | ||
7030 | 7.3 | 6.6 | 2.8 | SMT | ||
7030 HT | 7.3 | 6.6 | 2.8 | SMT | ||

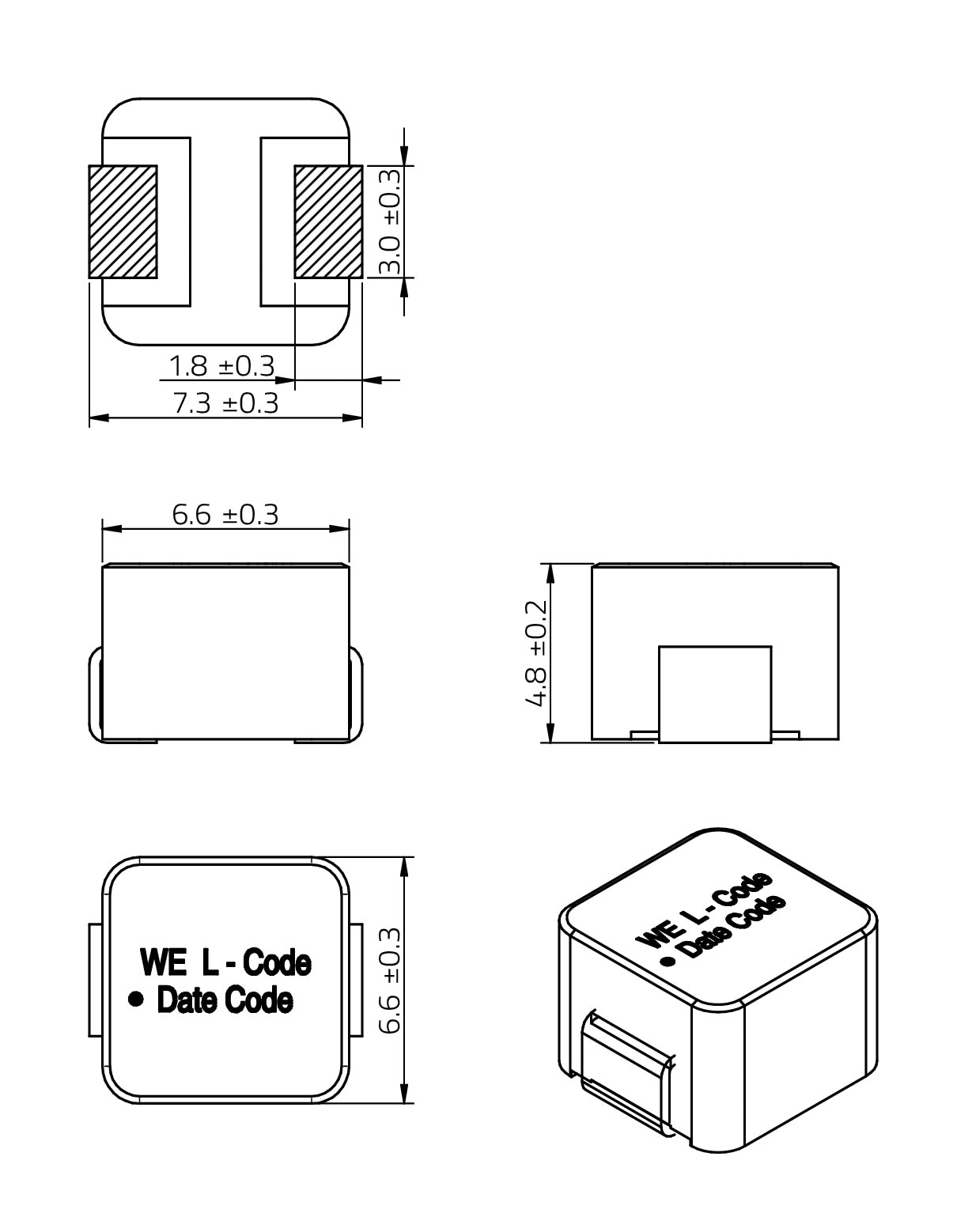

7050 | 7.3 | 6.6 | 4.8 | SMT | ||
7050 HT | 7.3 | 6.6 | 4.8 | SMT | ||

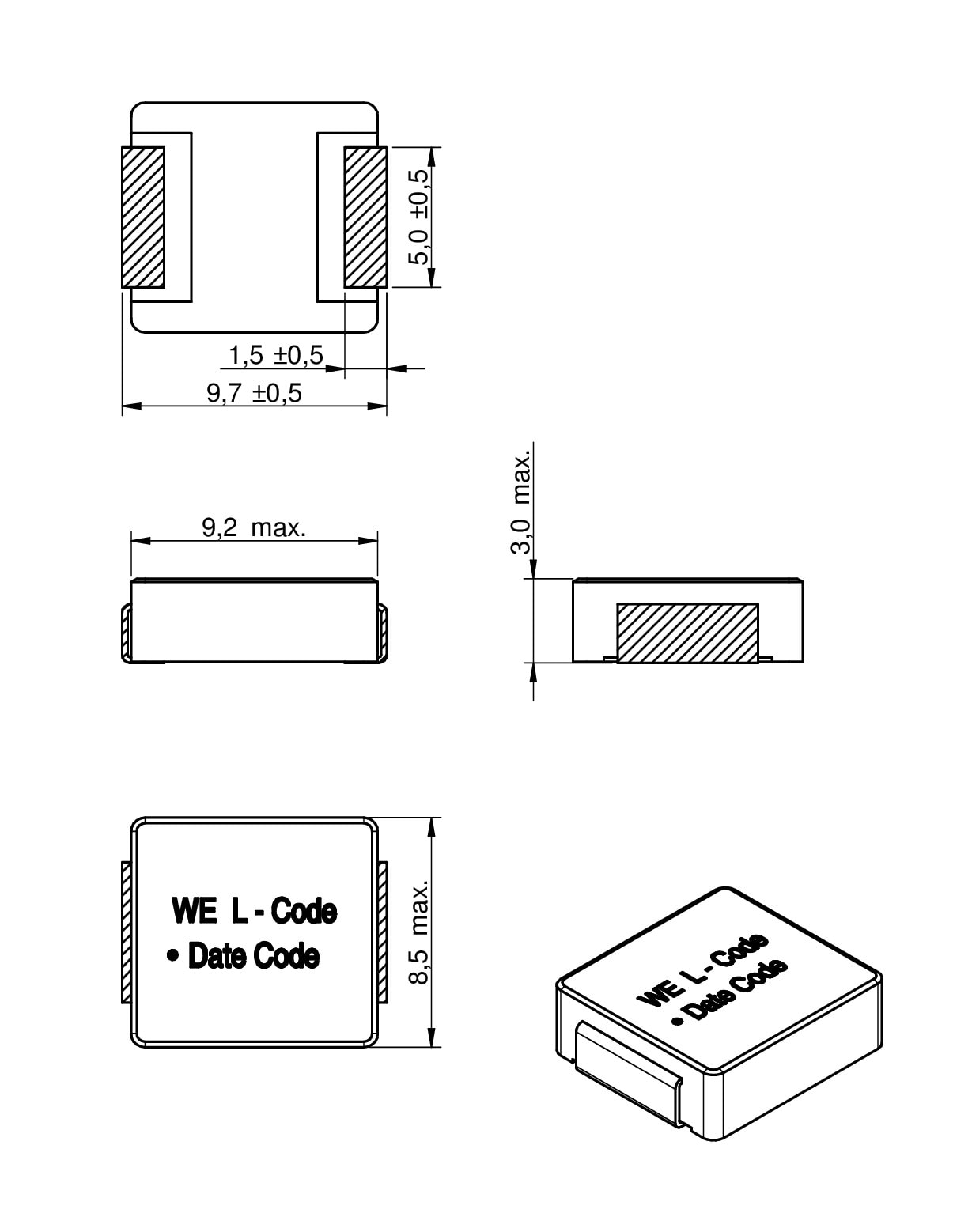

8030 | 9.7 | 8.5 | 3 | SMT | ||

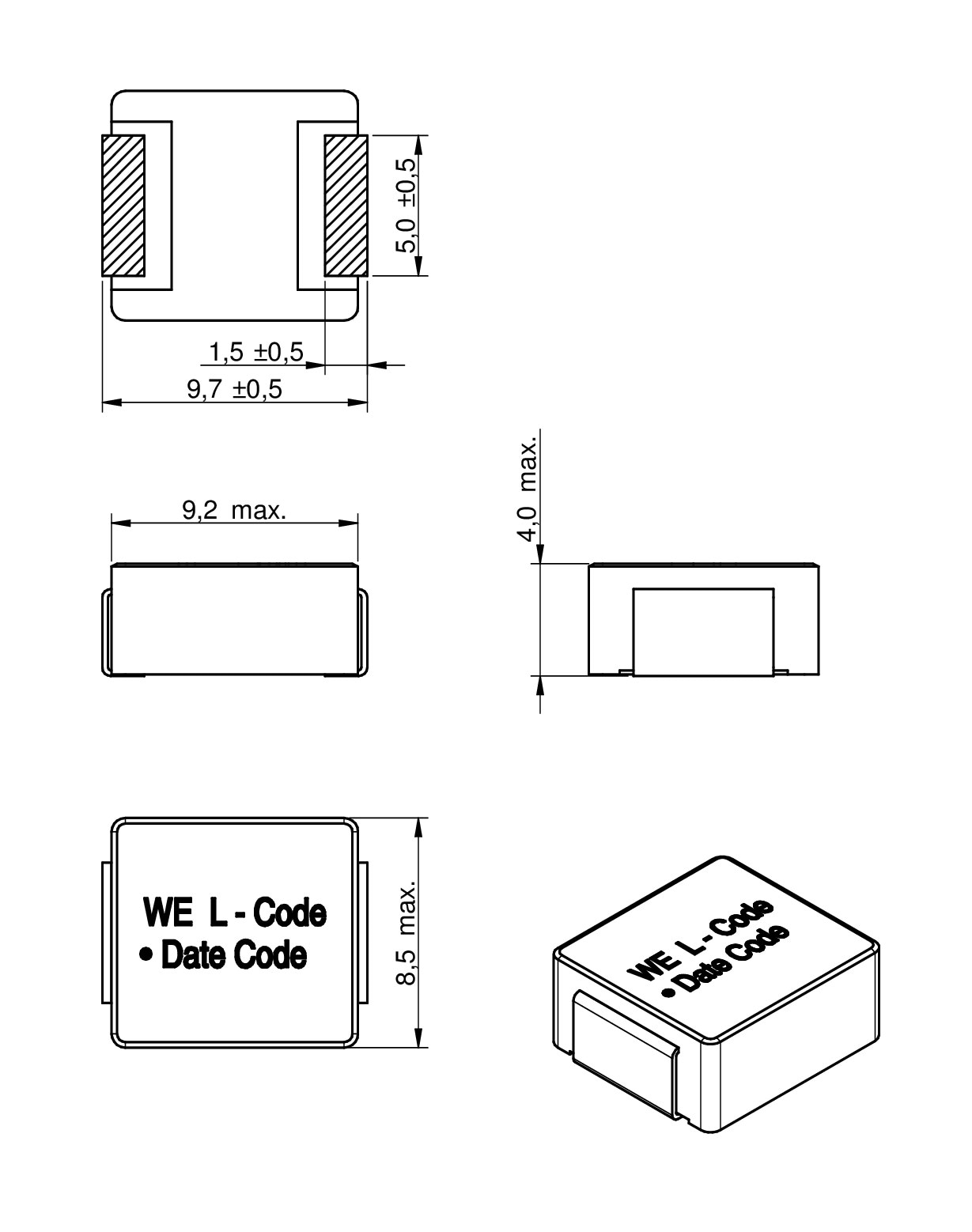

8040 | 9.7 | 8.5 | 4 | SMT | ||

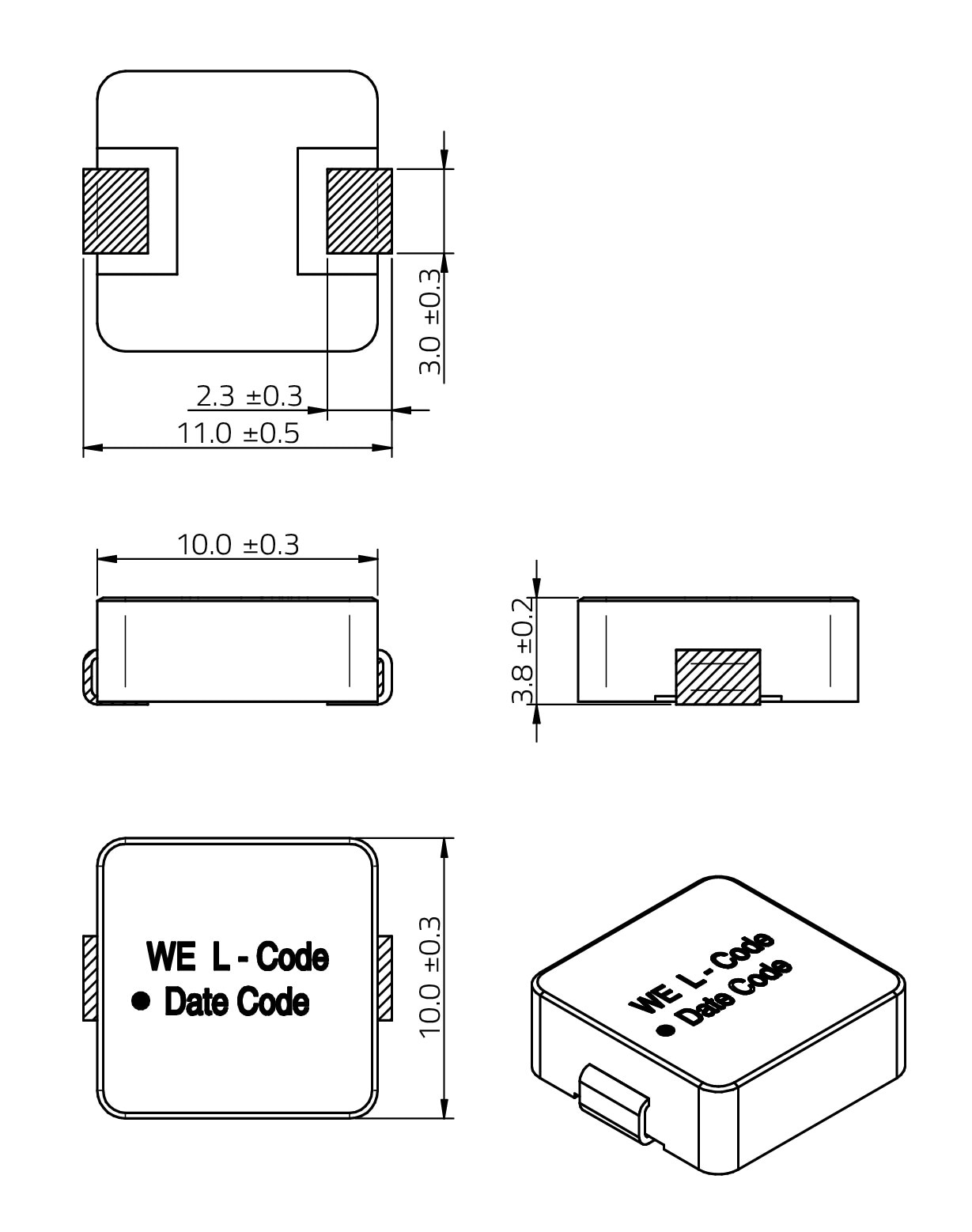

1040 | 11 | 10 | 3.8 | SMT | ||

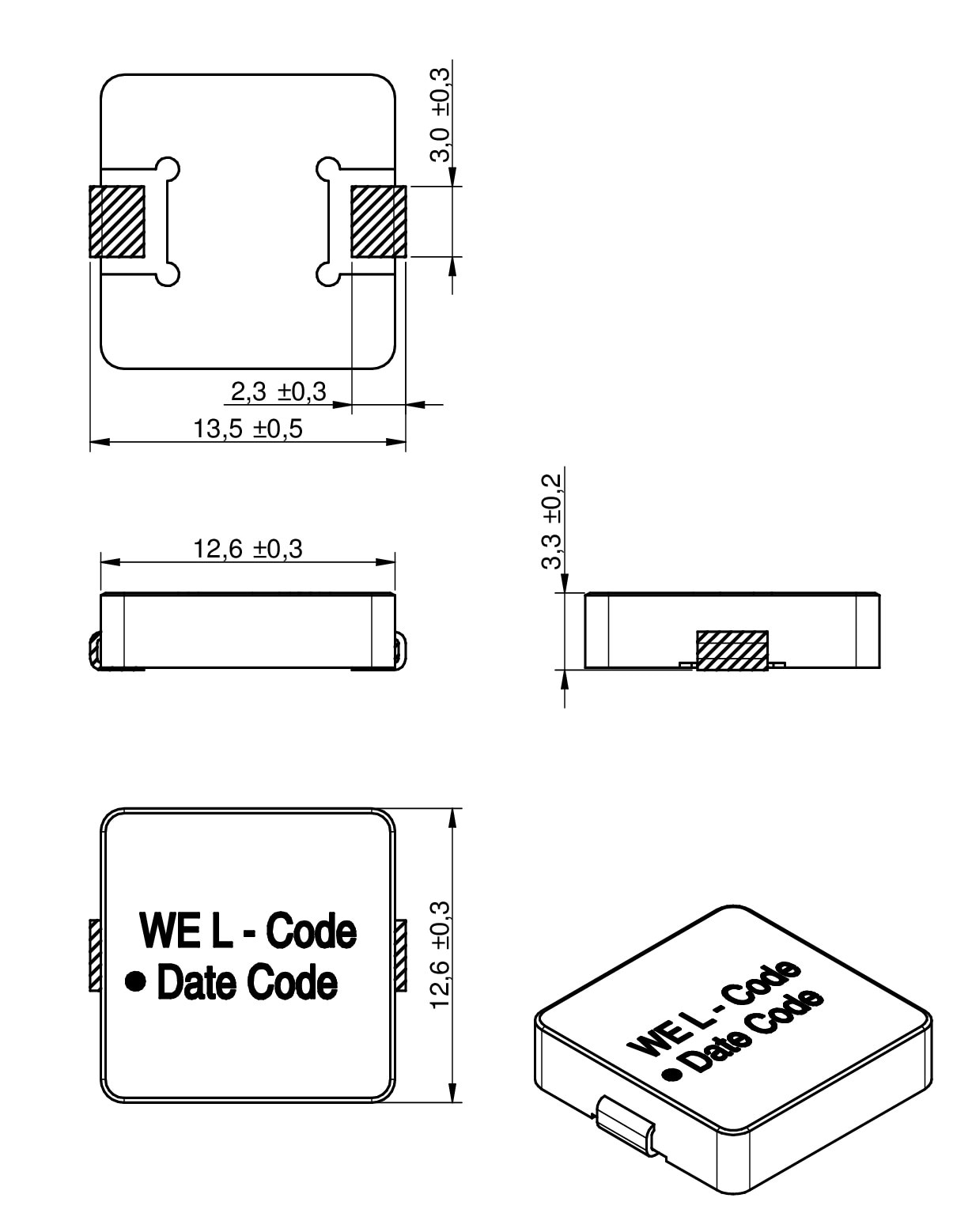

1335 | 13.5 | 12.6 | 3.3 | SMT | ||

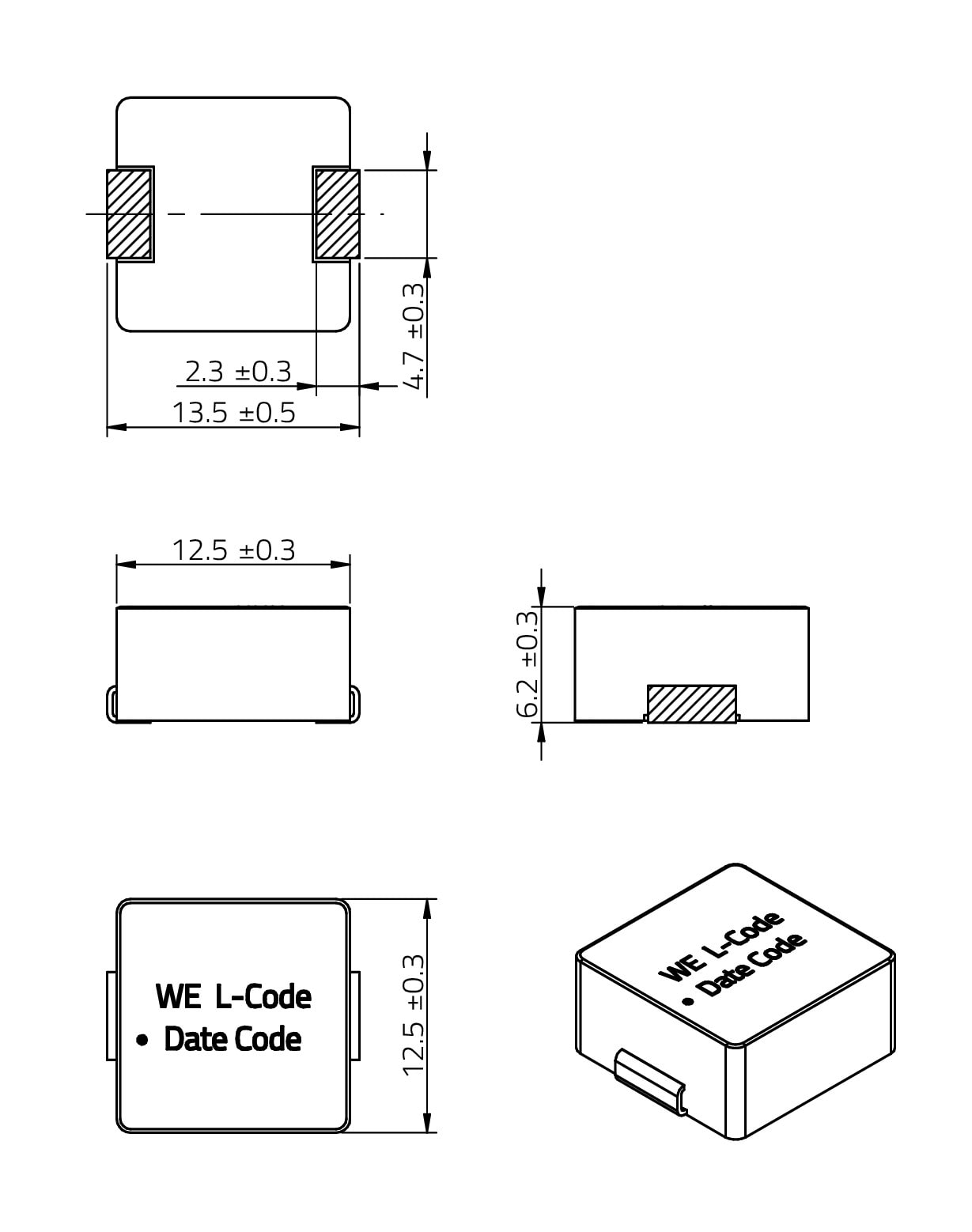

1365 | 13.65 | 12.5 | 6.2 | SMT |
LTSpice files
Characteristics
- Compact Design
- Magnetically shielded
- High current capability
- Handles high transient current spikes
- No acoustic noise and no leakage field
- Operating temperature: -40°C to +125°C
- WE-LHMI Sizes 4020HT 5020HT 7030HT 7050HT
- High Temperature Series with operating temperature from -55 °C to +150 °C
- Designed to avoid thermal aging degradation
Applications
- DC/DC Converters for high current power supplies
- DC/DC Converters for Field Programmable Gate Arrays (FPGA)
- POL Converters
- Portable power like PDA, digital camera
- Mainboards/ graphic cards
- CPU/ RAM
- Battery powered devices
Application Notes
- ANP019 Inductor Current Rating
- ANP032 High Power Wireless Power Transfer for the Industrial Environment
- ANP044 Impact of the layout, components, and filters on the EMC of modern DC/DC switching controllers
- ANP047 The Behavior of Electro-Magnetic Radiation of Power Inductors in Power Management
- ANP118 Acoustic noise & Coil whine effect
- ANP126 Voltage specification for molded inductors
- ANP128 Introduction to thermal aging in molded power inductors
- ANP135 The SEPIC with coupled and uncoupled inductors
- ANP138 Custom Rated Current Calculator
- ANP142 Effects of molded power inductor degradation due to higher voltage or temperature in a DC/DC converter
- SN018 Cracks on Molded Power Inductors
Products
All
4012
4020
4020 HT
5020
5020 HT
5030
7030
7030 HT
7050
7050 HT
8030
8040
1040
1335
1365
Filter by
show in
article in 15 product lines
Reset allOrder Code | Datasheet | Simulation | Downloads | Status | L(µH) | IRP,40K(A) | ISAT,10%(A) | ISAT,30%(A) | RDC max.(mΩ) | fres(MHz) | Mount | Design Kit | SamplesAvailability & Sample | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
744373210010 | SPEC0.1 µH, 14.1 A, 16.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.1 µH | Performance Rated Current14.1 A | Saturation Current @ 10%16.1 A | Saturation Current @ 30%29.6 A | DC Resistance5.5 mΩ | Self Resonant Frequency365 MHz | MountSMT | Design Kit | –Check availability | ||
744373240010 | SPEC0.1 µH, 16.5 A, 20.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.1 µH | Performance Rated Current16.5 A | Saturation Current @ 10%20.9 A | Saturation Current @ 30%37.6 A | DC Resistance4 mΩ | Self Resonant Frequency323 MHz | MountSMT | Design Kit | –Check availability | ||
744373210022 | SPEC0.22 µH, 11.4 A, 11.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.22 µH | Performance Rated Current11.4 A | Saturation Current @ 10%11.1 A | Saturation Current @ 30%21.5 A | DC Resistance8 mΩ | Self Resonant Frequency230 MHz | MountSMT | Design Kit | –Check availability | ||
744373240022 | SPEC0.22 µH, 11.4 A, 10.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.22 µH | Performance Rated Current11.4 A | Saturation Current @ 10%10.8 A | Saturation Current @ 30%22.3 A | DC Resistance7.3 mΩ | Self Resonant Frequency195 MHz | MountSMT | Design Kit | –Check availability | ||
744373460022 | SPEC0.22 µH, 23 A, 29.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.22 µH | Performance Rated Current23 A | Saturation Current @ 10%29.9 A | Saturation Current @ 30%54.3 A | DC Resistance2.8 mΩ | Self Resonant Frequency149 MHz | MountSMT | Design Kit | –Check availability | ||
744373560022 | SPEC0.22 µH, 29.5 A, 32.1 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.22 µH | Performance Rated Current29.5 A | Saturation Current @ 10%32.1 A | Saturation Current @ 30%63.4 A | DC Resistance1.61 mΩ | Self Resonant Frequency110 MHz | MountSMT | Design Kit – | –Check availability | ||
744373580022 | SPEC0.22 µH, 38.5 A, 38.3 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.22 µH | Performance Rated Current38.5 A | Saturation Current @ 10%38.3 A | Saturation Current @ 30%80.4 A | DC Resistance1.35 mΩ | Self Resonant Frequency145 MHz | MountSMT | Design Kit – | –Check availability | ||
744373680022 | SPEC0.22 µH, 41.4 A, 46 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.22 µH | Performance Rated Current41.4 A | Saturation Current @ 10%46 A | Saturation Current @ 30%94.2 A | DC Resistance1 mΩ | Self Resonant Frequency153 MHz | MountSMT | Design Kit | –Check availability | ||
744373770022 | SPEC0.22 µH, 45 A, 23.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.22 µH | Performance Rated Current45 A | Saturation Current @ 10%23.9 A | Saturation Current @ 30%57.4 A | DC Resistance0.9 mΩ | Self Resonant Frequency130 MHz | MountSMT | Design Kit | –Check availability | ||
7443739650022 | SPEC0.22 µH, 54.9 A, 81.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.22 µH | Performance Rated Current54.9 A | Saturation Current @ 10%81.5 A | Saturation Current @ 30%120 A | DC Resistance0.6 mΩ | Self Resonant Frequency112.3 MHz | MountSMT | Design Kit – | –Check availability | ||
744373240033 | SPEC0.33 µH, 10.5 A, 11.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.33 µH | Performance Rated Current10.5 A | Saturation Current @ 10%11.2 A | Saturation Current @ 30%22 A | DC Resistance8.6 mΩ | Self Resonant Frequency143 MHz | MountSMT | Design Kit | –Check availability | ||
744373340033 | SPEC0.33 µH, 12.4 A, 14.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.33 µH | Performance Rated Current12.4 A | Saturation Current @ 10%14.7 A | Saturation Current @ 30%29.3 A | DC Resistance7.3 mΩ | Self Resonant Frequency100 MHz | MountSMT | Design Kit | –Check availability | ||
744373360033 | SPEC0.33 µH, 15.1 A, 15 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.33 µH | Performance Rated Current15.1 A | Saturation Current @ 10%15 A | Saturation Current @ 30%29.3 A | DC Resistance5 mΩ | Self Resonant Frequency120 MHz | MountSMT | Design Kit | –Check availability | ||
744373460033 | SPEC0.33 µH, 17.8 A, 27.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.33 µH | Performance Rated Current17.8 A | Saturation Current @ 10%27.1 A | Saturation Current @ 30%47 A | DC Resistance3.9 mΩ | Self Resonant Frequency124 MHz | MountSMT | Design Kit | –Check availability | ||
744373560033 | SPEC0.33 µH, 24.8 A, 26.2 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.33 µH | Performance Rated Current24.8 A | Saturation Current @ 10%26.2 A | Saturation Current @ 30%51.9 A | DC Resistance2.57 mΩ | Self Resonant Frequency95 MHz | MountSMT | Design Kit – | –Check availability | ||
744373580033 | SPEC0.33 µH, 29.7 A, 31.4 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.33 µH | Performance Rated Current29.7 A | Saturation Current @ 10%31.4 A | Saturation Current @ 30%67.2 A | DC Resistance2.15 mΩ | Self Resonant Frequency96 MHz | MountSMT | Design Kit – | –Check availability | ||
744373770033 | SPEC0.33 µH, 41.6 A, 23.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.33 µH | Performance Rated Current41.6 A | Saturation Current @ 10%23.9 A | Saturation Current @ 30%65.5 A | DC Resistance1.05 mΩ | Self Resonant Frequency84 MHz | MountSMT | Design Kit | –Check availability | ||
7443739650033 | SPEC0.33 µH, 49 A, 57.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.33 µH | Performance Rated Current49 A | Saturation Current @ 10%57.5 A | Saturation Current @ 30%108.6 A | DC Resistance0.8 mΩ | Self Resonant Frequency74.7 MHz | MountSMT | Design Kit – | –Check availability | ||
744373680036 | SPEC0.36 µH, 36.2 A, 44.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.36 µH | Performance Rated Current36.2 A | Saturation Current @ 10%44.5 A | Saturation Current @ 30%79.4 A | DC Resistance1.2 mΩ | Self Resonant Frequency104 MHz | MountSMT | Design Kit | –Check availability | ||
744373680039 | SPEC0.39 µH, 35.3 A, 43 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.39 µH | Performance Rated Current35.3 A | Saturation Current @ 10%43 A | Saturation Current @ 30%77.5 A | DC Resistance1.3 mΩ | Self Resonant Frequency101 MHz | MountSMT | Design Kit | –Check availability | ||
744373680045 | SPEC0.45 µH, 32.6 A, 34.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.45 µH | Performance Rated Current32.6 A | Saturation Current @ 10%34.9 A | Saturation Current @ 30%64.5 A | DC Resistance1.5 mΩ | Self Resonant Frequency82 MHz | MountSMT | Design Kit | –Check availability | ||
744373210047 | SPEC0.47 µH, 6.9 A, 6.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.47 µH | Performance Rated Current6.9 A | Saturation Current @ 10%6.8 A | Saturation Current @ 30%12.5 A | DC Resistance20 mΩ | Self Resonant Frequency120 MHz | MountSMT | Design Kit | –Check availability | ||
744373240047 | SPEC0.47 µH, 8.7 A, 10.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.47 µH | Performance Rated Current8.7 A | Saturation Current @ 10%10.4 A | Saturation Current @ 30%19.6 A | DC Resistance14 mΩ | Self Resonant Frequency122 MHz | MountSMT | Design Kit | –Check availability | ||
744373340047 | SPEC0.47 µH, 11.5 A, 9.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.47 µH | Performance Rated Current11.5 A | Saturation Current @ 10%9.6 A | Saturation Current @ 30%19.8 A | DC Resistance8.6 mΩ | Self Resonant Frequency95 MHz | MountSMT | Design Kit | –Check availability | ||
744373360047 | SPEC0.47 µH, 12.3 A, 10.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.47 µH | Performance Rated Current12.3 A | Saturation Current @ 10%10.8 A | Saturation Current @ 30%21.5 A | DC Resistance7.4 mΩ | Self Resonant Frequency100 MHz | MountSMT | Design Kit | –Check availability | ||
744373460047 | SPEC0.47 µH, 16.6 A, 21.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.47 µH | Performance Rated Current16.6 A | Saturation Current @ 10%21.4 A | Saturation Current @ 30%37.8 A | DC Resistance4.2 mΩ | Self Resonant Frequency91 MHz | MountSMT | Design Kit | –Check availability | ||
744373490047 | SPEC0.47 µH, 17.8 A, 20 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.47 µH | Performance Rated Current17.8 A | Saturation Current @ 10%20 A | Saturation Current @ 30%41.6 A | DC Resistance3.9 mΩ | Self Resonant Frequency96 MHz | MountSMT | Design Kit | –Check availability | ||
744373560047 | SPEC0.47 µH, 23.2 A, 22 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.47 µH | Performance Rated Current23.2 A | Saturation Current @ 10%22 A | Saturation Current @ 30%44.7 A | DC Resistance3.33 mΩ | Self Resonant Frequency72 MHz | MountSMT | Design Kit – | –Check availability | ||
744373580047 | SPEC0.47 µH, 27.6 A, 27.1 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.47 µH | Performance Rated Current27.6 A | Saturation Current @ 10%27.1 A | Saturation Current @ 30%56.8 A | DC Resistance2.38 mΩ | Self Resonant Frequency82 MHz | MountSMT | Design Kit – | –Check availability | ||
744373770047 | SPEC0.47 µH, 33.8 A, 17.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.47 µH | Performance Rated Current33.8 A | Saturation Current @ 10%17.2 A | Saturation Current @ 30%40.2 A | DC Resistance1.6 mΩ | Self Resonant Frequency77 MHz | MountSMT | Design Kit | –Check availability | ||
7443739650047 | SPEC0.47 µH, 40.7 A, 49.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.47 µH | Performance Rated Current40.7 A | Saturation Current @ 10%49.7 A | Saturation Current @ 30%99.4 A | DC Resistance1.2 mΩ | Self Resonant Frequency60 MHz | MountSMT | Design Kit – | –Check availability | ||
744373240056 | SPEC0.56 µH, 7.9 A, 6.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.56 µH | Performance Rated Current7.9 A | Saturation Current @ 10%6.7 A | Saturation Current @ 30%13 A | DC Resistance16 mΩ | Self Resonant Frequency104 MHz | MountSMT | Design Kit | –Check availability | ||
744373490056 | SPEC0.56 µH, 17.6 A, 19.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.56 µH | Performance Rated Current17.6 A | Saturation Current @ 10%19.9 A | Saturation Current @ 30%36.4 A | DC Resistance4.2 mΩ | Self Resonant Frequency85 MHz | MountSMT | Design Kit | –Check availability | ||
744373680056 | SPEC0.56 µH, 29.3 A, 31.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.56 µH | Performance Rated Current29.3 A | Saturation Current @ 10%31.7 A | Saturation Current @ 30%60.9 A | DC Resistance1.8 mΩ | Self Resonant Frequency70 MHz | MountSMT | Design Kit | –Check availability | ||
744373770056 | SPEC0.56 µH, 32.9 A, 16.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.56 µH | Performance Rated Current32.9 A | Saturation Current @ 10%16.8 A | Saturation Current @ 30%42.8 A | DC Resistance1.7 mΩ | Self Resonant Frequency59 MHz | MountSMT | Design Kit | –Check availability | ||
7443739650056 | SPEC0.56 µH, 37.1 A, 36.3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.56 µH | Performance Rated Current37.1 A | Saturation Current @ 10%36.3 A | Saturation Current @ 30%68.3 A | DC Resistance1.2 mΩ | Self Resonant Frequency51.7 MHz | MountSMT | Design Kit – | –Check availability | ||
744373240068 | SPEC0.68 µH, 7.3 A, 7.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.68 µH | Performance Rated Current7.3 A | Saturation Current @ 10%7.1 A | Saturation Current @ 30%14 A | DC Resistance19 mΩ | Self Resonant Frequency90 MHz | MountSMT | Design Kit | –Check availability | ||
744373340068 | SPEC0.68 µH, 9.4 A, 9.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.68 µH | Performance Rated Current9.4 A | Saturation Current @ 10%9.8 A | Saturation Current @ 30%17.8 A | DC Resistance12.4 mΩ | Self Resonant Frequency90 MHz | MountSMT | Design Kit | –Check availability | ||
744373360068 | SPEC0.68 µH, 9.8 A, 10.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.68 µH | Performance Rated Current9.8 A | Saturation Current @ 10%10.2 A | Saturation Current @ 30%19.3 A | DC Resistance12 mΩ | Self Resonant Frequency90 MHz | MountSMT | Design Kit | –Check availability | ||
744373460068 | SPEC0.68 µH, 15.1 A, 15.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.68 µH | Performance Rated Current15.1 A | Saturation Current @ 10%15.9 A | Saturation Current @ 30%31.6 A | DC Resistance5.5 mΩ | Self Resonant Frequency72 MHz | MountSMT | Design Kit | –Check availability | ||
744373490068 | SPEC0.68 µH, 16.7 A, 18.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.68 µH | Performance Rated Current16.7 A | Saturation Current @ 10%18.8 A | Saturation Current @ 30%33.8 A | DC Resistance4.5 mΩ | Self Resonant Frequency73 MHz | MountSMT | Design Kit | –Check availability | ||
744373560068 | SPEC0.68 µH, 18.5 A, 21 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.68 µH | Performance Rated Current18.5 A | Saturation Current @ 10%21 A | Saturation Current @ 30%43 A | DC Resistance3.99 mΩ | Self Resonant Frequency53 MHz | MountSMT | Design Kit – | –Check availability | ||
744373580068 | SPEC0.68 µH, 21.5 A, 17.5 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.68 µH | Performance Rated Current21.5 A | Saturation Current @ 10%17.5 A | Saturation Current @ 30%37.8 A | DC Resistance3.22 mΩ | Self Resonant Frequency45 MHz | MountSMT | Design Kit – | –Check availability | ||
744373680068 | SPEC0.68 µH, 23.8 A, 30.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.68 µH | Performance Rated Current23.8 A | Saturation Current @ 10%30.6 A | Saturation Current @ 30%58.3 A | DC Resistance2.7 mΩ | Self Resonant Frequency53 MHz | MountSMT | Design Kit | –Check availability | ||
744373770068 | SPEC0.68 µH, 28.8 A, 15.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.68 µH | Performance Rated Current28.8 A | Saturation Current @ 10%15.7 A | Saturation Current @ 30%42.5 A | DC Resistance2.2 mΩ | Self Resonant Frequency51 MHz | MountSMT | Design Kit | –Check availability | ||
7443739650068 | SPEC0.68 µH, 35.6 A, 35.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.68 µH | Performance Rated Current35.6 A | Saturation Current @ 10%35.7 A | Saturation Current @ 30%67.4 A | DC Resistance1.5 mΩ | Self Resonant Frequency51.1 MHz | MountSMT | Design Kit – | –Check availability | ||
744373460082 | SPEC0.82 µH, 12.7 A, 15 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.82 µH | Performance Rated Current12.7 A | Saturation Current @ 10%15 A | Saturation Current @ 30%31.9 A | DC Resistance8 mΩ | Self Resonant Frequency60 MHz | MountSMT | Design Kit | –Check availability | ||
744373490082 | SPEC0.82 µH, 15.5 A, 17.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.82 µH | Performance Rated Current15.5 A | Saturation Current @ 10%17.4 A | Saturation Current @ 30%31.6 A | DC Resistance4.9 mΩ | Self Resonant Frequency70 MHz | MountSMT | Design Kit | –Check availability | ||
744373560082 | SPEC0.82 µH, 17.3 A, 19.3 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.82 µH | Performance Rated Current17.3 A | Saturation Current @ 10%19.3 A | Saturation Current @ 30%40.9 A | DC Resistance4.87 mΩ | Self Resonant Frequency51 MHz | MountSMT | Design Kit – | –Check availability | ||
744373580082 | SPEC0.82 µH, 20.7 A, 19.7 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance0.82 µH | Performance Rated Current20.7 A | Saturation Current @ 10%19.7 A | Saturation Current @ 30%41.6 A | DC Resistance3.88 mΩ | Self Resonant Frequency51 MHz | MountSMT | Design Kit – | –Check availability | ||
74437321010 | SPEC1 µH, 4.5 A, 5.65 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current4.5 A | Saturation Current @ 10%5.65 A | Saturation Current @ 30%10 A | DC Resistance47 mΩ | Self Resonant Frequency90 MHz | MountSMT | Design Kit | –Check availability | ||
74437324010 | SPEC1 µH, 6.2 A, 6.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current6.2 A | Saturation Current @ 10%6.5 A | Saturation Current @ 30%12.5 A | DC Resistance27 mΩ | Self Resonant Frequency89 MHz | MountSMT | Design Kit | –Check availability | ||
74437334010 | SPEC1 µH, 7.4 A, 9.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current7.4 A | Saturation Current @ 10%9.2 A | Saturation Current @ 30%17.7 A | DC Resistance20 mΩ | Self Resonant Frequency65 MHz | MountSMT | Design Kit | –Check availability | ||
74437336010 | SPEC1 µH, 8.6 A, 7.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current8.6 A | Saturation Current @ 10%7.4 A | Saturation Current @ 30%14.2 A | DC Resistance14 mΩ | Self Resonant Frequency60 MHz | MountSMT | Design Kit | –Check availability | ||
74437346010 | SPEC1 µH, 11.4 A, 14.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current11.4 A | Saturation Current @ 10%14.7 A | Saturation Current @ 30%29 A | DC Resistance10 mΩ | Self Resonant Frequency54 MHz | MountSMT | Design Kit | –Check availability | ||
74437349010 | SPEC1 µH, 13.4 A, 13 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current13.4 A | Saturation Current @ 10%13 A | Saturation Current @ 30%25.8 A | DC Resistance6.5 mΩ | Self Resonant Frequency51 MHz | MountSMT | Design Kit | –Check availability | ||
74437356010 | SPEC1 µH, 15.7 A, 15.8 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current15.7 A | Saturation Current @ 10%15.8 A | Saturation Current @ 30%34.2 A | DC Resistance8.35 mΩ | Self Resonant Frequency44 MHz | MountSMT | Design Kit – | –Check availability | ||
74437358010 | SPEC1 µH, 18.6 A, 20.6 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current18.6 A | Saturation Current @ 10%20.6 A | Saturation Current @ 30%43.1 A | DC Resistance4.63 mΩ | Self Resonant Frequency42 MHz | MountSMT | Design Kit – | –Check availability | ||
74437368010 | SPEC1 µH, 21.3 A, 22.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current21.3 A | Saturation Current @ 10%22.7 A | Saturation Current @ 30%48.3 A | DC Resistance3.3 mΩ | Self Resonant Frequency45 MHz | MountSMT | Design Kit | –Check availability | ||
74437377010 | SPEC1 µH, 23.5 A, 15.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current23.5 A | Saturation Current @ 10%15.4 A | Saturation Current @ 30%38 A | DC Resistance3.5 mΩ | Self Resonant Frequency41 MHz | MountSMT | Design Kit | –Check availability | ||
744373965010 | SPEC1 µH, 28.2 A, 32.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current28.2 A | Saturation Current @ 10%32.7 A | Saturation Current @ 30%59.9 A | DC Resistance2.3 mΩ | Self Resonant Frequency43.5 MHz | MountSMT | Design Kit – | –Check availability | ||
7443732448010 | SPEC1 µH, 6.7 A, 4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current6.7 A | Saturation Current @ 10%4 A | Saturation Current @ 30%8.5 A | DC Resistance27 mΩ | Self Resonant Frequency66 MHz | MountSMT | Design Kit | –Check availability | ||
7443733448010 | SPEC1 µH, 9.5 A, 5.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current9.5 A | Saturation Current @ 10%5.4 A | Saturation Current @ 30%12 A | DC Resistance17.5 mΩ | Self Resonant Frequency62 MHz | MountSMT | Design Kit | –Check availability | ||
7443734648010 | SPEC1 µH, 13.5 A, 8.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current13.5 A | Saturation Current @ 10%8.5 A | Saturation Current @ 30%18.5 A | DC Resistance7.4 mΩ | Self Resonant Frequency53 MHz | MountSMT | Design Kit | –Check availability | ||
7443734948010 | SPEC1 µH, 18 A, 8.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1 µH | Performance Rated Current18 A | Saturation Current @ 10%8.5 A | Saturation Current @ 30%17.8 A | DC Resistance6.5 mΩ | Self Resonant Frequency44 MHz | MountSMT | Design Kit | –Check availability | ||
74437324012 | SPEC1.2 µH, 5.85 A, 6.3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.2 µH | Performance Rated Current5.85 A | Saturation Current @ 10%6.3 A | Saturation Current @ 30%11.6 A | DC Resistance30 mΩ | Self Resonant Frequency71 MHz | MountSMT | Design Kit | –Check availability | ||
74437334012 | SPEC1.2 µH, 6.4 A, 7.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.2 µH | Performance Rated Current6.4 A | Saturation Current @ 10%7.5 A | Saturation Current @ 30%14 A | DC Resistance28 mΩ | Self Resonant Frequency60 MHz | MountSMT | Design Kit | –Check availability | ||
74437336012 | SPEC1.2 µH, 8.3 A, 7.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.2 µH | Performance Rated Current8.3 A | Saturation Current @ 10%7.5 A | Saturation Current @ 30%13.9 A | DC Resistance16 mΩ | Self Resonant Frequency50 MHz | MountSMT | Design Kit | –Check availability | ||
74437349012 | SPEC1.2 µH, 12.4 A, 12 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.2 µH | Performance Rated Current12.4 A | Saturation Current @ 10%12 A | Saturation Current @ 30%24 A | DC Resistance7.5 mΩ | Self Resonant Frequency45 MHz | MountSMT | Design Kit | –Check availability | ||
74437321015 | SPEC1.5 µH, 3.9 A, 2.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current3.9 A | Saturation Current @ 10%2.7 A | Saturation Current @ 30%5.1 A | DC Resistance63.3 mΩ | Self Resonant Frequency60 MHz | MountSMT | Design Kit | –Check availability | ||
74437324015 | SPEC1.5 µH, 4.9 A, 5.65 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current4.9 A | Saturation Current @ 10%5.65 A | Saturation Current @ 30%10.1 A | DC Resistance42 mΩ | Self Resonant Frequency64 MHz | MountSMT | Design Kit | –Check availability | ||
74437334015 | SPEC1.5 µH, 6 A, 6.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current6 A | Saturation Current @ 10%6.6 A | Saturation Current @ 30%13.6 A | DC Resistance30.5 mΩ | Self Resonant Frequency50 MHz | MountSMT | Design Kit | –Check availability | ||
74437336015 | SPEC1.5 µH, 7.8 A, 7.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current7.8 A | Saturation Current @ 10%7.7 A | Saturation Current @ 30%14.2 A | DC Resistance25 mΩ | Self Resonant Frequency45 MHz | MountSMT | Design Kit | –Check availability | ||
74437346015 | SPEC1.5 µH, 9.1 A, 11.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current9.1 A | Saturation Current @ 10%11.2 A | Saturation Current @ 30%27.6 A | DC Resistance15 mΩ | Self Resonant Frequency45 MHz | MountSMT | Design Kit | –Check availability | ||
74437349015 | SPEC1.5 µH, 11.3 A, 9.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current11.3 A | Saturation Current @ 10%9.7 A | Saturation Current @ 30%18.7 A | DC Resistance9 mΩ | Self Resonant Frequency35 MHz | MountSMT | Design Kit | –Check availability | ||
74437356015 | SPEC1.5 µH, 12.2 A, 13.5 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current12.2 A | Saturation Current @ 10%13.5 A | Saturation Current @ 30%27.2 A | DC Resistance13.3 mΩ | Self Resonant Frequency32 MHz | MountSMT | Design Kit – | –Check availability | ||
74437377015 | SPEC1.5 µH, 17.8 A, 14.3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current17.8 A | Saturation Current @ 10%14.3 A | Saturation Current @ 30%33.8 A | DC Resistance5.5 mΩ | Self Resonant Frequency30 MHz | MountSMT | Design Kit | –Check availability | ||
744373965015 | SPEC1.5 µH, 25.7 A, 28.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current25.7 A | Saturation Current @ 10%28.9 A | Saturation Current @ 30%55.2 A | DC Resistance3 mΩ | Self Resonant Frequency29.5 MHz | MountSMT | Design Kit – | –Check availability | ||
7443732448015 | SPEC1.5 µH, 6 A, 3.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current6 A | Saturation Current @ 10%3.4 A | Saturation Current @ 30%7 A | DC Resistance46 mΩ | Self Resonant Frequency55 MHz | MountSMT | Design Kit | –Check availability | ||
7443733448015 | SPEC1.5 µH, 5.7 A, 4.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current5.7 A | Saturation Current @ 10%4.2 A | Saturation Current @ 30%9.5 A | DC Resistance43 mΩ | Self Resonant Frequency54 MHz | MountSMT | Design Kit | –Check availability | ||
7443734648015 | SPEC1.5 µH, 11.8 A, 8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current11.8 A | Saturation Current @ 10%8 A | Saturation Current @ 30%17 A | DC Resistance12.1 mΩ | Self Resonant Frequency44 MHz | MountSMT | Design Kit | –Check availability | ||
7443734948015 | SPEC1.5 µH, 15.8 A, 7.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.5 µH | Performance Rated Current15.8 A | Saturation Current @ 10%7.5 A | Saturation Current @ 30%15.5 A | DC Resistance8.5 mΩ | Self Resonant Frequency38 MHz | MountSMT | Design Kit | –Check availability | ||
74437346018 | SPEC1.8 µH, 8.8 A, 10.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance1.8 µH | Performance Rated Current8.8 A | Saturation Current @ 10%10.2 A | Saturation Current @ 30%21.4 A | DC Resistance17 mΩ | Self Resonant Frequency35 MHz | MountSMT | Design Kit – | –Check availability | ||
74437321022 | SPEC2.2 µH, 3.5 A, 3.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current3.5 A | Saturation Current @ 10%3.2 A | Saturation Current @ 30%6.2 A | DC Resistance80 mΩ | Self Resonant Frequency55 MHz | MountSMT | Design Kit | –Check availability | ||
74437324022 | SPEC2.2 µH, 4.05 A, 4.45 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current4.05 A | Saturation Current @ 10%4.45 A | Saturation Current @ 30%8.4 A | DC Resistance61 mΩ | Self Resonant Frequency49 MHz | MountSMT | Design Kit | –Check availability | ||
74437334022 | SPEC2.2 µH, 4.75 A, 6.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current4.75 A | Saturation Current @ 10%6.4 A | Saturation Current @ 30%11.9 A | DC Resistance50 mΩ | Self Resonant Frequency46 MHz | MountSMT | Design Kit | –Check availability | ||
74437336022 | SPEC2.2 µH, 6.2 A, 7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current6.2 A | Saturation Current @ 10%7 A | Saturation Current @ 30%14 A | DC Resistance35 mΩ | Self Resonant Frequency42 MHz | MountSMT | Design Kit | –Check availability | ||
74437346022 | SPEC2.2 µH, 7.7 A, 10 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current7.7 A | Saturation Current @ 10%10 A | Saturation Current @ 30%19.1 A | DC Resistance20 mΩ | Self Resonant Frequency32 MHz | MountSMT | Design Kit | –Check availability | ||
74437349022 | SPEC2.2 µH, 9.9 A, 10.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current9.9 A | Saturation Current @ 10%10.5 A | Saturation Current @ 30%19.1 A | DC Resistance12 mΩ | Self Resonant Frequency30 MHz | MountSMT | Design Kit | –Check availability | ||
74437356022 | SPEC2.2 µH, 9.5 A, 10 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current9.5 A | Saturation Current @ 10%10 A | Saturation Current @ 30%19.6 A | DC Resistance20.3 mΩ | Self Resonant Frequency24 MHz | MountSMT | Design Kit – | –Check availability | ||
74437358022 | SPEC2.2 µH, 12 A, 17.2 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current12 A | Saturation Current @ 10%17.2 A | Saturation Current @ 30%36.8 A | DC Resistance9.41 mΩ | Self Resonant Frequency29 MHz | MountSMT | Design Kit – | –Check availability | ||
74437368022 | SPEC2.2 µH, 14.3 A, 18.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current14.3 A | Saturation Current @ 10%18.1 A | Saturation Current @ 30%38.7 A | DC Resistance7 mΩ | Self Resonant Frequency27 MHz | MountSMT | Design Kit | –Check availability | ||
74437377022 | SPEC2.2 µH, 14.3 A, 14.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current14.3 A | Saturation Current @ 10%14.2 A | Saturation Current @ 30%31.2 A | DC Resistance8 mΩ | Self Resonant Frequency22 MHz | MountSMT | Design Kit | –Check availability | ||
744373965022 | SPEC2.2 µH, 21.6 A, 20.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current21.6 A | Saturation Current @ 10%20.7 A | Saturation Current @ 30%41.1 A | DC Resistance4.2 mΩ | Self Resonant Frequency21.6 MHz | MountSMT | Design Kit – | –Check availability | ||
7443732448022 | SPEC2.2 µH, 5.1 A, 2.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current5.1 A | Saturation Current @ 10%2.9 A | Saturation Current @ 30%6 A | DC Resistance61 mΩ | Self Resonant Frequency44 MHz | MountSMT | Design Kit | –Check availability | ||
7443733448022 | SPEC2.2 µH, 6 A, 3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current6 A | Saturation Current @ 10%3 A | Saturation Current @ 30%6.7 A | DC Resistance38 mΩ | Self Resonant Frequency40 MHz | MountSMT | Design Kit | –Check availability | ||
7443734648022 | SPEC2.2 µH, 9.7 A, 6.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current9.7 A | Saturation Current @ 10%6.8 A | Saturation Current @ 30%14.7 A | DC Resistance17 mΩ | Self Resonant Frequency34 MHz | MountSMT | Design Kit | –Check availability | ||
7443734948022 | SPEC2.2 µH, 12.3 A, 6.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.2 µH | Performance Rated Current12.3 A | Saturation Current @ 10%6.5 A | Saturation Current @ 30%12.8 A | DC Resistance14 mΩ | Self Resonant Frequency31 MHz | MountSMT | Design Kit | –Check availability | ||
74437346025 | SPEC2.5 µH, 7.3 A, 8.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance2.5 µH | Performance Rated Current7.3 A | Saturation Current @ 10%8.5 A | Saturation Current @ 30%17.3 A | DC Resistance22 mΩ | Self Resonant Frequency30 MHz | MountSMT | Design Kit – | –Check availability | ||
74437321033 | SPEC3.3 µH, 3.15 A, 2.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current3.15 A | Saturation Current @ 10%2.6 A | Saturation Current @ 30%4.8 A | DC Resistance97 mΩ | Self Resonant Frequency40 MHz | MountSMT | Design Kit | –Check availability | ||
74437324033 | SPEC3.3 µH, 3.5 A, 2.75 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current3.5 A | Saturation Current @ 10%2.75 A | Saturation Current @ 30%5.45 A | DC Resistance76 mΩ | Self Resonant Frequency40 MHz | MountSMT | Design Kit | –Check availability | ||
74437334033 | SPEC3.3 µH, 3.75 A, 5.25 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current3.75 A | Saturation Current @ 10%5.25 A | Saturation Current @ 30%9.6 A | DC Resistance76 mΩ | Self Resonant Frequency35 MHz | MountSMT | Design Kit | –Check availability | ||
74437336033 | SPEC3.3 µH, 5.45 A, 5.55 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current5.45 A | Saturation Current @ 10%5.55 A | Saturation Current @ 30%10.9 A | DC Resistance38 mΩ | Self Resonant Frequency27 MHz | MountSMT | Design Kit | –Check availability | ||
74437346033 | SPEC3.3 µH, 6.2 A, 8.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current6.2 A | Saturation Current @ 10%8.4 A | Saturation Current @ 30%16.6 A | DC Resistance30 mΩ | Self Resonant Frequency27 MHz | MountSMT | Design Kit | –Check availability | ||
74437349033 | SPEC3.3 µH, 7.5 A, 7.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current7.5 A | Saturation Current @ 10%7.9 A | Saturation Current @ 30%15.1 A | DC Resistance20.9 mΩ | Self Resonant Frequency26 MHz | MountSMT | Design Kit | –Check availability | ||
74437356033 | SPEC3.3 µH, 8 A, 8.8 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current8 A | Saturation Current @ 10%8.8 A | Saturation Current @ 30%16.1 A | DC Resistance27.4 mΩ | Self Resonant Frequency19 MHz | MountSMT | Design Kit – | –Check availability | ||
74437358033 | SPEC3.3 µH, 10 A, 12.4 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current10 A | Saturation Current @ 10%12.4 A | Saturation Current @ 30%27 A | DC Resistance14.9 mΩ | Self Resonant Frequency20 MHz | MountSMT | Design Kit – | –Check availability | ||
74437368033 | SPEC3.3 µH, 11.1 A, 15.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current11.1 A | Saturation Current @ 10%15.6 A | Saturation Current @ 30%31.2 A | DC Resistance11.8 mΩ | Self Resonant Frequency22 MHz | MountSMT | Design Kit | –Check availability | ||
74437377033 | SPEC3.3 µH, 12.8 A, 13.3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current12.8 A | Saturation Current @ 10%13.3 A | Saturation Current @ 30%30.9 A | DC Resistance11 mΩ | Self Resonant Frequency17 MHz | MountSMT | Design Kit | –Check availability | ||
744373965033 | SPEC3.3 µH, 16.2 A, 20.3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current16.2 A | Saturation Current @ 10%20.3 A | Saturation Current @ 30%41.5 A | DC Resistance6.8 mΩ | Self Resonant Frequency20.3 MHz | MountSMT | Design Kit – | –Check availability | ||
7443732448033 | SPEC3.3 µH, 4.3 A, 2.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current4.3 A | Saturation Current @ 10%2.5 A | Saturation Current @ 30%5.6 A | DC Resistance71 mΩ | Self Resonant Frequency33 MHz | MountSMT | Design Kit | –Check availability | ||
7443733448033 | SPEC3.3 µH, 4.9 A, 2.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current4.9 A | Saturation Current @ 10%2.8 A | Saturation Current @ 30%6.5 A | DC Resistance60 mΩ | Self Resonant Frequency36 MHz | MountSMT | Design Kit | –Check availability | ||
7443734648033 | SPEC3.3 µH, 7.6 A, 5.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current7.6 A | Saturation Current @ 10%5.6 A | Saturation Current @ 30%10.8 A | DC Resistance22 mΩ | Self Resonant Frequency28 MHz | MountSMT | Design Kit | –Check availability | ||
7443734948033 | SPEC3.3 µH, 10.6 A, 5.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.3 µH | Performance Rated Current10.6 A | Saturation Current @ 10%5.6 A | Saturation Current @ 30%11.8 A | DC Resistance23 mΩ | Self Resonant Frequency26 MHz | MountSMT | Design Kit | –Check availability | ||
74437368039 | SPEC3.9 µH, 10.3 A, 12 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance3.9 µH | Performance Rated Current10.3 A | Saturation Current @ 10%12 A | Saturation Current @ 30%26.8 A | DC Resistance14.5 mΩ | Self Resonant Frequency17 MHz | MountSMT | Design Kit | –Check availability | ||
74437321047 | SPEC4.7 µH, 2.55 A, 2.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current2.55 A | Saturation Current @ 10%2.1 A | Saturation Current @ 30%4.1 A | DC Resistance145 mΩ | Self Resonant Frequency34 MHz | MountSMT | Design Kit | –Check availability | ||
74437324047 | SPEC4.7 µH, 2.95 A, 2.45 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current2.95 A | Saturation Current @ 10%2.45 A | Saturation Current @ 30%5.4 A | DC Resistance105 mΩ | Self Resonant Frequency31 MHz | MountSMT | Design Kit | –Check availability | ||
74437334047 | SPEC4.7 µH, 3 A, 4.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current3 A | Saturation Current @ 10%4.1 A | Saturation Current @ 30%7.5 A | DC Resistance116 mΩ | Self Resonant Frequency27 MHz | MountSMT | Design Kit | –Check availability | ||
74437336047 | SPEC4.7 µH, 4.35 A, 3.85 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current4.35 A | Saturation Current @ 10%3.85 A | Saturation Current @ 30%7.6 A | DC Resistance53 mΩ | Self Resonant Frequency25 MHz | MountSMT | Design Kit | –Check availability | ||
74437346047 | SPEC4.7 µH, 5.35 A, 7.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current5.35 A | Saturation Current @ 10%7.5 A | Saturation Current @ 30%15.5 A | DC Resistance40 mΩ | Self Resonant Frequency22 MHz | MountSMT | Design Kit | –Check availability | ||
74437349047 | SPEC4.7 µH, 6.2 A, 7.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current6.2 A | Saturation Current @ 10%7.5 A | Saturation Current @ 30%14.6 A | DC Resistance30.8 mΩ | Self Resonant Frequency24 MHz | MountSMT | Design Kit | –Check availability | ||
74437356047 | SPEC4.7 µH, 6.7 A, 8.1 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current6.7 A | Saturation Current @ 10%8.1 A | Saturation Current @ 30%15.2 A | DC Resistance34.2 mΩ | Self Resonant Frequency16 MHz | MountSMT | Design Kit – | –Check availability | ||
74437358047 | SPEC4.7 µH, 7.9 A, 10.8 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current7.9 A | Saturation Current @ 10%10.8 A | Saturation Current @ 30%22.9 A | DC Resistance22.6 mΩ | Self Resonant Frequency19 MHz | MountSMT | Design Kit – | –Check availability | ||
74437368047 | SPEC4.7 µH, 9.4 A, 11.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current9.4 A | Saturation Current @ 10%11.7 A | Saturation Current @ 30%26 A | DC Resistance15.5 mΩ | Self Resonant Frequency16 MHz | MountSMT | Design Kit | –Check availability | ||
74437377047 | SPEC4.7 µH, 10.6 A, 12 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current10.6 A | Saturation Current @ 10%12 A | Saturation Current @ 30%25.1 A | DC Resistance15 mΩ | Self Resonant Frequency13 MHz | MountSMT | Design Kit | –Check availability | ||
744373965047 | SPEC4.7 µH, 15.1 A, 18.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current15.1 A | Saturation Current @ 10%18.4 A | Saturation Current @ 30%35.8 A | DC Resistance8.4 mΩ | Self Resonant Frequency13.9 MHz | MountSMT | Design Kit – | –Check availability | ||
7443732448047 | SPEC4.7 µH, 3.3 A, 2.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current3.3 A | Saturation Current @ 10%2.2 A | Saturation Current @ 30%4.7 A | DC Resistance115 mΩ | Self Resonant Frequency25 MHz | MountSMT | Design Kit | –Check availability | ||
7443733448047 | SPEC4.7 µH, 3.6 A, 2.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current3.6 A | Saturation Current @ 10%2.6 A | Saturation Current @ 30%5.8 A | DC Resistance88 mΩ | Self Resonant Frequency30 MHz | MountSMT | Design Kit | –Check availability | ||
7443734648047 | SPEC4.7 µH, 6.1 A, 4.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current6.1 A | Saturation Current @ 10%4.4 A | Saturation Current @ 30%9.8 A | DC Resistance40 mΩ | Self Resonant Frequency24 MHz | MountSMT | Design Kit | –Check availability | ||
7443734948047 | SPEC4.7 µH, 8.5 A, 5.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance4.7 µH | Performance Rated Current8.5 A | Saturation Current @ 10%5.2 A | Saturation Current @ 30%11.4 A | DC Resistance31 mΩ | Self Resonant Frequency20 MHz | MountSMT | Design Kit | –Check availability | ||
74437321056 | SPEC5.6 µH, 2.15 A, 1.95 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 µH | Performance Rated Current2.15 A | Saturation Current @ 10%1.95 A | Saturation Current @ 30%3.65 A | DC Resistance208 mΩ | Self Resonant Frequency28 MHz | MountSMT | Design Kit | –Check availability | ||
74437324056 | SPEC5.6 µH, 2.6 A, 2.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 µH | Performance Rated Current2.6 A | Saturation Current @ 10%2.4 A | Saturation Current @ 30%5.1 A | DC Resistance125 mΩ | Self Resonant Frequency30 MHz | MountSMT | Design Kit | –Check availability | ||
74437334056 | SPEC5.6 µH, 2.85 A, 3.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 µH | Performance Rated Current2.85 A | Saturation Current @ 10%3.7 A | Saturation Current @ 30%7 A | DC Resistance122 mΩ | Self Resonant Frequency21 MHz | MountSMT | Design Kit | –Check availability | ||
74437336056 | SPEC5.6 µH, 4.15 A, 3.85 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 µH | Performance Rated Current4.15 A | Saturation Current @ 10%3.85 A | Saturation Current @ 30%7.7 A | DC Resistance63 mΩ | Self Resonant Frequency22 MHz | MountSMT | Design Kit | –Check availability | ||
74437346056 | SPEC5.6 µH, 5 A, 5.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 µH | Performance Rated Current5 A | Saturation Current @ 10%5.9 A | Saturation Current @ 30%12.1 A | DC Resistance48 mΩ | Self Resonant Frequency20 MHz | MountSMT | Design Kit | –Check availability | ||
74437349056 | SPEC5.6 µH, 4.9 A, 6.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 µH | Performance Rated Current4.9 A | Saturation Current @ 10%6.6 A | Saturation Current @ 30%16.5 A | DC Resistance49 mΩ | Self Resonant Frequency17 MHz | MountSMT | Design Kit | –Check availability | ||
744373965056 | SPEC5.6 µH, 13.3 A, 18.3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 µH | Performance Rated Current13.3 A | Saturation Current @ 10%18.3 A | Saturation Current @ 30%33 A | DC Resistance10 mΩ | Self Resonant Frequency13.7 MHz | MountSMT | Design Kit – | –Check availability | ||
74437368056 | SPEC5.6 µH, 8.7 A, 9.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance5.6 µH | Performance Rated Current8.7 A | Saturation Current @ 10%9.4 A | Saturation Current @ 30%19.4 A | DC Resistance19.3 mΩ | Self Resonant Frequency13 MHz | MountSMT | Design Kit – | –Check availability | ||
74437321068 | SPEC6.8 µH, 1.65 A, 1.65 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current1.65 A | Saturation Current @ 10%1.65 A | Saturation Current @ 30%3.05 A | DC Resistance360 mΩ | Self Resonant Frequency25 MHz | MountSMT | Design Kit | –Check availability | ||
74437324068 | SPEC6.8 µH, 2.35 A, 2.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current2.35 A | Saturation Current @ 10%2.4 A | Saturation Current @ 30%4.75 A | DC Resistance172 mΩ | Self Resonant Frequency29 MHz | MountSMT | Design Kit | –Check availability | ||
74437334068 | SPEC6.8 µH, 2.65 A, 3.05 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current2.65 A | Saturation Current @ 10%3.05 A | Saturation Current @ 30%5.55 A | DC Resistance150 mΩ | Self Resonant Frequency20.5 MHz | MountSMT | Design Kit | –Check availability | ||
74437336068 | SPEC6.8 µH, 3.75 A, 2.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current3.75 A | Saturation Current @ 10%2.9 A | Saturation Current @ 30%5.9 A | DC Resistance76.2 mΩ | Self Resonant Frequency20 MHz | MountSMT | Design Kit | –Check availability | ||
74437346068 | SPEC6.8 µH, 4.45 A, 5.45 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current4.45 A | Saturation Current @ 10%5.45 A | Saturation Current @ 30%10.6 A | DC Resistance60 mΩ | Self Resonant Frequency18 MHz | MountSMT | Design Kit | –Check availability | ||
74437349068 | SPEC6.8 µH, 4.8 A, 6.3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current4.8 A | Saturation Current @ 10%6.3 A | Saturation Current @ 30%13.1 A | DC Resistance51.5 mΩ | Self Resonant Frequency16 MHz | MountSMT | Design Kit | –Check availability | ||
74437356068 | SPEC6.8 µH, 5.8 A, 6.9 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current5.8 A | Saturation Current @ 10%6.9 A | Saturation Current @ 30%14.2 A | DC Resistance49.3 mΩ | Self Resonant Frequency14 MHz | MountSMT | Design Kit – | –Check availability | ||
74437358068 | SPEC6.8 µH, 6.4 A, 8.5 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current6.4 A | Saturation Current @ 10%8.5 A | Saturation Current @ 30%17.7 A | DC Resistance33.4 mΩ | Self Resonant Frequency12 MHz | MountSMT | Design Kit – | –Check availability | ||
74437368068 | SPEC6.8 µH, 8.6 A, 8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current8.6 A | Saturation Current @ 10%8 A | Saturation Current @ 30%17.4 A | DC Resistance23.3 mΩ | Self Resonant Frequency13 MHz | MountSMT | Design Kit | –Check availability | ||
744373965068 | SPEC6.8 µH, 12.7 A, 15.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current12.7 A | Saturation Current @ 10%15.8 A | Saturation Current @ 30%28.9 A | DC Resistance11.6 mΩ | Self Resonant Frequency11.6 MHz | MountSMT | Design Kit – | –Check availability | ||
7443732448068 | SPEC6.8 µH, 2.7 A, 1.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current2.7 A | Saturation Current @ 10%1.6 A | Saturation Current @ 30%3 A | DC Resistance228 mΩ | Self Resonant Frequency19 MHz | MountSMT | Design Kit | –Check availability | ||
7443733448068 | SPEC6.8 µH, 3.5 A, 1.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current3.5 A | Saturation Current @ 10%1.9 A | Saturation Current @ 30%4.5 A | DC Resistance159 mΩ | Self Resonant Frequency26 MHz | MountSMT | Design Kit | –Check availability | ||
7443734648068 | SPEC6.8 µH, 5.2 A, 3.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current5.2 A | Saturation Current @ 10%3.5 A | Saturation Current @ 30%7.6 A | DC Resistance48 mΩ | Self Resonant Frequency19 MHz | MountSMT | Design Kit | –Check availability | ||
7443734948068 | SPEC6.8 µH, 7.5 A, 4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance6.8 µH | Performance Rated Current7.5 A | Saturation Current @ 10%4 A | Saturation Current @ 30%8.4 A | DC Resistance34 mΩ | Self Resonant Frequency16 MHz | MountSMT | Design Kit | –Check availability | ||
74437321082 | SPEC8.2 µH, 1.6 A, 1.65 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Performance Rated Current1.6 A | Saturation Current @ 10%1.65 A | Saturation Current @ 30%2.85 A | DC Resistance376 mΩ | Self Resonant Frequency24 MHz | MountSMT | Design Kit | –Check availability | ||
74437324082 | SPEC8.2 µH, 2.3 A, 1.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Performance Rated Current2.3 A | Saturation Current @ 10%1.8 A | Saturation Current @ 30%3.8 A | DC Resistance180 mΩ | Self Resonant Frequency22 MHz | MountSMT | Design Kit | –Check availability | ||
74437334082 | SPEC8.2 µH, 2.5 A, 3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Performance Rated Current2.5 A | Saturation Current @ 10%3 A | Saturation Current @ 30%5.65 A | DC Resistance171 mΩ | Self Resonant Frequency20 MHz | MountSMT | Design Kit | –Check availability | ||
74437346082 | SPEC8.2 µH, 4.1 A, 5.1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Performance Rated Current4.1 A | Saturation Current @ 10%5.1 A | Saturation Current @ 30%10.1 A | DC Resistance68 mΩ | Self Resonant Frequency17 MHz | MountSMT | Design Kit | –Check availability | ||
74437349082 | SPEC8.2 µH, 4.35 A, 6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Performance Rated Current4.35 A | Saturation Current @ 10%6 A | Saturation Current @ 30%12.2 A | DC Resistance63 mΩ | Self Resonant Frequency15 MHz | MountSMT | Design Kit | –Check availability | ||
74437356082 | SPEC8.2 µH, 4.6 A, 6.3 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Performance Rated Current4.6 A | Saturation Current @ 10%6.3 A | Saturation Current @ 30%14 A | DC Resistance59.3 mΩ | Self Resonant Frequency11 MHz | MountSMT | Design Kit – | –Check availability | ||
74437358082 | SPEC8.2 µH, 5.45 A, 8.6 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance8.2 µH | Performance Rated Current5.45 A | Saturation Current @ 10%8.6 A | Saturation Current @ 30%16.6 A | DC Resistance45 mΩ | Self Resonant Frequency10 MHz | MountSMT | Design Kit – | –Check availability | ||
74437321100 | SPEC10 µH, 1.4 A, 1.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current1.4 A | Saturation Current @ 10%1.5 A | Saturation Current @ 30%2.65 A | DC Resistance463 mΩ | Self Resonant Frequency23 MHz | MountSMT | Design Kit | –Check availability | ||
74437324100 | SPEC10 µH, 1.95 A, 1.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current1.95 A | Saturation Current @ 10%1.5 A | Saturation Current @ 30%3.15 A | DC Resistance243 mΩ | Self Resonant Frequency23 MHz | MountSMT | Design Kit | –Check availability | ||
74437334100 | SPEC10 µH, 2.25 A, 2.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current2.25 A | Saturation Current @ 10%2.7 A | Saturation Current @ 30%5.15 A | DC Resistance199 mΩ | Self Resonant Frequency16 MHz | MountSMT | Design Kit | –Check availability | ||
74437336100 | SPEC10 µH, 2.9 A, 2.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current2.9 A | Saturation Current @ 10%2.8 A | Saturation Current @ 30%5.35 A | DC Resistance128 mΩ | Self Resonant Frequency16 MHz | MountSMT | Design Kit | –Check availability | ||
74437346100 | SPEC10 µH, 3.75 A, 5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current3.75 A | Saturation Current @ 10%5 A | Saturation Current @ 30%9.8 A | DC Resistance85 mΩ | Self Resonant Frequency15 MHz | MountSMT | Design Kit | –Check availability | ||
74437349100 | SPEC10 µH, 4.05 A, 5.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current4.05 A | Saturation Current @ 10%5.6 A | Saturation Current @ 30%10.5 A | DC Resistance69 mΩ | Self Resonant Frequency12 MHz | MountSMT | Design Kit | –Check availability | ||
74437356100 | SPEC10 µH, 4.45 A, 6.2 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current4.45 A | Saturation Current @ 10%6.2 A | Saturation Current @ 30%13.4 A | DC Resistance71.2 mΩ | Self Resonant Frequency10 MHz | MountSMT | Design Kit – | –Check availability | ||
74437358100 | SPEC10 µH, 5.05 A, 8.3 A PCN pendingDue to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current5.05 A | Saturation Current @ 10%8.3 A | Saturation Current @ 30%15.9 A | DC Resistance51.8 mΩ | Self Resonant Frequency9 MHz | MountSMT | Design Kit – | –Check availability | ||
74437368100 | SPEC10 µH, 7 A, 7.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current7 A | Saturation Current @ 10%7.9 A | Saturation Current @ 30%16.8 A | DC Resistance30 mΩ | Self Resonant Frequency12 MHz | MountSMT | Design Kit | –Check availability | ||
744373965100 | SPEC10 µH, 11.8 A, 13.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current11.8 A | Saturation Current @ 10%13.2 A | Saturation Current @ 30%23.9 A | DC Resistance16.5 mΩ | Self Resonant Frequency8 MHz | MountSMT | Design Kit – | –Check availability | ||
7443732448100 | SPEC10 µH, 2.4 A, 1 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current2.4 A | Saturation Current @ 10%1 A | Saturation Current @ 30%2.4 A | DC Resistance243 mΩ | Self Resonant Frequency16 MHz | MountSMT | Design Kit | –Check availability | ||
7443733448100 | SPEC10 µH, 2.6 A, 1.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current2.6 A | Saturation Current @ 10%1.2 A | Saturation Current @ 30%3 A | DC Resistance230 mΩ | Self Resonant Frequency20 MHz | MountSMT | Design Kit | –Check availability | ||
7443734648100 | SPEC10 µH, 4.3 A, 2.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current4.3 A | Saturation Current @ 10%2.8 A | Saturation Current @ 30%6 A | DC Resistance78 mΩ | Self Resonant Frequency15 MHz | MountSMT | Design Kit | –Check availability | ||
7443734948100 | SPEC10 µH, 6.6 A, 3.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance10 µH | Performance Rated Current6.6 A | Saturation Current @ 10%3.7 A | Saturation Current @ 30%8 A | DC Resistance50 mΩ | Self Resonant Frequency12 MHz | MountSMT | Design Kit | –Check availability | ||
744373965120 | SPEC12 µH, 9.1 A, 12.9 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance12 µH | Performance Rated Current9.1 A | Saturation Current @ 10%12.9 A | Saturation Current @ 30%26.6 A | DC Resistance20 mΩ | Self Resonant Frequency7.6 MHz | MountSMT | Design Kit – | –Check availability | ||
74437349150 | SPEC15 µH, 3.6 A, 3.5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Performance Rated Current3.6 A | Saturation Current @ 10%3.5 A | Saturation Current @ 30%7.2 A | DC Resistance92 mΩ | Self Resonant Frequency10 MHz | MountSMT | Design Kit | –Check availability | ||
74437368150 | SPEC15 µH, 5.7 A, 5.55 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Performance Rated Current5.7 A | Saturation Current @ 10%5.55 A | Saturation Current @ 30%11.8 A | DC Resistance45 mΩ | Self Resonant Frequency8 MHz | MountSMT | Design Kit | –Check availability | ||
74437324150 | SPEC15 µH, 1.6 A, 1.35 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Performance Rated Current1.6 A | Saturation Current @ 10%1.35 A | Saturation Current @ 30%2.75 A | DC Resistance374 mΩ | Self Resonant Frequency17 MHz | MountSMT | Design Kit | –Check availability | ||
744373965150 | SPEC15 µH, 7.7 A, 10.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Performance Rated Current7.7 A | Saturation Current @ 10%10.2 A | Saturation Current @ 30%18.5 A | DC Resistance28 mΩ | Self Resonant Frequency7.5 MHz | MountSMT | Design Kit – | –Check availability | ||
74437346150 | SPEC15 µH, 3.15 A, 3.2 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance15 µH | Performance Rated Current3.15 A | Saturation Current @ 10%3.2 A | Saturation Current @ 30%6.1 A | DC Resistance123 mΩ | Self Resonant Frequency12 MHz | MountSMT | Design Kit – | –Check availability | ||
74437324220 | SPEC22 µH, 1.3 A, 1.45 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Performance Rated Current1.3 A | Saturation Current @ 10%1.45 A | Saturation Current @ 30%2.35 A | DC Resistance500 mΩ | Self Resonant Frequency14 MHz | MountSMT | Design Kit | –Check availability | ||
74437346220 | SPEC22 µH, 2.5 A, 2.75 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Performance Rated Current2.5 A | Saturation Current @ 10%2.75 A | Saturation Current @ 30%5.95 A | DC Resistance190 mΩ | Self Resonant Frequency10 MHz | MountSMT | Design Kit | –Check availability | ||
74437349220 | SPEC22 µH, 2.75 A, 4.15 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Performance Rated Current2.75 A | Saturation Current @ 10%4.15 A | Saturation Current @ 30%8.5 A | DC Resistance170 mΩ | Self Resonant Frequency8 MHz | MountSMT | Design Kit | –Check availability | ||
74437368220 | SPEC22 µH, 4.5 A, 5 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Performance Rated Current4.5 A | Saturation Current @ 10%5 A | Saturation Current @ 30%10.8 A | DC Resistance74 mΩ | Self Resonant Frequency7 MHz | MountSMT | Design Kit | –Check availability | ||
744373965220 | SPEC22 µH, 6.5 A, 6.7 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance22 µH | Performance Rated Current6.5 A | Saturation Current @ 10%6.7 A | Saturation Current @ 30%13.9 A | DC Resistance37 mΩ | Self Resonant Frequency5.4 MHz | MountSMT | Design Kit – | –Check availability | ||
74437349330 | SPEC33 µH, 2.45 A, 2.6 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 µH | Performance Rated Current2.45 A | Saturation Current @ 10%2.6 A | Saturation Current @ 30%4.75 A | DC Resistance200 mΩ | Self Resonant Frequency7.5 MHz | MountSMT | Design Kit | –Check availability | ||
74437368330 | SPEC33 µH, 3.75 A, 3.3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 µH | Performance Rated Current3.75 A | Saturation Current @ 10%3.3 A | Saturation Current @ 30%7.4 A | DC Resistance112 mΩ | Self Resonant Frequency6 MHz | MountSMT | Design Kit | –Check availability | ||
744373965330 | SPEC33 µH, 5.45 A, 6.3 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance33 µH | Performance Rated Current5.45 A | Saturation Current @ 10%6.3 A | Saturation Current @ 30%13.2 A | DC Resistance58 mΩ | Self Resonant Frequency4.4 MHz | MountSMT | Design Kit – | –Check availability | ||
74437349470 | SPEC47 µH, 1.9 A, 1.8 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 µH | Performance Rated Current1.9 A | Saturation Current @ 10%1.8 A | Saturation Current @ 30%3.4 A | DC Resistance330 mΩ | Self Resonant Frequency7.3 MHz | MountSMT | Design Kit | –Check availability | ||
74437368470 | SPEC47 µH, 2.95 A, 2.55 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 µH | Performance Rated Current2.95 A | Saturation Current @ 10%2.55 A | Saturation Current @ 30%6.7 A | DC Resistance167 mΩ | Self Resonant Frequency5 MHz | MountSMT | Design Kit | –Check availability | ||
744373965470 | SPEC47 µH, 4.4 A, 6.15 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance47 µH | Performance Rated Current4.4 A | Saturation Current @ 10%6.15 A | Saturation Current @ 30%13.1 A | DC Resistance90 mΩ | Self Resonant Frequency3.8 MHz | MountSMT | Design Kit – | –Check availability | ||
74437349560 | SPEC56 µH, 1.75 A, 1.4 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance56 µH | Performance Rated Current1.75 A | Saturation Current @ 10%1.4 A | Saturation Current @ 30%2.7 A | DC Resistance396 mΩ | Self Resonant Frequency6 MHz | MountSMT | Design Kit | –Check availability | ||
74437349680 | SPEC68 µH, 1.65 A, 1.45 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance68 µH | Performance Rated Current1.65 A | Saturation Current @ 10%1.45 A | Saturation Current @ 30%3.8 A | DC Resistance445 mΩ | Self Resonant Frequency3.5 MHz | MountSMT | Design Kit | –Check availability | ||
744373965101 | SPEC100 µH, 3.2 A, 3.45 A | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Inductance100 µH | Performance Rated Current3.2 A | Saturation Current @ 10%3.45 A | Saturation Current @ 30%6.8 A | DC Resistance165 mΩ | Self Resonant Frequency2.4 MHz | MountSMT | Design Kit – | –Check availability |
Availability Forecast
WE item number: –
VPE–
Lead time– weeks
| Expected Availability | Opening inventory | Quantity |
|---|---|---|
| Current Availability | – | – |
Does it just not fit? Please contact us.Simply contact our service team for special orders and bulk quantities.
REDEXPERT loss simulation
Find the best inductor!
REDEXPERT loss simulation
Find the best inductor!
REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.
Assortments
Articles from this product series can be found in the following assortments:
Videos
How to choose the right coil type (inductor)?!
Videos
Videos
Definition of component heating of power inductors in switching regulators
