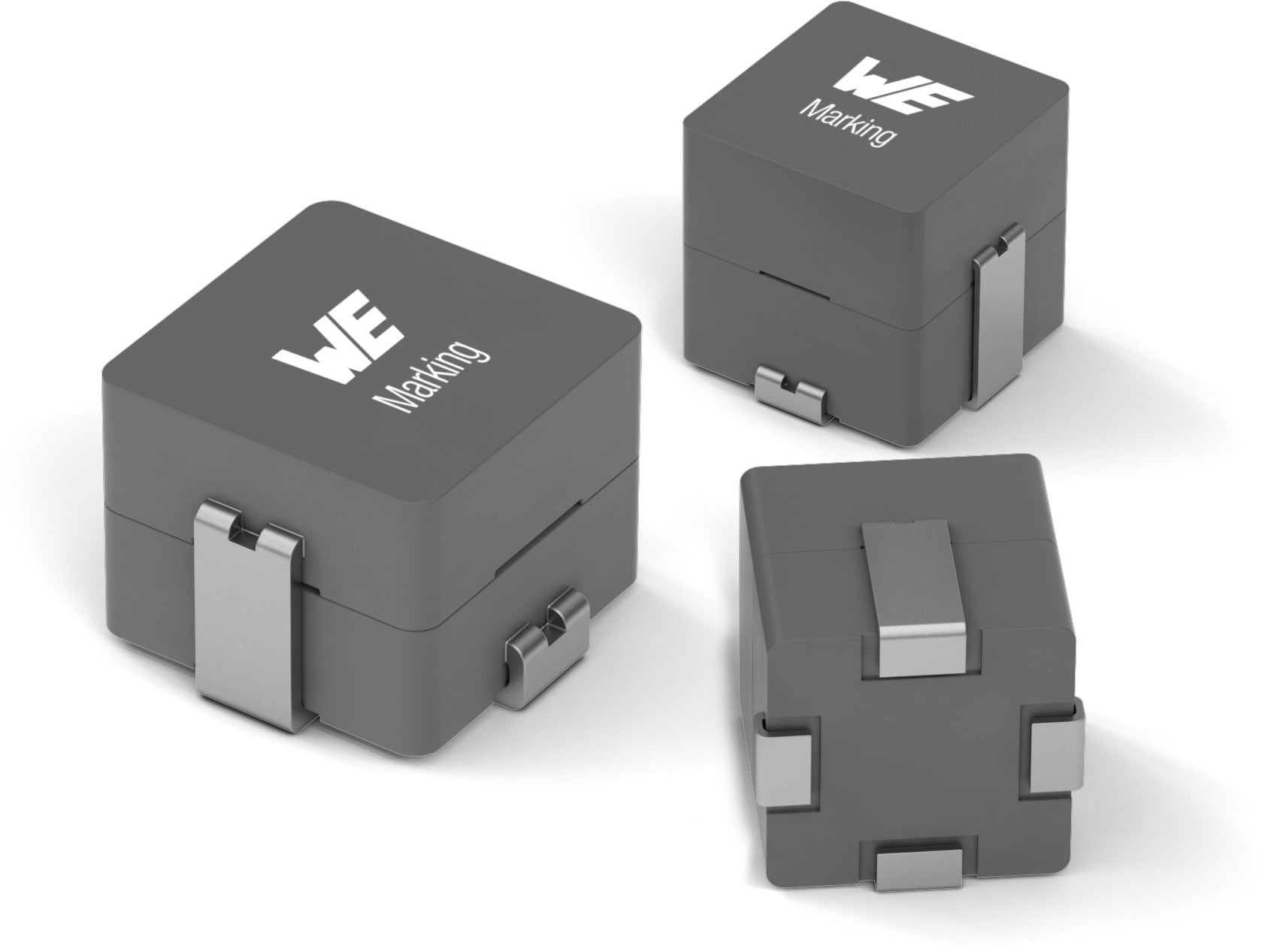

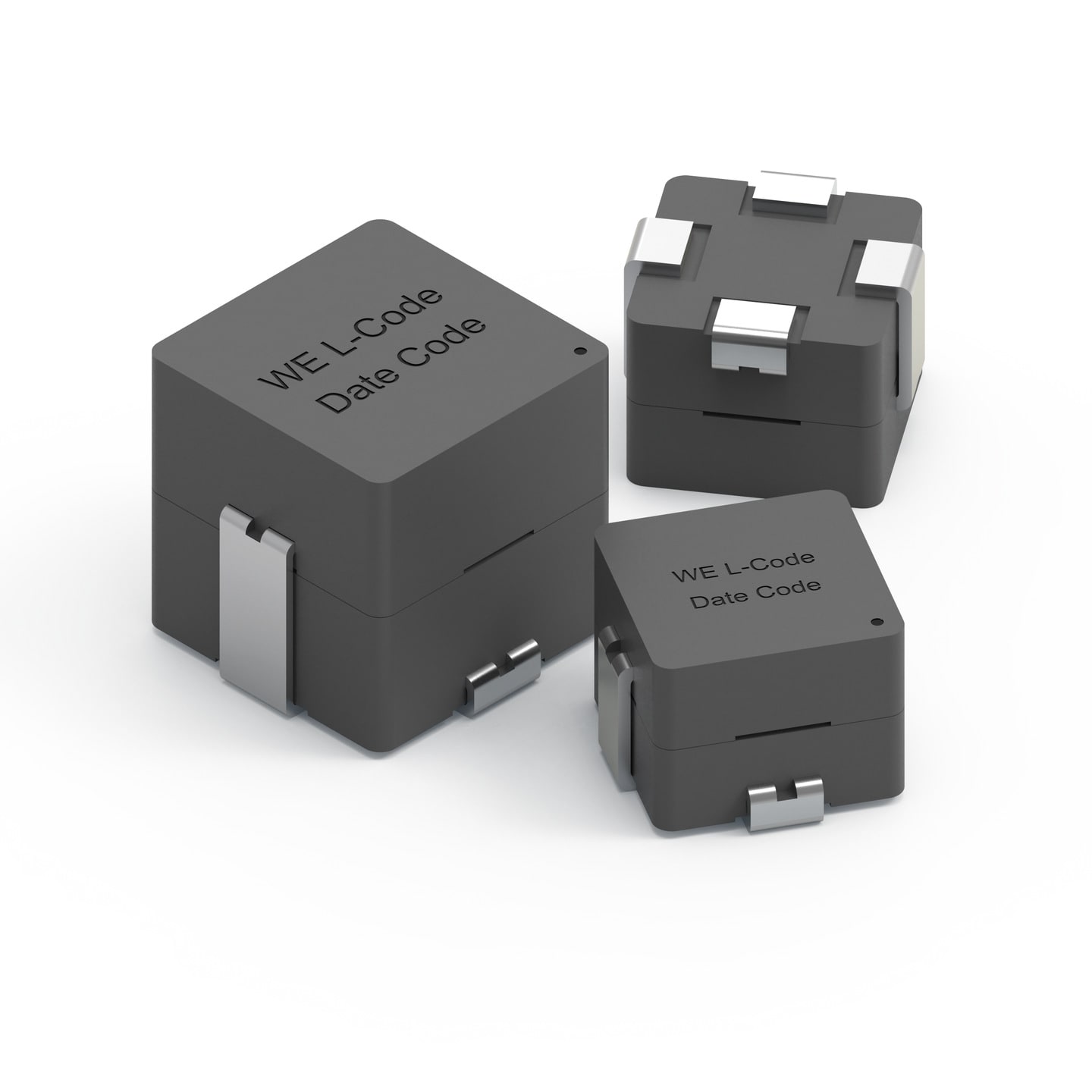

WE-LHMD SMT High Current Inductor

Size	Dimensions	L (mm)	W (mm)	H (mm)

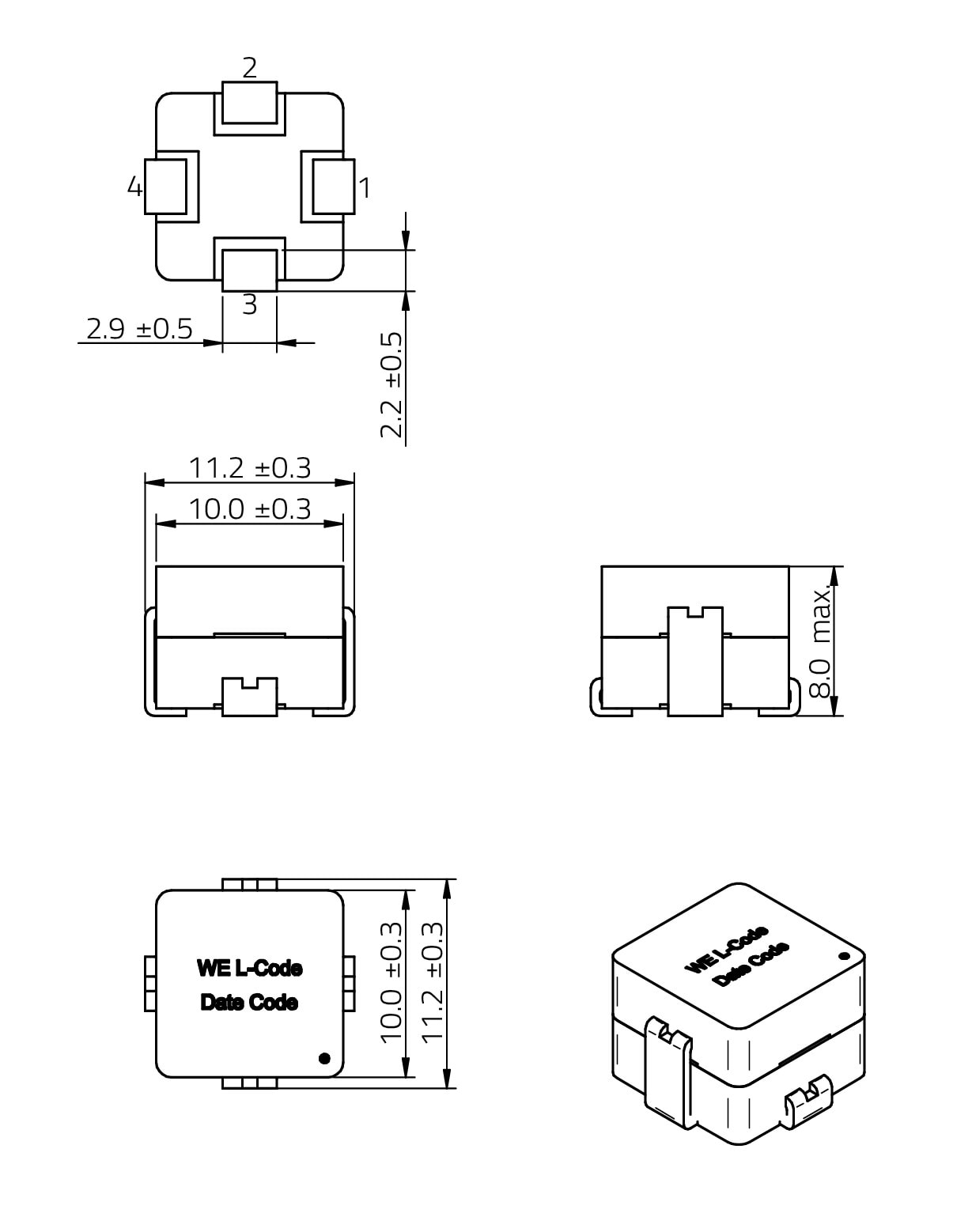

1008		10	11.2	8

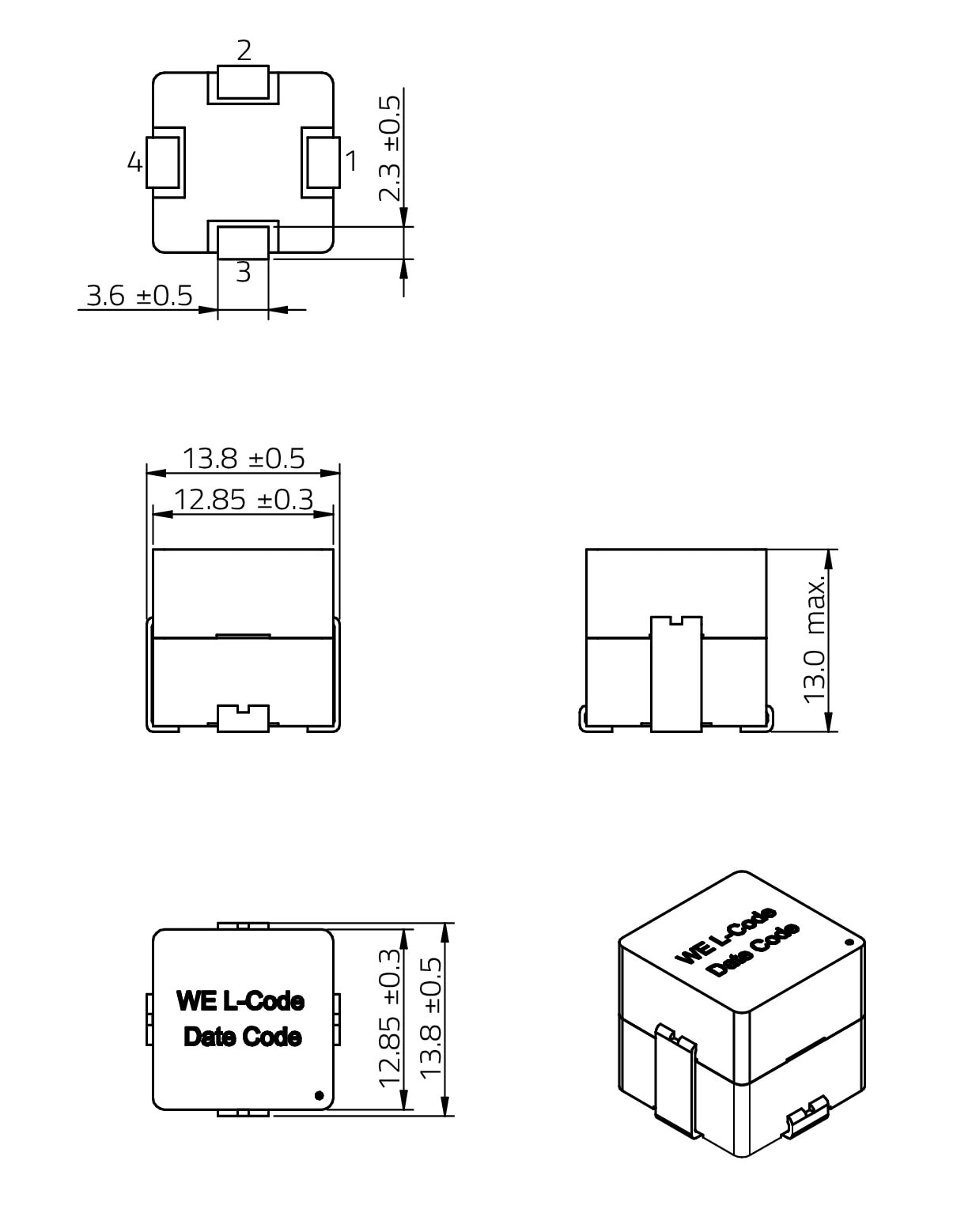

1213		12.85	13.8	13

LTSpice files

LT
LTSpice_WE-LHMD (rev22b).zip
|
2.1 KB

Characteristics

2-in-1 design with low magnetic coupling
Inner construction: 2 independent Z coils
Low footprint area design
Low R_DC
High saturation currents
Operating temperature: -40 °C to +125 °C

Applications

Class D audio amplifiers
Digital amplifiers

Application Notes

ANP138 Custom Rated Current Calculator
PDF

Products

All

1008

1213

Filter article data

show article in 2 product lines

article in 2 product lines

	Order Code	Datasheet	Simulation	Downloads	Status	L(µH)	Tol. L	I_R(A)	I_SAT(A)	R_DC(mΩ)	Samples
	74434301008082	8.2 µH, ±15%, 3.5 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB KIC KiCad_WE-LHMD (rev25b).zip \| 337.3 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CAD files ZIP 3D 3D_WE-LHMD-1008_74434xxxxxx_3D (rev1).pdf \| 163.3 KB IGS Download_IGS_1008 (rev1).igs \| 1.8 MB STP Download_STP_1008 (rev1).stp \| 555.9 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance8.2 µH	Inductance±15%	Rated Current3.5 A	Saturation Current20 A	DC Resistance32 mΩ
	74434301213082	8.2 µH, ±15%, 7 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB KIC KiCad_WE-LHMD (rev25b).zip \| 337.3 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CAD files ZIP 3D 3D_WE-LHMD-1213_74434xxxxx_3D (rev1).pdf \| 160.1 KB IGS Download_IGS_1213 (rev1).igs \| 1.9 MB STP Download_STP_1213 (rev1).stp \| 560.4 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance8.2 µH	Inductance±15%	Rated Current7 A	Saturation Current25 A	DC Resistance16 mΩ
	74434301008100	10 µH, ±15%, 3.2 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB KIC KiCad_WE-LHMD (rev25b).zip \| 337.3 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CAD files ZIP 3D 3D_WE-LHMD-1008_74434xxxxxx_3D (rev1).pdf \| 163.3 KB IGS Download_IGS_1008 (rev1).igs \| 1.8 MB STP Download_STP_1008 (rev1).stp \| 555.9 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance10 µH	Inductance±15%	Rated Current3.2 A	Saturation Current18 A	DC Resistance45 mΩ
	74434301213100	10 µH, ±15%, 6 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB KIC KiCad_WE-LHMD (rev25b).zip \| 337.3 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CAD files ZIP 3D 3D_WE-LHMD-1213_74434xxxxx_3D (rev1).pdf \| 160.1 KB IGS Download_IGS_1213 (rev1).igs \| 1.9 MB STP Download_STP_1213 (rev1).stp \| 560.4 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance10 µH	Inductance±15%	Rated Current6 A	Saturation Current21 A	DC Resistance20 mΩ
	74434301008150	15 µH, ±15%, 2.5 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB KIC KiCad_WE-LHMD (rev25b).zip \| 337.3 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CAD files ZIP 3D 3D_WE-LHMD-1008_74434xxxxxx_3D (rev1).pdf \| 163.3 KB IGS Download_IGS_1008 (rev1).igs \| 1.8 MB STP Download_STP_1008 (rev1).stp \| 555.9 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance15 µH	Inductance±15%	Rated Current2.5 A	Saturation Current15 A	DC Resistance65 mΩ
	74434301213150	15 µH, ±15%, 4.5 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB KIC KiCad_WE-LHMD (rev25b).zip \| 337.3 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CAD files ZIP 3D 3D_WE-LHMD-1213_74434xxxxx_3D (rev1).pdf \| 160.1 KB IGS Download_IGS_1213 (rev1).igs \| 1.9 MB STP Download_STP_1213 (rev1).stp \| 560.4 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance15 µH	Inductance±15%	Rated Current4.5 A	Saturation Current16 A	DC Resistance34 mΩ
	74434301008220	22 µH, ±15%, 2 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB KIC KiCad_WE-LHMD (rev25b).zip \| 337.3 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CAD files ZIP 3D 3D_WE-LHMD-1008_74434xxxxxx_3D (rev1).pdf \| 163.3 KB IGS Download_IGS_1008 (rev1).igs \| 1.8 MB STP Download_STP_1008 (rev1).stp \| 555.9 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance22 µH	Inductance±15%	Rated Current2 A	Saturation Current13 A	DC Resistance104 mΩ
	74434301213220	22 µH, ±15%, 4 A	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-LHMD (rev22c).IntLib \| 152.5 KB CDS Cadence_WE-LHMD (rev24a).zip \| 724.9 KB EAG Eagle_WE-LHMD (rev24a).lbr \| 20.6 KB KIC KiCad_WE-LHMD (rev25b).zip \| 337.3 KB ZUK CadStar_WE-LHMD (rev19a).zip \| 5.1 KB CAD files ZIP 3D 3D_WE-LHMD-1213_74434xxxxx_3D (rev1).pdf \| 160.1 KB IGS Download_IGS_1213 (rev1).igs \| 1.9 MB STP Download_STP_1213 (rev1).stp \| 560.4 KB Electric models ZIP PSP PSpice_WE-LHMD (rev22b).zip \| 4.5 KB SCS Spectre_WE-LHMD (rev22a).mod \| 3.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance22 µH	Inductance±15%	Rated Current4 A	Saturation Current15 A	DC Resistance50 mΩ
