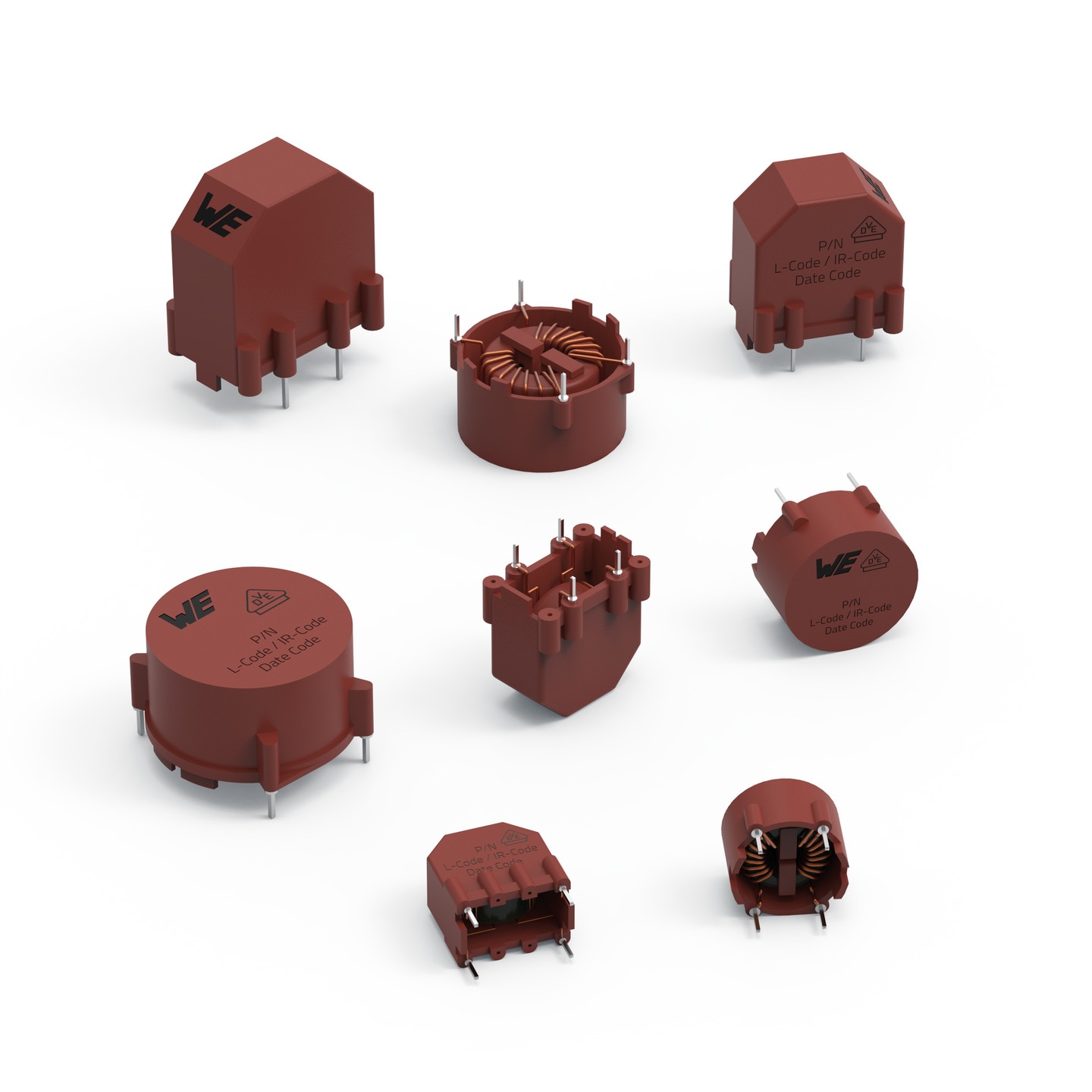

WE-LF Common Mode Power Line Choke

Size	L (mm)	W (mm)	H (mm)	Version
Type SV	18.5	13.5	20.5	THT
Type MV	23.5	16	25.5	THT
Type LV	26.5	18.5	30.5	THT
Type XV	32.5	21.5	35.5	THT
Type SH	18	18	13	THT
Type MH	23	23	14.5	THT
Type LH	28.5	28.5	17	THT
Type XH	33.5	33.5	20	THT

LTSpice files

LT
LTSpice_WE-LF (rev22a).zip
|
6.1 KB

Characteristics

Easy assembling due to 4 pin housing
Compact and small size
4 soldering pins for perfect mechanical decoupling
Toroidal core choke with sector winding
High interference suppression for common mode interferences in low and middle frequency ranges
Low stray field
Operating temperature: -40 °C bis 125 °C
Flammability corresponding to UL 94 V-0
Climatic category: 40/125/21
Certified according IEC 60938-2

Applications

Power line filter
Power electronics
SMPS
Suppression of common mode noise

Products

All

Type SV

Type MV

Type LV

Type XV

Type SH

Type MH

Type LH

Type XH

Order Code	Datasheet	Downloads	Status	I_R (A)	L₁ (mH)	R_{DC max.} (Ω)	V_R (V (AC))	V_T (V (AC))	Material	L (mm)	W (mm)	H (mm)	Mount	Design Kit
