WE-HCIA SMD Flat Wire High Current Inductor | Automotive

	Size	Series Datasheet	L (mm)	W (mm)	H (mm)	Mount

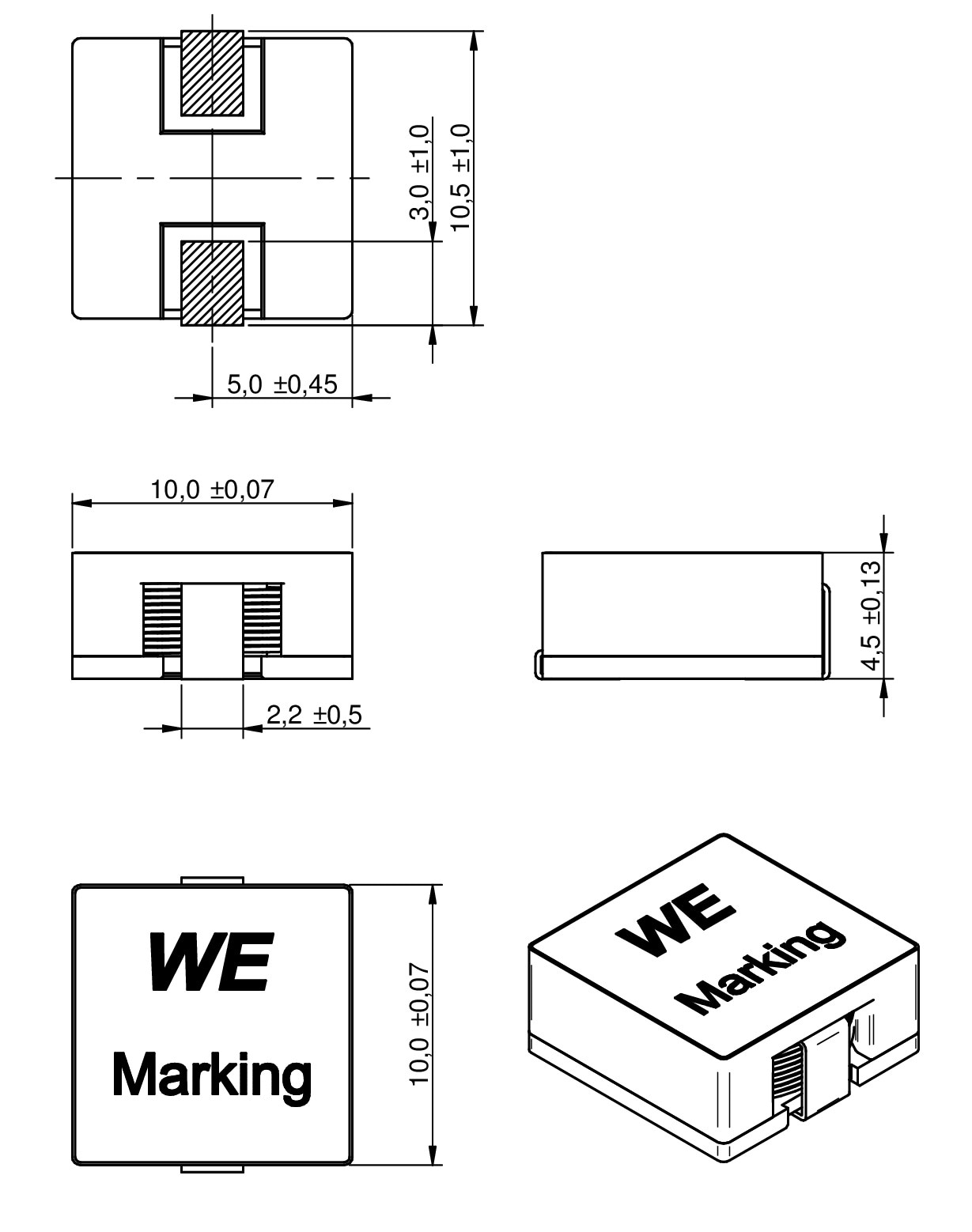

	1050	SPEC	10.5	10.2	4.7	-

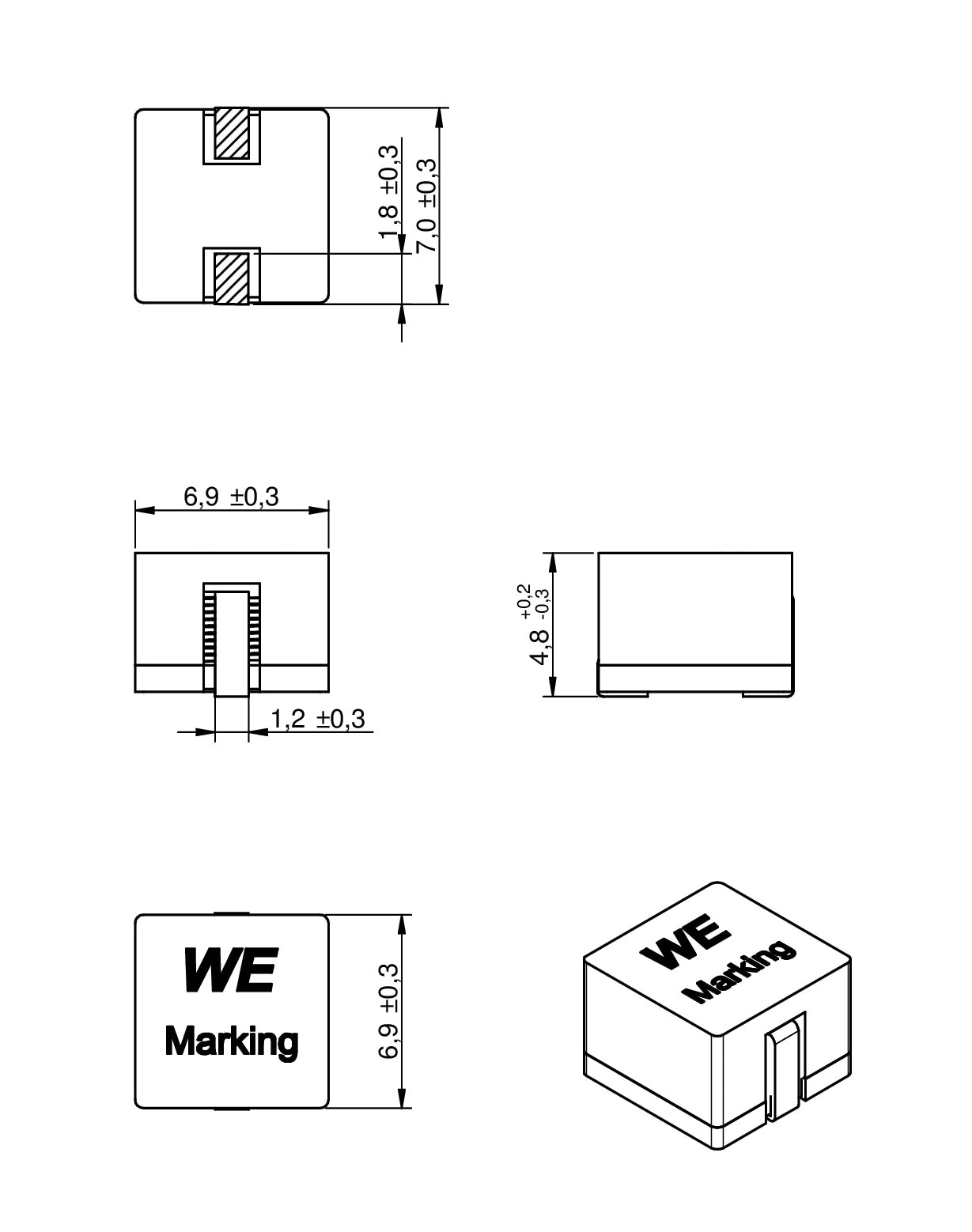

	7050	SPEC	7	6.9	4.8	-

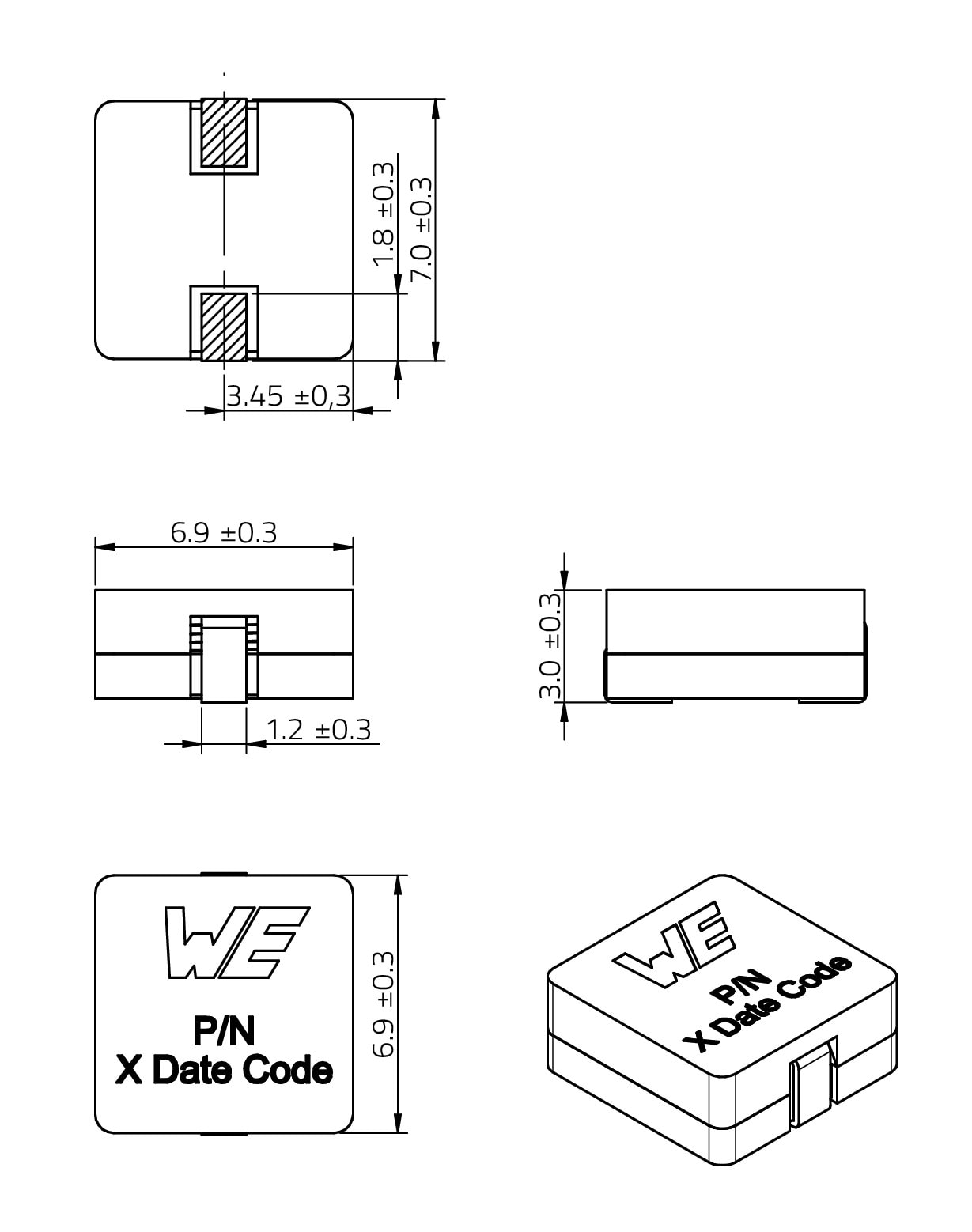

NEW	7030		7	6.9	3	SMT

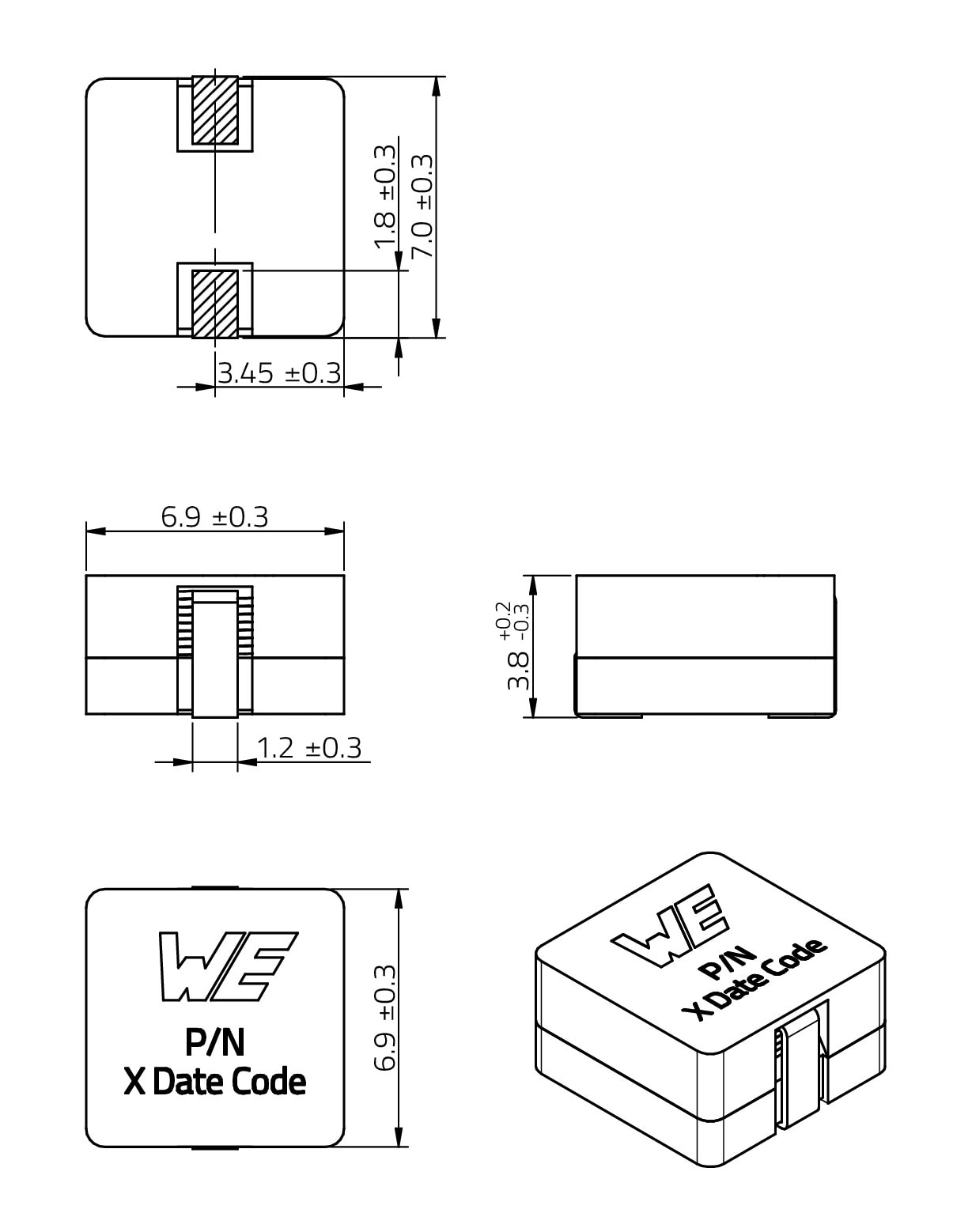

NEW	7040		6.9	6.9	3.8	SMT

LTSpice files

LT
LTSpice_WE-HCIA (rev24a).zip
|
2.4 KB

Characteristics

Magnetically shielded
Flat wire coil for low losses
Low stray field
Operating temperature: -55 °C up to +150 °C
Current capability up to 36 A
AEC-Q200
Automotive approved

Applications

Filter choke for motor electronics
Car infotainment
Multimedia applications

Products

All

1050

7050

7030

7040

Order Code	Datasheet	Downloads	Status	L (µH)	Tol. L	I_R (A)	I_RP,40K (A)	I_SAT,30% (A)	R_{DC max.} (mΩ)	f_res (MHz)
7843110022	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7040_7843110___ (rev1).pdf \| 909.2 KB IGS IGS_WE-HCIA-7040_7843110___ (rev1).igs \| 1.8 MB STP STP_WE-HCIA-7040_7843110___ (rev1).stp \| 597.7 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	0.22	±20%	–	36.4	43.9	1.21	366
7843140047	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.47	±20%	16.9	–	25	1.65	292
7843100055	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7030_784310___ (rev1).pdf \| 519.7 KB IGS IGS_WE-HCIA-7030_784310___ (rev1).igs \| 1.7 MB STP STP_WE-HCIA-7030_784310___ (rev1).stp \| 538 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	0.52	±20%	–	19.2	27.7	4.07	189
7843110068	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7040_7843110___ (rev1).pdf \| 909.2 KB IGS IGS_WE-HCIA-7040_7843110___ (rev1).igs \| 1.8 MB STP STP_WE-HCIA-7040_7843110___ (rev1).stp \| 597.7 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	0.68	±20%	–	20.9	24.6	3.41	171
7843250072	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_7843250072 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_7843250072 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.72	±20%	22	–	36.1	1.38	103
7843110100	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7040_7843110___ (rev1).pdf \| 909.2 KB IGS IGS_WE-HCIA-7040_7843110___ (rev1).igs \| 1.8 MB STP STP_WE-HCIA-7040_7843110___ (rev1).stp \| 597.7 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	1	±20%	–	16.8	20.2	5.06	134
784314011	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.1	±20%	14.7	–	15.2	3.47	147
7843100115	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7030_784310___ (rev1).pdf \| 519.7 KB IGS IGS_WE-HCIA-7030_784310___ (rev1).igs \| 1.7 MB STP STP_WE-HCIA-7030_784310___ (rev1).stp \| 538 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	1.15	±20%	–	11.8	18.6	9.46	97
784325012	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_784325012 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_784325012 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.2	±20%	20	–	30	2.04	76
7843110150	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7040_7843110___ (rev1).pdf \| 909.2 KB IGS IGS_WE-HCIA-7040_7843110___ (rev1).igs \| 1.8 MB STP STP_WE-HCIA-7040_7843110___ (rev1).stp \| 597.7 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	1.5	±20%	–	13.8	15.6	7.26	94
7843100150	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7030_784310___ (rev1).pdf \| 519.7 KB IGS IGS_WE-HCIA-7030_784310___ (rev1).igs \| 1.7 MB STP STP_WE-HCIA-7030_784310___ (rev1).stp \| 538 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	1.5	±20%	–	9.6	17.9	13.97	91
784325018	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_784325018 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_784325018 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1.8	±20%	16	–	25	3.3	60
7843100200	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7030_784310___ (rev1).pdf \| 519.7 KB IGS IGS_WE-HCIA-7030_784310___ (rev1).igs \| 1.7 MB STP STP_WE-HCIA-7030_784310___ (rev1).stp \| 538 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	2	±20%	–	8.7	10.5	15.62	88
7843110220	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7040_7843110___ (rev1).pdf \| 909.2 KB IGS IGS_WE-HCIA-7040_7843110___ (rev1).igs \| 1.8 MB STP STP_WE-HCIA-7040_7843110___ (rev1).stp \| 597.7 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	2.2	±20%	–	10.2	13.4	12.54	76
784325024	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_784325024 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_784325024 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2.4	±20%	14	–	20.7	5.4	55
784325033	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_784325033 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_784325033 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	±20%	12	–	18	5.75	41
784314033	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3.3	±20%	9.2	–	8.7	9.62	68
7843110330	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7040_7843110___ (rev1).pdf \| 909.2 KB IGS IGS_WE-HCIA-7040_7843110___ (rev1).igs \| 1.8 MB STP STP_WE-HCIA-7040_7843110___ (rev1).stp \| 597.7 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	3.3	±20%	–	8.1	11	18.92	59
784325042	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_784325042 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_784325042 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.2	±20%	11	–	15.7	7.8	36
7843110470	SPEC	7 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB CAD files ZIP 3D 3D_WE-HCIA-7040_7843110___ (rev1).pdf \| 909.2 KB IGS IGS_WE-HCIA-7040_7843110___ (rev1).igs \| 1.8 MB STP STP_WE-HCIA-7040_7843110___ (rev1).stp \| 597.7 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB Download all 7 files as zip archive ZIP	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	4.7	±20%	–	7.8	9.1	21.45	50
784314049	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4.9	±20%	7.6	–	7.2	15.85	64
784325055	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_784325055 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_784325055 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5.2	±20%	10	–	14.3	9.45	31
784325065	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_784325065 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_784325065 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.5	±20%	8.4	–	13	11.55	27
784314065	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6.5	±20%	6.3	–	6.4	23.65	50
784325078	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_784325078 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_784325078 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7.8	±20%	8	–	12	14.4	23
784325100	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_784325100 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_784325100 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	±20%	7.2	–	10.3	23.1	21
784314100	SPEC	6 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	±20%	3.7	–	4.85	33.72	41
784325160	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-HCIA (rev24a).IntLib \| 379 KB CDS Cadence_WE-HCIA (rev24a).zip \| 3.9 MB EAG Eagle_WE-HCIA (rev24a).lbr \| 38 KB KIC KiCad_WE-HCIA (rev25a).zip \| 572.3 KB CAD files ZIP IGS IGS_WE-HCIA-1050_784325160 (rev1).igs \| 4.3 MB STP STP_WE-HCIA-1050_784325160 (rev1).stp \| 1.3 MB Electric models ZIP PSP PSpice_WE-HCIA (rev24a).zip \| 7.3 KB SCS Spectre_WE-HCIA (rev24a).mod \| 7.2 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16.7	±20%	5	–	7.8	38	16
