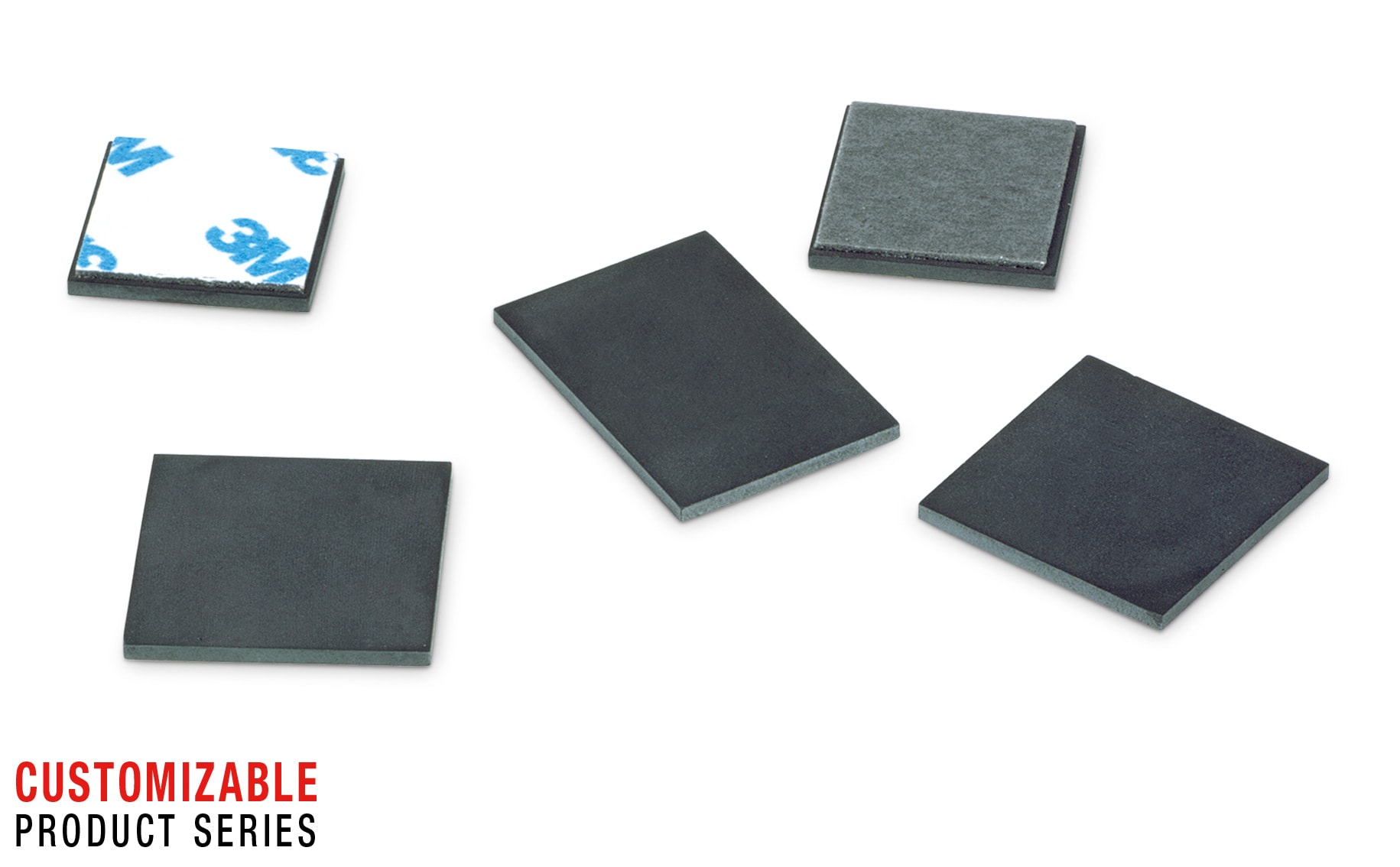

WE-CPU EMI Suppression CPU Ferrite Plate

Characteristics

Customizable Product Series:

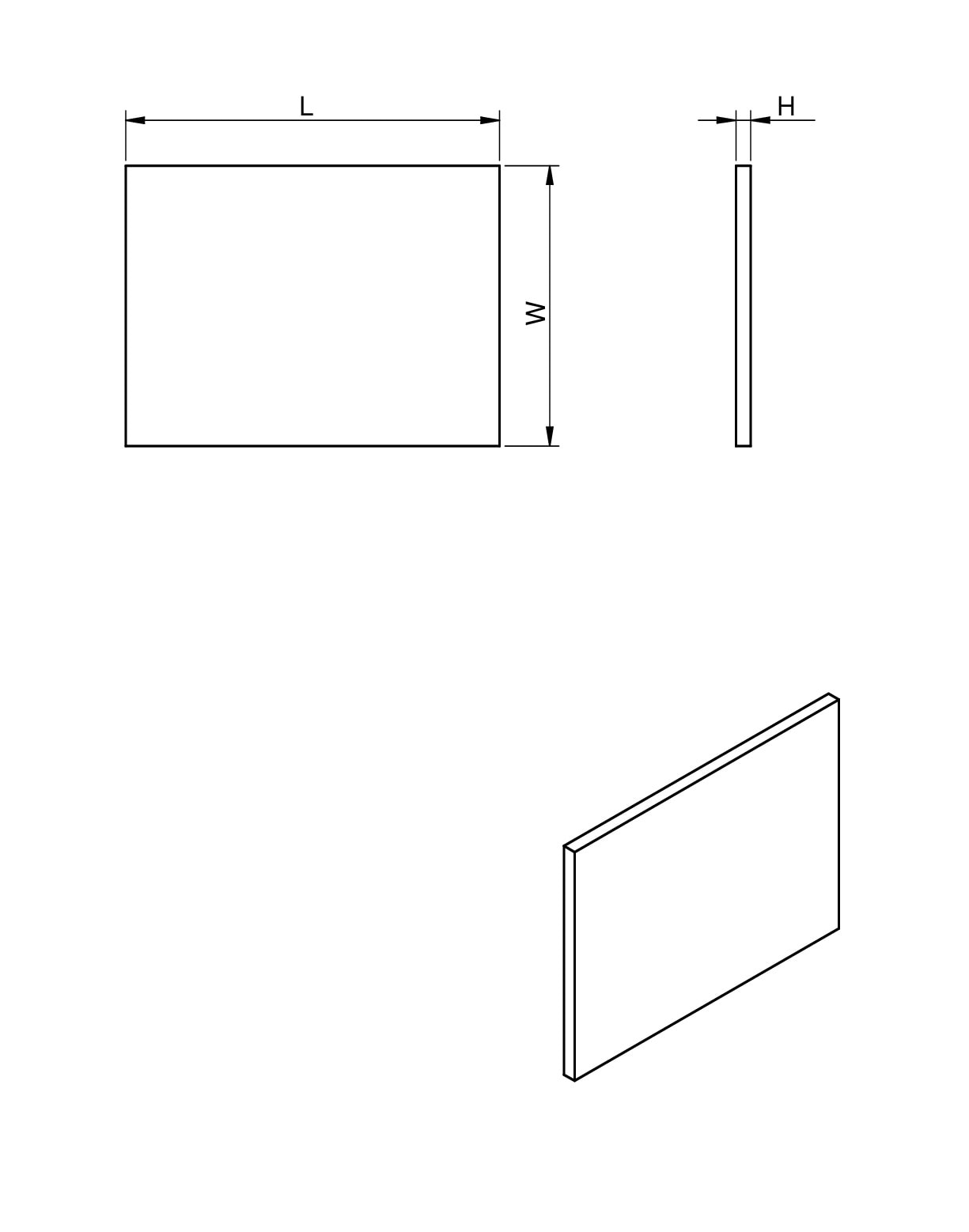

Dimensions
Surface
Impedances up to 800 Ω
Material: 5 W 700
Initial permeability: 700 μiac
Curie temperature: +140 °C max.
Operating temperature: –25°C to +125°C
with adhesive tape

Applications

CPU
Controller screening

Cut it, fold it, test it. ShielDIY!

Create your own customized Shielding Cabinet for testing. Cut it, fold it and test it, DIY!

Learn more now!

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Z @ 25 MHz(Ω)	Z @ 100 MHz(Ω)	L(mm)	W(mm)	H(mm)	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
7427411	SPEC17 Ω, 65 Ω, 20 mm	Availability –	Downloads2 files CAD files ZIP IGS 7427411 (rev1).igs \| 28.3 KB STP 7427411 (rev1).stp \| 13.4 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz17 Ω	Impedance @ 100 MHz65 Ω	Length20 mm	Width15 mm	Height0.8 mm	–Check availability
74274119	SPEC17 Ω, 65 Ω, 20 mm	Availability –	Downloads2 files CAD files ZIP IGS 74274119 (rev1).igs \| 56 KB STP 74274119 (rev1).stp \| 24.4 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz17 Ω	Impedance @ 100 MHz65 Ω	Length20 mm	Width15 mm	Height0.8 mm	–Check availability
7427412	SPEC21 Ω, 85 Ω, 20 mm	Availability –	Downloads2 files CAD files ZIP IGS 7427412 (rev1).igs \| 28.3 KB STP 7427412 (rev1).stp \| 13.3 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz21 Ω	Impedance @ 100 MHz85 Ω	Length20 mm	Width18 mm	Height1.5 mm	–Check availability
74274129	SPEC21 Ω, 85 Ω, 20 mm	Availability –	Downloads2 files CAD files ZIP IGS 74274129 (rev1).igs \| 56 KB STP 74274129 (rev1).stp \| 24.3 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz21 Ω	Impedance @ 100 MHz85 Ω	Length20 mm	Width18 mm	Height1.5 mm	–Check availability
7427413	SPEC24 Ω, 88 Ω, 20 mm	Availability –	Downloads2 files CAD files ZIP IGS 7427413 (rev1).igs \| 28.3 KB STP 7427413 (rev1).stp \| 13.3 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz24 Ω	Impedance @ 100 MHz88 Ω	Length20 mm	Width20 mm	Height1.5 mm	–Check availability
7427415	SPEC24 Ω, 79 Ω, 23 mm	Availability –	Downloads2 files CAD files ZIP IGS 7427415 (rev1).igs \| 28.3 KB STP 7427415 (rev1).stp \| 13.4 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz24 Ω	Impedance @ 100 MHz79 Ω	Length23 mm	Width23 mm	Height0.8 mm	–Check availability
74274139	SPEC24 Ω, 88 Ω, 20 mm	Availability –	Downloads2 files CAD files ZIP IGS 74274139 (rev1).igs \| 56 KB STP 74274139 (rev1).stp \| 24.4 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz24 Ω	Impedance @ 100 MHz88 Ω	Length20 mm	Width20 mm	Height1.5 mm	–Check availability
74274159	SPEC24 Ω, 79 Ω, 23 mm	Availability –	Downloads2 files CAD files ZIP IGS 74274159 (rev1).igs \| 56 KB STP 74274159 (rev1).stp \| 24.4 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz24 Ω	Impedance @ 100 MHz79 Ω	Length23 mm	Width23 mm	Height0.8 mm	–Check availability
7427418	SPEC25 Ω, 84 Ω, 40 mm	Availability –	Downloads2 files CAD files ZIP IGS 7427418 (rev1).igs \| 28.3 KB STP 7427418 (rev1).stp \| 13.3 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz25 Ω	Impedance @ 100 MHz84 Ω	Length40 mm	Width18 mm	Height1.5 mm	–Check availability
74274189	SPEC25 Ω, 84 Ω, 40 mm	Availability –	Downloads2 files CAD files ZIP IGS 74274189 (rev1).igs \| 56 KB STP 74274189 (rev1).stp \| 24.4 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz25 Ω	Impedance @ 100 MHz84 Ω	Length40 mm	Width18 mm	Height1.5 mm	–Check availability
7427414	SPEC26 Ω, 88 Ω, 20 mm	Availability –	Downloads2 files CAD files ZIP IGS 7427414 (rev1).igs \| 28.3 KB STP 7427414 (rev1).stp \| 13.3 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz26 Ω	Impedance @ 100 MHz88 Ω	Length20 mm	Width30 mm	Height1.5 mm	–Check availability
74274149	SPEC26 Ω, 88 Ω, 20 mm	Availability –	Downloads2 files CAD files ZIP IGS 74274149 (rev1).igs \| 56 KB STP 74274149 (rev1).stp \| 24.4 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz26 Ω	Impedance @ 100 MHz88 Ω	Length20 mm	Width30 mm	Height1.5 mm	–Check availability
7427419	SPEC27 Ω, 85 Ω, 50 mm	Availability –	Downloads2 files CAD files ZIP IGS 7427419 (rev1).igs \| 28.3 KB STP 7427419 (rev1).stp \| 13.3 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz27 Ω	Impedance @ 100 MHz85 Ω	Length50 mm	Width18 mm	Height1.5 mm	–Check availability
74274199	SPEC27 Ω, 85 Ω, 50 mm	Availability –	Downloads2 files CAD files ZIP IGS 74274199 (rev1).igs \| 56 KB STP 74274199 (rev1).stp \| 24.4 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz27 Ω	Impedance @ 100 MHz85 Ω	Length50 mm	Width18 mm	Height1.5 mm	–Check availability
7427416	SPEC30 Ω, 110 Ω, 23 mm	Availability –	Downloads2 files CAD files ZIP IGS 7427416 (rev1).igs \| 28.3 KB STP 7427416 (rev1).stp \| 13.3 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz30 Ω	Impedance @ 100 MHz110 Ω	Length23 mm	Width23 mm	Height1.5 mm	–Check availability
74274169	SPEC30 Ω, 110 Ω, 23 mm	Availability –	Downloads2 files CAD files ZIP IGS 74274169 (rev1).igs \| 56 KB STP 74274169 (rev1).stp \| 24.4 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz30 Ω	Impedance @ 100 MHz110 Ω	Length23 mm	Width23 mm	Height1.5 mm	–Check availability
7427417	SPEC36 Ω, 114 Ω, 30 mm	Availability –	Downloads2 files CAD files ZIP IGS 7427417 (rev1).igs \| 28.3 KB STP 7427417 (rev1).stp \| 13.3 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz36 Ω	Impedance @ 100 MHz114 Ω	Length30 mm	Width30 mm	Height1.5 mm	–Check availability
74274179	SPEC36 Ω, 114 Ω, 30 mm	Availability –	Downloads2 files CAD files ZIP IGS 74274179 (rev1).igs \| 55.8 KB STP 74274179 (rev1).stp \| 24.4 KB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Impedance @ 25 MHz36 Ω	Impedance @ 100 MHz114 Ω	Length30 mm	Width30 mm	Height1.5 mm	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–
