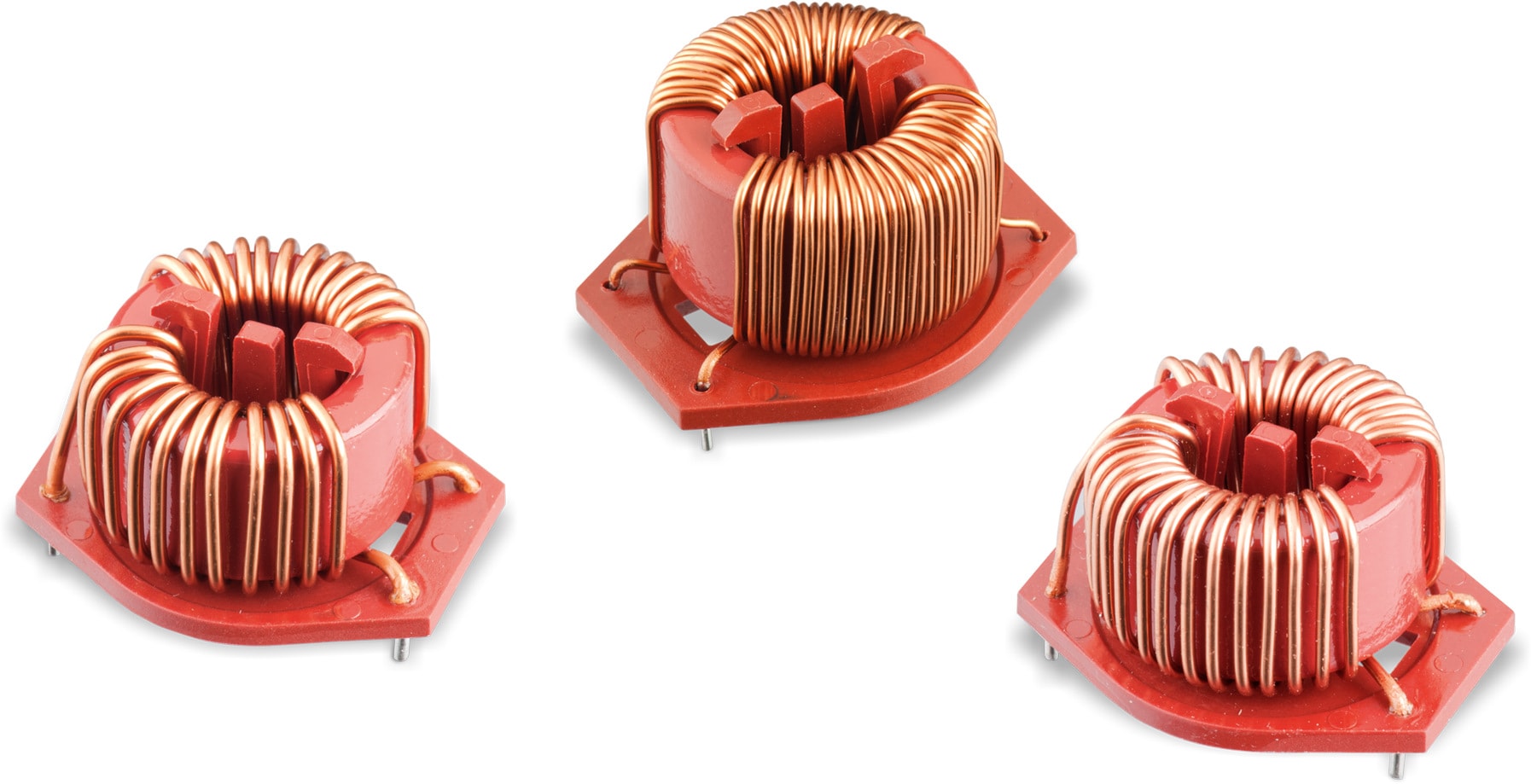

WE-CMBH Common Mode Power Line Choke (Horizontal)

Size	Dimensions	L (mm)	W (mm)	H (mm)	Material	Mount
Type L		32.5	28	22	MnZn	THT

LTSpice files

LT
LTSpice_WE-CMBH (rev22b).zip
|
3.2 KB

Characteristics

Horizontal design for compact housings
High suppression of asymmetrical interferences
Suppression even at low frequency range
Highest possible rated current by small size
Operating temperature: -40°C to +125°C
Flammability corresponding to UL 94 V-0
Climatic category: 40/125/21
Certified according to IEC 60938-2

Applications

Power electronics
Power line in- and output filter
Radio interference suppression in motors
Suppression of common mode noise

Products

Type L

Reset all

Filter article data

show article in 1 product lines

article in 1 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	I_R(A)	L(mH)	R_{DC max.}(mΩ)	V_R(V (AC))	V_T(V (AC))	Material	L(mm)	W(mm)	H(mm)	Mount	Design Kit
744834101	10 A, 1 mH, 12.5 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-CMBH (rev22b).IntLib \| 3.1 MB CDS Cadence_WE-CMBH (rev20a).zip \| 3.2 MB EAG Eagle_WE-CMBH (rev19b).lbr \| 33.6 KB KIC KiCad_WE-CMBH (rev25b).zip \| 25.3 MB ZUK Cadstar_WE-CMBH (rev19b).zip \| 8.3 KB CAD files ZIP IGS 744834101 (rev1).igs \| 7.3 MB STP 744834101 (rev1).stp \| 1.9 MB Electric models ZIP ADS ADS_WE-CMBH (rev24a).zip \| 2.2 MB PSP PSpice_WE-CMBH (rev22b).zip \| 5.4 KB S S-Parameter_744834101 (rev20a).s4p \| 309.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current10 A	Inductance1 mH	DC Resistance12.5 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length32.5 mm	Width28 mm	Height22 mm	MountTHT	Design Kit 744825
744834220	2 A, 20 mH, 230 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-CMBH (rev22b).IntLib \| 3.1 MB CDS Cadence_WE-CMBH (rev20a).zip \| 3.2 MB EAG Eagle_WE-CMBH (rev19b).lbr \| 33.6 KB KIC KiCad_WE-CMBH (rev25b).zip \| 25.3 MB ZUK Cadstar_WE-CMBH (rev19b).zip \| 8.3 KB CAD files ZIP IGS IGS_744834220 (rev1).igs \| 6.7 MB STP STP_744834220 (rev1).stp \| 1.2 MB Electric models ZIP ADS ADS_WE-CMBH (rev24a).zip \| 2.2 MB PSP PSpice_WE-CMBH (rev22b).zip \| 5.4 KB S S-Parameter_744834220 (rev20a).s4p \| 312.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current2 A	Inductance20 mH	DC Resistance230 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length32.5 mm	Width28 mm	Height22 mm	MountTHT	Design Kit –
744834310	3 A, 10 mH, 110 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-CMBH (rev22b).IntLib \| 3.1 MB CDS Cadence_WE-CMBH (rev20a).zip \| 3.2 MB EAG Eagle_WE-CMBH (rev19b).lbr \| 33.6 KB KIC KiCad_WE-CMBH (rev25b).zip \| 25.3 MB ZUK Cadstar_WE-CMBH (rev19b).zip \| 8.3 KB CAD files ZIP IGS IGS_744834310 (rev1).igs \| 6.8 MB STP STP_744834310 (rev1).stp \| 1.3 MB Electric models ZIP ADS ADS_WE-CMBH (rev24a).zip \| 2.2 MB PSP PSpice_WE-CMBH (rev22b).zip \| 5.4 KB S S-Parameter_744834310 (rev20a).s4p \| 311.1 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current3 A	Inductance10 mH	DC Resistance110 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length32.5 mm	Width28 mm	Height22 mm	MountTHT	Design Kit –
744834405	4 A, 5 mH, 50 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-CMBH (rev22b).IntLib \| 3.1 MB CDS Cadence_WE-CMBH (rev20a).zip \| 3.2 MB EAG Eagle_WE-CMBH (rev19b).lbr \| 33.6 KB KIC KiCad_WE-CMBH (rev25b).zip \| 25.3 MB ZUK Cadstar_WE-CMBH (rev19b).zip \| 8.3 KB CAD files ZIP IGS 744834405 (rev1).igs \| 7.3 MB STP 744834405 (rev1).stp \| 1.9 MB Electric models ZIP ADS ADS_WE-CMBH (rev24a).zip \| 2.2 MB PSP PSpice_WE-CMBH (rev22b).zip \| 5.4 KB S S-Parameter_744834405 (rev20a).s4p \| 308.9 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current4 A	Inductance5 mH	DC Resistance50 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length32.5 mm	Width28 mm	Height22 mm	MountTHT	Design Kit 744825
744834407	3.5 A, 7 mH, 80 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-CMBH (rev22b).IntLib \| 3.1 MB CDS Cadence_WE-CMBH (rev20a).zip \| 3.2 MB EAG Eagle_WE-CMBH (rev19b).lbr \| 33.6 KB KIC KiCad_WE-CMBH (rev25b).zip \| 25.3 MB ZUK Cadstar_WE-CMBH (rev19b).zip \| 8.3 KB CAD files ZIP IGS 744834407 (rev1).igs \| 7.3 MB STP 744834407 (rev1).stp \| 1.9 MB Electric models ZIP ADS ADS_WE-CMBH (rev24a).zip \| 2.2 MB PSP PSpice_WE-CMBH (rev22b).zip \| 5.4 KB S S-Parameter_744834407 (rev20a).s4p \| 310.6 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current3.5 A	Inductance7 mH	DC Resistance80 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length32.5 mm	Width28 mm	Height22 mm	MountTHT	Design Kit 744825
744834433	5 A, 3.3 mH, 37 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-CMBH (rev22b).IntLib \| 3.1 MB CDS Cadence_WE-CMBH (rev20a).zip \| 3.2 MB EAG Eagle_WE-CMBH (rev19b).lbr \| 33.6 KB KIC KiCad_WE-CMBH (rev25b).zip \| 25.3 MB ZUK Cadstar_WE-CMBH (rev19b).zip \| 8.3 KB CAD files ZIP IGS 744834433 (rev1).igs \| 7.3 MB STP 744834433 (rev1).stp \| 1.9 MB Electric models ZIP ADS ADS_WE-CMBH (rev24a).zip \| 2.2 MB PSP PSpice_WE-CMBH (rev22b).zip \| 5.4 KB S S-Parameter_744834433 (rev20a).s4p \| 309.2 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current5 A	Inductance3.3 mH	DC Resistance37 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length32.5 mm	Width28 mm	Height22 mm	MountTHT	Design Kit 744825
744834622	6 A, 2.2 mH, 22 mΩ	Simulation	Downloads10 files EDA models: Components ZIP ALT WE-CMBH (rev22b).IntLib \| 3.1 MB CDS Cadence_WE-CMBH (rev20a).zip \| 3.2 MB EAG Eagle_WE-CMBH (rev19b).lbr \| 33.6 KB KIC KiCad_WE-CMBH (rev25b).zip \| 25.3 MB ZUK Cadstar_WE-CMBH (rev19b).zip \| 8.3 KB CAD files ZIP IGS 744834622 (rev1).igs \| 7.3 MB STP 744834622 (rev1).stp \| 1.9 MB Electric models ZIP ADS ADS_WE-CMBH (rev24a).zip \| 2.2 MB PSP PSpice_WE-CMBH (rev22b).zip \| 5.4 KB S S-Parameter_744834622 (rev20a).s4p \| 308.7 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Rated Current6 A	Inductance2.2 mH	DC Resistance22 mΩ	Rated Voltage250 V (AC)	Insulation Test Voltage1500 V (AC)	MaterialMnZn	Length32.5 mm	Width28 mm	Height22 mm	MountTHT	Design Kit 744825

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WE-CMB / WE-CMBH Common Mode Power Line Chokes
