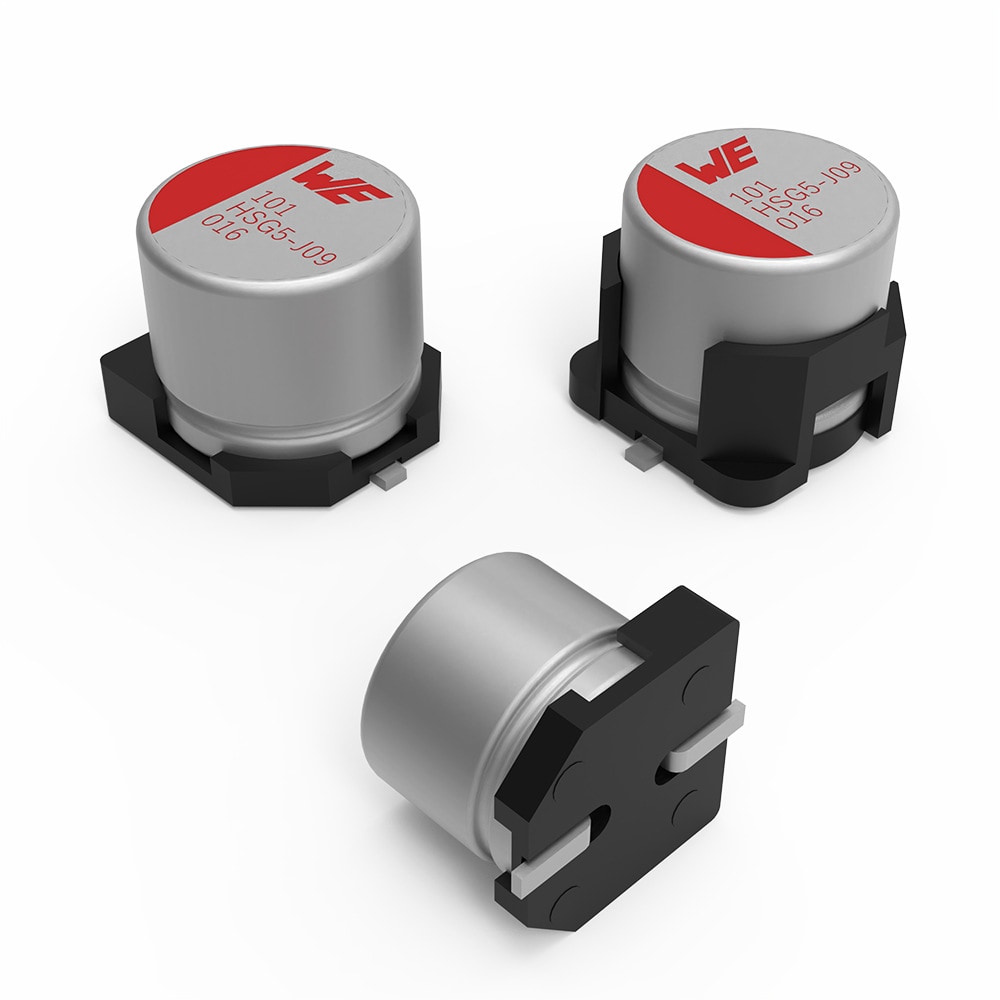

WCAP-HSG5 General Purpose 105°C

LTSpice files

LT
LTSpice_WCAP-HSG5 (rev25a).zip
|
2.4 KB

Characteristics

General purpose product series
Low ESR
High ripple current characteristics
High stability over the temperature range
Low leakage current

Applications

Industry and telecommunication
Smoothing
e.g. Servo inverter, air conditioner, industrial power supply, security camera, base station
Your application demands vibration resistant capacitors?
Find here more information and request your solution

Products

All

⌀ 5 mm

⌀ 6,3 mm

⌀ 8 mm

⌀ 10 mm

Reset all

Filter article data

show article in 4 product lines

article in 4 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	C	V_R(V (DC))	I_RIPPLE(mA)	I_Leak(µA)	DF(%)	R_ESR(mΩ)	Ø D(mm)	L(mm)	Design Kit
875575759001	10 µF, 50 V (DC), 750 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_5x5.8x1 (rev1).pdf \| 363.8 KB IGS Downloads_IGS_5x5.8x1 (rev1).igs \| 1.6 MB STP Downloads_STP_5x5.8x1 (rev1).stp \| 413.8 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage50 V (DC)	Ripple Current750 mA	Leakage Current5 µA	Dissipation Factor10 %	ESR120 mΩ	Diameter5 mm	Length5.8 mm	Design Kit 875500
875575844001	10 µF, 63 V (DC), 1000 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_6.3x5.8x2 (rev1).pdf \| 367.2 KB IGS Downloads_IGS_6.3x5.8x2 (rev1).igs \| 1.7 MB STP Downloads_STP_6.3x5.8x2 (rev1).stp \| 414.3 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage63 V (DC)	Ripple Current1000 mA	Leakage Current6.3 µA	Dissipation Factor8 %	ESR120 mΩ	Diameter6.3 mm	Length5.8 mm	Design Kit 875500
875575744002	22 µF, 50 V (DC), 1100 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_6.3x5.8x2 (rev1).pdf \| 367.2 KB IGS Downloads_IGS_6.3x5.8x2 (rev1).igs \| 1.7 MB STP Downloads_STP_6.3x5.8x2 (rev1).stp \| 414.3 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage50 V (DC)	Ripple Current1100 mA	Leakage Current11 µA	Dissipation Factor10 %	ESR80 mΩ	Diameter6.3 mm	Length5.8 mm	Design Kit 875500
875575845002	22 µF, 63 V (DC), 1500 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_6.3x7.7x2 (rev1).pdf \| 358.7 KB IGS Downloads_IGS_6.3x7.7x2 (rev1).igs \| 1.7 MB STP Downloads_STP_6.3x7.7x2 (rev1).stp \| 408.6 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage63 V (DC)	Ripple Current1500 mA	Leakage Current13.9 µA	Dissipation Factor8 %	ESR80 mΩ	Diameter6.3 mm	Length7.7 mm	Design Kit –
875575957003	22 µF, 100 V (DC), 1500 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x10.5x4 (rev1).pdf \| 374.9 KB IGS Downloads_IGS_10x10.5x4 (rev1).igs \| 1.8 MB STP Downloads_STP_10x10.5x4 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage100 V (DC)	Ripple Current1500 mA	Leakage Current22 µA	Dissipation Factor8 %	ESR45 mΩ	Diameter10 mm	Length10.5 mm	Design Kit –
875575559001	33 µF, 25 V (DC), 900 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_5x5.8x1 (rev1).pdf \| 363.8 KB IGS Downloads_IGS_5x5.8x1 (rev1).igs \| 1.6 MB STP Downloads_STP_5x5.8x1 (rev1).stp \| 413.8 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage25 V (DC)	Ripple Current900 mA	Leakage Current8.3 µA	Dissipation Factor14 %	ESR80 mΩ	Diameter5 mm	Length5.8 mm	Design Kit –
875575745003	33 µF, 50 V (DC), 1600 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_6.3x7.7x2 (rev1).pdf \| 358.7 KB IGS Downloads_IGS_6.3x7.7x2 (rev1).igs \| 1.7 MB STP Downloads_STP_6.3x7.7x2 (rev1).stp \| 408.6 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage50 V (DC)	Ripple Current1600 mA	Leakage Current16.5 µA	Dissipation Factor10 %	ESR40 mΩ	Diameter6.3 mm	Length7.7 mm	Design Kit –
875575853003	33 µF, 63 V (DC), 1700 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_8x10.5x3 (rev1).pdf \| 354.7 KB IGS Downloads_IGS_8x10.5x3 (rev1).igs \| 1.7 MB STP Downloads_STP_8x10.5x3 (rev1).stp \| 444.5 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage63 V (DC)	Ripple Current1700 mA	Leakage Current20.8 µA	Dissipation Factor8 %	ESR40 mΩ	Diameter8 mm	Length10.5 mm	Design Kit –
875575961005	33 µF, 100 V (DC), 1600 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x12.4x4 (rev1).pdf \| 364.6 KB IGS Downloads_IGS_10x12.4x4 (rev1).igs \| 1.7 MB STP Downloads_STP_10x12.4x4 (rev1).stp \| 444.6 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage100 V (DC)	Ripple Current1600 mA	Leakage Current33 µA	Dissipation Factor8 %	ESR40 mΩ	Diameter10 mm	Length12.4 mm	Design Kit 875500
875575853004	47 µF, 63 V (DC), 1700 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_8x10.5x3 (rev1).pdf \| 354.7 KB IGS Downloads_IGS_8x10.5x3 (rev1).igs \| 1.7 MB STP Downloads_STP_8x10.5x3 (rev1).stp \| 444.5 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage63 V (DC)	Ripple Current1700 mA	Leakage Current29.6 µA	Dissipation Factor8 %	ESR40 mΩ	Diameter8 mm	Length10.5 mm	Design Kit 875500
875575544002	56 µF, 25 V (DC), 1300 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_6.3x5.8x2 (rev1).pdf \| 367.2 KB IGS Downloads_IGS_6.3x5.8x2 (rev1).igs \| 1.7 MB STP Downloads_STP_6.3x5.8x2 (rev1).stp \| 414.3 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance56 µF	Rated Voltage25 V (DC)	Ripple Current1300 mA	Leakage Current14 µA	Dissipation Factor14 %	ESR50 mΩ	Diameter6.3 mm	Length5.8 mm	Design Kit –
875575757004	56 µF, 50 V (DC), 2000 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x10.5x4 (rev1).pdf \| 374.9 KB IGS Downloads_IGS_10x10.5x4 (rev1).igs \| 1.8 MB STP Downloads_STP_10x10.5x4 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance56 µF	Rated Voltage50 V (DC)	Ripple Current2000 mA	Leakage Current28 µA	Dissipation Factor10 %	ESR28 mΩ	Diameter10 mm	Length10.5 mm	Design Kit –
875575857006	56 µF, 63 V (DC), 1800 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x10.5x4 (rev1).pdf \| 374.9 KB IGS Downloads_IGS_10x10.5x4 (rev1).igs \| 1.8 MB STP Downloads_STP_10x10.5x4 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance56 µF	Rated Voltage63 V (DC)	Ripple Current1800 mA	Leakage Current35.3 µA	Dissipation Factor8 %	ESR30 mΩ	Diameter10 mm	Length10.5 mm	Design Kit –
875575753005	68 µF, 50 V (DC), 1800 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_8x10.5x3 (rev1).pdf \| 354.7 KB IGS Downloads_IGS_8x10.5x3 (rev1).igs \| 1.7 MB STP Downloads_STP_8x10.5x3 (rev1).stp \| 444.5 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage50 V (DC)	Ripple Current1800 mA	Leakage Current34 µA	Dissipation Factor10 %	ESR30 mΩ	Diameter8 mm	Length10.5 mm	Design Kit –
875575857007	68 µF, 63 V (DC), 1800 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x10.5x4 (rev1).pdf \| 374.9 KB IGS Downloads_IGS_10x10.5x4 (rev1).igs \| 1.8 MB STP Downloads_STP_10x10.5x4 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance68 µF	Rated Voltage63 V (DC)	Ripple Current1800 mA	Leakage Current42.8 µA	Dissipation Factor8 %	ESR30 mΩ	Diameter10 mm	Length10.5 mm	Design Kit –
875575344001	100 µF, 16 V (DC), 1300 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_6.3x5.8x2 (rev1).pdf \| 367.2 KB IGS Downloads_IGS_6.3x5.8x2 (rev1).igs \| 1.7 MB STP Downloads_STP_6.3x5.8x2 (rev1).stp \| 414.3 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage16 V (DC)	Ripple Current1300 mA	Leakage Current16 µA	Dissipation Factor16 %	ESR50 mΩ	Diameter6.3 mm	Length5.8 mm	Design Kit 875500
875575545003	100 µF, 25 V (DC), 2000 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_6.3x7.7x2 (rev1).pdf \| 358.7 KB IGS Downloads_IGS_6.3x7.7x2 (rev1).igs \| 1.7 MB STP Downloads_STP_6.3x7.7x2 (rev1).stp \| 408.6 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage25 V (DC)	Ripple Current2000 mA	Leakage Current25 µA	Dissipation Factor14 %	ESR30 mΩ	Diameter6.3 mm	Length7.7 mm	Design Kit 875500
875575757007	100 µF, 50 V (DC), 2000 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x10.5x4 (rev1).pdf \| 374.9 KB IGS Downloads_IGS_10x10.5x4 (rev1).igs \| 1.8 MB STP Downloads_STP_10x10.5x4 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage50 V (DC)	Ripple Current2000 mA	Leakage Current50 µA	Dissipation Factor10 %	ESR28 mΩ	Diameter10 mm	Length10.5 mm	Design Kit –
875575344003	150 µF, 16 V (DC), 1300 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_6.3x5.8x2 (rev1).pdf \| 367.2 KB IGS Downloads_IGS_6.3x5.8x2 (rev1).igs \| 1.7 MB STP Downloads_STP_6.3x5.8x2 (rev1).stp \| 414.3 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance150 µF	Rated Voltage16 V (DC)	Ripple Current1300 mA	Leakage Current24 µA	Dissipation Factor16 %	ESR50 mΩ	Diameter6.3 mm	Length5.8 mm	Design Kit 875500
875575345004	220 µF, 16 V (DC), 2000 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_6.3x7.7x2 (rev1).pdf \| 358.7 KB IGS Downloads_IGS_6.3x7.7x2 (rev1).igs \| 1.7 MB STP Downloads_STP_6.3x7.7x2 (rev1).stp \| 408.6 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage16 V (DC)	Ripple Current2000 mA	Leakage Current35.2 µA	Dissipation Factor16 %	ESR30 mΩ	Diameter6.3 mm	Length7.7 mm	Design Kit 875500
875575553004	220 µF, 25 V (DC), 2300 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_8x10.5x3 (rev1).pdf \| 354.7 KB IGS Downloads_IGS_8x10.5x3 (rev1).igs \| 1.7 MB STP Downloads_STP_8x10.5x3 (rev1).stp \| 444.5 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage25 V (DC)	Ripple Current2300 mA	Leakage Current55 µA	Dissipation Factor14 %	ESR27 mΩ	Diameter8 mm	Length10.5 mm	Design Kit –
875575357006	330 µF, 16 V (DC), 2500 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x10.5x4 (rev1).pdf \| 374.9 KB IGS Downloads_IGS_10x10.5x4 (rev1).igs \| 1.8 MB STP Downloads_STP_10x10.5x4 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage16 V (DC)	Ripple Current2500 mA	Leakage Current52.8 µA	Dissipation Factor16 %	ESR20 mΩ	Diameter10 mm	Length10.5 mm	Design Kit –
875575557006	330 µF, 25 V (DC), 2500 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x10.5x4 (rev1).pdf \| 374.9 KB IGS Downloads_IGS_10x10.5x4 (rev1).igs \| 1.8 MB STP Downloads_STP_10x10.5x4 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage25 V (DC)	Ripple Current2500 mA	Leakage Current82.5 µA	Dissipation Factor14 %	ESR20 mΩ	Diameter10 mm	Length10.5 mm	Design Kit –
875575357008	470 µF, 16 V (DC), 2500 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x10.5x4 (rev1).pdf \| 374.9 KB IGS Downloads_IGS_10x10.5x4 (rev1).igs \| 1.8 MB STP Downloads_STP_10x10.5x4 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage16 V (DC)	Ripple Current2500 mA	Leakage Current75.2 µA	Dissipation Factor16 %	ESR20 mΩ	Diameter10 mm	Length10.5 mm	Design Kit –
875575561007	470 µF, 25 V (DC), 2800 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x12.4x4 (rev1).pdf \| 364.6 KB IGS Downloads_IGS_10x12.4x4 (rev1).igs \| 1.7 MB STP Downloads_STP_10x12.4x4 (rev1).stp \| 444.6 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage25 V (DC)	Ripple Current2800 mA	Leakage Current117.5 µA	Dissipation Factor14 %	ESR16 mΩ	Diameter10 mm	Length12.4 mm	Design Kit –
875575357010	560 µF, 16 V (DC), 2500 mA	Simulation	Downloads8 files EDA models: Components ZIP ALT Altium_WCAP-HSG5 (rev25a).IntLib \| 466.5 KB CDS Cadence_WCAP-HSG5 (rev25a).zip \| 2.4 MB EAG Eagle_WCAP-HSG5 (rev25a).lbr \| 46.2 KB KIC KiCad_WCAP-HSG5 (rev25b).zip \| 885.4 KB CAD files ZIP 3D Downloads_3D_10x10.5x4 (rev1).pdf \| 374.9 KB IGS Downloads_IGS_10x10.5x4 (rev1).igs \| 1.8 MB STP Downloads_STP_10x10.5x4 (rev1).stp \| 484.1 KB Electric models ZIP PSP Pspice_WCAP-HSG5 (rev25a).zip \| 7.3 KB Download all 8 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance560 µF	Rated Voltage16 V (DC)	Ripple Current2500 mA	Leakage Current89.6 µA	Dissipation Factor16 %	ESR20 mΩ	Diameter10 mm	Length10.5 mm	Design Kit –
